What is Bently Nevada 170180-01-00?

It is a FieldMonitor external transducer I/O module.

How many channels are handled by Bently Nevada 170180-01-00?

The module accommodates two transducer inputs.

Which interface is selected by Bently Nevada 170180-01-00?

The -01 execution is used for externally conditioned Proximitor inputs.

Where is Bently Nevada 170180-01-00 installed?

It occupies one slot in a FieldMonitor terminal base.

Can Bently Nevada 170180-01-00 be used for probes without external Proximitor sensors?

No. Those arrangements use different interface-module executions.

What should be documented before replacing Bently Nevada 170180-01-00?

Record both channel assignments, supplies, commons and shields.

Which electrical state should be checked after fitting Bently Nevada 170180-01-00?

Verify the documented transducer supply and stable input bias on both channels.

How is Bently Nevada 170180-01-00 commissioned?

Confirm both channel responses, monitor status and the configured alarm path.

170180-01-00

Name: 170180-01-00
Brand: Bently Nevada
SKU: 170180-01-00

Transducer I/O Module

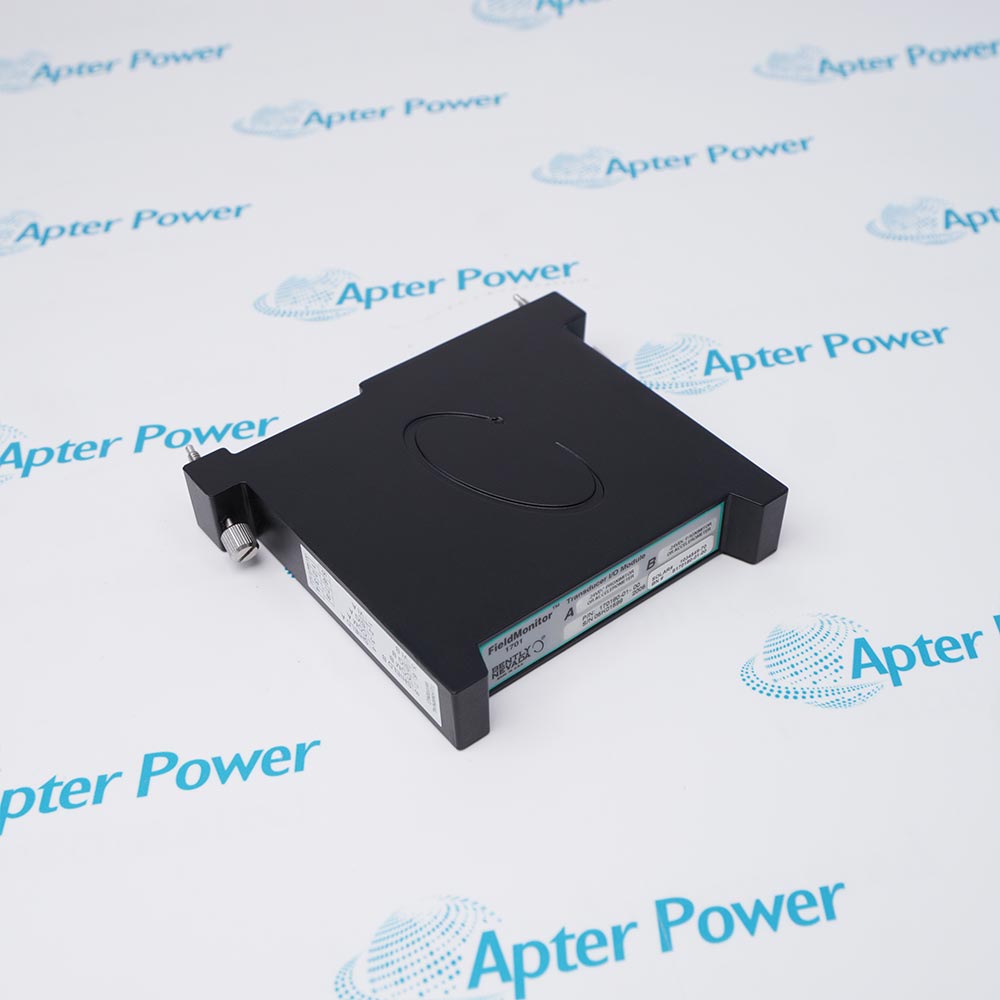

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Bently Nevada 170180-01-00 is a two-channel FieldMonitor external transducer I/O module for externally conditioned proximity inputs. The -01 input execution supplies and receives the documented Proximitor signal pair.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 170180-01-00

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 170180-01-00

Manufacturer:

Bently Nevada
Product Category:

Machinery Monitoring Systems
Spare Part Number:

170180-01-00
Estimated shipping dimensions:

12.7x2.1x10.5cm
Weight:

0.28 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Platform:

FieldMonitor 1701
Module role:

External transducer I/O
Input channels:

2
Selected interface:

External Proximitor sensor inputs
Terminal-base use:

One module position
Input signal range:

0 V to negative transducer supply
Frequency response:

-5% above 25 kHz
Selection rule:

Use the exact -01 input execution with the paired monitor module

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

Bently Nevada 170180-01-00 connects two external Proximitor channels to their associated FieldMonitor two-channel monitoring module.

Occupies one position in a FieldMonitor terminal base.
Accepts two external Proximitor signal channels in the -01 execution.
Provides the documented negative transducer supply for the selected interface.
Passes conditioned transducer signals to the paired monitoring module.

The transducer i/o module must remain within its defined transducer or monitoring-system boundary. Confirm the mating hardware, controlled configuration and final signal response before restoring protection.

Important Notice: Verify the complete 170180-01-00 marking, mating interface and controlled channel configuration before installation.

Bently Nevada 170180-01-00 Manuals & Downloads

Bently Nevada 170180-01-00 Technical Reference (PDF)Bently Nevada 170180-01-00 Installation & Commissioning Guide (PDF)

The Technical Reference contains selected manufacturer pages for the documented product family, or a dedicated technical reference when a clean source file is unavailable. The installation guide covers identification, installation checks, functional verification and the acceptance record.

Proximity channel interface

Connect two external Proximitor sensors to a paired two-channel monitor.

Legacy FieldMonitor maintenance

Restore a documented 1701 terminal-base position.

Shaft vibration input

Pass qualified proximity signals to a configured vibration channel.

Position monitoring

Interface a supported displacement channel through external signal conditioning.

Before installing Bently Nevada 170180-01-00, verify the complete nameplate identity, the mating interface and the controlled system configuration.

Confirm 170180-01-00 on the module and terminal-base record.

Verify both connected channels use the external Proximitor interface expected by the -01 execution.

Record terminal assignments, shields and negative supplies before removal.

Isolate the FieldMonitor terminal base according to the site procedure.

Do not mix this execution with internal-Proximitor interface modules.

Inspect terminal contacts and module keying before insertion.

Restore the paired monitor configuration before applying a signal.

Verify both channels for supply, bias, response and alarm-path operation.

Technical notes

Verify the complete 170180-01-00 marking, mating interface and controlled channel configuration before installation.

FAQ View All FAQ

What is Bently Nevada 170180-01-00?

It is a FieldMonitor external transducer I/O module.
How many channels are handled by Bently Nevada 170180-01-00?

The module accommodates two transducer inputs.
Which interface is selected by Bently Nevada 170180-01-00?

The -01 execution is used for externally conditioned Proximitor inputs.
Where is Bently Nevada 170180-01-00 installed?

It occupies one slot in a FieldMonitor terminal base.

Can Bently Nevada 170180-01-00 be used for probes without external Proximitor sensors?

No. Those arrangements use different interface-module executions.
What should be documented before replacing Bently Nevada 170180-01-00?

Record both channel assignments, supplies, commons and shields.
Which electrical state should be checked after fitting Bently Nevada 170180-01-00?

Verify the documented transducer supply and stable input bias on both channels.
How is Bently Nevada 170180-01-00 commissioned?

Confirm both channel responses, monitor status and the configured alarm path.
