ControlLogix Standard Chassis
The chassis backplane provides a high
speed communication path between modules
and distributes power to each of the modules within the chassis

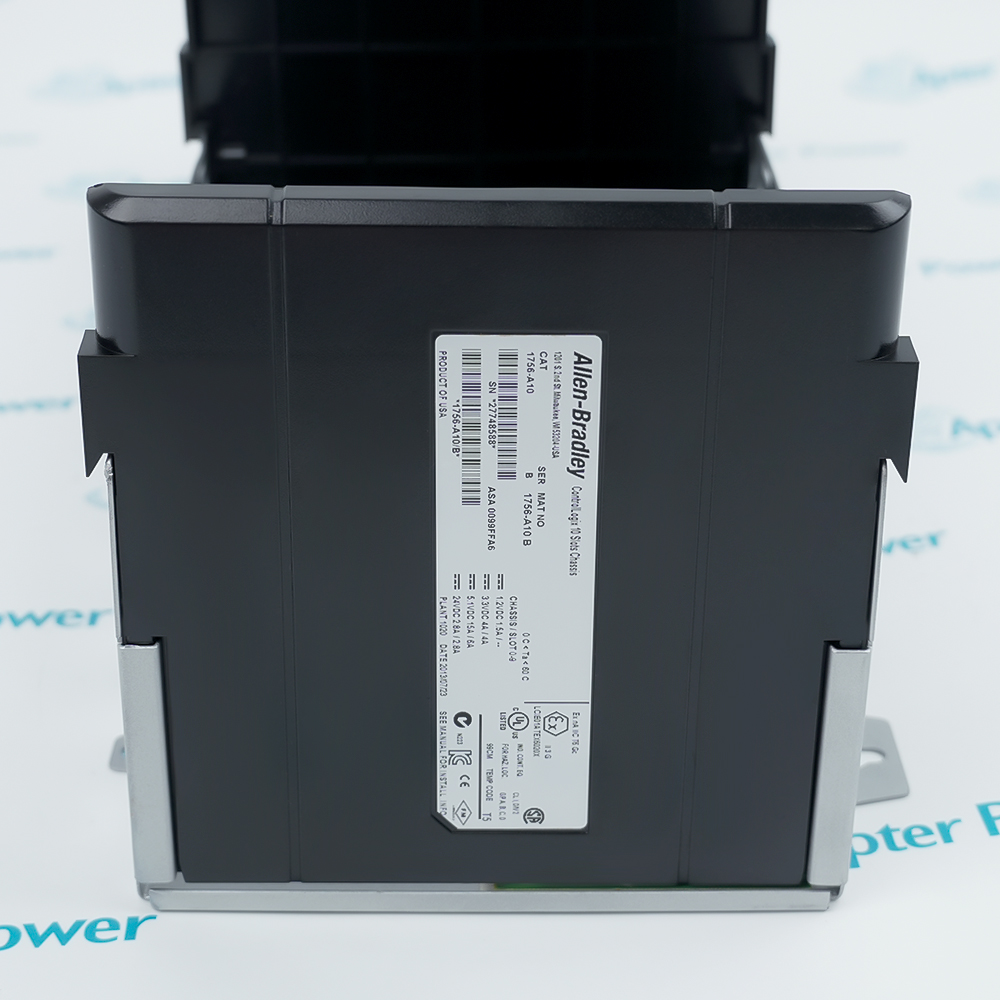

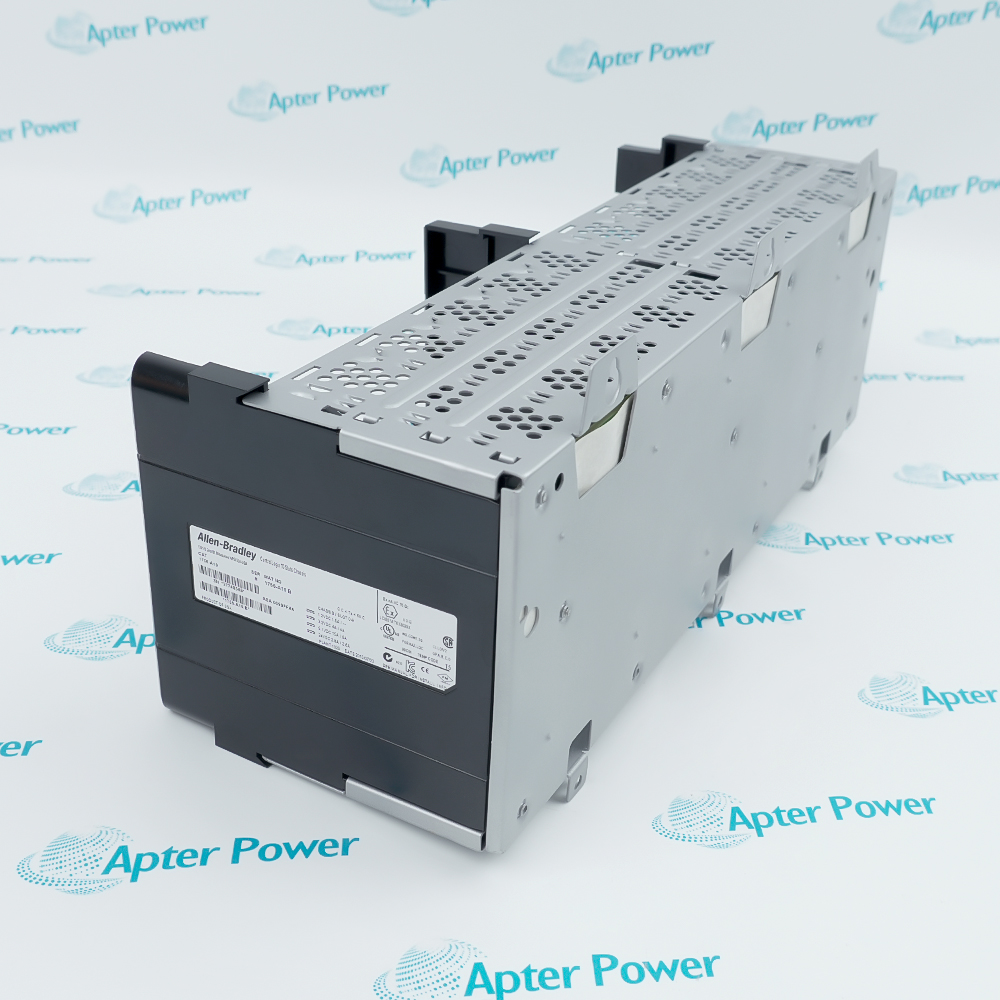

The 1756-A10 is a 10-slot industrial chassis for the ControlLogix series. This chassis delivers full compatibility with various Bulletin 1756 I/O and compute modules, providing exceptional scalability and flexibility for automation system configurations.
Distributes power to each of the modules in the chassis via the backplane
Slot guides and snap-in retention for easy and secure fit for any type of 1756 module
Slot fillers specifically designed for the standard or extreme environment chassis
The 1756-A10 chassis plays a critical role in automation control. It can be configured as a main control chassis to house complex controllers and run control logic, or deployed across plant-wide communication links as a distributed remote I/O chassis. Its 10-slot capacity delivers a balance between physical footprint and future expansion capability, making it suitable for mid-sized process control loops, motor control centers, and standalone control cabinets for large machinery.
This chassis supports removal and insertion under power, allowing maintenance personnel to replace faulty modules directly while the system remains fully operational and the backplane stays powered. This capability minimizes repair time and reduces downtime losses. It is fully compatible with redundant control systems in high-availability architectures and provides high data throughput, electromagnetic compatibility, and industrial-grade environmental resistance, making it a reliable foundational hardware component in continuous production processes across industries such as oil and gas, power generation, water treatment, and heavy manufacturing.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 1756-A10 ControlLogix Standard Chassis Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Widely used in stamping and welding assembly lines, the 1756-A10 houses the main controller, multiple Ethernet modules, and high-speed latching I/O to precisely coordinate the synchronized motion and safety interlocking of dozens of industrial robots.
Petrochemical & Refining
Used for continuous process control in crude distillation or catalytic cracking units. The 1756-A10 accommodates a massive volume of analog I/O modules to collect real-time temperature, pressure, and flow data, executing precise PID regulations.
Thermal Power Generation
Serves as the core hardware for Boiler Control and Balance of Plant (BOP) systems. The 1756-A10 manages sequential control and protective interlocking for massive auxiliary equipment like forced-draft fans, induced-draft fans, and coal pulverizers.
Steel & Metallurgical Industry
Controls blast furnace rolling mills and continuous casting production lines. Utilizing the chassis' high-speed backplane throughput, it connects high-speed counters and servo axis modules for millisecond-level dynamic closed-loop adjustments of steel thickness and casting speed.
Pharmaceutical Industry
Provides control in large-scale bioreactors and batch fermentation vessels. The chassis hosts primary controllers alongside formula data-logging modules compliant with FDA 21 CFR Part 11, strictly monitoring subtle variations in temperature and pH levels.
When using the Allen-Bradley 1756-A10 chassis, pay close attention to the following key points: During installation, ensure the chassis is properly grounded to suppress electromagnetic interference, and leave sufficient clearance on the right side for power supply mounting and heat dissipation. When performing removal and insertion under power (RIUP), verify that the surrounding area is non-hazardous and safe, as tiny electrical sparks could pose safety risks.
Additionally, insert modules with even, perpendicular force to avoid bending the backplane pins, and strictly calculate the total current draw to ensure the combined consumption of all modules does not exceed the output limit of the power supply.
The Allen-Bradley 1756-A10 is a 10-slot standard chassis that provides electrical and physical support for the ControlLogix system via a high-speed ControlBus backplane. Built ruggedly for harsh industrial environments, it features Removal and Insertion Under Power (RIUP) and multi-processing capabilities. Learn more about the compatibility and dimensions of the 1756-A10.
How many ControlLogix module slots does the 1756-A10 have?
The 1756-A10 has Ten slots.
What is the supported mounting method of the 1756-A10?
The 1756-A10 support direct panel mounting via the mounting tabs.
Does the power supply slot included to the slot count of the 1756-A10?
The power supply slot, located at the left most side of the chassis is not part of the chassis slot count.
Which power supplies are compatible with the 1756-A10?
It is compatible with standard ControlLogix power supplies such as the 1756-PA72, 1756-PB72, 1756-PA75, and 1756-PB75.
Does the 1756-A10 backplane require a specific routing sequence?
No, modules can be placed in any available slot, as the system does not enforce strict slot dependencies.
