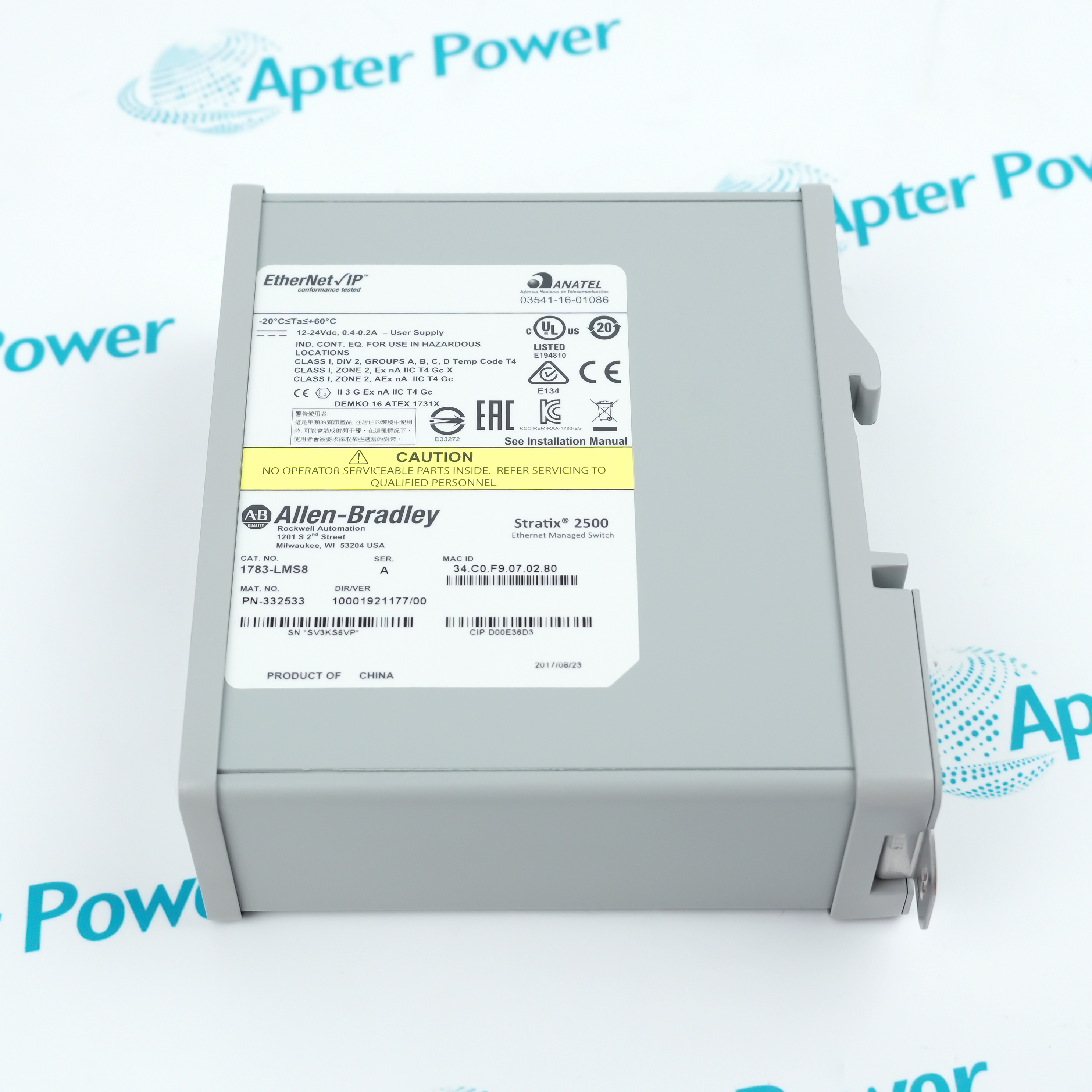

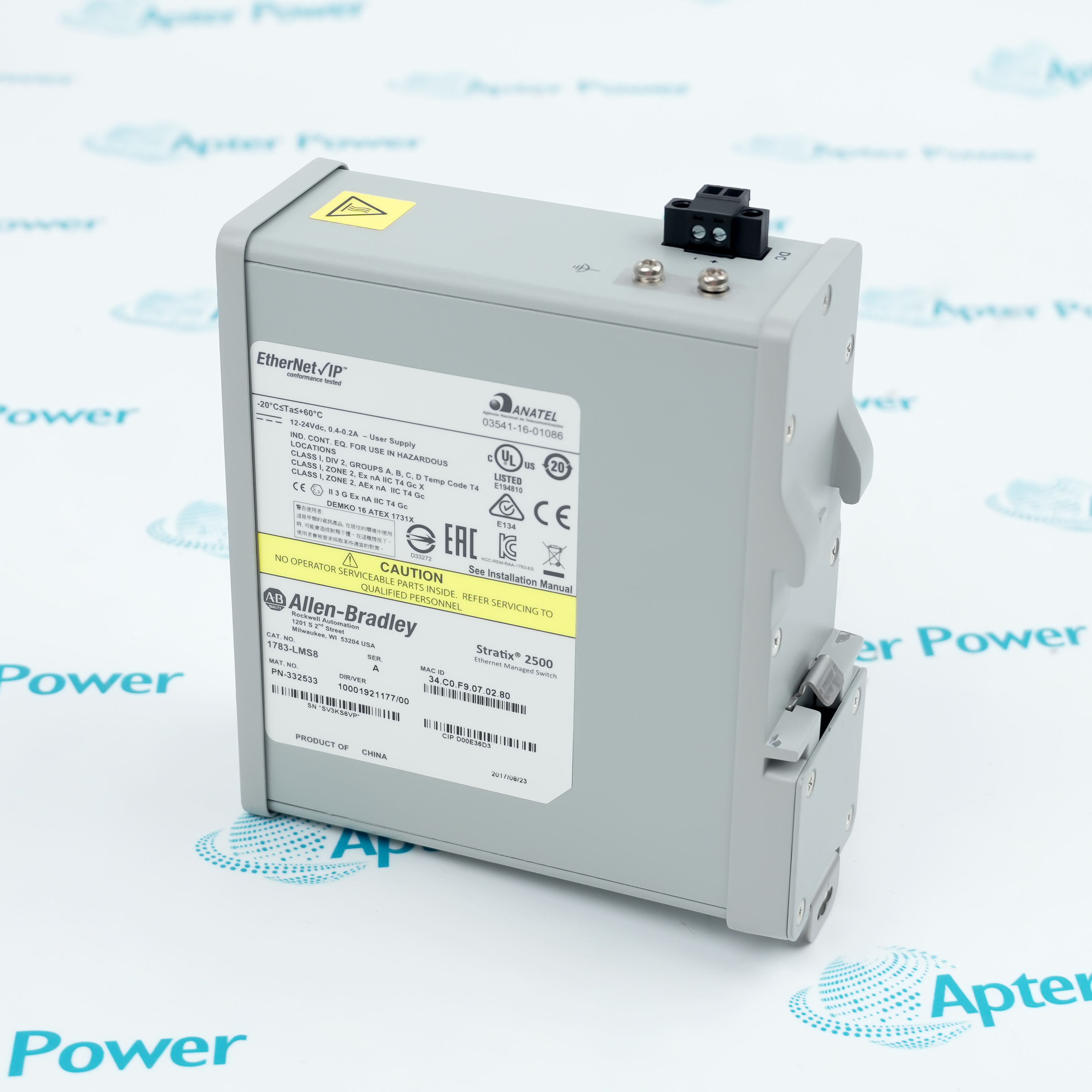

The 1783-LMS8 belongs to the Stratix 2500 family of lightly managed industrial switches. It features eight RJ45 copper ports supporting 10/100 Mbps data rates for plant-floor connectivity. Operating on an external 12-24V DC SELV source, this energy-efficient unit has a maximum power consumption and thermal dissipation of 5.3W. The compact device supports standard DIN rail installation and offers flexible setup options via either its built-in web-based Device Manager or the Studio 5000 Logix Designer platform.
Native support for CIP protocol
A single machine supports up to 128 network connections
Integrated MAC address-based port security management
The 1783-LMS8 natively supports the Common Industrial Protocol (CIP), capable of handling both explicit messaging and implicit (I/O) messaging communication modes, and supports a maximum of 128 network connections. To optimize the network structure, it allows logical segmentation of devices and lines within a single switch, significantly reducing the total number of switches required in the system.
Additionally, the device integrates rich management and diagnostic tools, including SNMP, alarm relays, and a Syslog system for monitoring network anomalies. In terms of cybersecurity, besides supporting SSH and HTTPS encrypted access, it provides MAC address-based Port Security, allowing unauthorized ports to be disabled at any time to block illicit terminal access.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen Bradley 1783-LMS8 Stratix 2500 Lightly Managed Switches Proximity Transducer Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Connects robot controllers, PLCs, HMIs, and distributed I/O modules on welding and assembly lines, enabling high-speed CIP implicit (I/O) data exchange in compact spaces.
Pharmaceuticals & Life Sciences
Securely transmits environmental monitoring data (temp, humidity, differential pressure) in cleanroom batch control systems via HTTPS/SSH encrypted channels for compliance auditing.
Mining & Metals
Implements reliable copper networking between distributed I/O stations and main control rooms inside crusher and conveyor control cabinets (IP30, -20°C to +60°C wide temp).
Cement & Building Materials
Acts as a lightly managed switch in batching and kiln control systems to logically segment networks of weighing scales, valve actuators, and fans, optimizing bandwidth and simplifying network.
Pulp & Paper
Utilizes alarm relays on the periphery of paper machine and rewinder Distributed Control Systems (DCS) for real-time network fault outputs to prevent web breaks and downtime.
Textile Machinery
Powered by 24VDC SELV in multi-point architectures of large looms or dyeing machines, providing low-power, high-density 10/100 Mbps copper access for spinning and temperature control nodes.
When using the Allen-Bradley 1783-LMS8 switch, ensure it operates within the -20 to +60°C temperature range using a 12–24V DC SELV external power supply and minimum Cat 5e cabling with standard-compliant RJ45 connectors. Leverage its CIP protocol and logical segmentation features to optimize I/O traffic, and secure the network by implementing MAC-based port security along with SSH/HTTPS encryption.
The Allen-Bradley 1783-LMS8 is a Stratix 2500 series lightly managed industrial Ethernet switch, featuring 8 ports that support 10/100 Base-T fast Ethernet connectivity.
What is the supported communication speed of the 1783-LMS8?
The 1783-LMS8 supports 10/100 mbps communication rate.
What is the number of ethernet ports available to the 1783-LMS8?
The 1783-LMS8 has Eight (8) ethernet communication ports.
What is the Allen-Bradley 1783-LMS8?
It is an industrial Layer 2 light-managed Ethernet switch designed for factory automation and control networks.
What is the main function of 1783-LMS8?
It connects industrial devices like PLCs, HMIs, and drives, providing optimized traffic filtering and secure data transmission.
How many ports does the 1783-LMS8 have?
It features 8 ports, typically configured as 10/100 Mbps Fast Ethernet copper ports for local device connections.
