      Allen-Bradley 1746-A7
      Allen-Bradley 1746-A7
      Allen-Bradley 1746-A7
      Allen-Bradley 1746-A7
      Allen-Bradley 1746-A7
      Allen-Bradley 1746-A7
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      1746-A7

      7-Slot Chassis
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Allen-Bradley 1746-A7 is a seven-slot SLC 500 modular chassis that provides the mechanical mounting and backplane connection for the processor or communication adapter, power supply and installed SLC modules.

      Ask our team:

      Get a quick price for： 1746-A7
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 1746-A7

      Technical specifications for 1746-A7

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC Systems
      • Spare Part Number:
        1746-A7
      • Estimated shipping dimensions:
        28.2x14.5x17cm
      • Weight:
        1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        SLC 500
      • Hardware style:
        Modular chassis
      • Module slots:
        7
      • Mounting:
        Panel mount
      • Mounting tabs:
        4
      • Backplane current at 5.1 V DC:
        10 A maximum
      • Backplane current at 24 V DC:
        2.88 A maximum
      • Operating temperature:
        0 to 60 degrees C
      • Storage temperature:
        -40 to 85 degrees C
      • Relative humidity:
        5 to 95 percent, noncondensing
      • Lifecycle status:
        Discontinued March 31, 2024
      • Planned replacement:
        No Rockwell Automation replacement listed
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Allen-Bradley 1746-A7 is a seven-slot SLC 500 modular chassis that provides the mechanical mounting and backplane connection for the processor or communication adapter, power supply and installed SLC modules.
      • Seven-slot backplane: Accepts a seven-position SLC modular hardware arrangement.
      • Modular system support: Hosts the documented processor or communication adapter, power supply and SLC modules.
      • Four-tab mounting: Uses four chassis mounting tabs for a controlled panel installation.
      • Backplane distribution: Distributes the documented 5.1 V DC and 24 V DC backplane capacity to installed modules.

      Match the complete 1746-A7 chassis identity, mount it with all four chassis tabs and verify every installed module, power supply and backplane connection before commissioning.

      Important Notice: Confirm the complete Allen-Bradley 1746-A7 identity and controlled configuration before commissioning.

      Allen-Bradley 1746-A7 Manuals & Downloads
      Allen-Bradley 1746-A7 Technical Reference (PDF)Allen-Bradley 1746-A7 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      SLC 500 control cabinet
      Provides the base for a seven-slot modular SLC 500 station.
      Installed-base chassis renewal
      Supports controlled replacement when the exact slot and power arrangement is retained.
      Remote I/O station
      Hosts an approved communication adapter and compatible I/O modules.
      Maintenance rebuild
      Provides a documented backplane and mechanical reference for restoring a legacy station.
      Read the applicable Allen-Bradley instructions before work. Verify Allen-Bradley 1746-A7 and the installed system configuration before commissioning.
      1

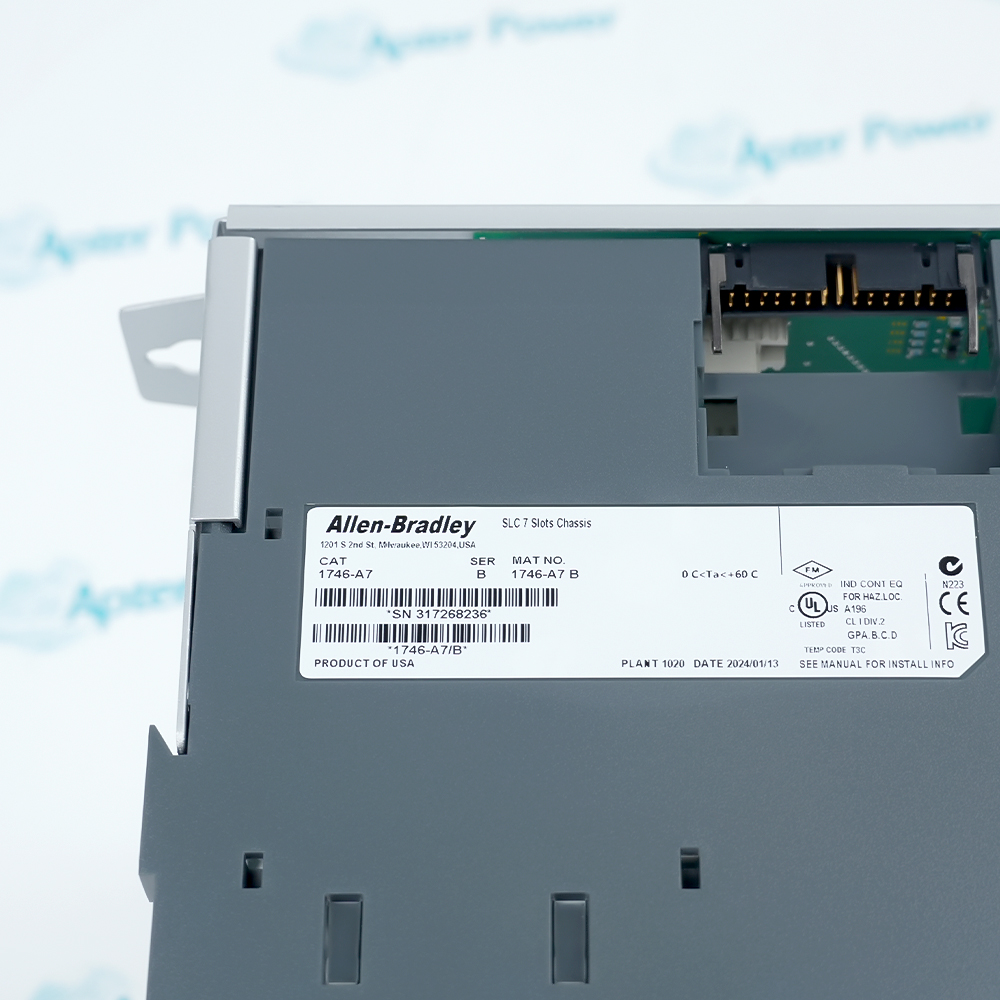

      Verify the complete 1746-A7 marking before work.
      2
      De-energize the complete SLC 500 station before removing modules or the chassis.
      3
      Record the slot assignment and connector location of every installed module.
      4
      Use all four chassis mounting tabs and approved mounting hardware.
      5
      Confirm power-supply and total backplane-current compatibility.
      6
      Keep the chassis free from conductive debris and cabinet contamination.
      7
      Inspect backplane connectors before reinstalling modules.
      8
      Restore modules to their recorded slots and complete processor, I/O and communication checks.

      Technical notes

      Technical notes

      Match the complete 1746-A7 chassis identity, mount it with all four chassis tabs and verify every installed module, power supply and backplane connection before commissioning.

      FAQS

      • What is Allen-Bradley 1746-A7?
        1746-A7 is a seven-slot modular chassis for the SLC 500 system.
      • How many slots does Allen-Bradley 1746-A7 provide?
        It provides seven module slots.
      • How is Allen-Bradley 1746-A7 mounted?
        It is a panel-mounted chassis with four mounting tabs.
      • Which hardware is installed in Allen-Bradley 1746-A7?
        The chassis supports the documented processor or communication adapter, power supply and compatible SLC modules.
      • What 5.1 V DC backplane capacity is listed for Allen-Bradley 1746-A7?
        The installation instruction lists 10 A maximum at 5.1 V DC.
      • What 24 V DC backplane capacity is listed for Allen-Bradley 1746-A7?
        The installation instruction lists 2.88 A maximum at 24 V DC.
      • Can Allen-Bradley 1746-A7 modules be moved without recording slot positions?
        No. Record every module and slot before removal so the controlled hardware configuration can be restored.
      • What confirms Allen-Bradley 1746-A7 commissioning?
        The mounting, slot arrangement, power supply, backplane current, processor, communications and I/O checks must match the approved record.
      Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, modules and cards, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
