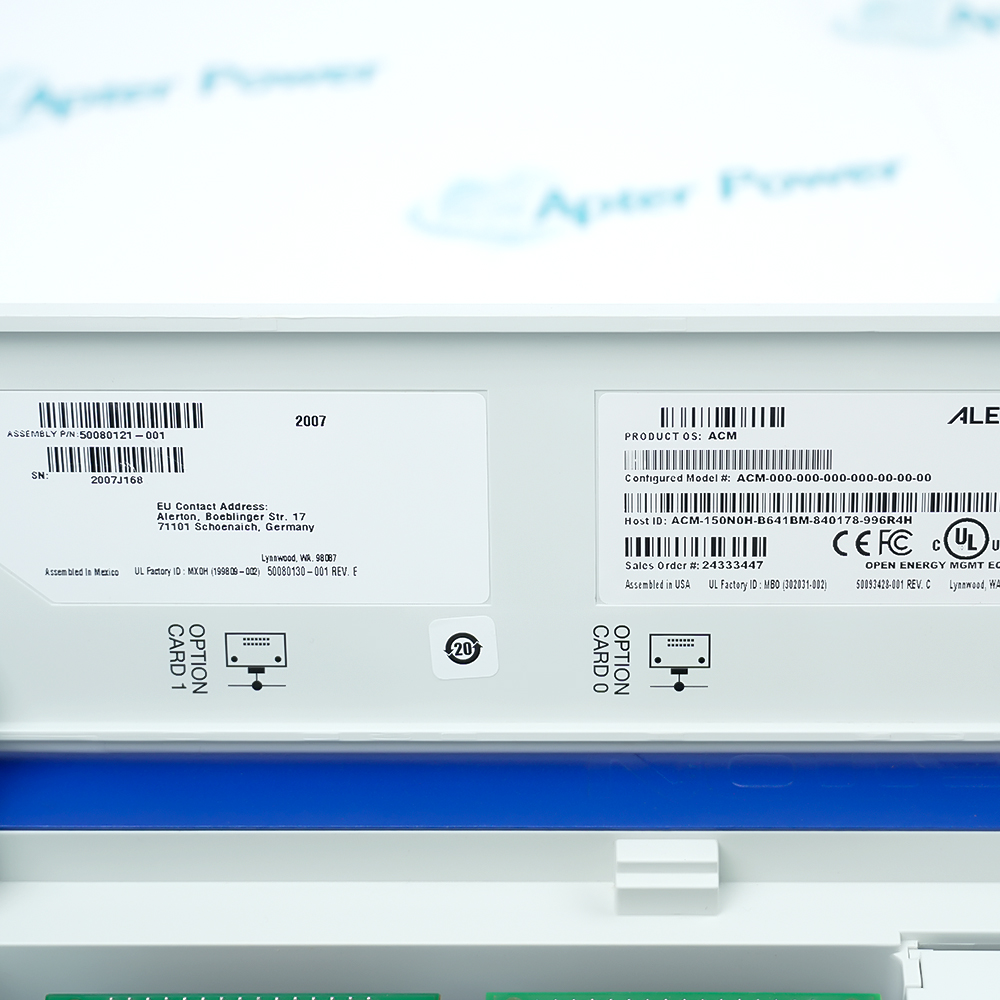

      ALERTON ACM-000-000-000-000-00-00-00 50080121-001
      ALERTON ACM-000-000-000-000-00-00-00 50080121-001
      ALERTON ACM-000-000-000-000-00-00-00 50080121-001
      ALERTON ACM-000-000-000-000-00-00-00 50080121-001
      ALERTON ACM-000-000-000-000-00-00-00 50080121-001
      ALERTON ACM-000-000-000-000-00-00-00 50080121-001
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      ACM-000-000-000-000-00-00-00 50080121-001

      Ascent Control Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      The ACM is a BACnet Building Controller and Niagara Framework platform that combines multi-controller execution, Ethernet connectivity and field-bus expansion in one controller.

      Ask our team:

      Get a quick price for： ACM-000-000-000-000-00-00-00 50080121-001
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for ACM-000-000-000-000-00-00-00 50080121-001

      Technical specifications for ACM-000-000-000-000-00-00-00 50080121-001

      • Manufacturer:
        ALERTON
      • Product Category:
        General Automation
      • Spare Part Number:
        ACM-000-000-000-000-00-00-00 50080121-001
      • Estimated shipping dimensions:
        18.5×22.0×4.4 cm
      • Weight:
        1.05 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • BACnet profile:
        BACnet Building Controller (B-BC)
      • Software platform:
        Niagara Framework
      • Controller instances:
        Up to 6 global controller instances
      • MS/TP LANs:
        Up to 6 EIA-485 MS/TP LANs
      • Ethernet ports:
        2 x 10/100/1000 Ethernet
      • Processor:
        Quad-core ARM Cortex-A9
      • System memory:
        1 GB DDR3, 533 MHz / 1066 MT/s
      • Storage:
        Removable microSD
      • Clock:
        Real-time clock
      • BACnet networking:
        BACnet IPv4 and IPv6
      • BBMD capacity:
        Up to 4 BBMDs
      • Modbus support:
        Modbus TCP and Modbus RTU
      • Modbus device capacity:
        Up to 384 devices
      • TUX support:
        Up to 4 trunks
      • Expansion cards:
        Up to 2 option cards
      • Mounting:
        35 mm DIN rail
      • Certifications:
        RoHS, CE, FCC Class B, ICES-003, C-Tick, UL 916 and BTL
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Alerton ACM-000-000-000-000-00-00-00 50080121-001 is an Ascent Control Module. The ACM is a BACnet Building Controller and Niagara Framework platform that combines multi-controller execution, Ethernet connectivity and field-bus expansion in one controller.
      • Multi-controller execution: Runs as many as six global controller instances on the ACM platform.
      • High-speed Ethernet: Provides two 10/100/1000 Ethernet interfaces for BACnet/IP and supervisory networking.
      • Flexible field integration: Supports MS/TP, Modbus TCP, Modbus RTU and TUX expansion through the documented architecture.
      • Expandable hardware: Accepts up to two option cards for the approved installation configuration.

      Retain the complete ACM marking and item identity. Confirm the installed option cards, network addressing, controller instances, MS/TP trunks, licenses and Compass or Niagara project before replacement or recommissioning.

      Important Notice: Confirm the complete Alerton ACM-000-000-000-000-00-00-00 50080121-001 identity and controlled configuration before commissioning.

      ACM-000-000-000-000-00-00-00 50080121-001 Manuals & Downloads
      ACM-000-000-000-000-00-00-00 50080121-001 Technical Reference (PDF)ACM-000-000-000-000-00-00-00 50080121-001 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Building automation supervision
      Coordinates BACnet control, alarming, scheduling and network integration in an Alerton system.
      BACnet/IP integration
      Connects approved building controllers and supervisory devices through Ethernet and IPv4 or IPv6.
      MS/TP field networks
      Supervises documented BACnet MS/TP trunks through the installed EIA-485 interfaces.
      Legacy and Modbus integration
      Integrates approved Modbus and TUX devices within the configured ACM project.
      Read the applicable Alerton instructions before work. Verify Alerton ACM-000-000-000-000-00-00-00 50080121-001 and the installed system configuration before commissioning.
      1
      Verify the complete Alerton ACM marking and 50080121-001 item identity before work.
      2
      Place the controlled building systems and networks in the approved maintenance state.
      3
      Back up the Compass or Niagara project, licenses, users, schedules and network settings.
      4
      Record both Ethernet port assignments, IP settings and BACnet device identities.
      5
      Record every MS/TP, Modbus and TUX trunk before disconnecting field wiring.
      6
      Use ESD controls and preserve the microSD and installed option-card arrangement.
      7
      Do not substitute a different ACM or option-card configuration without documented compatibility review.
      8
      Verify communications, alarms, schedules, trends and controlled functions before release.

      Technical notes

      Technical notes

      Retain the complete ACM marking and item identity. Confirm the installed option cards, network addressing, controller instances, MS/TP trunks, licenses and Compass or Niagara project before replacement or recommissioning.

      FAQS

      • What is Alerton ACM-000-000-000-000-00-00-00 50080121-001?
        It is an Alerton Ascent Control Module that combines a BACnet Building Controller profile with the Niagara Framework platform.
      • How many controller instances can Alerton ACM-000-000-000-000-00-00-00 50080121-001 run?
        The official ACM data sheet lists up to six global controller instances.
      • How many Ethernet ports does Alerton ACM-000-000-000-000-00-00-00 50080121-001 provide?
        It provides two 10/100/1000 Ethernet ports.
      • Which BACnet network versions does Alerton ACM-000-000-000-000-00-00-00 50080121-001 support?
        The ACM supports BACnet over IPv4 and IPv6.
      • How many MS/TP LANs can Alerton ACM-000-000-000-000-00-00-00 50080121-001 support?
        The documented platform supports up to six EIA-485 MS/TP LANs.
      • Which Modbus interfaces are listed for Alerton ACM-000-000-000-000-00-00-00 50080121-001?
        The official data sheet lists Modbus TCP and Modbus RTU support.
      • What should be backed up before replacing Alerton ACM-000-000-000-000-00-00-00 50080121-001?
        Back up the project, licenses, users, addresses, schedules, trends and every configured network or trunk.
      • What confirms Alerton ACM-000-000-000-000-00-00-00 50080121-001 commissioning?
        All configured networks, devices, alarms, schedules, trends and controlled building functions must pass the approved acceptance checks.
