      ABB RINT-5611C 68718929
      ABB RINT-5611C 68718929
      ABB RINT-5611C 68718929
      ABB RINT-5611C 68718929
      ABB RINT-5611C 68718929
      ABB RINT-5611C 68718929
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      RINT-5611C 68718929

      ABB RINT-5611C Coated Main-Circuit Interface Spare Kit
      In Stock
      Ships by Friday, October 2
      Fast Shipping Available

      Product Describe：

      ABB RINT-5611C 68718929 is a coated main-circuit interface spare kit.
      Its verified hosts are ACS800-01/04 frame R6 drives in the 380-500 V class.
      ABB includes an internal cooling fan and requires it to be replaced with the board.
      Verify the complete drive type, frame, voltage, coating, connectors, and board suffix C.

      Ask our team:

      Get a quick price for： RINT-5611C 68718929
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for RINT-5611C 68718929

      Technical specifications for RINT-5611C 68718929

      • Manufacturer:
        ABB
      • Product Category:
        General Automation
      • Spare Part Number:
        68718929
      • Estimated shipping dimensions:
        43x24.3x7cm
      • Weight:
        1.15 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Type designation:
        RINT5611C / RINT-5611C
      • ABB catalog description:
        MAIN CIRC.INT. SP RINT5611C
      • Product type:
        Coated main-circuit interface spare kit
      • Supported drive families:
        ACS800-01 and ACS800-04
      • Supported frame:
        R6 only
      • Supported voltage class:
        380-500 V
      • Kit companion:
        Internal axial cooling fan; replace with the RINT board
      • Included fan identifier:
        63998931, as listed in ABB kit contents
      • Dimensions:
        Not published for the exact kit in the reviewed ABB sources
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB RINT-5611C, product ID 68718929, is a coated main-circuit interface spare kit for specified ACS800 industrial drives; ABB identifies it as MAIN CIRC.INT. SP RINT5611C and lists old product ID 68597714 as replaced.
      • Product ID: 68718929
      • Type designation: RINT5611C / RINT-5611C
      • ABB catalog description: MAIN CIRC.INT. SP RINT5611C
      • Product type: Coated main-circuit interface spare kit

      Inside the supported drive, the RINT board provides the documented internal interface associated with the ACS800 main circuit. ABB's public product data does not publish a channel-by-channel signal list or pinout, so the page must not claim unverified gate-drive, current-measurement, voltage-measurement, communications, or I/O functions. The exact host boundary is ACS800-01 or ACS800-04, frame R6, 380-500 V, with a coated RINT5611C board. The kit includes the internal axial cooling fan, and ABB requires the fan to be replaced when the RINT board is replaced. This kit is used inside compatible frame-R6 ACS800 wall-mounted drives and drive modules in industrial motor-control cabinets. Selection is based on the complete drive type code, frame, voltage class, board suffix, connector layout, and ABB service documentation rather than the RINT family name alone.

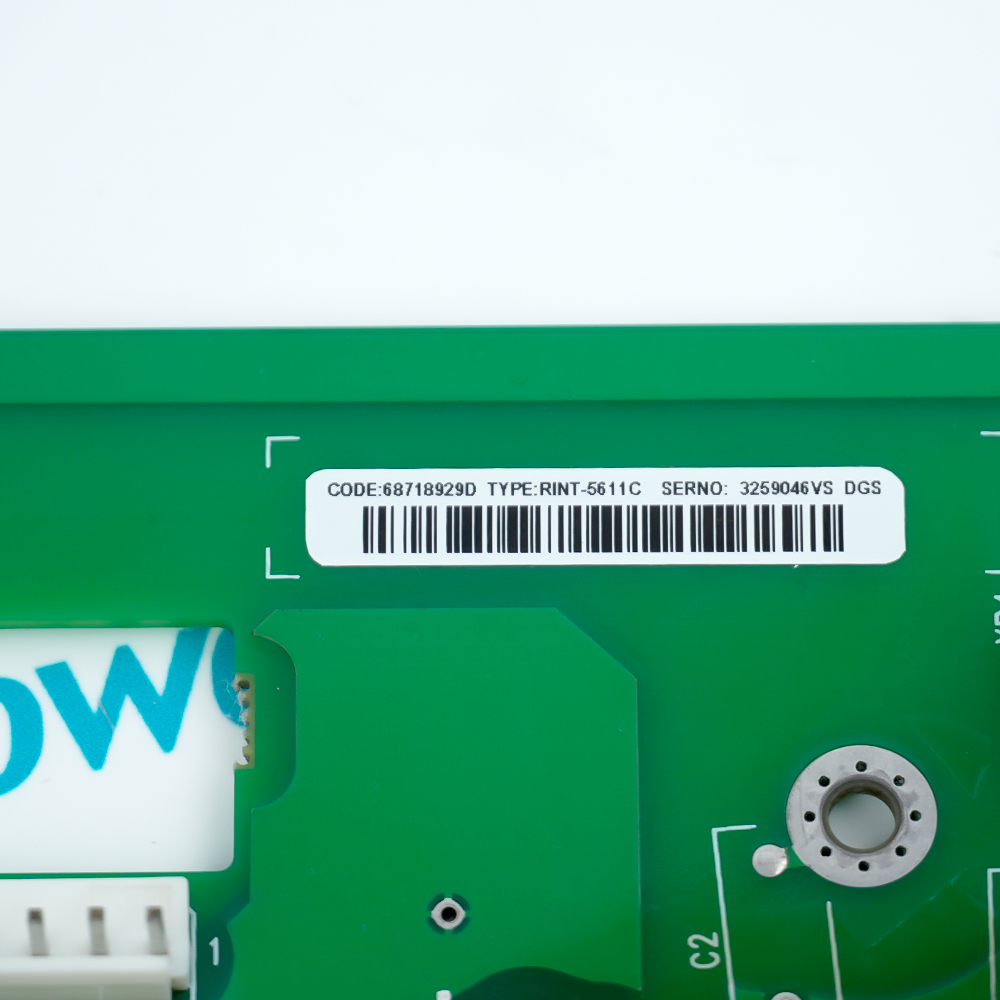

      Important Notice: Verify 68718929 and RINT5611C/RINT-5611C together on the ABB label or official order record.

      Apter Power RINT-5611C 68718929 Manuals and Guides

      Important Notice: The first link is the product-parameters PDF prepared only from the cited manufacturer information; the second link is the Apter Power product manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.

      ACS800-01 R6 main-circuit interface
      Restores the documented internal main-circuit interface in a verified 380-500 V ACS800-01 frame-R6 drive.
      ACS800-04 R6 drive-module interface
      Used in a verified 380-500 V ACS800-04 frame-R6 module when the complete drive type and RINT5611C revision match.
      Coated-board industrial drive service
      Maintains the exact coated internal-board configuration specified by ABB for the supported ACS800 assembly.
      Interface-and-fan service action
      Combines main-interface-board replacement with the ABB-required replacement of the included internal cooling fan.
      Read and follow the current ABB documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
      1
      Only qualified electrical personnel may service the drive. Disconnect all power sources, wait the ABB-specified DC-link discharge time, and verify absence of voltage before opening the drive.
      2
      Match product ID 68718929, RINT5611C suffix C, ACS800-01/04 family, frame R6, and 380-500 V class before installation.
      3
      Do not install the board in another frame, voltage class, or RINT variant based only on connector similarity.
      4
      Replace the internal cooling fan supplied with the kit whenever the RINT board is replaced, as ABB instructs.
      5
      Use ESD-safe board handling and preserve insulation sheets, creepage clearances, grounding, connector seating, fasteners, and cable routing.

      Technical notes

      Technical notes

      Verification Status: EXACT MODEL_AND_PRODUCT_ID_VERIFIED Exact Mapping: ABB product ID 68718929 identifies RINT5611C, cataloged as a MAIN CIRC.INT. SP RINT5611C. ABB product data limits its use to ACS800-01/04 frame R6, 380-500 V drives and states that the kit includes the internal cooling fan that must be replaced with the RINT board. Lifecycle Status: ABB product data identifies 68718929 as the current replacement product ID for old ID 68597714, but the reviewed exact sources do not print an Active, Classic, Limited, or Obsolete lifecycle phase. Do not invent a named lifecycle phase. Country Of Origin: Estonia (EE), as listed in ABB product data for product ID 68718929. Dimensions: Not published for the exact spare kit in the reviewed ABB official sources; do not copy ACS800 frame dimensions or third-party package dimensions into the board field. Weight: 1 kg net and gross, as listed in ABB product data for product ID 68718929. Verify 68718929 and RINT5611C/RINT-5611C together on the ABB label or official order record. Confirm the host is ACS800-01 or ACS800-04, frame R6, 380-500 V; do not infer support for another frame, voltage class, ACS800 suffix, or ACS880. Confirm the coated-board requirement and exact connector/mechanical revision before replacement. Replace the included internal cooling fan when the RINT board is replaced, following ABB's kit instruction. Do not treat old ID 68597714 as an additional current order code; retain it only as the ABB-listed replaced product ID. Compatibility outside ACS800-01/04 frame R6 380-500 V Equivalence to a different RINT suffix or part number Unpublished board-level signal names, pinouts, thresholds, or test points RS-485, Ethernet, analog I/O, PLC, or safety functions Dimensions copied from the full drive or third-party packaging A named lifecycle phase Stock, warranty, condition, or lead time

      FAQS

      • What is ABB RINT-5611C 68718929?
        It is ABB's coated main-circuit interface spare kit for specified ACS800-01 and ACS800-04 frame-R6, 380-500 V drives.
      • Are RINT-5611C and 68718929 an exact pair?
        Yes. ABB product data maps product ID 68718929 to RINT5611C.
      • Which drives support this kit?
        ABB limits the exact product data to ACS800-01 and ACS800-04 frame-R6 drives in the 380-500 V class.
      • Can it be used in another ACS800 frame?
        Not from the reviewed exact ABB data. The verified boundary is frame R6 only.
      • Does the kit include a fan?
        Yes. ABB lists an internal axial cooling fan in the kit contents and instructs that it be replaced with the board.
      • What is old product ID 68597714?
        ABB lists 68597714 as the old replaced product ID. It should not be presented as a second current order code.
      • What signals does the RINT board process?
        ABB's reviewed public product record does not provide a channel-level signal or pinout description. The safe description is the internal main-circuit interface role.
      • Is this an Ethernet or RS-485 communication board?
        No such function is published by ABB for this product, so those claims must not be made.
      • What is the exact weight?
        ABB product data lists 1 kg net and gross.
      • What are its dimensions?
        The exact kit dimensions are not published in the reviewed ABB sources. Do not use full-drive or third-party package dimensions.
      • What is the country of origin and tariff code?
        ABB product data lists Estonia and customs tariff 85049099 for product ID 68718929.
      • Is it officially Active or Classic?
        The reviewed exact sources do not assign a named lifecycle phase. They do identify 68718929 as the replacement for old ID 68597714.
