FS450R17KE3/AGDR-71C

IGBT Module and Gate Driver Kit

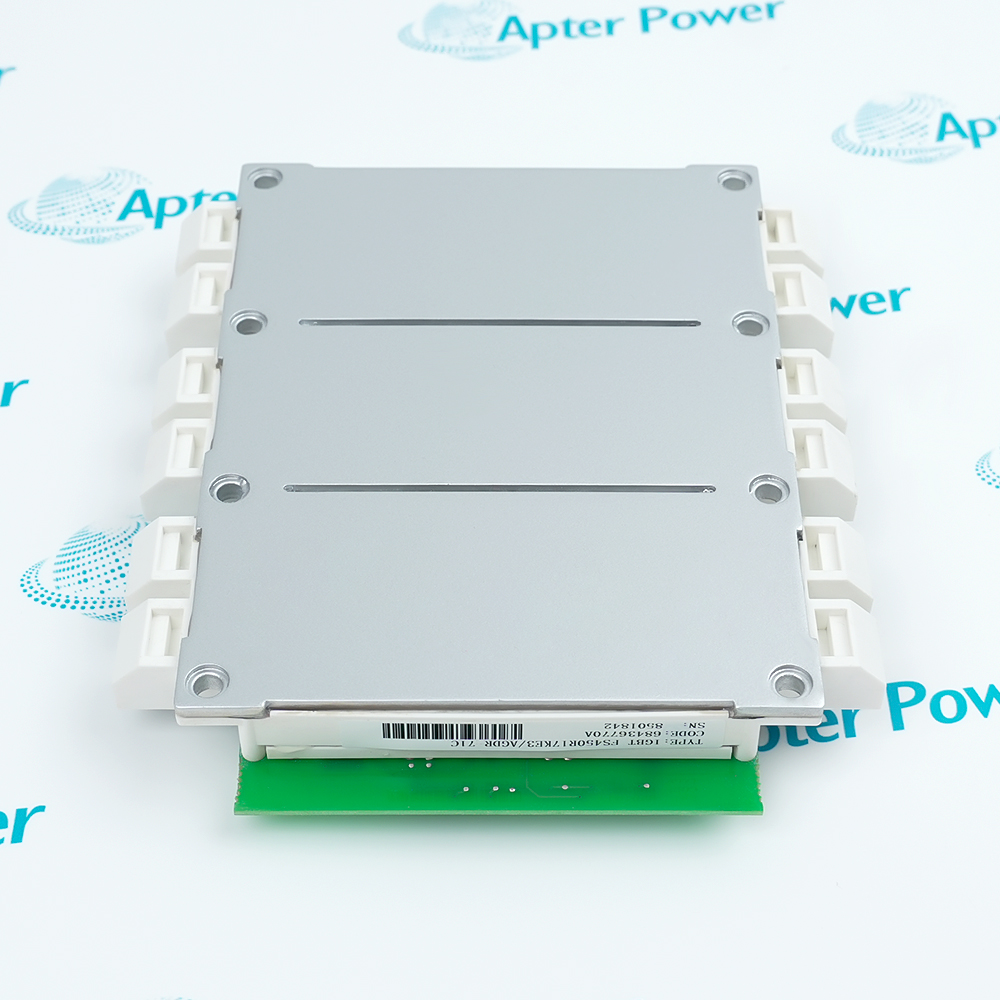

ABB FS450R17KE3/AGDR-71C
ABB FS450R17KE3/AGDR-71C
ABB FS450R17KE3/AGDR-71C
ABB FS450R17KE3/AGDR-71C
ABB FS450R17KE3/AGDR-71C
ABB FS450R17KE3/AGDR-71C
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

ABB FS450R17KE3/AGDR-71C identifies an ACS800 drive power-stage kit built around an FS450R17KE3 IGBT module and AGDR-71C gate-driver board. The complete offered kit and thermal-interface version must be checked against the installed drive.
  • Manufacturer part number
    FS450R17KE3/AGDR-71C
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    18.4cm x 15cm x 3cm
  • Country of Origin
    Sweden
Get a quick price for FS450R17KE3/AGDR-71C
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Provide the full FS450R17KE3/AGDR-71C reference, ACS800 frame, kit suffix and clear photos of the existing module and gate-driver board.

  • 1

    Confirm the offer

    Review the offered power-module rating, AGDR-71C marking, thermal-interface method and included parts against the installed assembly.

  • 2

    Arrange dispatch

    Confirm quantity, destination and dispatch date after the replacement configuration is accepted.

  • Match the complete marking

    Send the complete FS450R17KE3/AGDR-71C marking, the ACS800 frame and photographs of the IGBT, gate-driver board and thermal interface.

  • Check the offered item before ordering

    Compare the quoted kit suffix and contents with the installed assembly. Confirm whether TIM foil, fixings and driver board are included before ordering.

Technical specifications for FS450R17KE3/AGDR-71C

  • Manufacturer:
    ABB
  • Product Category:
    DCS Systems
  • Spare Part Number:
    FS450R17KE3/AGDR-71C
  • Weight:
    1 kg
  • Tariff Code:
    8537101190
  • Drive family:
    ACS800 EconoPACK+ power stage
  • IGBT module:
    Infineon FS450R17KE3
  • Gate-driver designation:

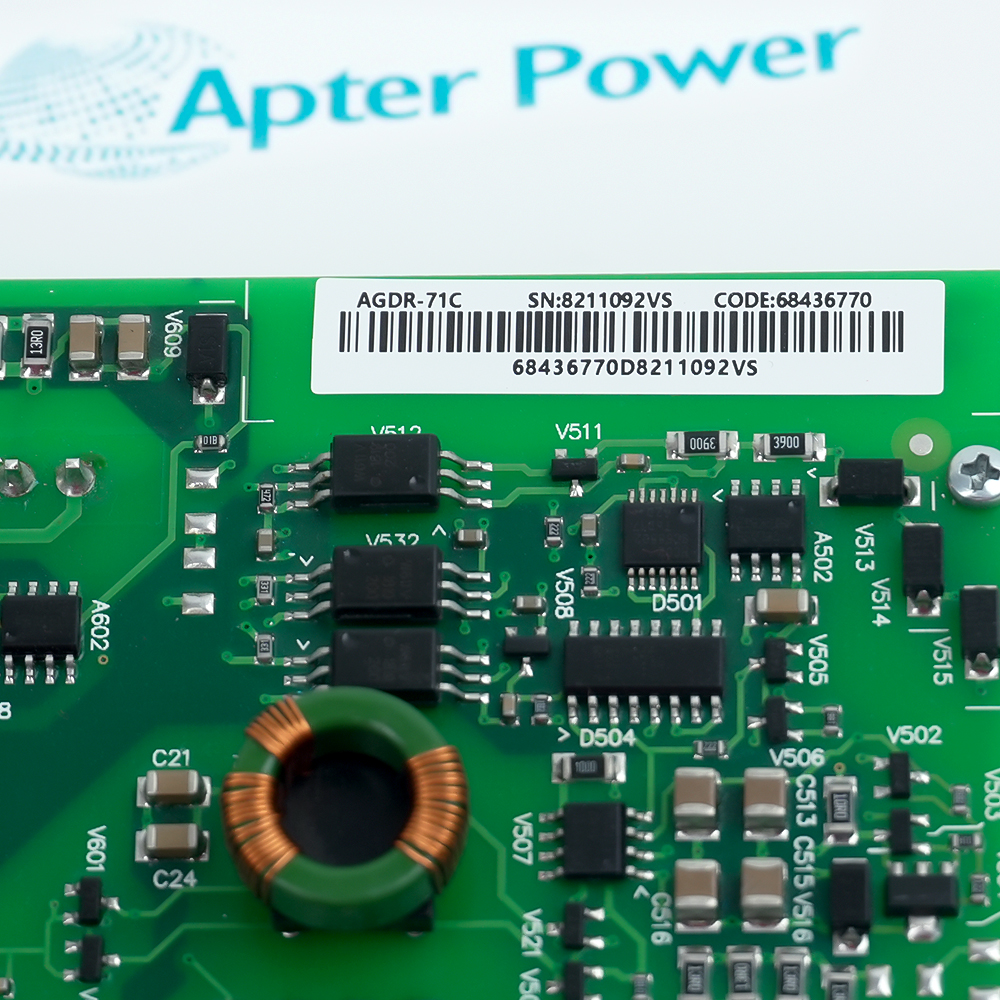

    AGDR-71C
  • ABB listed S-suffix kit:
    FS450R17KE3/AGDR-71C S; 68569591
  • Component blocking voltage:
    1700 V VCES (FS450R17KE3 only)
  • Component nominal current:
    450 A at TC 80 °C, Tvj max 150 °C (FS450R17KE3 only)
  • Component gate-emitter limit:
    ±20 V peak (FS450R17KE3 only)
  • Thermal-interface transition:
    Grease-based kit to ABB TIM-foil kit; confirm supplied execution

Information

Overview Downloads Applications / Compatibility Product Precautions
  • ABB FS450R17KE3/AGDR-71C joins the IGBT switching module and its AGDR-71C driver in an ACS800 EconoPACK+ power stage. The module, driver and heat-sink interface must be treated as one matched replacement arrangement.
Power module: FS450R17KE3 is a 1700 V, 450 A nominal IGBT module under Infineon test conditions.
ABB kit reference: FS450R17KE3/AGDR-71C S is listed as spare kit 68569591.
Thermal interface: ABB documents a transition from grease-based kits to TIM-foil service kits.
ABB lists the S-suffix FS450R17KE3/AGDR-71C kit among ACS800 EconoPACK+ spare IGBT assemblies. This product reference omits the S suffix, so the actual nameplate, kit contents and thermal-interface version must be checked before the listed ABB kit identity is applied.

Infineon rates the FS450R17KE3 semiconductor module at 1700 V collector-emitter blocking voltage and 450 A nominal continuous current at the stated case and junction temperatures. These component values do not rate the AGDR-71C gate-driver circuit or the complete drive installation.

ABB describes the move to TIM foil in the ACS800 service process and notes that earlier grease-based kits may remain during the running change. Preserve the existing mechanical fit, electrical connection map and approved heat-sink preparation when selecting and installing a replacement.
Controller platform reference: ABB ACS800 EconoPACK+ power stage. Use the drive frame documentation and exact kit marking when checking the thermal interface and gate-driver connection.
The ABB product notice lists the matching S-suffix kit in its ACS800 EconoPACK+ spare-part table and explains the change to TIM foil. The separate field guide covers kit identity, thermal-interface handling and electrical checks.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
System and supply context: The FS450R17KE3/AGDR-71C assembly belongs to an ACS800 power-conversion stage that requires a matching semiconductor, gate driver and thermal interface.

Application scope: ABB documents the kit within EconoPACK+ service parts. Verify the exact drive frame and installed kit execution before using the ABB S-suffix reference for compatibility.
Prepare ABB FS450R17KE3/AGDR-71C for its configured installation using these checks.
Confirm the kit suffix

Record whether the offered item has the ABB S suffix and inspect every included component.

Isolate stored energy

Apply the approved ACS800 power-stage isolation and discharge procedure before access.

Protect the gate interface

Keep the AGDR-71C board and IGBT gate terminals within the approved handling procedure.

Match the heat-sink method

Do not interchange grease and TIM-foil instructions without the relevant ABB kit guidance.

Inspect mechanical fit

Check the fastening pattern and heat-sink surface before mounting the module.

Verify drive response

Review gate-driver status, cooling and fault indications after controlled energization.

Alternative Names

ABB ACS800 FS450R17KE3 with AGDR-71C IGBT Kit ABB FS450R17KE3 / AGDR-71C Drive Power Kit

Technical notes

Kit identity: ABB notice identifies the S-suffix FS450R17KE3/AGDR-71C kit as spare part 68569591.

Rating boundary: 1700 V and 450 A are Infineon bare-module values under defined test conditions.

Thermal service: The ABB notice describes a running transition to TIM foil in ACS800 EconoPACK+ kits.

FAQ View All FAQ

  • Which ABB ACS800 spare-kit code is associated with FS450R17KE3/AGDR-71C S?
    ABB lists the S-suffix IGBT module kit as spare part 68569591. Check the exact suffix and supplied contents before treating an unsuffixed offer as that kit.
  • Does the 1700 V rating cover the entire FS450R17KE3/AGDR-71C assembly?
    No. Infineon states 1700 V collector-emitter blocking voltage for the FS450R17KE3 semiconductor module. The gate-driver board and installed drive have their own design limits.
  • Under which conditions is the FS450R17KE3/AGDR-71C module rated at 450 A?
    The 450 A nominal continuous current belongs to the FS450R17KE3 component at an 80 °C case temperature and a maximum 150 °C junction temperature.
  • Why does FS450R17KE3/AGDR-71C thermal-interface version matter?
    ABB changed ACS800 EconoPACK+ spare kits from grease to TIM foil. Mounting preparation must match the actual kit and drive service instruction.
  • How should FS450R17KE3/AGDR-71C be matched to an installed ACS800 drive?
    Compare the drive frame, full kit suffix, IGBT and AGDR-71C markings, connector positions and heat-sink interface with the installed assembly.
  • What is the FS450R17KE3 component gate-emitter peak limit within FS450R17KE3/AGDR-71C?
    Infineon specifies a ±20 V peak gate-emitter limit for the bare FS450R17KE3 module. The installed driver must still be checked against the approved circuit design.
  • Can a grease-based FS450R17KE3/AGDR-71C kit be mounted using TIM-foil instructions?
    Do not assume the methods are interchangeable. ABB describes both during a running change; use the instruction and materials for the exact supplied kit.
  • Which checks follow installation of FS450R17KE3/AGDR-71C?
    Verify IGBT and driver connections, approved thermal contact, insulation and cooling, then review drive fault status during controlled startup.
