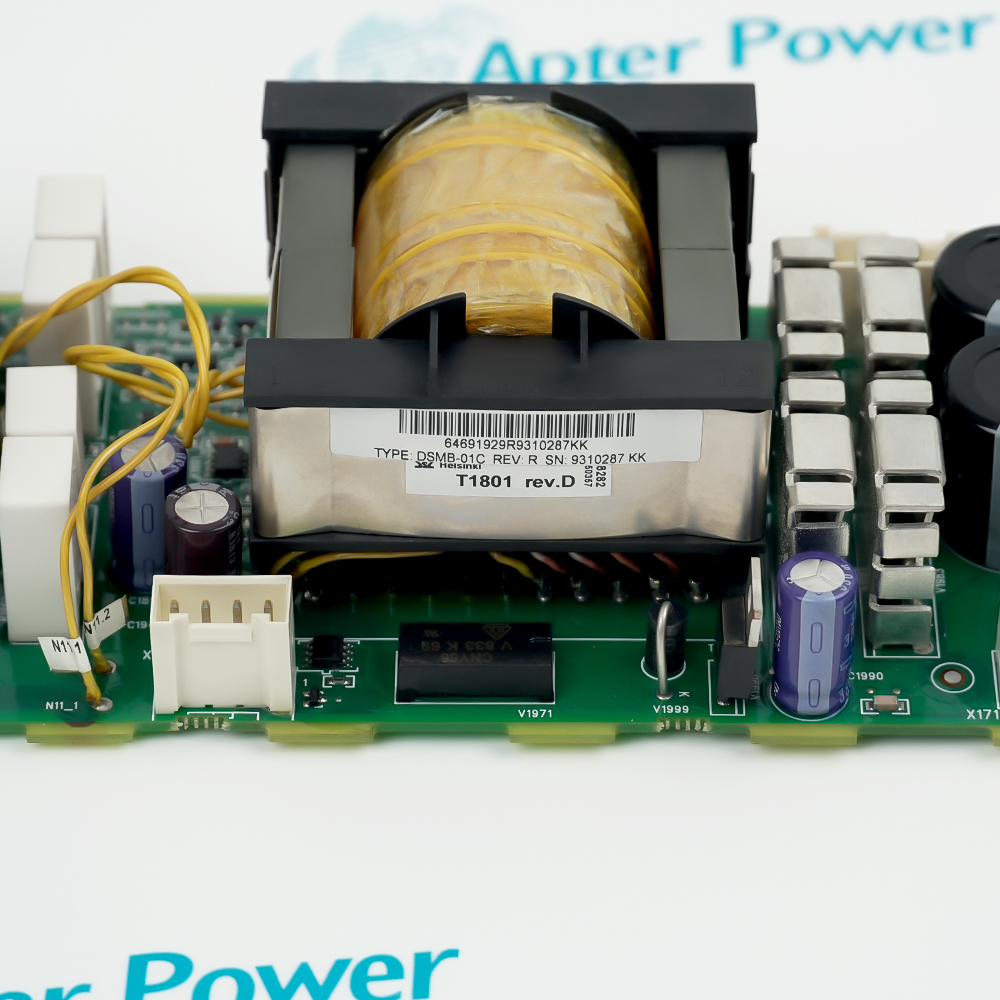

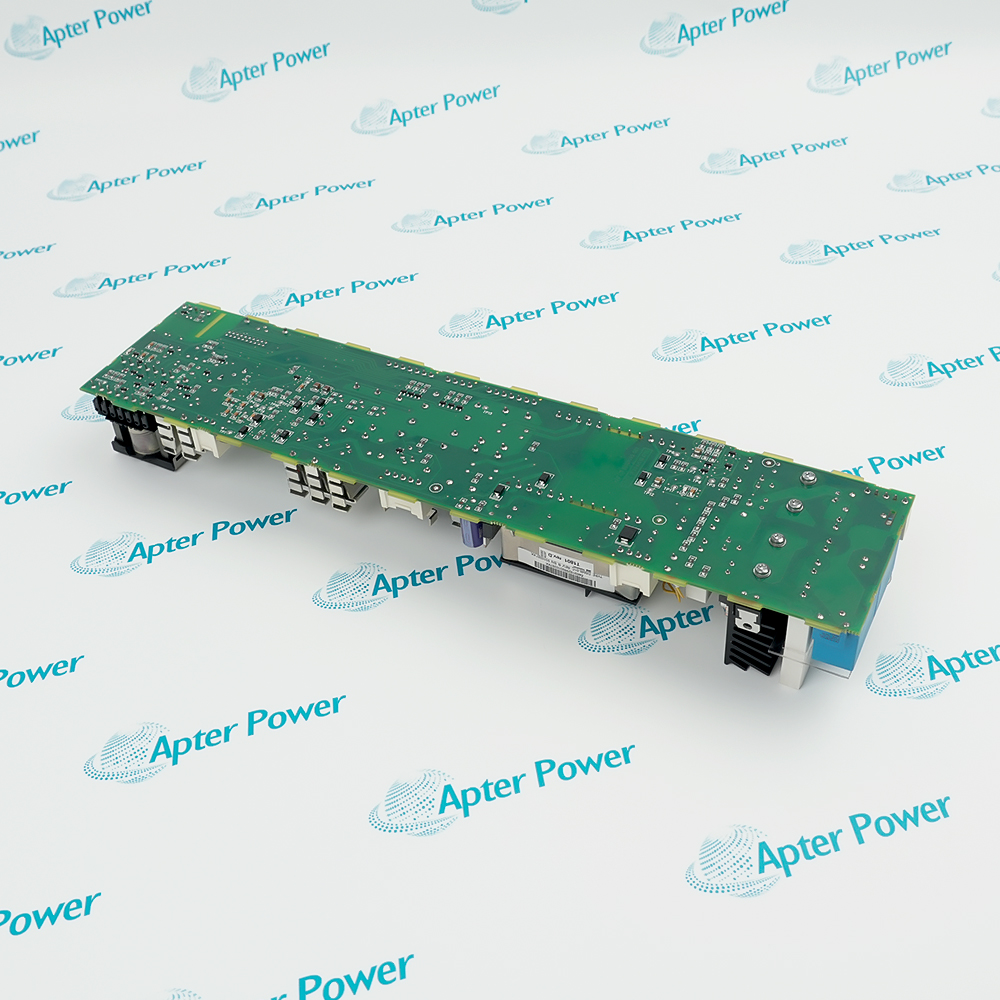

      DSMB-01C 64691929R

      Power Supply Board
      In Stock

      Product Describe：

      Power Supply Board
      100W maximum capacity
      with a stable  24VDC
      DC output
      24V DC nominal
      (range 20–28V DC)

      Ask our team:

      Get a quick price for： DSMB-01C 64691929R
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for DSMB-01C 64691929R

      Technical specifications for DSMB-01C 64691929R

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        DSMB-01C 64691929R
      • Estimated shipping dimensions:
        38.4x5.4x5.5cm
      • Weight:
        0.22 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Switzerland
      • Input Current:
        4A maximum
      • Output Voltage:
        24V DC regulated
      • Output Current:
        3A continuous
      • Power Rating:
        72W continuous
      • Ripple & Noise:
        <50mV peak-to-peak
      • Efficiency:
        ≥85% typical
      • Operating Temperature:
        0°C to 60°C
      • Response Time:
        <20ms
      • Vibration Resistance:
        5–25Hz, 2g
      Ask for Quote

      Information

      Information

      Overview Manuals Core functions and positioning
      The ABB DSMB-01C (part number 64691929R) is a 0.95kg power supply board designed for ACS800 inverter drives, often used in automation systems. It typically features a 100W maximum capacity with a stable 24VDC DC output. Key aspects include availability in new condition with warranty and a standard 2-week delivery time.
        • DSMB-01C 64691929R Power Supply Board
        • A high-performance power supply board designed for ABB automation and control systems
        • It delivers regulated 24V DC power with stable output to support connected modules and ensure reliable operation
      The board features robust protections against overloads, short circuits, and overtemperature events, ensuring safe and continuous operation in demanding industrial environments. Its high efficiency and low ripple design contribute to stable system performance and accurate control signal processing.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB DSMB-01C 64691929R Power Supply Board Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Signal distribution and interface: serving as a bridge between the main control board (such as RMIO) and the high-power inverter module, distributing trigger pulses and collecting feedback signals. Power unit monitoring: Real time monitoring of inverter current, intermediate DC circuit voltage, and temperature of power components (IGBT). Protection logic: Integrated hardware level short-circuit protection, overvoltage monitoring, and over temperature shutdown logic to ensure system safety under high load fluctuations.

      FAQS

      • What is the function of the ABB DSMB-01C 64691929R Power Supply Board?
        It provides regulated power to control system modules and ensures stable operation of connected components.
      • What type of output does the DSMB-01C board provide?
        It delivers a regulated DC output suitable for industrial automation modules.
      • Is the DSMB-01C compatible with other ABB control system modules?
        Yes, it is designed to work seamlessly with compatible ABB automation and control system components.
      • What is the typical operating voltage of the DSMB-01C board?
        The board typically operates with an input voltage of 24V DC, depending on system configuration.
      • What is the operating temperature range?
        The power supply board generally operates reliably within industrial temperature ranges, typically 0°C to 60°C.
      • Does the DSMB-01C include protection features?
        Yes, it provides protection against overloads, short circuits, and other common electrical faults.
