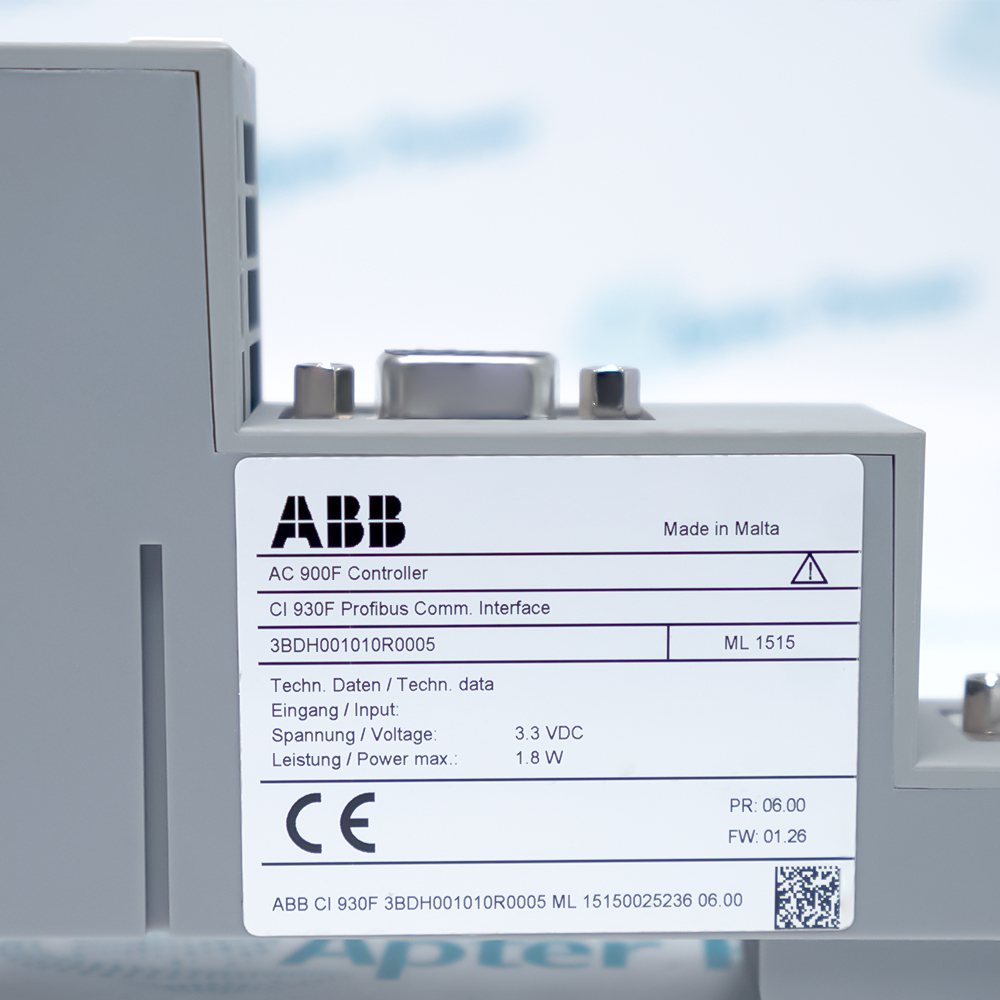

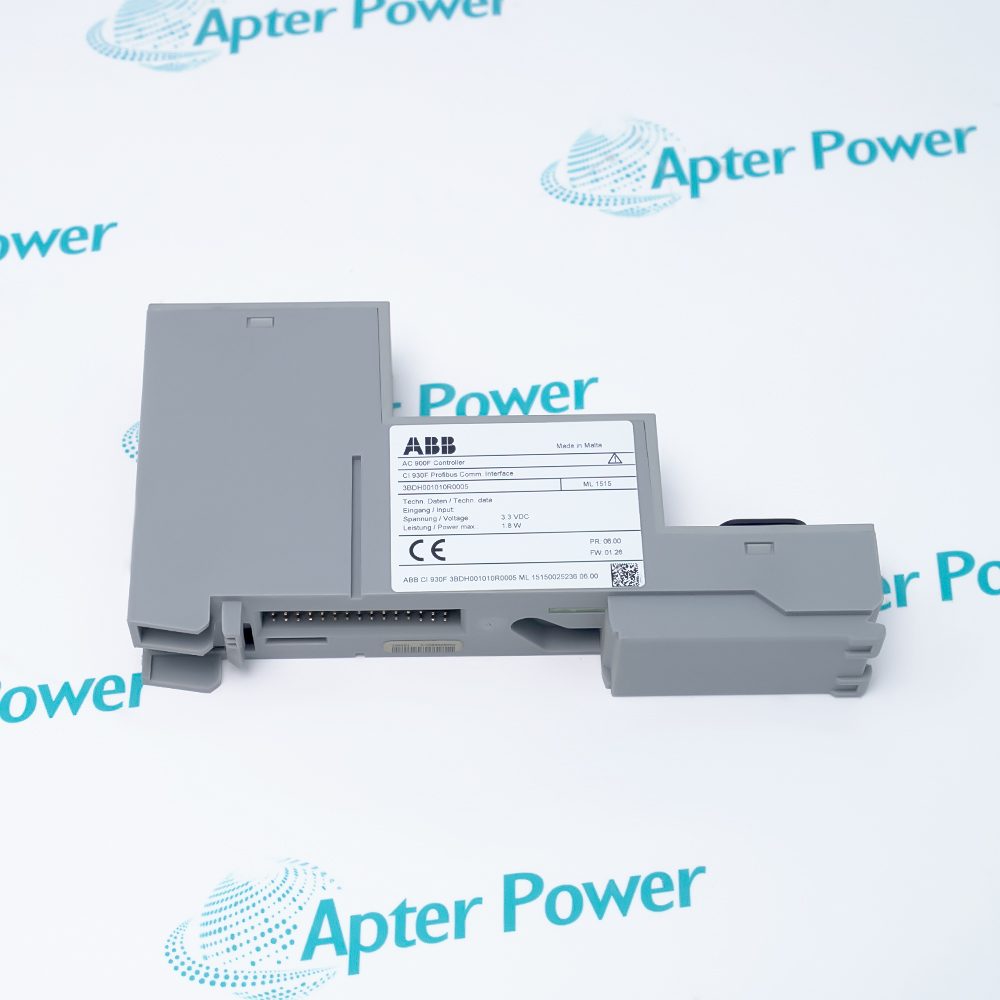

CI930F-3BDH001010R0005 is an ABB CI 930F communication-interface identifier for a Freelance AC 900F installation. ABB's current CI 930F data sheet describes the module family as a PROFIBUS DP-V0/V1 master with line redundancy, while publishing article 3BDH001010R0002 rather than the requested R0005 suffix.
- ABB
- CI 930F
- PROFIBUS DP master, DP-V0/V1
- 9.6 kbit/s to 12 Mbit/s
In an officially matched AC 900F configuration, the CI 930F family exchanges PROFIBUS process data and diagnostics between the controller and DP devices at rates from 9.6 kbit/s to 12 Mbit/s; the R0005 revision must be confirmed from the nameplate and its exact ABB release document.
Important Notice: Use the complete CI930F-3BDH001010R0005 code and verify the physical nameplate and current ABB documentation before installation or replacement.
Apter Power CI930F-3BDH001010R0005 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published ABB information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
ABB Freelance AC 900F
Maintains the documented PROFIBUS topology and revision matching role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact ABB documentation and host-equipment instructions before use. Verify CI930F-3BDH001010R0005 from the physical nameplate.
