      BCAN-11 3AXD50000033816

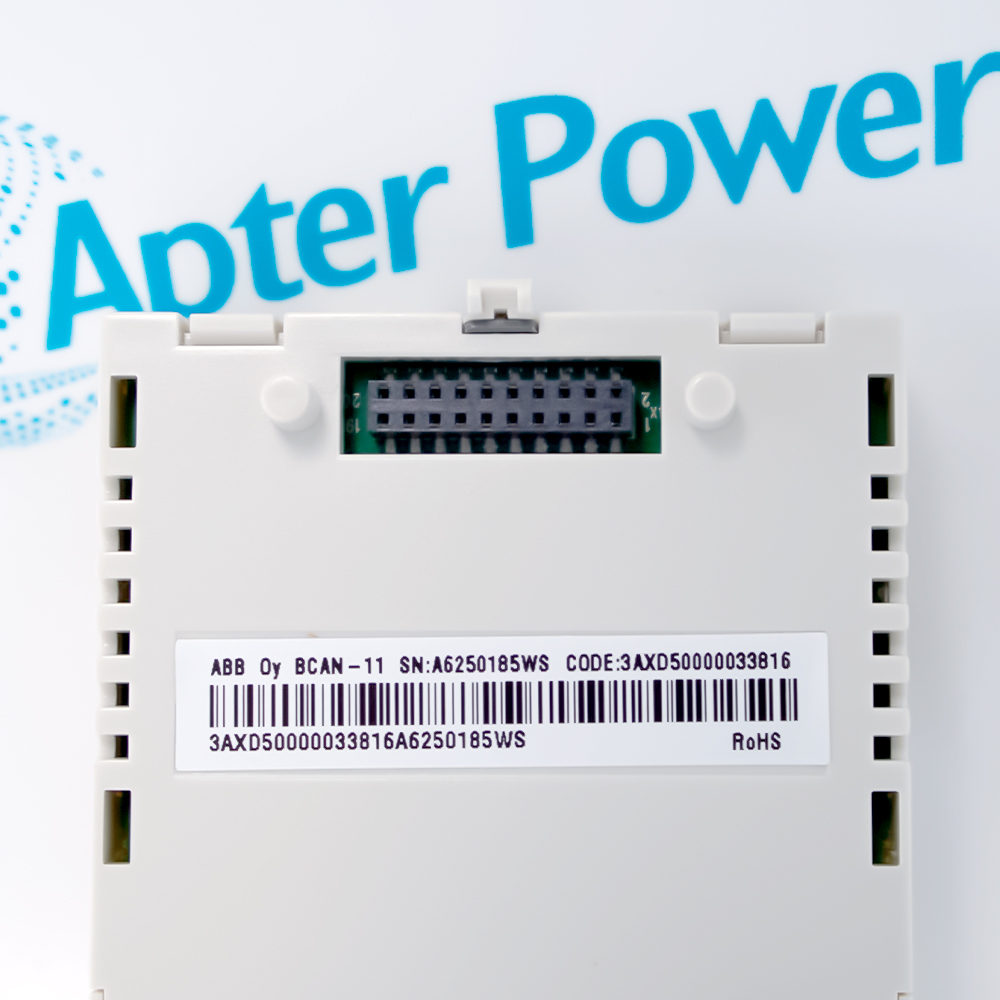

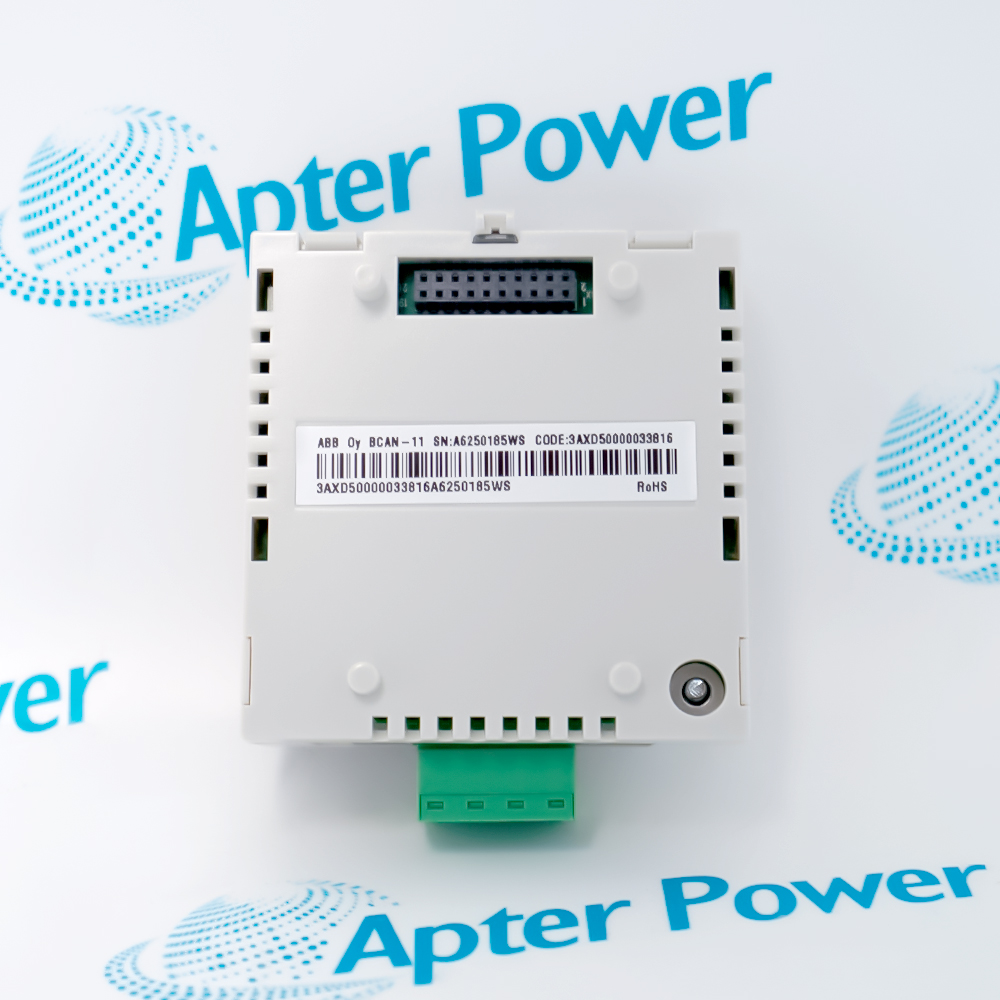

      ABB BCAN-11 +K495 CANopen Screw-Terminal Interface
      In Stock
      Ships by Tuesday, October 6
      Fast Shipping Available

      Product Describe：

      ABB BCAN-11 3AXD50000033816 is the +K495 CANopen interface for ACS380.
      It exchanges drive commands, references, status, actual values, parameters, and diagnostics.
      The network side uses screw terminals and the ACS380 embedded-fieldbus configuration path.
      Verify ACS380-04xC, firmware, EDS, node plan, bit rate, cable, shielding, and termination.

      Ask our team:

      Get a quick price for： BCAN-11 3AXD50000033816
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for BCAN-11 3AXD50000033816

      Technical specifications for BCAN-11 3AXD50000033816

      • Manufacturer:
        ABB
      • Product Category:
        General Automation
      • Spare Part Number:
        3AXD50000033816
      • Estimated shipping dimensions:
        18.5x6.5x12.6cm
      • Weight:
        0.48 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Model:
        BCAN-11
      • ACS380 option code:
        +K495
      • Interface protocol:
        CANopen
      • Network connector:
        Screw terminal
      • Host family:
        ACS380 machinery drives
      • Host configuration:
        ACS380-04xC configured variant with +K495
      • Drive configuration path:
        Embedded fieldbus; parameter 58.01 Protocol enable = CANopen
      • Integration file:
        ABB ACS380 BCAN-11 CANopen EDS file
      • Declaration scope:
        ABB declares BCAN-11 conformity with EMC 2014/30/EU and RoHS 2011/65/EU when selected, installed, and used as instructed
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB BCAN-11, ordering code 3AXD50000033816, is the +K495 preconfigured CANopen interface with screw terminals for the configured ACS380 machinery-drive variant.
      • Model: BCAN-11
      • Ordering / MRP code: 3AXD50000033816
      • ACS380 option code: +K495
      • Interface protocol: CANopen

      It connects the ACS380 control program to a CANopen automation network so a CANopen controller can exchange drive commands and references with drive status and actual values, while parameter and diagnostic access is handled through the drive's embedded-fieldbus implementation and the applicable EDS file. The physical network side is a screw-terminal CANopen connection. In ABB's ACS380 setup, BCAN-11 is selected through embedded-fieldbus parameters, including enabling CANopen at parameter 58.01; this is different from FCAN-01, which is a separate fieldbus-adapter module configured through adapter parameter groups. BCAN-11 is paired with an ACS380-04xC configured drive, its exact firmware, a CANopen controller or PLC, the ABB BCAN-11 EDS file, correctly shielded CAN cable, network termination, and a documented node/bit-rate plan in machine automation such as coordinated conveyors, handling equipment, and packaged machinery.

      Important Notice: Verify BCAN-11 and 3AXD50000033816 together on the ABB label or order record.

      Apter Power BCAN-11 3AXD50000033816 Manuals and Guides

      Important Notice: The first link is the product-parameters PDF prepared only from the cited manufacturer information; the second link is the Apter Power product manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.

      CANopen machine-drive control
      Connects an ACS380 configured drive to a CANopen controller for command, reference, status, and actual-value exchange.
      Coordinated material handling
      Integrates conveyor or handling-machine drives into an engineered CANopen network using the ABB EDS and documented node map.
      Packaged machine automation
      Reduces hardwired control signals by using network process data and diagnostics in repeatable ACS380 machine packages.
      CANopen drive diagnostics
      Provides the documented CANopen path for reading drive state and engineered parameters without assigning unsupported stand-alone PLC functions to the interface.
      Read and follow the current ABB documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
      1
      Only qualified electrical personnel may install or service the drive. Isolate all supplies, wait the ABB-specified discharge time, and verify absence of voltage.
      2
      Verify BCAN-11, order code 3AXD50000033816, option +K495, and ACS380-04xC in the complete drive type code.
      3
      Use the exact ACS380 firmware manual and current BCAN-11 EDS file; back up parameters before changing the communication setup.
      4
      Do not copy FCAN-01 connector, parameter, profile, node, or compatibility data into a BCAN-11 installation.
      5
      Use shielded CAN cable, keep signal pairs twisted near the terminals, ground the shield as ABB instructs, and route the network away from motor and power cables.

      Technical notes

      Technical notes

      Verification Status: EXACT_MODEL_AND_ORDER_CODE_VERIFIED Exact Mapping: ABB's ACS380 catalog maps option code +K495, ordering code 3AXD50000033816, and type designation BCAN-11 to CANopen with screw terminals. BCAN-11 is the model; 3AXD50000033816 is the ordering/MRP code, not a second model name. Lifecycle Status: BCAN-11 appears in ABB's current ACS380 catalog, current hardware/manual listings, current EDS download listings, and ABB's 2023 option-module declaration. None of the reviewed exact sources prints an Active, Classic, Limited, or Obsolete phase; do not invent one. Country Of Origin: Not published for exact order code 3AXD50000033816 in the reviewed ABB sources; ABB Oy's declaration address is not proof of origin. Dimensions: Not published separately for BCAN-11 in the reviewed ABB sources; do not copy ACS380 drive dimensions. Weight: Not published separately for BCAN-11 in the reviewed ABB sources. Verify BCAN-11 and 3AXD50000033816 together on the ABB label or order record. Confirm ACS380 configured variant ACS380-04xC and option code +K495 in the complete drive type designation. Do not apply FCAN-01 pinout, D-sub connector, parameter group 51, CiA profile selection, or compatibility list to BCAN-11. Use the ACS380 firmware revision, BCAN-11 EDS file, CANopen node plan, baud rate, cabling, and termination approved for the actual machine network. Equivalence to FCAN-01 FCAN-01 connector, CiA profile selection, parameter group, or compatibility data Compatibility outside the exact ACS380 documentation A separately published BCAN-11 size or weight Country of origin or customs tariff A named lifecycle phase CAN bus pinout, bit rate, node range, or process-data map not stated by the exact installed firmware/EDS Safety functions, SIL, or PL capability Stock, warranty, condition, or lead time

      FAQS

      • What is ABB BCAN-11?
        It is the +K495 preconfigured CANopen screw-terminal interface for configured ACS380 machinery drives.
      • Is 3AXD50000033816 the BCAN-11 model number?
        It is the ABB ordering/MRP code. BCAN-11 is the type designation.
      • Which drive uses BCAN-11?
        ABB's exact catalog and hardware manual list it for the ACS380 configured variant, identified as ACS380-04xC with option +K495.
      • What connector does BCAN-11 use?
        ABB lists a screw-terminal CANopen connection.
      • What data does it exchange?
        It carries drive commands and references to the ACS380 and returns status, actual values, and engineered diagnostic or parameter data through the CANopen mapping.
      • How is CANopen enabled?
        ABB's ACS380 quick guide shows the BCAN-11 path using embedded fieldbus with parameter 58.01 Protocol enable set to CANopen.
      • Is BCAN-11 the same as FCAN-01?
        No. FCAN-01 is a separate F-series CANopen adapter with different order code, connector documentation, parameter path, and compatibility list.
      • Does ABB provide an EDS file?
        Yes. ABB's fieldbus download pages list ACS380 BCAN-11 CANopen EDS files.
      • Can its dimensions be taken from the ACS380 drive?
        No. The reviewed ABB sources do not publish separate BCAN-11 dimensions, and drive dimensions are not module dimensions.
      • What are its origin and HS code?
        They are not published for exact order code 3AXD50000033816 in the reviewed ABB sources, so they must remain unknown.
      • What safety directives cover it?
        ABB's declaration includes BCAN-11 under EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU when selected, installed, and used as instructed.
      • Is BCAN-11 officially Active or Classic?
        The reviewed exact ABB sources do not print a named lifecycle phase, although current catalogs, documentation, and EDS listings include the module.
