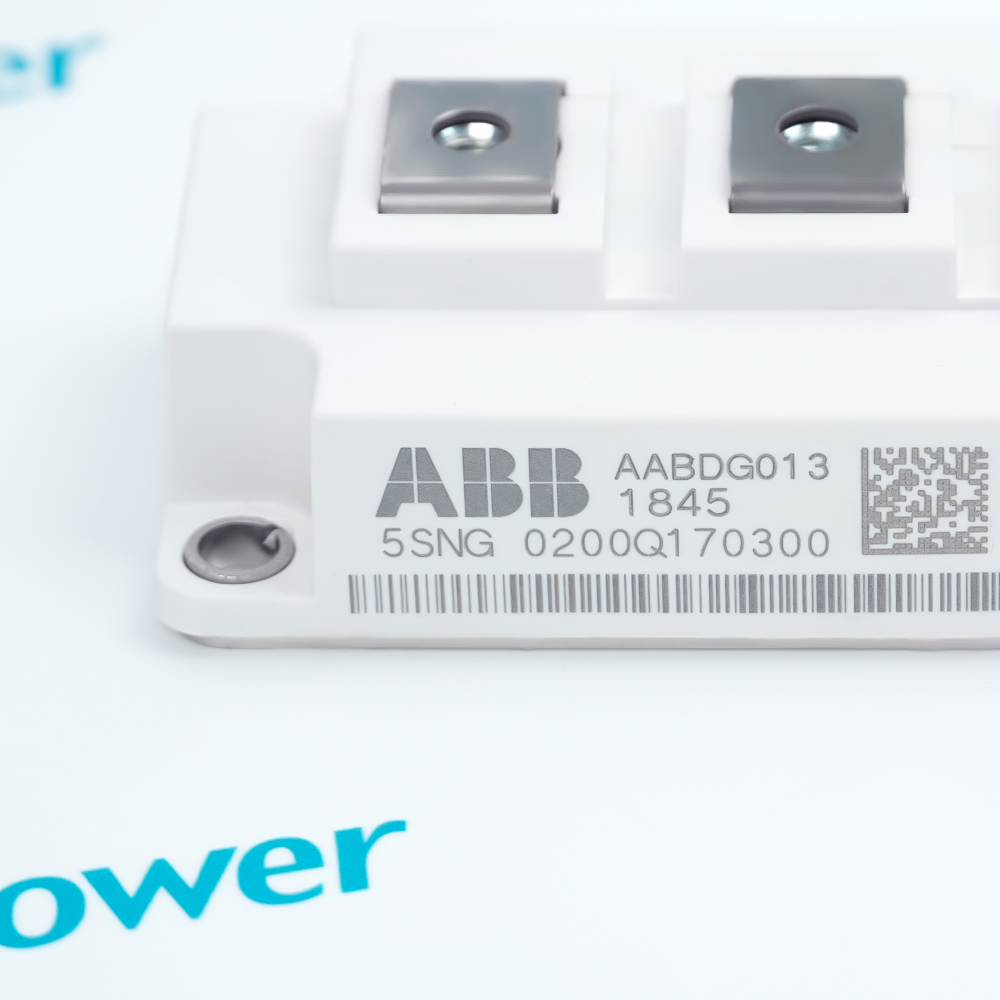

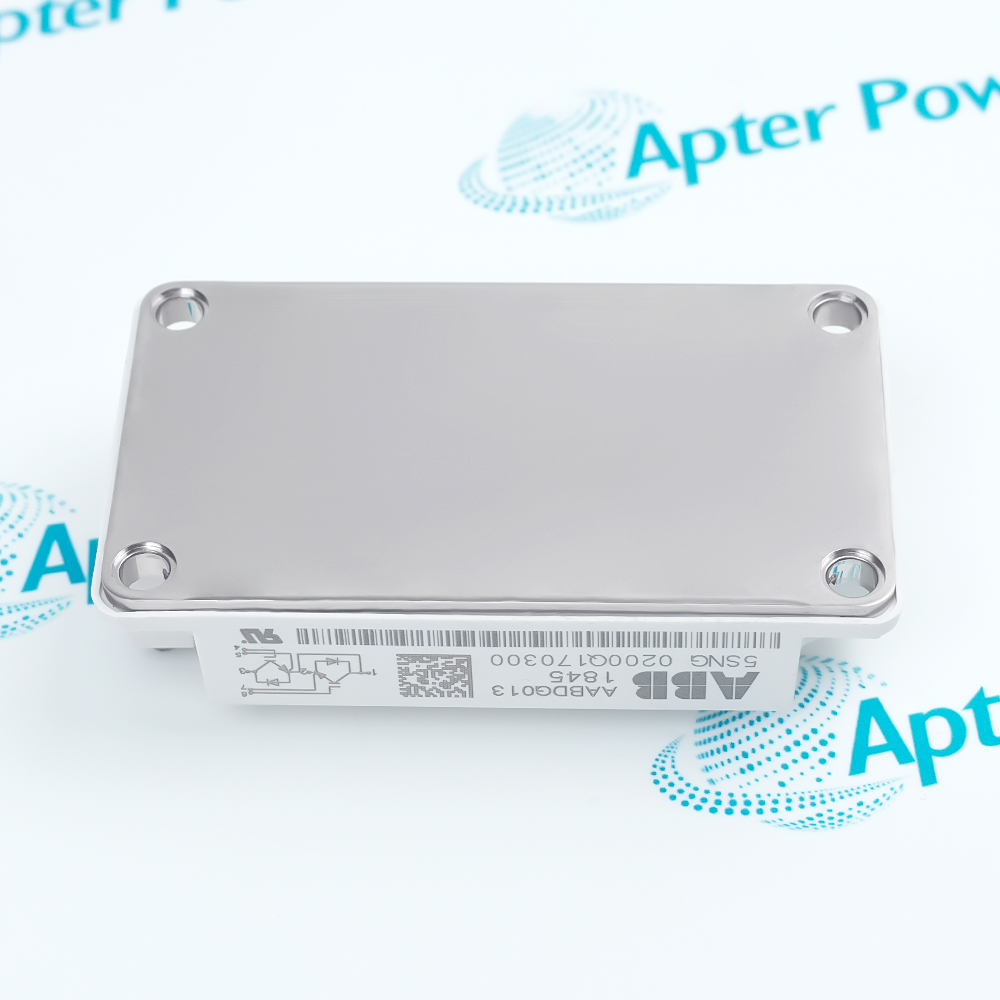

The 5SNG0200Q170300 is an IGBT power module manufactured by ABB, featuring a 62PAK half‑bridge package with a transistor/transistor semiconductor structure. It is designed for switching control in power electronic applications, offering high off‑state voltage and standardized packaging for medium‑power conversion systems.
High Voltage Rating
Standard Half‑Bridge Package
Robust Current Handling
The 5SNG0200Q170300 module is rated for 1.7 kV off‑state voltage and supports 200 A DC collector current with up to 400 A pulsed collector current. Its gate‑emitter voltage range is ±20 V. Electrical mounting uses FASTON connectors and screws, and mechanical mounting is screw‑based, providing reliable switching performance in typical power electronic applications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 5SNG0200Q170300 IGBT POWER MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Industrial Drives
ABB IGBT modules are used as core power switching devices in industrial drive systems, converting electrical power to control speed and torque in motors used in manufacturing, process automation, and heavy machinery.
Renewable Energy
IGBT modules are fundamental in power converters for renewable sources such as wind turbines and solar power inverters, where they enable efficient conversion of variable DC power into grid‑compatible AC power.
Electric Traction
In traction systems for railways, trams, and metros, IGBT modules provide power conversion and management for propulsion and braking energy control.
Electric Traction
In traction systems for railways, trams, and metros, IGBT modules provide power conversion and management for propulsion and braking energy control.
Power Quality
IGBT modules are employed in uninterruptible power supply (UPS) systems and power quality equipment to manage clean and stable power delivery, protecting sensitive equipment from power disturbances and ensuring continuity in critical installations like data centers and communication hubs.
Energy Storage Systems
IGBT devices are used in power electronics interfaces for battery storage and microgrid applications, enabling bidirectional power flow between storage units and the grid or loads.
5SNG0200Q170300 modules are used in the power switching stages of power electronic systems, where IGBTs function as the controlled switching elements between DC link and load. Within inverter bridges, these modules serve to shape current and voltage waveforms according to control input, enabling electrical systems to implement controlled AC power output in medium‑power conversion equipment.
In systems requiring regulated DC‑AC or AC‑AC conversion (such as variable speed drives and controlled rectifiers), the module contributes to switching functions over its rated voltage and current range. Its configuration supports inclusion in assemblies for energy conversion, where the semiconductor switches are repeatedly operated under engineered control sequences.
ABB 5SNG0200Q170300 is an IGBT power semiconductor module manufactured by ABB. It uses a half‑bridge topology and transistor/transistor structure to support power switching applications at medium power levels.
What type of semiconductor is 5SNG0200Q170300?
The 5SNG0200Q170300 module is an IGBT (Insulated Gate Bipolar Transistor) type power module, suitable for use in power electronic converters where efficient switching control is needed.
What voltage rating does 5SNG0200Q170300 support?
This ABB module has a maximum off‑state voltage rating of 1.7 kV (1700 V), meaning it can block up to 1700 V when switched off.
What is the package type of 5SNG0200Q170300?
ABB 5SNG0200Q170300 is supplied in a standard 62PAK module package, which is an industry‑recognized form factor for IGBT power modules.
Does 5SNG0200Q170300 require specific mounting types?
Electrical connections use FASTON connectors and screw mounting, while mechanical mounting is also via screws, as specified for the 62PAK module format.
