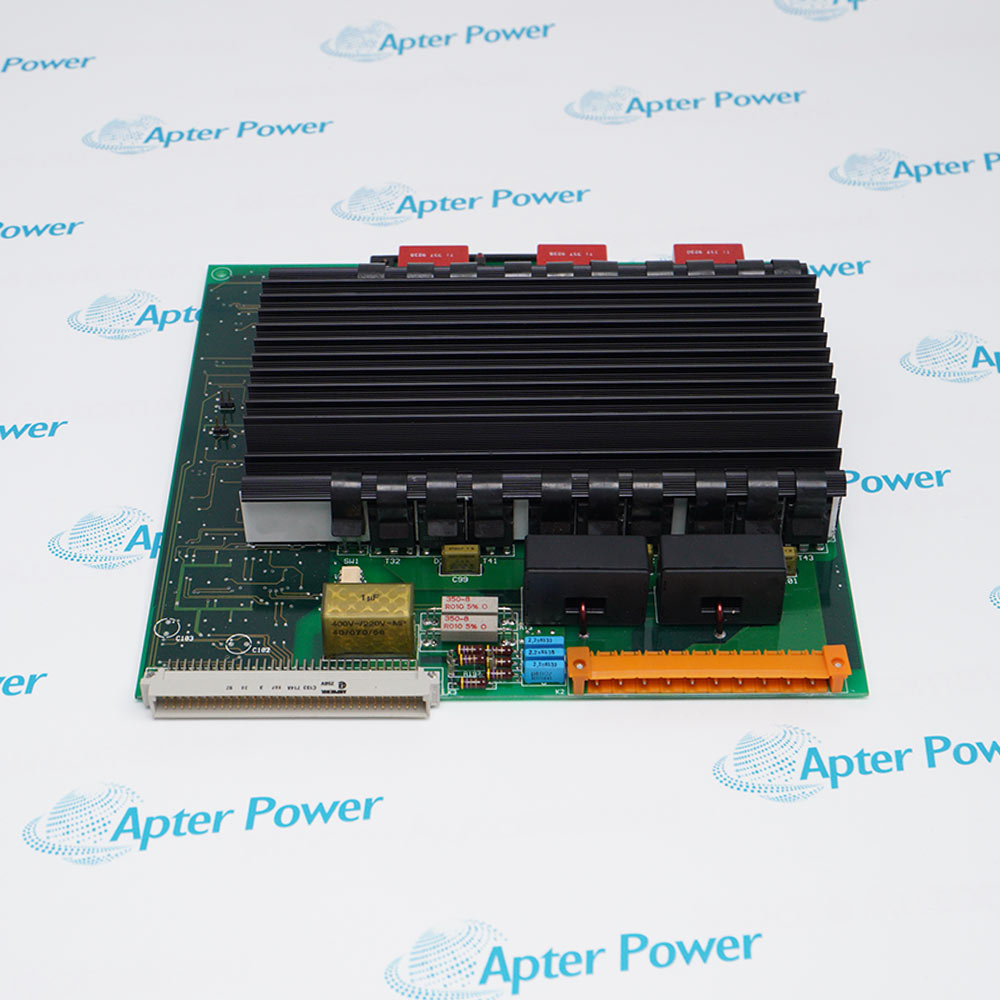

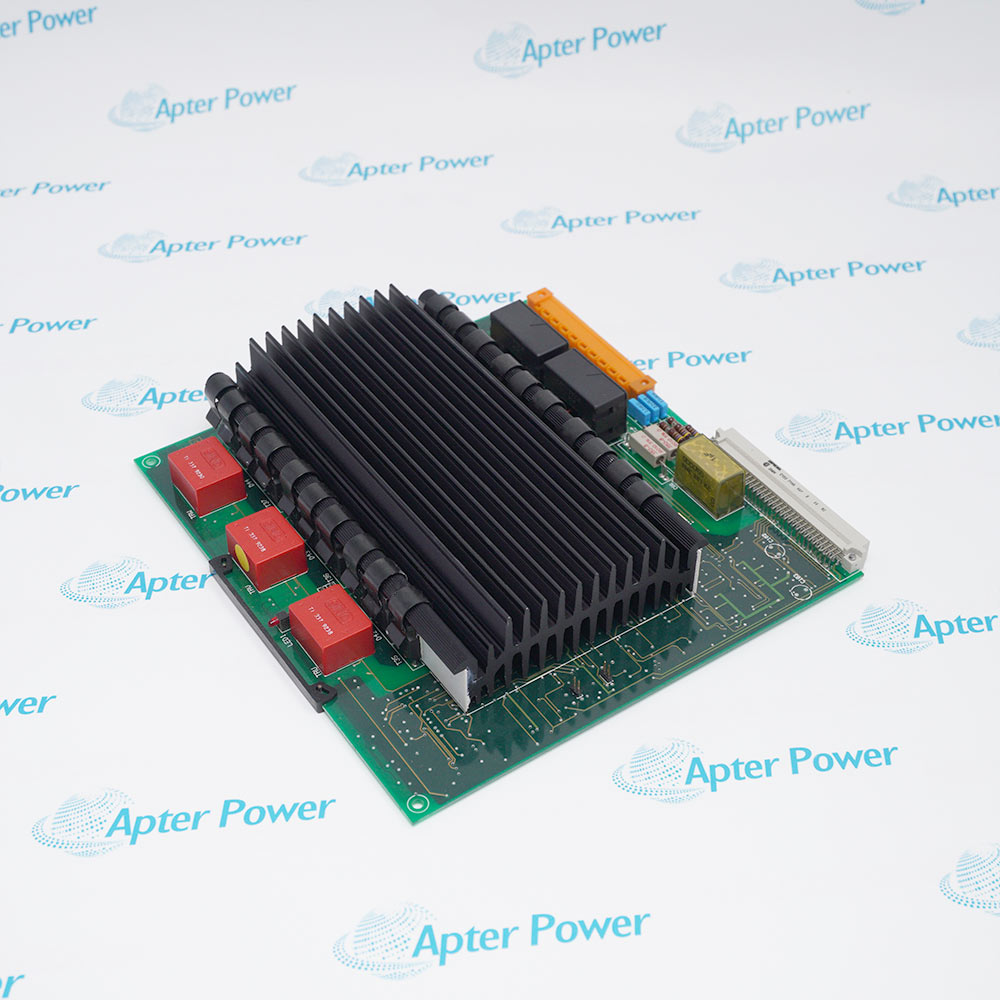

Get a quick price for DSQC236T
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for DSQC236T
-
Manufacturer:ABB
-
Product Category:Robot Systems
-
Spare Part Number:DSQC236T
-
Estimated shipping dimensions:23.3x23x4.5cm
-
Weight:1.54 kg
-
Tariff Code:8537101190
-
Counliy of origin:Sweden
-
Hardware type:Robot drive unit
-
Associated reference:YB560103-CE
-
Controller domain:Legacy ABB robot drive cabinet
-
Commissioning focus:Drive diagnostics and controlled axis response
Information
Overview
Manuals
Common Applications
Product Precautions
ABB DSQC236T supplies an axis-drive hardware function within a legacy ABB robot-controller cabinet.
- Belongs to the ABB DSQC236 drive-unit family.
- Cross-checked records associate DSQC236T with reference YB560103-CE.
- Power, motor and control connections require exact as-found documentation.
- Commissioning must keep motion inhibited until drive diagnostics are stable.
This drive unit belongs to a defined hardware position in an ABB robot-control installation. Match the installed label, connectors, slot and service record before commissioning.
Important Notice: Verify the complete ABB DSQC236T marking, installed position and mating interfaces before installation.
ABB DSQC236T Manuals & Downloads
ABB DSQC236T Technical Reference (PDF)ABB DSQC236T Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Axis-drive maintenance
Restore the recorded drive-unit position after exact-identity service.
Robot cabinet refurbishment
Inspect the drive connections, cooling path and retention during overhaul.
Drive-path troubleshooting
Separate motor-cable, connector and drive-unit conditions during fault analysis.
Motion recommissioning
Test the affected axis under controlled speed and load limits.
Before installing ABB DSQC236T, confirm the documented system, interfaces and controlled configuration.
1
Read the complete DSQC236T nameplate and associated execution before selecting a replacement.
2
Apply lockout and verify stored drive energy has discharged under the approved procedure.
3
Label power, motor, feedback and control connectors before removal.
4
Inspect terminals, backplane contacts, cooling surfaces and mounting hardware.
5
Do not interchange another DSQC236 variant without a documented compatibility decision.
6
Restore protective connections and conductor routing exactly as recorded.
7
Keep motion inhibited while checking drive and controller diagnostics.
8
Test the affected axis at controlled speed before automatic operation.
Technical notes
Verify the complete ABB DSQC236T marking, installed position and mating interfaces before installation.
FAQ View All FAQ
-
What product type is ABB DSQC236T?It is a drive unit in the ABB DSQC236 robot-controller drive family.
-
Which associated reference is repeatedly listed for DSQC236T?Cross-checked exact-item records associate the T execution with YB560103-CE.
-
Why must another DSQC236 variant not be substituted directly?The variant identifies a distinct execution, so compatibility requires the installed nameplate and controller record.
-
What connections should be labeled before DSQC236T removal?Label the power, motor, feedback, control and protective connections at their original positions.
-
What stored-energy control applies to the drive unit?Follow the controller isolation procedure and verify the drive energy has discharged before contact.
-
Which mechanical conditions should be checked?Inspect mounting, connector retention and the cabinet cooling path before installation.
-
How is ABB DSQC236T first energized after replacement?Power it under controlled conditions with motion inhibited while monitoring controller and drive diagnostics.
-
What completes DSQC236T commissioning?A controlled axis test, interlock verification and accepted diagnostic state are required before automatic operation.
