5SHX0845F0001 3BHL000385P0101

IGCT Thyristor Module
In Stock
Ships by Friday, November 20
Fast Shipping Available

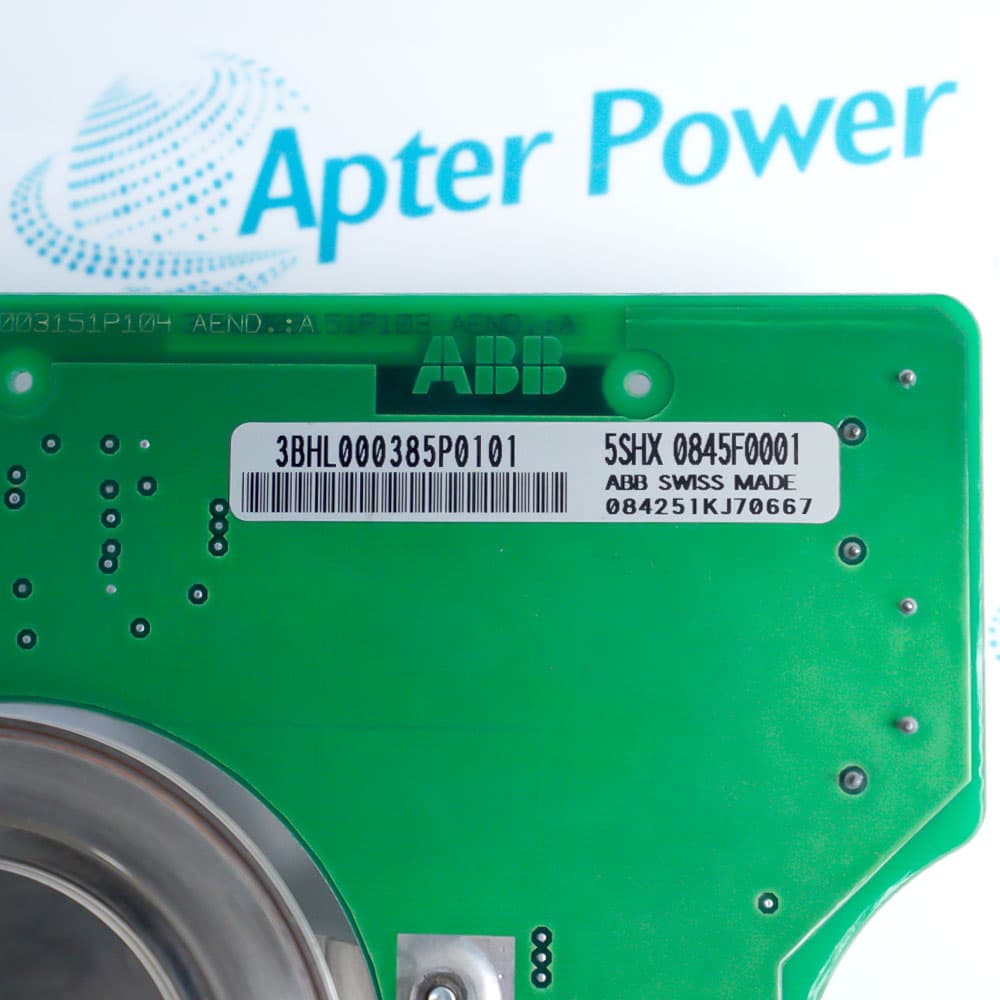

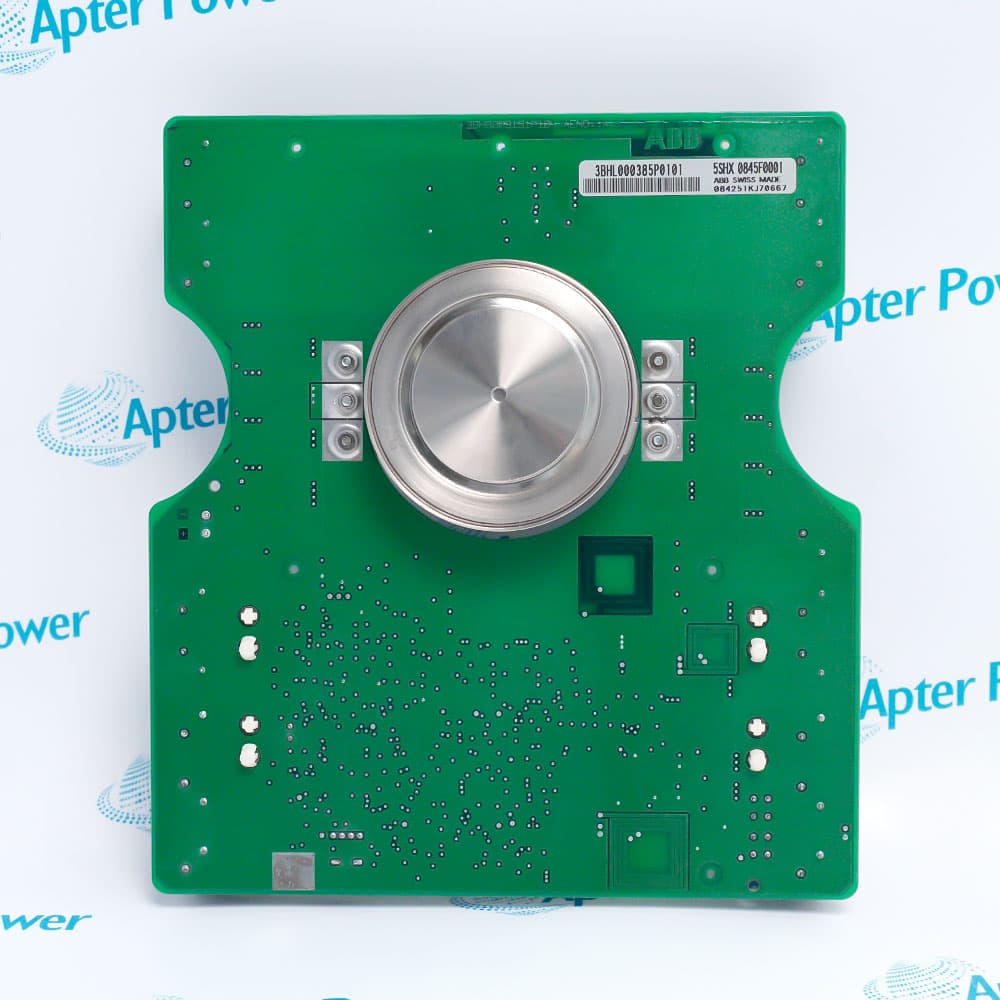

ABB 5SHX0845F0001 3BHL000385P0101
ABB 5SHX0845F0001 3BHL000385P0101
ABB 5SHX0845F0001 3BHL000385P0101
ABB 5SHX0845F0001 3BHL000385P0101
ABB 5SHX0845F0001 3BHL000385P0101
ABB 5SHX0845F0001 3BHL000385P0101
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

IGCT Thyristor Module
Self-commutated, 6-pulse
3-level voltage source inverter
Active Rectifier Unit - ARU
Get a quick price for 5SHX0845F0001 3BHL000385P0101
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 5SHX0845F0001 3BHL000385P0101

  • Manufacturer:
    ABB
  • Product Category:
    DCS Systems
  • Spare Part Number:
    5SHX0845F0001 3BHL000385P0101
  • Estimated shipping dimensions:
    20x22.1x5.2cm
  • Weight:
    0.86 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    Sweden
  • Operating Voltage:
    5 kV
  • Continuous Current:
    Up to 1150 A
  • Wafer Size / Width:
    51 mm
  • Operating Junction Temperature Range:
    -40 °C to +125 °C
  • Peak Blocking Voltage:
    4.5 kV - 5 kV

Information

Overview Manuals Common Applications Product Precautions
The 5SHX0845F0001 3BHL000385P0101 is a high-power semiconductor module featuring an Integrated Gate Commutated Thyristor (IGCT). This advanced power switching device is renowned for its high current and voltage handling capabilities, rapid switching speeds, and low power losses, making it ideal for demanding applications in medium-voltage power electronics. The module integrates the IGCT chip with its gate drive unit, ensuring optimized performance and reliability in applications such as industrial motor drives, power utility flexible AC transmission systems (FACTS), and high-power rectifiers.
    • Ultra-fast Commutation & Low Losses
    • High Electromagnetic Immunity
    • Integrated Plug-and-Play Design
The ABB 5SHX0845F0001 3BHL000385P0101 serves as a standardized, original spare part within the ABB ACS 6000 series medium voltage drives. Acting as a foundational hardware switching node, it is individually inserted into the power cabinet in series or parallel configurations within the drive's core power conversion network—specifically the Active Rectifier Unit (ARU) and the self-commutated, 6-pulse, 3-level voltage source inverter topology. The equipment operates in compliance with standard International Electrotechnical Commission (IEC) industrial environment specifications, featuring a Class I equipment protection level according to IEC 60536, and provides IP20 physical enclosure protection along the edges of the control board in accordance with IEC 60529. The external storage ambient temperature for this module must be maintained between -25°C and +70°C, while its surrounding hardware ambient temperature must be controlled within 40°C when vertically mounted and installed inside an industrial cabinet.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 ABB 5SHX0845F0001 3BHL000385P0101 IGCT Thyristor Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Iron and Steel Metallurgy Industry
Used in the medium-voltage drives of main transmissions for large hot and cold rolling mills to regulate the speed of multi-megawatt roller motors.

Mining and Extraction Industry
Serves as the core execution element in drive systems for large mine hoists and overland conveyors, controlling the vertical lifting and horizontal transport of heavy loads.

Oil and Gas Extraction Industry
Installed in pipeline compressor drive systems for long-distance gas transport, controlling high-power motors to maintain pipeline gas pressure.

Wind Power Generation Industry
Acts as the inverter core of full-power converters in large offshore megawatt-scale wind turbines, transforming unstable wind power into grid-compliant electrical energy.

Pumped Storage and Power Utility Industry
Used in Static Frequency Diode/Drive (SFD) systems at pumped storage hydro plants to assist large generator units with reactive power compensation and high-voltage grid synchronization.

Thermal Power Plant Industry
Serves as the core switch in medium-voltage drives for induced draft (ID) fans and forced draft (FD) fans in large power station boilers to achieve energy savings through speed control.
 When using this module, it is critical to strictly regulate the mechanical clamping force to guarantee optimal thermal and electrical contact for the wafer, ensure a stable and ripple-free +24V DC power supply for the control board, regularly clean and inspect the optical fiber control interfaces to prevent signal attenuation, strictly maintain the ambient operating temperature below 40°C with a continuous cooling water loop, and never disconnect the control bus before the high voltage is completely isolated.

Alternative Names

5SHX0845F0001 3BHL000385P0101 5SHX0845F0001/3BHL000385P0101 5SHX0845FOOO1 3BHLOOO385P01O1 5SHX0845F0001 3BHL000385P0I0I 5SHX0845F000I 3BHL000385P0101 5SHX0845F000I 3BHL000385P0I0I 5SHX0845FOOOI 3BHLOOO385POIOI

Technical notes

The ABB 5SHX0845F0001 3BHL000385P0101 is a 51mm, 4.5kV Integrated Gate Commutated Thyristor module, specifically engineered for heavy industrial electrification sectors. Utilizing advanced press-pack encapsulation and an onboard gate unit, it tightly couples high-power switching performance with snubberless hard turn-off capabilities. Widely applied in ACS 6000 and ACS 5000 medium-voltage drives, this module serves as a highly energy-efficient, core power execution unit ideal for steel rolling mills, mining hoists, and STATCOM systems.

FAQ View All FAQ

  • What is the ABB 5SHX0845F0001 3BHL000385P0101 module, and what role does it play in industry?
    It is a high-voltage, high-power IGCT (Integrated Gate Commutated Thyristor) control module manufactured by ABB, featuring a 51mm asymmetric semiconductor wafer. It acts as a high-voltage, high-speed electronic switch in industry, specifically designed to control and convert megawatt-level (MW) electrical power.
  • Which ABB equipment system does the ABB 5SHX0845F0001 3BHL000385P0101 belong to?
    It belongs to ABB's Medium Voltage Drives system and serves as a core power execution component in the ACS 6000 and ACS 5000 series inverters.
  • How do you use a product like the ABB 5SHX0845F0001 3BHL000385P0101?
    It cannot operate independently. It must be installed in the phase module or inverter unit of a drive, connected to the main control board (such as an AMC board) via fiber optic cables to receive high-speed trigger signals, thereby controlling the start, stop, and speed of high-power medium-voltage motors.
  • What are the rated voltage and current parameters of the ABB 5SHX0845F0001 3BHL000385P0101?
    Its rated peak off-state voltage is 4.5 kV. According to the model coding rules, its operating current belongs to the 800A to 850A class (suitable for the 51mm wafer specification).
  • Why is the ABB 5SHX0845F0001 3BHL000385P0101 called an
    It tightly integrates the IGCT semiconductor chip and the Gate Unit circuit board inside the same metal housing. This compact design drastically minimizes the parasitic inductance of the gate loop, enabling extremely fast turn-off speeds.
