      RINT-5514C

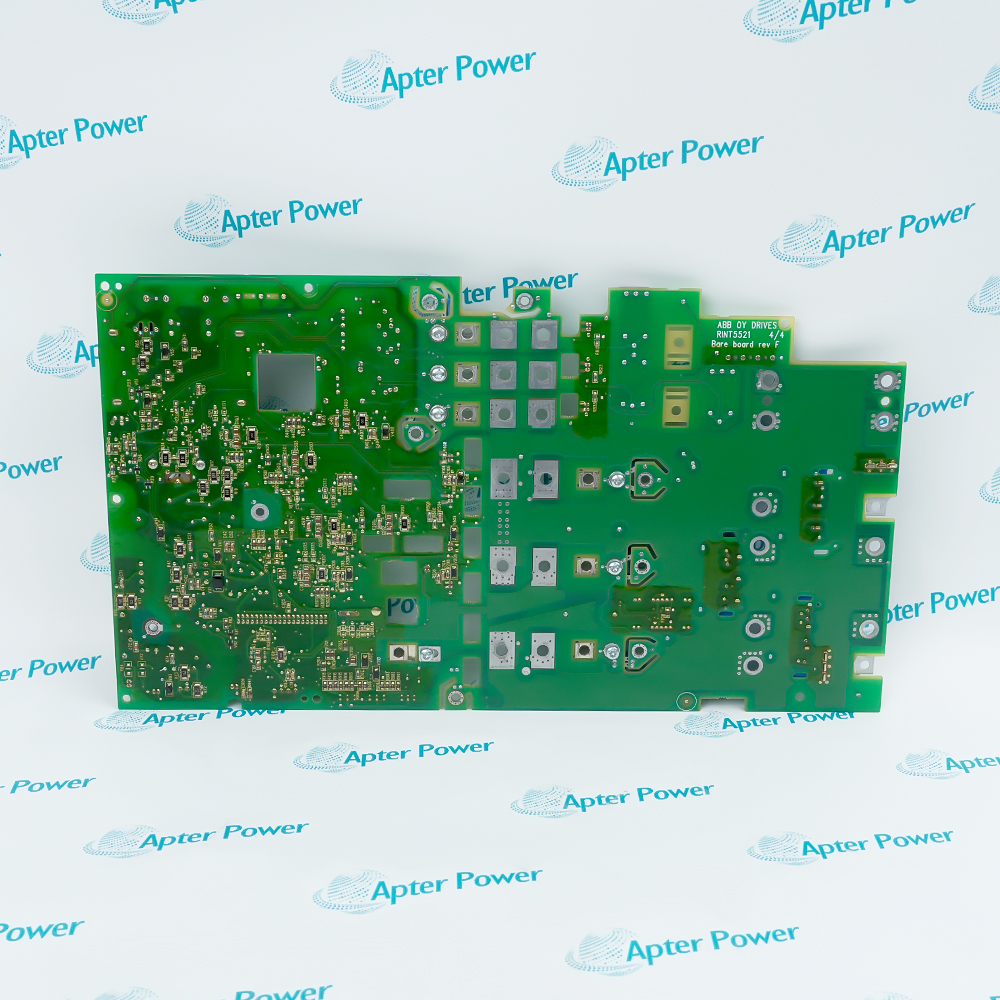

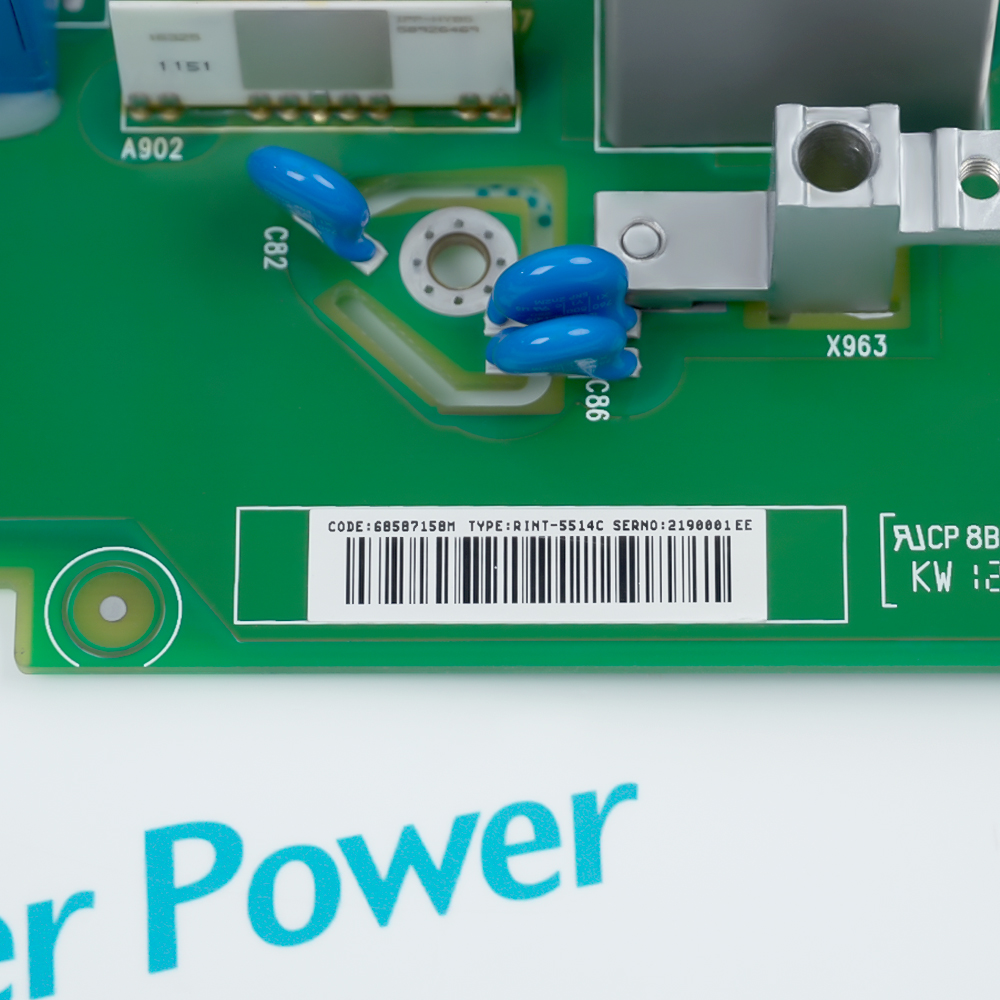

      RINT5514C Main Circuit Interface Board PCB Kit
      In Stock
      Ships by Friday, September 25
      Fast Shipping Available

      Product Describe：

      ABB RINT-5514C, product ID 68601649, is a main-circuit interface board PCB kit documented for ACS800 R5 drives in the 400 V and 500 V network class.

      Ask our team:

      Get a quick price for： RINT-5514C
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for RINT-5514C

      Technical specifications for RINT-5514C

      • Manufacturer:
        ABB
      • Product Category:
        General Automation
      • Spare Part Number:
        68601649
      • Estimated shipping dimensions:
        43x24.2x7cm
      • Weight:
        1.15 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Product type:
        Main circuit interface board PCB kit
      • Drive family:
        ACS800
      • Frame size:
        R5
      • Network class:
        400 V and 500 V
      • Replacement boundary:
        RINT5513(C), only for documented 400/500 V units
      • Main component ID:
        68587158
      • Country of origin:
        Sweden
      • HS code:
        8537101190
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      RINT-5514C provides the main-circuit interface function in a documented ABB ACS800 R5 400 V or 500 V drive.
      • Identifies ABB spare kit 68601649
      • Supports documented ACS800 R5 400 V and 500 V drive executions
      • Provides the installed main-circuit interface function
      • Carries a limited RINT5513(C) replacement boundary

      The board is selected by product ID 68601649 and the installed ACS800 drive execution, not by visual similarity alone. Commissioning restores every power-stage interface, connector and drive diagnostic state before motor operation.

      Important Notice: Confirm RINT-5514C, product ID 68601649, ACS800 type code, R5 frame, 400/500 V network class, board revision, connectors, grounding, discharge evidence, drive configuration and controlled test results before commissioning.

      Apter Power RINT-5514C Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      ACS800 R5 drive service
      Restores the main-circuit interface position in a documented R5 drive.
      400 V drive refurbishment
      Supports controlled repair of the approved 400 V ACS800 execution.
      500 V drive refurbishment
      Supports controlled repair of the approved 500 V ACS800 execution.
      Legacy board replacement
      Uses exact product, frame and network-class checks before substitution.
      Read the applicable ABB installation instructions before work. Verify RINT-5514C, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm RINT-5514C, RINT5514C and ABB product ID 68601649.
      2
      Place the drive, motor and process in the approved maintenance state.
      3
      Isolate incoming power and prove the DC link and all stored energy discharged.
      4
      Record the complete ACS800 type code, R5 frame, network class and every board connector.
      5
      Use ESD controls and inspect the board, guides, connectors and protective earth path.
      6
      Restore the exact 400 V or 500 V drive execution and recorded hardware arrangement.
      7
      Review power-stage, board and drive diagnostics after controlled energization.
      8
      Complete interlock, motor-direction and controlled functional tests before release.

      Alternative Names

      Alternative Names

      RINT5514C; 68601649; 68587158

      Technical notes

      Technical notes

      Use RINT-5514C only in a documented ACS800 R5 400 V or 500 V drive. Before removal, record the complete drive type code, frame, DC-link discharge state, board revision, connectors and mounting. A RINT5513(C) replacement is acceptable only within the manufacturer-stated 400/500 V boundary.

      FAQS

      • How is the exact RINT-5514C execution identified?
        Match RINT-5514C, RINT5514C and product ID 68601649.
      • What documented role does RINT-5514C perform?
        It is the main-circuit interface board kit for documented ACS800 R5 400/500 V drives.
      • Which installed host must be matched before fitting RINT-5514C?
        Match the complete ACS800 type code, R5 frame and network class.
      • Which physical interfaces must be recorded for RINT-5514C?
        Record every board connector, guide position, protective-earth point and board revision.
      • What isolation or handling controls apply to RINT-5514C?
        Prove the DC link discharged and use ESD controls before handling the PCB kit.
      • What must be restored after installing RINT-5514C?
        Restore the recorded power-stage interfaces, hardware execution and drive parameters.
      • What evidence confirms RINT-5514C is ready for service?
        Retain diagnostics, interlock checks and controlled motor-response evidence.
      • Which manufacturer record supports the RINT-5514C page?
        ABB product record 68601649 defines the kit identity and its ACS800 R5 technical boundary.
