      SPAS011

      Analog Output Module
      In Stock
      Ships by Monday, October 19
      Fast Shipping Available

      Product Describe：

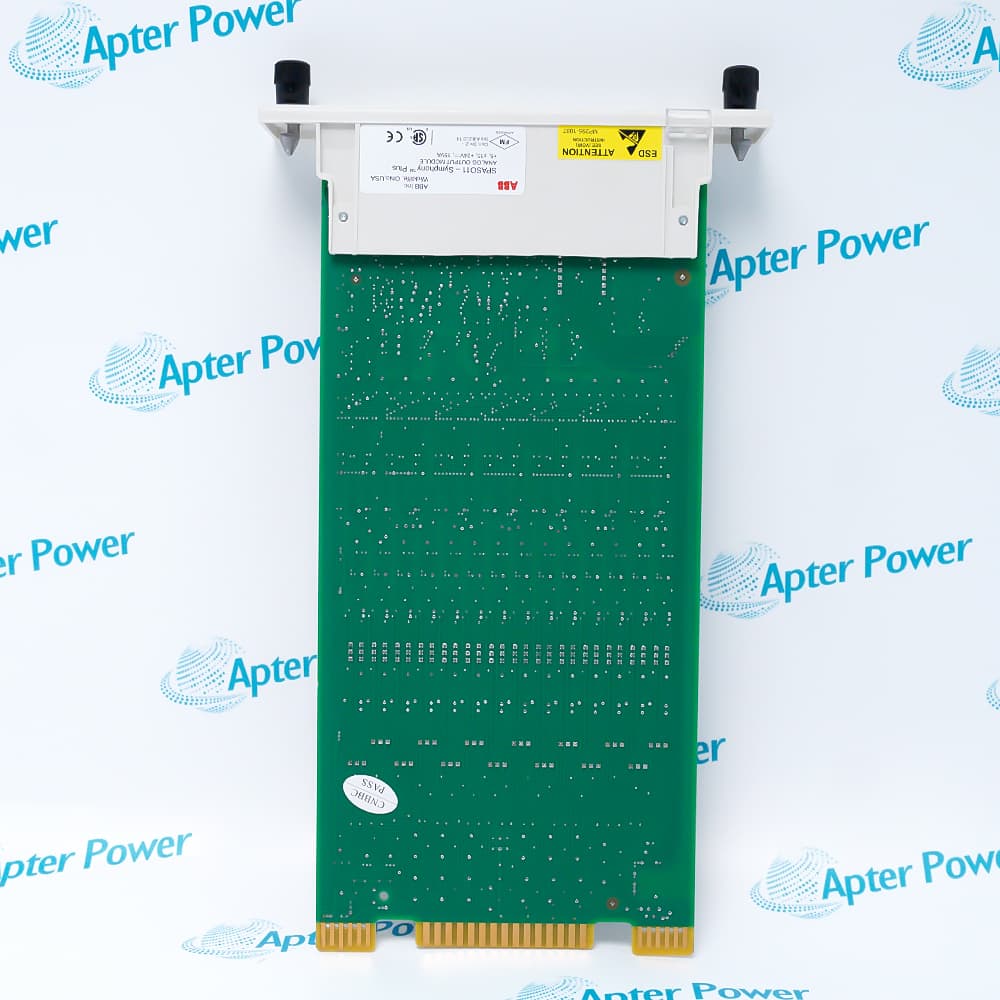

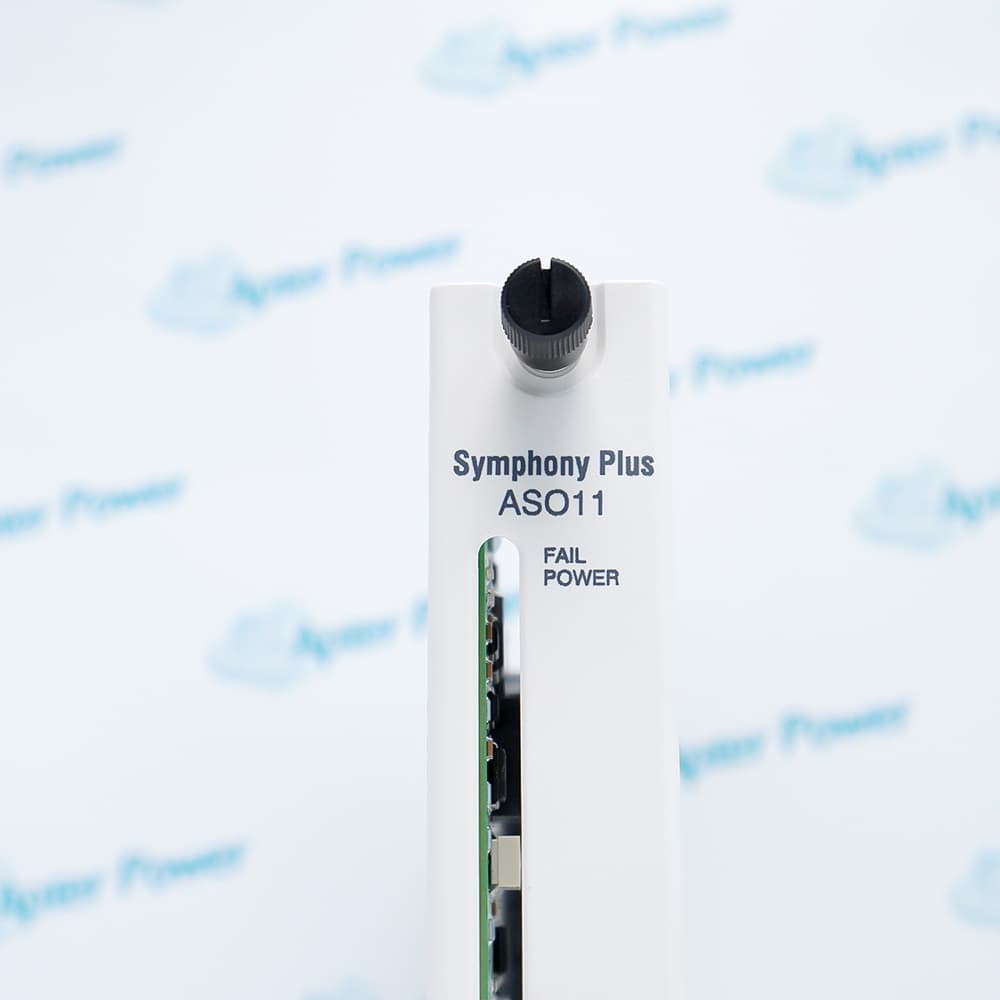

      ABB SPAS011 is a Harmony Rack analog output module with fourteen output channels for 1-5 VDC or 4-20 mA signals. ABB documents SPAS011 as the Harmony Rack replacement for IMASO11 and specifies a maximum 750-ohm current-output load.

      Ask our team:

      Get a quick price for： SPAS011
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for SPAS011

      Technical specifications for SPAS011

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        SPAS011
      • Estimated shipping dimensions:
        14x25.2x16cm
      • Weight:
        3.3 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Product family:
        Harmony Rack I/O
      • Function:
        Analog output module
      • Output channels:
        14
      • Voltage signal:
        1-5 VDC
      • Current signal:
        4-20 mA
      • Current-output load:
        750 Ohm maximum
      • Field connection:
        FC149
      • Documented predecessor:
        IMASO11
      • Service role:
        Harmony Rack replacement module
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Installed in Harmony Rack I/O, ABB SPAS011 converts controller commands into fourteen field analog outputs for connected actuators or indicators. Its voltage and current modes share the recorded rack position but require channel-specific range and load checks.
      • Provides fourteen analog output channels in a Harmony Rack I/O assembly.
      • Supports documented 1-5 VDC or 4-20 mA output service.
      • Uses the FC149 field connection path identified by ABB.
      • Serves as the documented Harmony Rack replacement for IMASO11.

      Preserve the channel map and signal range for all fourteen outputs. Confirm every connected loop independently because a passing channel does not validate the remaining outputs.

      Important Notice: The character in SPAS011 is the digit zero; confirm the FC149 termination, loop burden and every field destination before energizing the replacement.

      ABB SPAS011 Manuals & Downloads
      ABB SPAS011 Technical Reference (PDF)ABB SPAS011 Installation & Commissioning Guide (PDF)

      The technical reference records the verified analog output module parameters and system role; the installation guide separates identity checks, configuration capture, restoration and controlled acceptance.

      Fourteen-loop analog controlDrives up to fourteen documented analog control or indication loops from one rack module.
      Current-output serviceSupplies configured 4-20 mA signals while respecting the 750-ohm maximum load.
      Voltage-output serviceSupports documented 1-5 VDC analog output assignments in the Harmony system.
      IMASO11 renewalProvides the ABB-documented Harmony Rack replacement path for an IMASO11 position.
      Read the ABB Harmony migration and system instructions before work. Verify SPAS011, the fourteen-channel map, each 1-5 VDC or 4-20 mA range and the FC149 field connection.
      1
      Confirm the exact SPAS011 identity; do not confuse it with the distinct SPASO11 spelling.
      2
      Place all fourteen controlled outputs and affected process functions in the approved maintenance state.
      3
      Record every channel assignment, output range and connected field load before removal.
      4
      Verify that each 4-20 mA loop remains within the documented 750-ohm maximum load.
      5
      Retain the FC149 field connection and documented termination arrangement.
      6
      Do not copy an IMASO01 or other nearby module configuration into the SPAS011 position.
      7
      Exercise voltage and current channels with controlled test values after restoration.
      8
      Release the module only after all assigned outputs pass loop and process acceptance.

      Technical notes

      Technical notes

      SPAS011 provides fourteen analog outputs and uses the FC149 field connection path documented by ABB. Preserve every channel assignment, output range and connected load before replacement.

      FAQS

      • What is ABB SPAS011?
        SPAS011 is a Harmony Rack analog output module.
      • How many output channels does ABB SPAS011 provide?
        It provides fourteen analog output channels.
      • Which voltage signal does ABB SPAS011 support?
        ABB documents 1-5 VDC output service.
      • Which current signal does ABB SPAS011 support?
        ABB documents 4-20 mA output service.
      • What is the maximum current-loop load for ABB SPAS011?
        The documented maximum load is 750 Ohm.
      • Which field connection is associated with ABB SPAS011?
        ABB identifies the FC149 field connection path.
      • Which earlier module does ABB SPAS011 replace?
        ABB documents SPAS011 as the Harmony Rack replacement for IMASO11.
      • How should ABB SPAS011 be accepted after replacement?
        Verify all assigned channels individually at controlled values and confirm the corresponding process response.
