Technical specifications for IMMFP03
-
Manufacturer:ABB
-
Product Category:DCS Systems
-
Spare Part Number:IMMFP03
-
Estimated shipping dimensions:17.8x5.1x33.0cm
-
Weight:0.5 kg
-
Tariff Code:8537101190
-
Counliy of origin:Sweden
-
Product type:Multi-Function Processor
-
Verified system family:Symphony Harmony / INFI 90 installed base
-
GPI compatibility:MFP03 firmware revision G8 for ABB GPI 4.0
-
GPI data-point capacity:Up to 4,000 for that application
-
GPI foreign-device network:Up to 50 PLCs for that application
-
GPI programming context:Function codes, UDF and Batch within the same controller application
Information
Overview
Manuals
Common Applications
Product Precautions

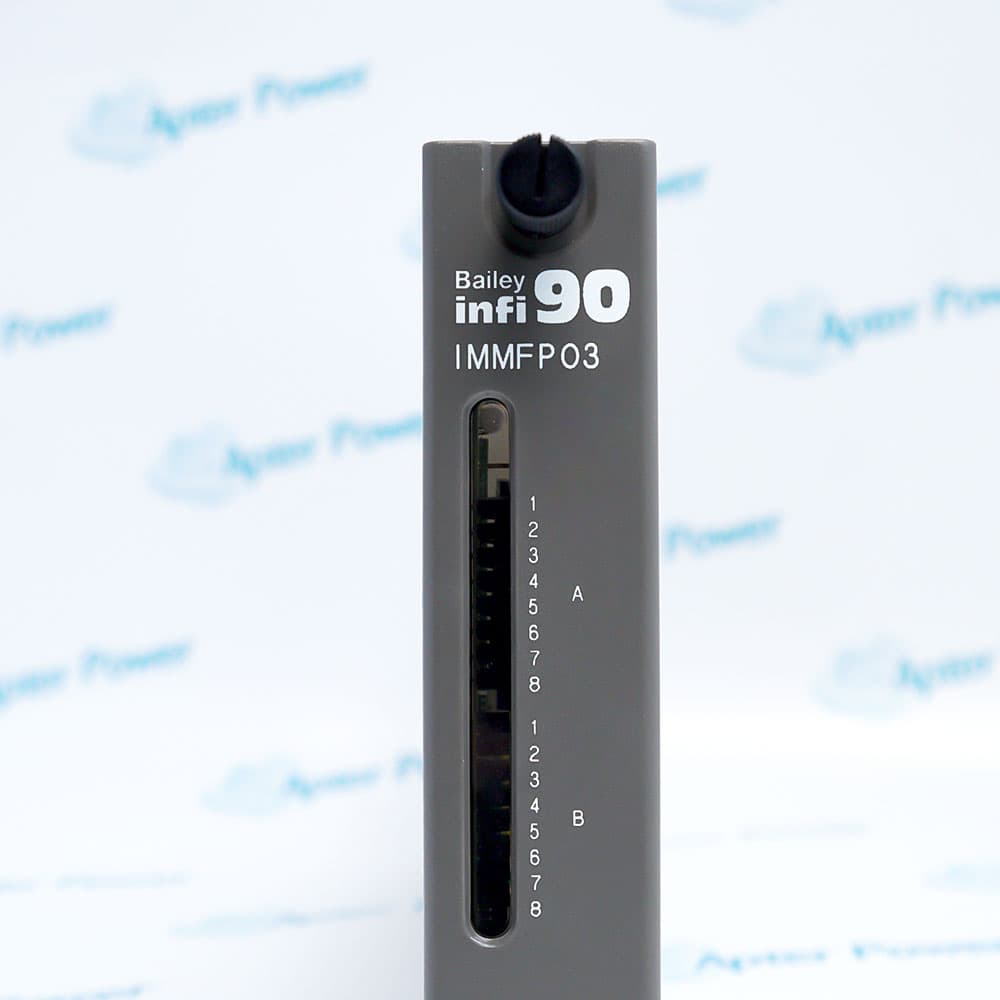

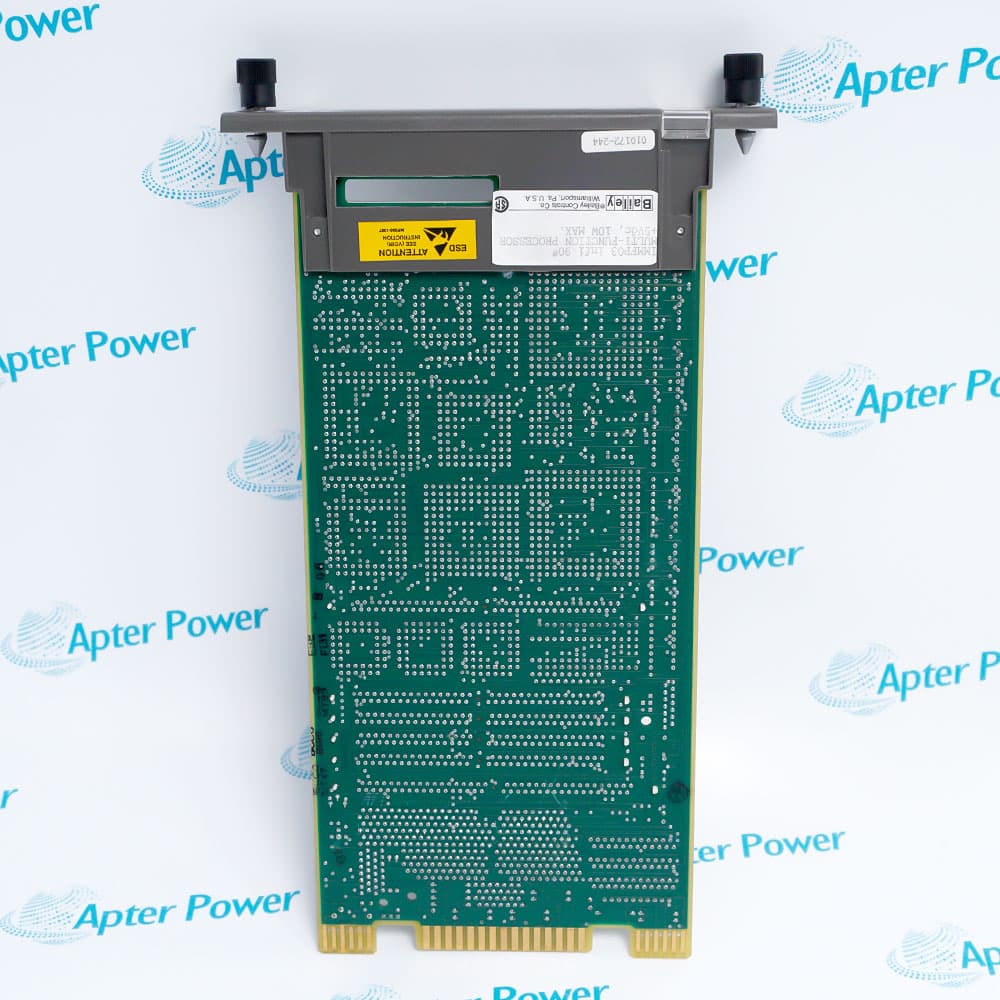

ABB IMMFP03 is a distinct INFI 90 / Symphony Harmony multifunction processor used as a controller-class processing module. ABB identifies it separately from IMMFP02, IMMFP03B and IMMFP12, so the existing page must be corrected without collapsing revisions.
- Product type: Multi-Function Processor
- Verified system family: Symphony Harmony / INFI 90 installed base
- GPI compatibility: MFP03 firmware revision G8 for ABB GPI 4.0
- GPI data-point capacity: Up to 4,000 for that application
Its verified role is to host control and interface applications in the installed Harmony architecture. For ABB's General Purpose Interface 4.0 application, an MFP03 at firmware revision G8 transfers configured analog and digital data between supported foreign devices and the Symphony operator or information-system environment. ABB documents up to 4,000 GPI data points, a foreign-device network of up to 50 PLCs, and function-code, UDF and Batch coexistence for the GPI application. These are software-application limits, not proof of the existing ApterPower page's memory, port, power, performance, origin or weight values. IMMFP03 is used in legacy process-control units in power, pulp and paper, water, chemical and heavy-industry installations. Exact CPU, memory, communication ports, I/O buses, dimensions, environment and redundancy must come from the matching ABB revision manual or physical nameplate.
Important Notice: Update existing ApterPower ID 774924 and preserve /Infi-90/immfp03; do not create a duplicate.
Apter Power IMMFP03 Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited ABB official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current ABB documents, and host-system requirements before installation or replacement.
Legacy controller execution
Hosts the installed process-control strategy in a verified INFI 90/Harmony rack.
Foreign-device data integration
Runs ABB GPI to exchange configured analog and digital data with supported PLCs.
Operator-system integration
Exposes verified GPI data through the Symphony operator or information interface.
Migration baseline
Preserves the exact legacy database, firmware and revision evidence for controller evolution.
Read and follow the exact ABB documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1
Update ApterPower ID 774924 in place and preserve its public canonical.
2
Remove or HOLD unsourced existing origin, HS, weight, memory and performance claims.
3
Verify exact IMMFP03 rather than IMMFP03B, IMMFP02 or IMMFP12.
4
Treat GPI point and PLC limits as application-specific, not universal hardware ratings.
5
Back up controller logic, UDF/Batch code, GPI configuration, firmware and licenses.
6
Confirm rack, I/O, communication, termination, addressing and redundancy from approved drawings.
7
Follow ABB/site ESD, isolation, outage, rollback and commissioning procedures.
8
Test control outputs, peer data, GPI data, alarms and redundancy before release.
Alternative Names
IMMFP03
MFP03
Technical notes
Update existing ApterPower ID 774924 and preserve /Infi-90/immfp03; do not create a duplicate.
Remove or quarantine unsupported existing country, HS, weight, memory and performance claims unless exact ABB evidence is added.
Do not merge IMMFP03B, IMMFP02, IMMFP12, or YIMMFP03 repair material.
Verify nameplate, firmware, rack, communication, termination and redundancy from the installed project.
Lifecycle evidence boundary: HOLD - ABB lists YIMMFP03 in recent repair campaigns and recommends MFP-family evolution to BRC/SPC platforms, but no exact current formal IMMFP03 phase was found
FAQ View All FAQ
-
What is ABB IMMFP03?It is a distinct Symphony Harmony Multi-Function Processor.
-
Does an ApterPower record already exist?Yes. Product ID 774924 is publicly available at the existing IMMFP03 canonical.
-
Is IMMFP03B the same page?No. ABB lists a separate IMMFP03B assembly/revision.
-
Which GPI firmware is documented?MFP03 revision G8 for ABB GPI 4.0.
-
How many GPI data points are documented?Up to 4,000 for the GPI application.
-
How many PLCs can that GPI application connect?Up to 50.
-
Are those universal hardware limits?No. They are application limits.
-
Is YIMMFP03 the base order code?No. It is an ABB repair-service material.
-
Can existing Sweden and HS values be retained?Not without exact ABB evidence; both remain HOLD.
-
Is the existing 0.5 kg weight proven?No. It remains HOLD without exact ABB evidence.
-
Is the current lifecycle phase proven?No. Repair support does not establish a formal phase.
-
What should happen to the existing page?Update it in place, remove unsupported claims, and add the standard PDFs and four tabs.
