Technical specifications for 6ES5316-8FA12
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ES5316-8FA12
-
Estimated shipping dimensions:4.6x3.6x13.5cm
-
Weight:0.14 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-

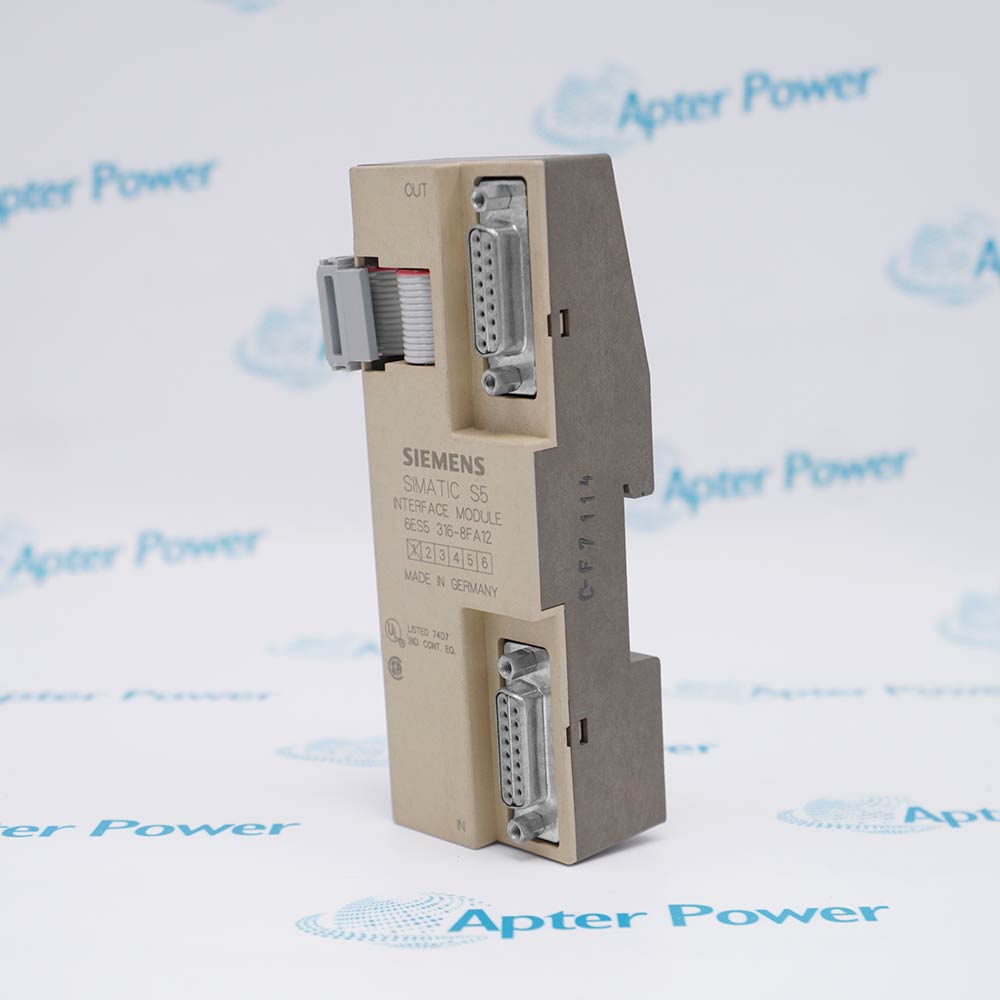

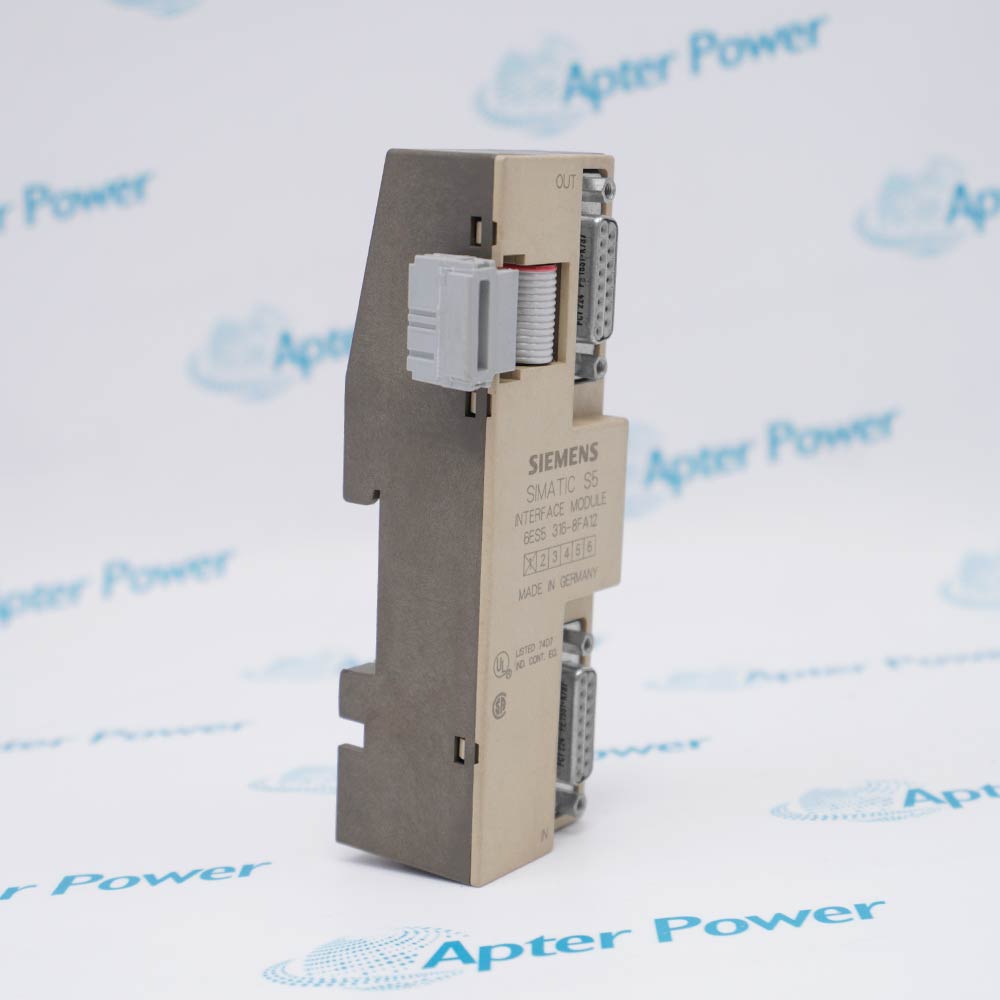

Product type:IM 316F interface module
-
Expansion rows:Up to 3
-
Supported contexts:S5-90U/95U/F, S5-100U, ET 100U, ET 200U
-
EMC execution:Increased EMC resistance
-
Expansion-unit current:Maximum 1 A
-
Interface modules per PLC:Maximum 4
-
Ground-point potential difference:Plus or minus 1 V
-
CPU-side current at +9 V:Typically 27 mA
-
0.5 m connector:6ES5712-8AF00
-
2.5 m connector:6ES5712-8BC50
-
5 m connector:6ES5712-8BF00
-
10 m connector:6ES5712-8CB00
Information
Overview
Manuals
Common Applications
Product Precautions
Siemens 6ES5316-8FA12 extends an S5-90U/95U/F, S5-100U, ET 100U or ET 200U arrangement through an IM 316F connection with increased EMC resistance.
- Connects up to three expansion rows through the IM 316F interface.
- Supports the listed S5-90U/95U/F, S5-100U, ET 100U and ET 200U contexts.
- The F execution provides increased EMC resistance.
- Connector options cover 0.5 m through 10 m.
The retained expansion-row map, cable order number and receiving host must agree before replacement; the IM 316 interface-module table defines the matching connector and current limits.
Important Notice: confirm the IM 316F identity, the host family and every expansion-row cable before isolation.
Siemens 6ES5316-8FA12 Manuals & Downloads
Siemens 6ES5316-8FA12 Official IM 316F Manual Excerpt (PDF)Siemens 6ES5316-8FA12 Installation & Commissioning Guide (PDF)
The first document is an unchanged exact-model Siemens manual excerpt; the second is a separate Apter Power field guide for readiness, installation, verification and handover.
SIMATIC S5 expansion
Connects retained expansion rows to a supported S5 controller arrangement.
Distributed I/O extension
Supports an ET 100U or ET 200U expansion context.
EMC-sensitive cabinet service
Maintains the increased-EMC-resistance IM 316F execution.
Legacy row replacement
Preserves the accepted cable lengths, row order and module assignment.
Apply these checks to the exact Siemens 6ES5316-8FA12 installation before isolation, replacement or release.
1
Confirm the complete Siemens 6ES5316-8FA12 and IM 316F markings.
2
Record the controller family, interface position and each expansion row.
3
Label every connector and verify its cable order number.
4
Place the PLC and all connected rows in the approved maintenance state.
5
Check the one-ampere expansion-unit limit and retained grounding arrangement.
6
Restore the recorded row order, cable routing and mechanical retention.
7
Review controller and remote-I/O diagnostics after energization.
8
Verify communication with every configured expansion row before release.
Technical notes
Keep the IM 316F interface position, expansion-row order, connector order numbers, current loading and grounding arrangement together. After replacement, prove communication with every configured row.
FAQ View All FAQ
-
What is Siemens 6ES5316-8FA12?It is the IM 316F interface module with increased EMC resistance.
-
How many expansion rows can Siemens 6ES5316-8FA12 connect?The exact product description states up to three expansion rows.
-
Which SIMATIC systems list Siemens 6ES5316-8FA12?It is listed for S5-90U/95U/F, S5-100U, ET 100U and ET 200U contexts.
-
What is the expansion-unit current limit for Siemens 6ES5316-8FA12?The expansion-unit current limit is 1 A maximum.
-
How many interface modules may be used per PLC with Siemens 6ES5316-8FA12?The supplied table states a maximum of four interface modules per PLC.
-
Which connector lengths are available for Siemens 6ES5316-8FA12?The listed connector executions are 0.5 m, 2.5 m, 5 m and 10 m.
-
What should be recorded before replacing Siemens 6ES5316-8FA12?Record the host, row order, cable order numbers, grounding and current loading.
-
What completes acceptance of Siemens 6ES5316-8FA12?Verify diagnostics and communication with every configured expansion row.
