With more than 30.000 high-quality spare parts, they can be sold immediately. Our large inventory allows us to quickly meet customer needs, thereby reducing downtime and protecting production schedules. Our timely delivery time provides you with security and save money.

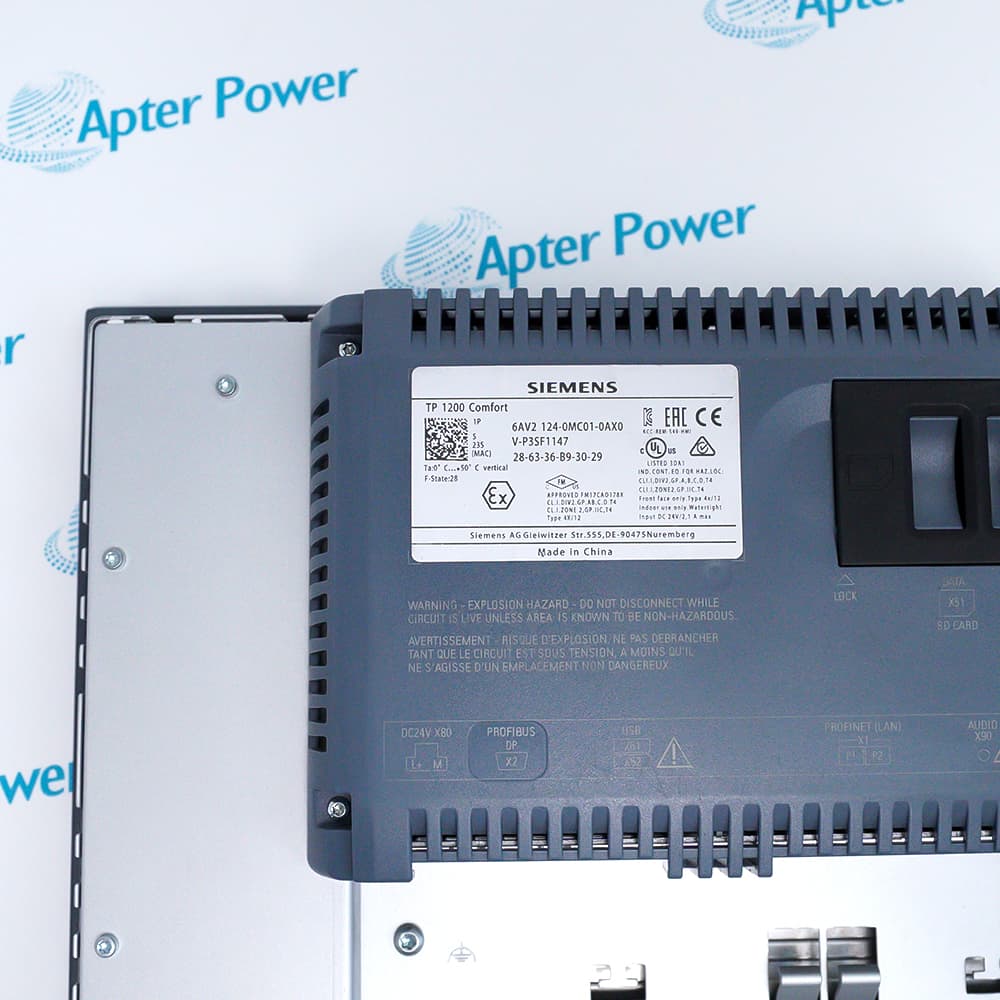

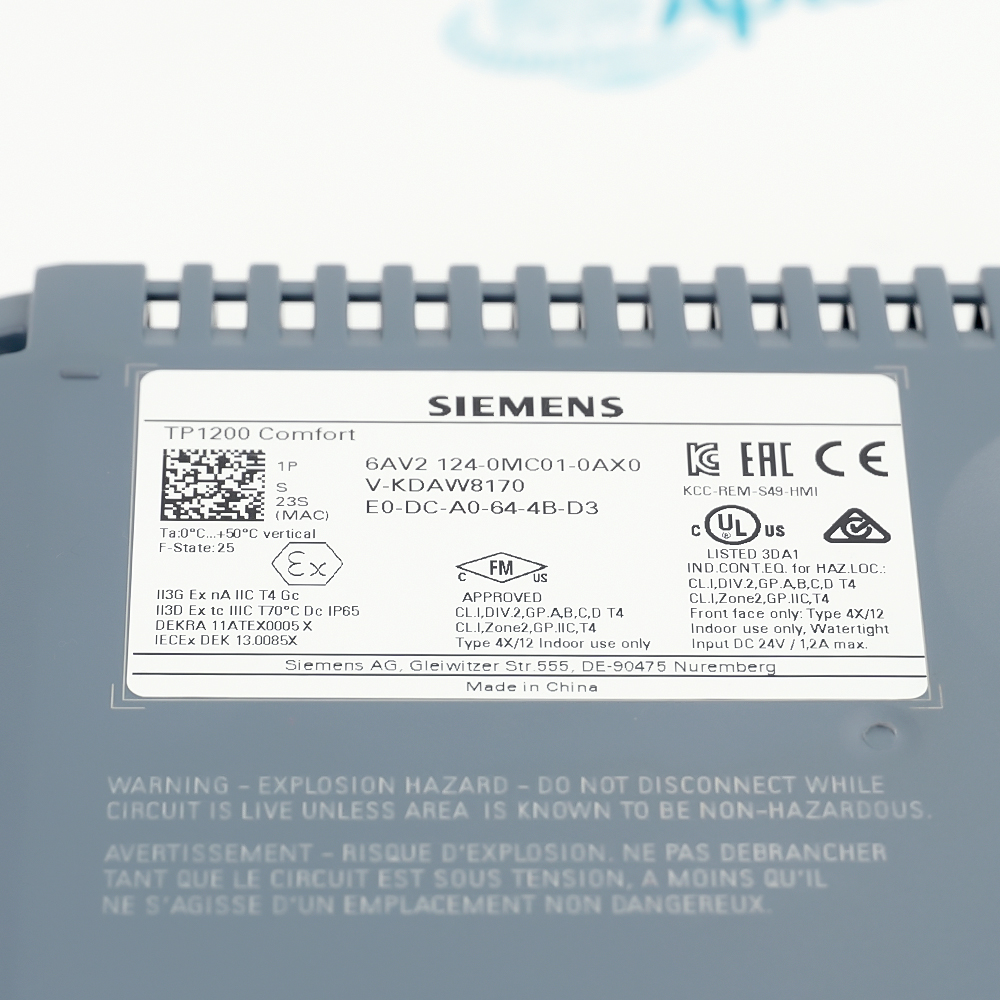

The 6AV2124-0MC01-0AX0 is a Siemens SIMATIC HMI TP1200 Comfort intelligent operator panel. It is an industrial-grade 12-inch widescreen touchscreen primarily used for data visualization, machine control, and monitoring in industrial automation systems, supporting PROFINET and PROFIBUS communication.
2.1" widescreen with 16 million colors for clear
12MB memory and high-speed processing for complex scripts and recipe management
Built-in PROFINET (2-port switch) and MPI/PROFIBUS DP for seamless network integration
In an advanced automation architecture, the 6ES7134-6GF00-0AA1 analog input module acts as a high-precision "sensor interface," utilizing its 16-bit resolution to capture subtle current fluctuations. The collected data is transmitted via PROFINET to the PLC and finally visualized on the SIMATIC HMI TP1200 Comfort panel. Leveraging the TP1200's expansive 12" TFT widescreen display and 16 million colors, operators can intuitively monitor real-time process curves fed by the 6ES7134 module. Through unified configuration in WinCC Comfort V11, developers can seamlessly transform complex 8-channel data into dynamic gauges or historical trends on the touch interface. This synergy between high-performance acquisition and the Windows CE 6.0 platform creates a complete, stable, and efficient monitoring solution from field-level data sensing to high-level HMI.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6AV2124-0MC01-0AX0 OPERATOR INTERFACE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Chemical Industry
Displaying pressure and temperature trend curves of reactors and controlling complex chemical dosing logic.
Oil & Gas
Serving as an HMI on drilling platforms or oil stations for remote monitoring of pipeline flow and pressure.
Pulp & Paper
Real-time monitoring of tension and speed across paper machine sections and recording historical production data curves.
Semiconductor
Monitoring precise process steps and gas flows in cleaning or diffusion equipment through a graphical interface.
Mining Machinery
Serving as a robust operator terminal in underground hoists or ventilation systems to display alarm information.
Rubber & Plastics
Monitoring heating zone temperatures of injection or extrusion machines and storing process parameters for hundreds of molds.
When using the 6AV2124-0MC01-0AX0, it is essential to ensure correct power polarity and implement robust grounding and lightning protection to shield the precision 12" TFT display from electromagnetic interference. During configuration, logically manage the 12MB memory allocation, regularly back up critical recipes and archived data via SD card, and avoid using sharp objects on the touch surface. Additionally, since it runs on Windows CE, ensure that the firmware version matches your TIA Portal software and clear the cache after project updates to maintain long-term system stability.
What are the display specifications of the 6AV2124-0MC01-0AX0?
It features a 12.1-inch widescreen TFT display with a resolution of 1280 x 800 pixels and supports a rich palette of 16 million colors.
How is the 6AV2124-0MC01-0AX0 operated?
The device is operated via its analog resistive touch screen, allowing for intuitive interaction with the industrial process.
What is the memory capacity of the 6AV2124-0MC01-0AX0?
The panel provides 12 MB of user memory dedicated to the configuration project, including screens, logs, and recipes.
Which software is used to configure the 6AV2124-0MC01-0AX0?
It must be programmed using WinCC Comfort (TIA Portal) version V11 or higher.
What is the operating system of the 6AV2124-0MC01-0AX0?
The hardware runs on the Windows CE 6.0 embedded operating system, optimized for real-time industrial HMI tasks.
