      C98043-A7004-L2

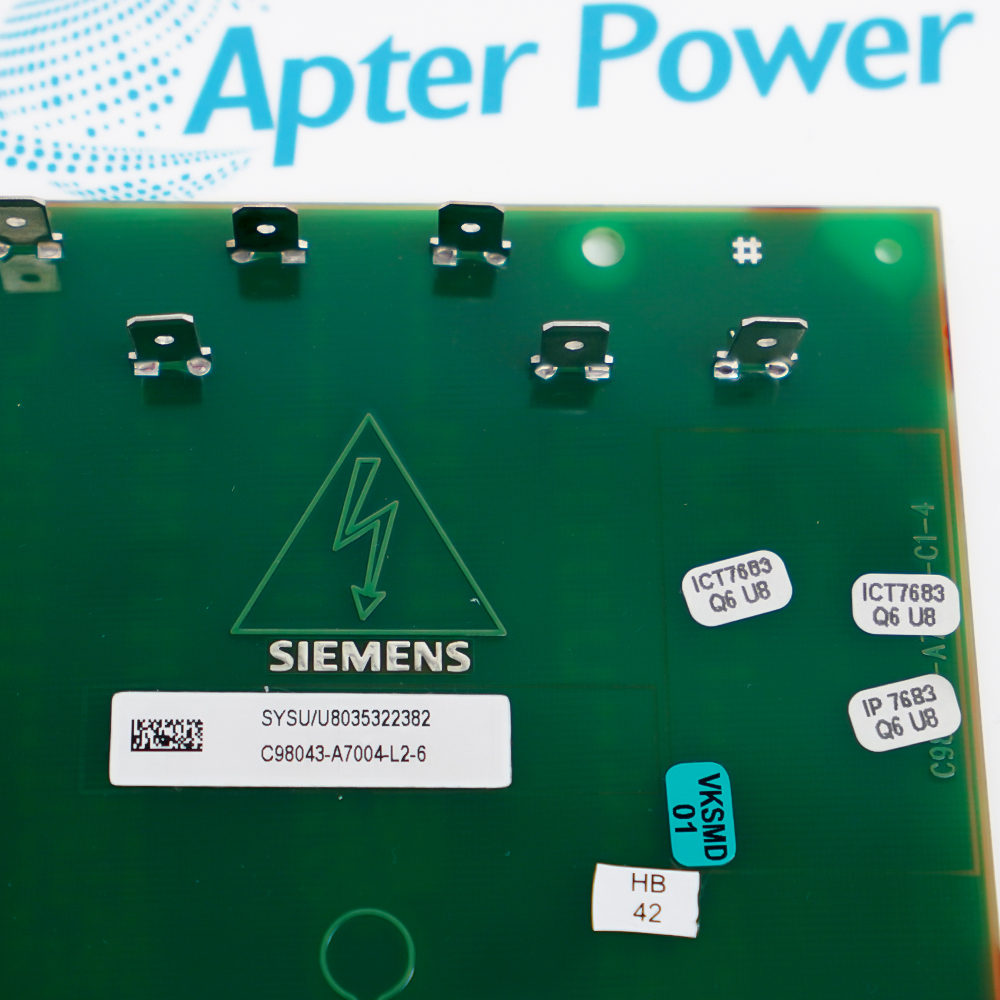

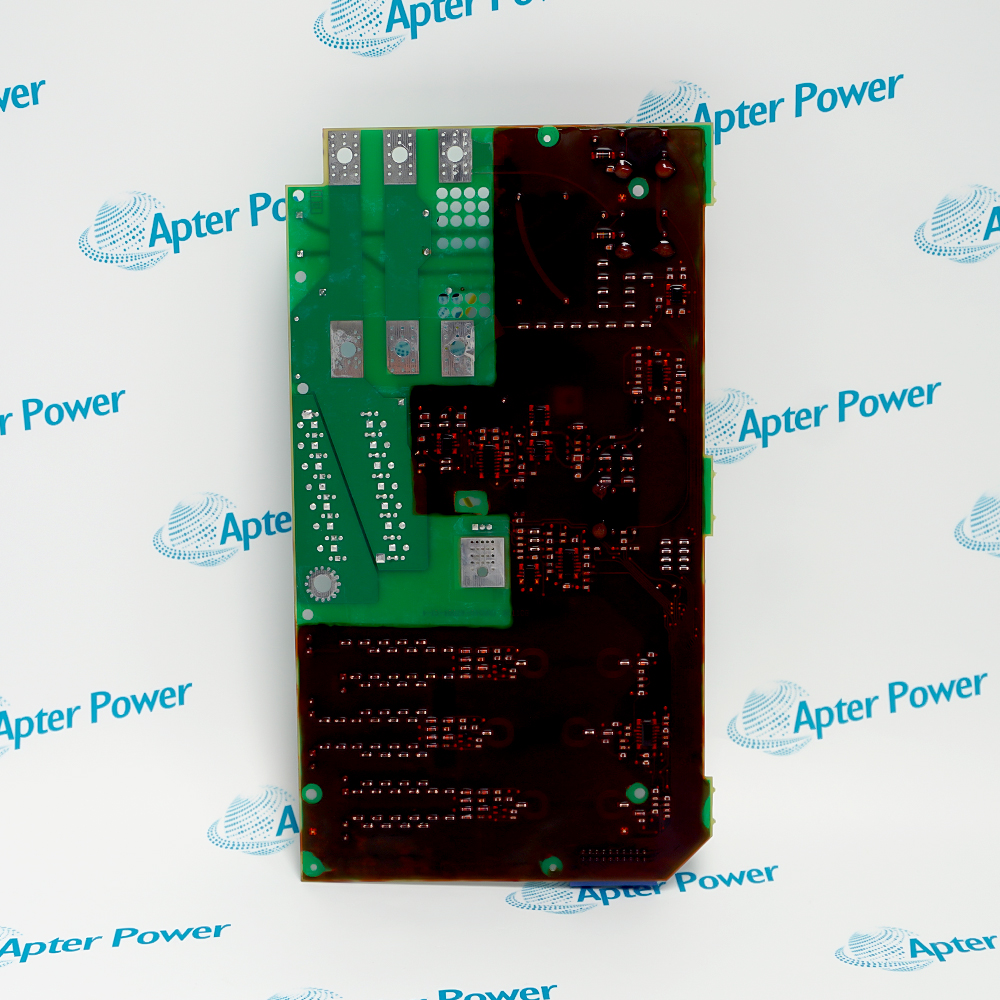

      Converter Module
      In Stock
      Ships by Wednesday, September 30
      Fast Shipping Available

      Product Describe：

      Siemens C98043-A7004-L2 is an A7004-L2 converter module documented in the SIMOREG DC-MASTER operating instructions. Its wiring and resistor arrangement must be matched to the installed converter current configuration.

      Ask our team:

      Get a quick price for： C98043-A7004-L2
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for C98043-A7004-L2

      Technical specifications for C98043-A7004-L2

      • Manufacturer:
        Siemens
      • Product Category:
        General Automation
      • Spare Part Number:
        C98043-A7004-L2
      • Estimated shipping dimensions:
        28x15.7x3.2cm
      • Weight:
        0.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Drive family:
        SIMOREG DC-MASTER
      • Module identity:
        C98043-A7004-L2
      • Documented converter range:
        A7004-L1/-L2 configurations
      • Armature-current configurations:
        900 to 1200 A and 1500 to 2000 A
      • Field-current configurations:
        30 A and 40 A
      • Resistor set:
        R1 to R8, 0R04 in the documented L1/L2 table
      • Main connections:
        3U1, 3W1, 3D and 3C
      • Control connector:
        X102 connection to A7002
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens C98043-A7004-L2 is an A7004-L2 converter module documented in the SIMOREG DC-MASTER operating instructions. Its wiring and resistor arrangement must be matched to the installed converter current configuration.
      • Provides the documented A7004-L2 converter power-stage function
      • Uses the SIMOREG DC-MASTER wiring arrangement
      • Supports the listed armature and field-current configurations
      • Connects to the A7002 assembly through X102

      Apply Siemens C98043-A7004-L2 only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full C98043-A7004-L2 marking, installed revision, compatible hardware and approved commissioning record before release.

      Siemens C98043-A7004-L2 Manuals & Downloads
      Siemens C98043-A7004-L2 Technical Reference (PDF)Siemens C98043-A7004-L2 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      SIMOREG power stage
      Operates within a documented high-current DC converter assembly.
      Converter service
      Replaces an identical A7004-L2 after current-class and wiring verification.
      Thyristor circuit maintenance
      Restores the documented module and resistor arrangement.
      Controlled drive commissioning
      Validates power connections, firing interface and regulated DC output.
      Read the applicable Siemens instructions before work. Verify Siemens C98043-A7004-L2 and the installed system configuration before commissioning.
      1
      Verify the complete C98043-A7004-L2 marking and installed converter rating.
      2
      Isolate and prove the DC drive power stage de-energized before work.
      3
      Record the armature-current and field-current configuration.
      4
      Label 3U1, 3W1, 3D, 3C and X102 connections before disconnection.
      5
      Confirm the documented R1 to R8 resistor values for the installed configuration.
      6
      Inspect thyristor blocks, gating leads and insulation before reconnection.
      7
      Do not interchange L1/L2 with L3/L4 arrangements.
      8
      Commission with controlled firing, current feedback and DC-output checks before release.

      Technical notes

      Technical notes

      Use only the complete Siemens C98043-A7004-L2 identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is Siemens C98043-A7004-L2?
        It is an A7004-L2 converter module documented for the SIMOREG DC-MASTER power stage.
      • Which current configurations are documented for Siemens C98043-A7004-L2?
        The Siemens table lists A7004-L1/-L2 arrangements for 900–1200 A and 1500–2000 A armature current with 30 A or 40 A field current.
      • Which main connections belong to Siemens C98043-A7004-L2?
        The wiring diagram identifies 3U1, 3W1, 3D and 3C power-stage connections.
      • What is the X102 connection on Siemens C98043-A7004-L2?
        The Siemens wiring diagram shows X102 connecting the A7004 module to the A7002 assembly.
      • Why must the installed current class be checked for Siemens C98043-A7004-L2?
        The applicable field-current and component arrangement depends on the complete converter configuration.
      • What must be inspected before energizing Siemens C98043-A7004-L2?
        Inspect module identity, resistor set, thyristor blocks, gating leads, insulation and all labeled connections.
      • What confirms successful commissioning of Siemens C98043-A7004-L2?
        Correct firing, current feedback, field circuit and regulated DC output under a controlled test confirm release.
