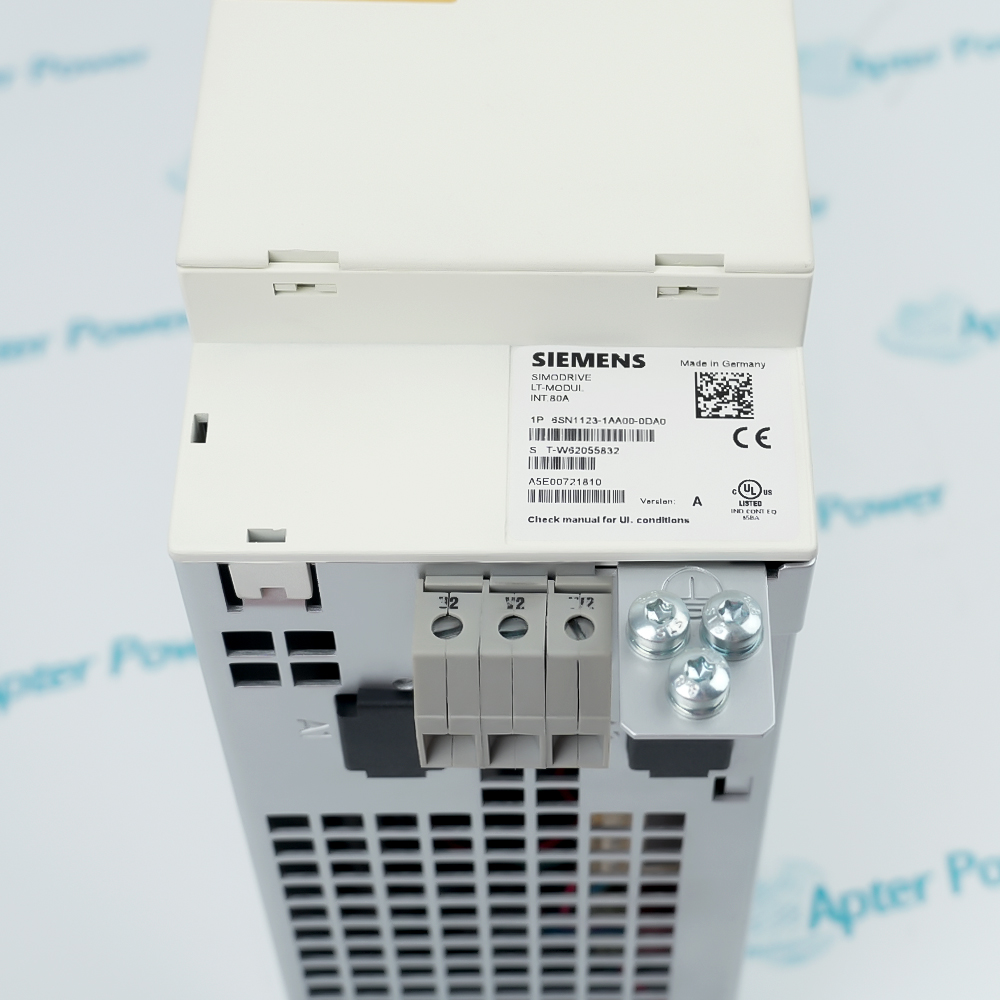

The 6SN1123-1AA00-0DA0 is an industrial single-axis power module belonging to the SIMODRIVE 611 modular converter drive system family. This hardware component functions as the localized power execution unit within a drive configuration, delivering a rated current output of 80 A. The physical architecture requires insertion into a standardized SIMODRIVE 611 framework, typically positioned alongside a 6SN1145 series line supply unit to receive its direct current bus power via upper metal busbars. The module serves as a front-end hardware pairing for industrial automation and computer numerical control platforms, most frequently embedded within setups running SINUMERIK 810D or 840D machine control configurations.
Incorporates a standard metal busbar connection interface at the top of the module
Features a configuration that completely separates the power-stage hardware from the control-stage card slots
The hardware current specification supports direct connection and driving of four distinct types of industrial motors
The operational parameters define specific motor current allocation limits based strictly on the connected electric machine type. When paired with 1FT5 series servo motors, the rated current output is limited to 40 A; when linked to 1FT6 series servo motors, the allocation drops to 28 A. For 1PH main spindle motors and standard asynchronous industrial motors, the current allocation is fixed at 30 A. To handle the thermal loads generated during continuous high-current execution, the module utilizes an internal heat dissipation configuration. This structure relies on integrated physical cooling fans and aluminum heatsinks to route air through internal ventilation ducts within the enclosed housing.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6SN1123-1AA00-0DA0 SIMODRIVE 611 power module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Powertrain Manufacturing
Feed axis control in automotive engine block and cylinder head machining centers.
Aerospace Components Machining
Spindle and heavy-load axis drive in five-axis CNC milling machines for aircraft titanium structural components.
Metal Stamping & Forging
Speed regulation of servo feeders and manipulator axes in automated stamping lines.
Mold & Die Production
Axis displacement in CNC EDM machines and gantry mills for high-hardness precision molds.
Railway Track Industry
Speed adjustment execution of high-power travel axes in rail welding and CNC grinding machines.
Paper & Pulp Converting
Tension and speed regulation of rewinding shafts in industrial corrugated cardboard slitting and high-speed paper winding machines.
When operating the Siemens 6SN1123-1AA00-0DA0, never insert or remove front control axis cards while powered, and apply standard torque to upper DC busbar screws to prevent high-current overheating. Regularly clear dust from the integrated physical cooling fans and aluminum heatsinks to block over-temperature I2t faults during continuous operations. Lastly, strictly verify the motor type against factory-defined current bounds (40 A for 1FT5, 28 A for 1FT6, 30 A for 1PH/asynchronous motors) prior to wiring.
The Siemens 6SN1123-1AA00-0DA0 is an industrial single-axis power module belonging to the SIMODRIVE 611 modular converter drive system. It functions as the executive power unit to regulate motor currents, delivering a rated current output of 80 A. The hardware setup relies on an internal heat dissipation system using integrated cooling fans to manage internal thermal loads during continuous operation. Depending on the connected industrial motor type, the rated current allocation limits are defined as 40 A for 1FT5 servo motors, 28 A for 1FT6 servo motors, and 30 A for both 1PH spindle motors and standard asynchronous motors. The frame architecture requires a separate plug-in closed-loop control card inserted into the front slot to complete the automation drive loop.
