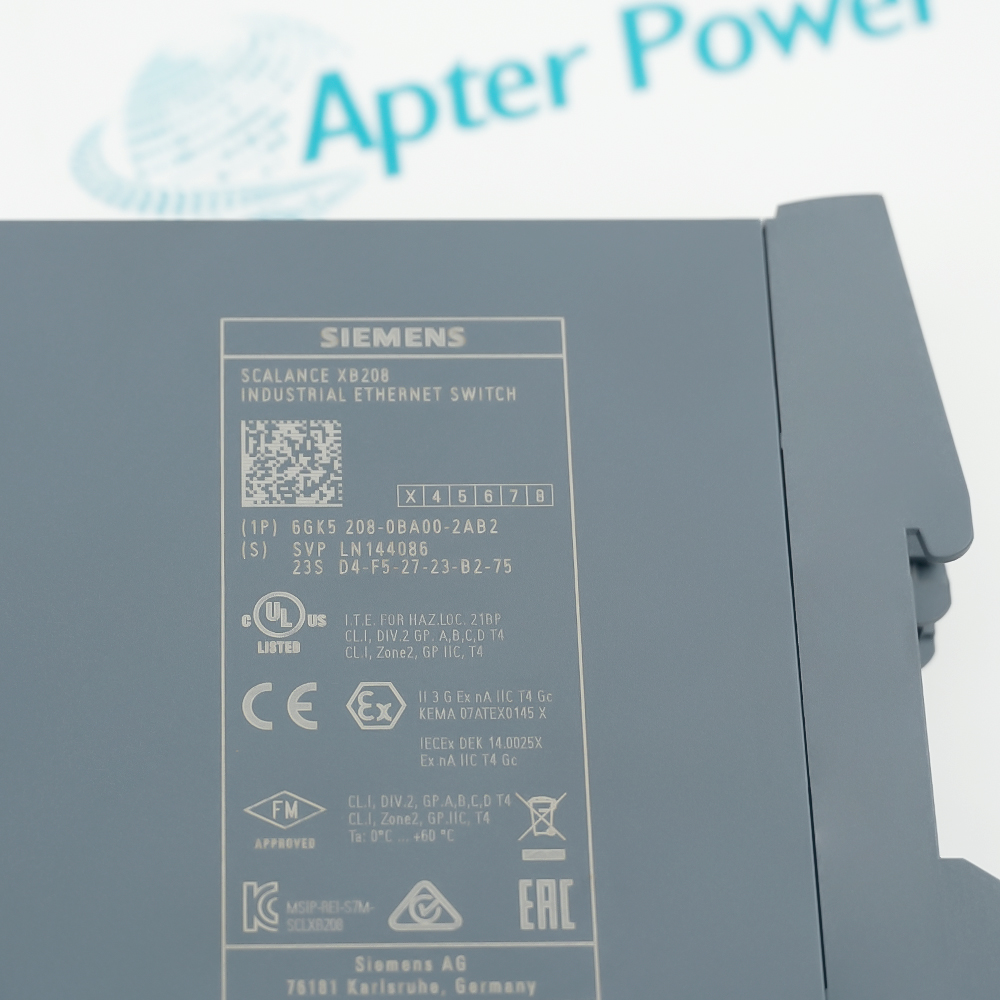

The 6GK5208-0BA00-2AB2 is a Siemens Layer 2 managed industrial switch preconfigured for PROFINET with switchable support for EtherNet/IP. It features 8 10/100 Mbit/s RJ45 ports and 1 console port. The hardware supports MRP ring redundancy and RSTP to prevent data loops and ensure link recovery, allowing users to configure VLANs and monitor networks via Web, SNMP, or TIA Portal.
Default preconfigured PROFINET supporting MRP ring and RSTP, featuring automatic link recovery to prevent communication downtime
Employs dual redundant 24V DC power inputs with ATEX and IECEx certificates, suitable for direct installation in hazardous areas
Supports TIA Portal topology mapping and system diagnostics, enabling computer-free on-site hardware replacement via a C-PLUG card
The 6GK5208-0BA00-2AB2 supports IGMP Snooping to manage and filter multicast data traffic within industrial networks, preventing the blind broadcasting of multicast packets and optimizing bandwidth usage. For automation integration, the switch allows its diagnostic data to be directly integrated into the Siemens hardware diagnostics system, enabling the controller program to read switch port statuses via standard system function blocks. Using the corresponding GSDML configuration file, engineers can drag and drop the device directly into the TIA Portal topology view to establish connections, assign device names, and uniformly allocate IP addresses alongside other network automation components.
The 6GK5208-0BA00-2AB2 supports Quality of Service (QoS) functionality, enabling classified forwarding of network packets based on priority tags to guarantee that highly time-critical PROFINET communication data passes through with priority. The hardware features Port Mirroring capability, allowing engineers to duplicate the full internal data stream of a specified port onto a diagnostic port to perform packet capture and troubleshooting using network analysis software without interrupting production line communication.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6GK5208-0BA00-2AB2 SCALANCE XB208 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing Industry
Connecting multiple PLCs and robots across stamping, welding, and assembly lines to ensure real-time production data interconnection.
Water & Wastewater Treatment
Constructing a distributed field I/O monitoring network across regions to securely transmit remote pump station data to the central control room.
Oil & Gas Extraction
Utilizing its explosion-proof certification to connect wellhead control panels and metering instruments at boosting stations into the cabinet ring network.
Rail Transit Control Systems
Deploying in low-voltage power distribution and environmental monitoring (BAS) cabinets along subway or railway lines to transmit power and environmental diagnostic data.
Wind Power Industry
Installing in control cabinets at the base of wind turbine towers to connect the nacelle master controller with the inverter and grid synchronization monitoring units.
Metallurgy & Iron and Steel Industry
Withstanding high-density dust environments to connect blast furnace batching systems, rolling mill sensors, and distributed I/O stations.
First, never exceed the temperature range. The device relies on natural convection cooling, so the ambient temperature must be maintained between 0 °C and +60 °C.
Second, prevent network storms. When configuring a ring network, the MRP or RSTP protocol must be activated to avoid data loops and network collapse caused by accidental misconnections.
Third, ensure proper enclosure protection and power checks. The hardware carries an IP20 rating and must be installed inside a dustproof and waterproof control cabinet, and the voltage must remain within the 19.2V to 28.8V DC specification when dual redundant power inputs are connected.
The Siemens 6GK5208-0BA00-2AB2 features an IP20 plastic enclosure for 35mm DIN-rail mounting. Operating on 24V DC, it accepts a 19.2V to 28.8V DC range and includes dual redundant power inputs. It functions from 0 °C to +60 °C with onboard status LEDs, holds IEC 62443-4-2 cybersecurity and ATEX certificates, and is suitable for hazardous area cabinets.
It is a Siemens SCALANCE XB208 industrial Ethernet Layer 2 managed switch.
How many communication network ports does 6GK5208-0BA00-2AB2 have?
It has 8x 10/100 Mbit/s RJ45 ports and 1x console port for configuration.
How do you use a product like 6GK5208-0BA00-2AB2?
Mount it on a standard DIN rail, connect the DC power supply, insert network cables to connect industrial devices, and manage/configure it via a web browser or console.
What is the default setting of 6GK5208-0BA00-2AB2?
Its default industrial Ethernet protocol factory setting is PROFINET.
Does 6GK5208-0BA00-2AB2 support redundant power supply inputs?
Yes, it features a redundant power supply design to ensure continuous device operation if one power source fails.
