Technical specifications for 15499-146/8
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:15499-146/08
-
Estimated shipping dimensions:15.2x7.6x48.3 cm
-
Weight:2.9 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Rated voltage:+28 V
-
Input time constant:6 ms
-
Switching power:24 W
-
Current consumption:105 mA
-
Relative Humidity:5% to 95% (Non-condensing)
-
Storage Temperature:-40°C to +85°C
-
Operating Temperature:0°C to +60°C
Information
Overview
Manuals
Common Applications
Cooling Function

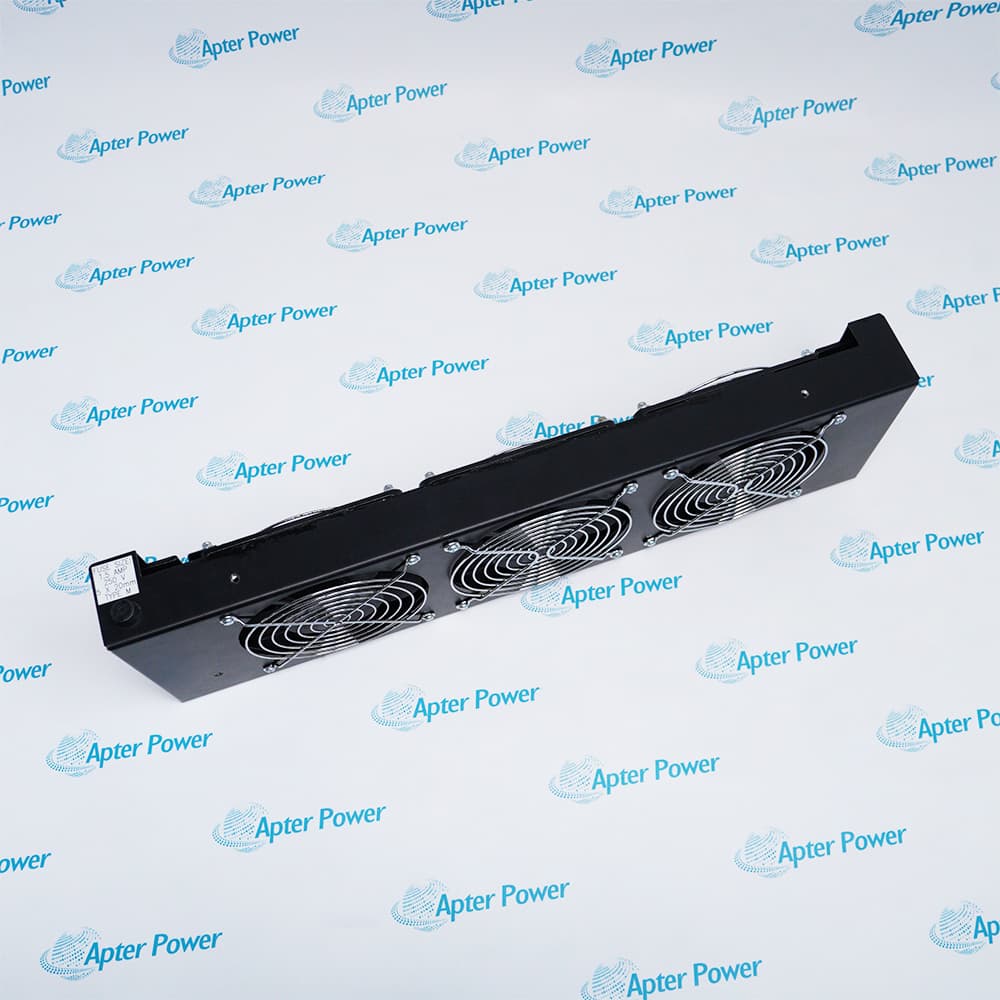

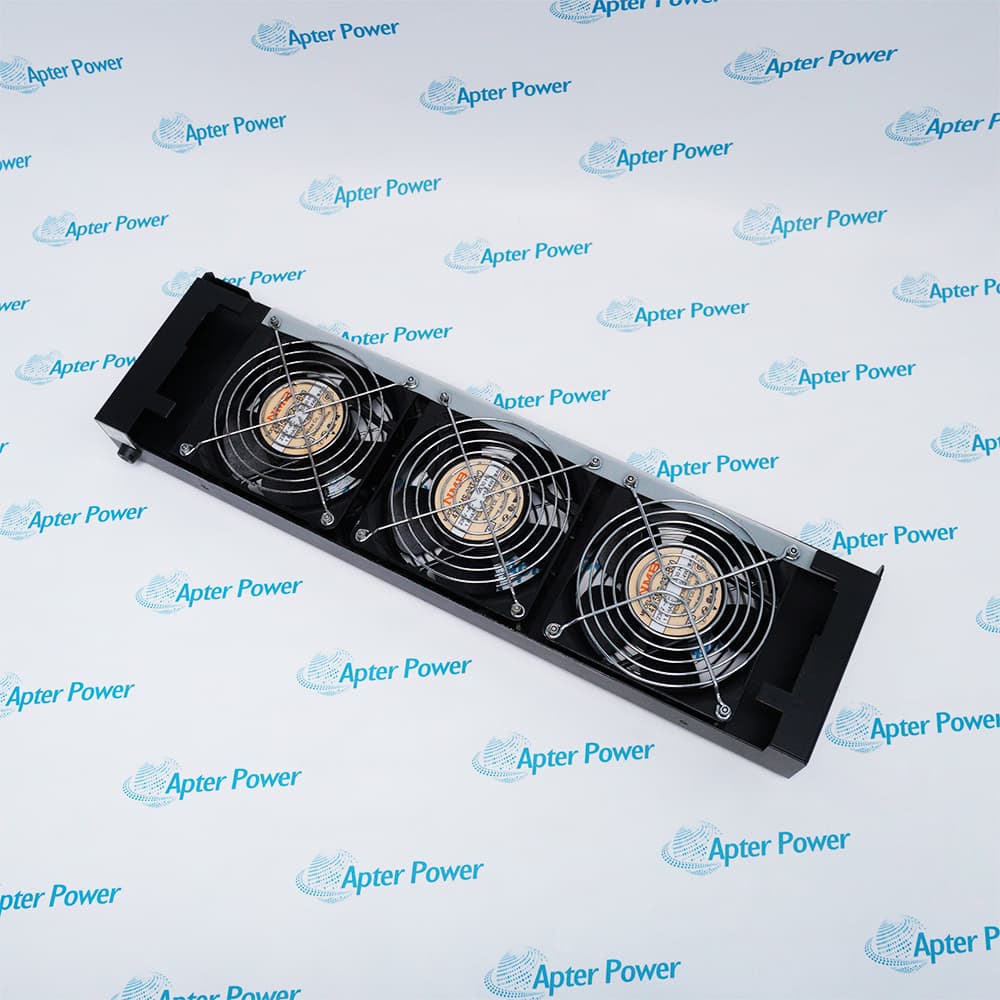

The 15499-146/8 is a fan assembly for ModulRac systems, designed for use in industrial control environments requiring continuous operation. The unit provides forced-air cooling to maintain proper operating temperature of installed modules and assemblies.
- Seamless ModulRac Integration
- High-Efficiency Forced Cooling
- Rapid Slide-in Maintenance
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 15499-146/8 Fan Assembly – Modular Rack Component Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Applied in offshore platforms and onshore refineries to provide critical thermal management for process controllers. It ensures the reliability of high-density electronic modules in volatile petrochemical processing environments.
Applied in offshore platforms and onshore refineries to provide critical thermal management for process controllers. It ensures the reliability of high-density electronic modules in volatile petrochemical processing environments.
Power Generation
Used within distributed control systems for boiler and turbine management in fossil fuel and nuclear plants. The forced-air cooling maintains continuous operation of redundant controller configurations for grid stability.
Chemical Processing
Integrated into automated batch and continuous reactor control systems to prevent hardware overheating. It supports precise environmental control for sensitive chemical synthesis and large-scale manufacturing lines.
Pharmaceutical Manufacturing
Supports standardized control architectures in FDA-regulated environments for drug production and packaging. Reliable cooling ensures that process data and batch records are maintained without hardware interruption.
Water & Wastewater
Utilized in large-scale water treatment and distribution facilities to manage remote I/O and telemetry systems. The robust modular design allows for consistent performance in demanding utility infrastructure environments.
Pulp & Paper
Deployed in mill-wide control systems for managing complex machinery such as digesters and paper machines. It facilitates the high-speed data processing required for synchronized motion and quality control in heavy industrial settings.
Recirculating fan assembly for use in ModulRac systems. The unit is designed to provide air circulation within the rack to support thermal management of installed modules.The assembly operates on 230 VAC and is installed as part of the rack cooling arrangement. It is used to maintain airflow across system components during operation.The fan assembly is intended for use with Siemens rack-based systems and is supplied as a complete unit for installation and replacement purposes.
FAQ View All FAQ
-
What is the primary role of the Siemens 15499-146/8 in a ModulRac enclosure?The 15499-146/8 is a Fan Assembly designed to provide forced-air cooling, ensuring that APACS+ and QUADLOG modules operate within their rated temperature limits.
-
What is the operating temperature range for the Siemens 15499-146/8 module?This module is rated for a continuous operating temperature range of 0°C to +60°C within the industrial rack environment.
-
Does the Siemens 15499-146/8 support hot-swapping during system operation?Yes, the 15499-146/8 features a slide-in modular design that allows for quick replacement in the fan tray to minimize potential system downtime.
-
What are the input power requirements for the Siemens 15499-146/8 Fan Assembly?The 15499-146/8 is typically powered by a 24V DC source provided by the ModulRac backplane or power distribution system.
-
How can a failure of the Siemens 15499-146/8 be detected by the system?A failure of the 15499-146/8 assembly can trigger a local alarm through the rack’s diagnostic logic, indicating a drop in cooling performance or loss of current.
