How many analog inputs does Siemens 6ES7336-4GE00-0AB0 provide?

It provides six fail-safe analog input channels.

What resolution does Siemens 6ES7336-4GE00-0AB0 use?

The maximum resolution is 16 bits including sign, specified as 15 bits plus sign.

Does Siemens 6ES7336-4GE00-0AB0 support HART?

Yes. HART communication is supported for compatible field transmitters.

Which current transmitters can Siemens 6ES7336-4GE00-0AB0 connect?

The module supports current measurement using 2-wire and 4-wire transducers.

What supply does Siemens 6ES7336-4GE00-0AB0 require?

Its load supply is 24 V DC; typical L+ current consumption is 150 mA and the 5 V backplane current is up to 90 mA.

What is the maximum permissible current at a Siemens 6ES7336-4GE00-0AB0 input?

The current-input destruction limit is 40 mA maximum.

What integration times apply to Siemens 6ES7336-4GE00-0AB0?

The integration time is 20 ms at 50 Hz or 16.7 ms at 60 Hz.

What must be proven when commissioning Siemens 6ES7336-4GE00-0AB0 in a safety loop?

Verify channel scaling and diagnostics, HART communication where used, discrepancy handling, the configured safe response, and the approved proof-test sequence.

6ES7336-4GE00-0AB0

Name: 6ES7336-4GE00-0AB0
Brand: Siemens
SKU: 6ES7336-4GE00-0AB0

Fail-Safe Analog Input

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

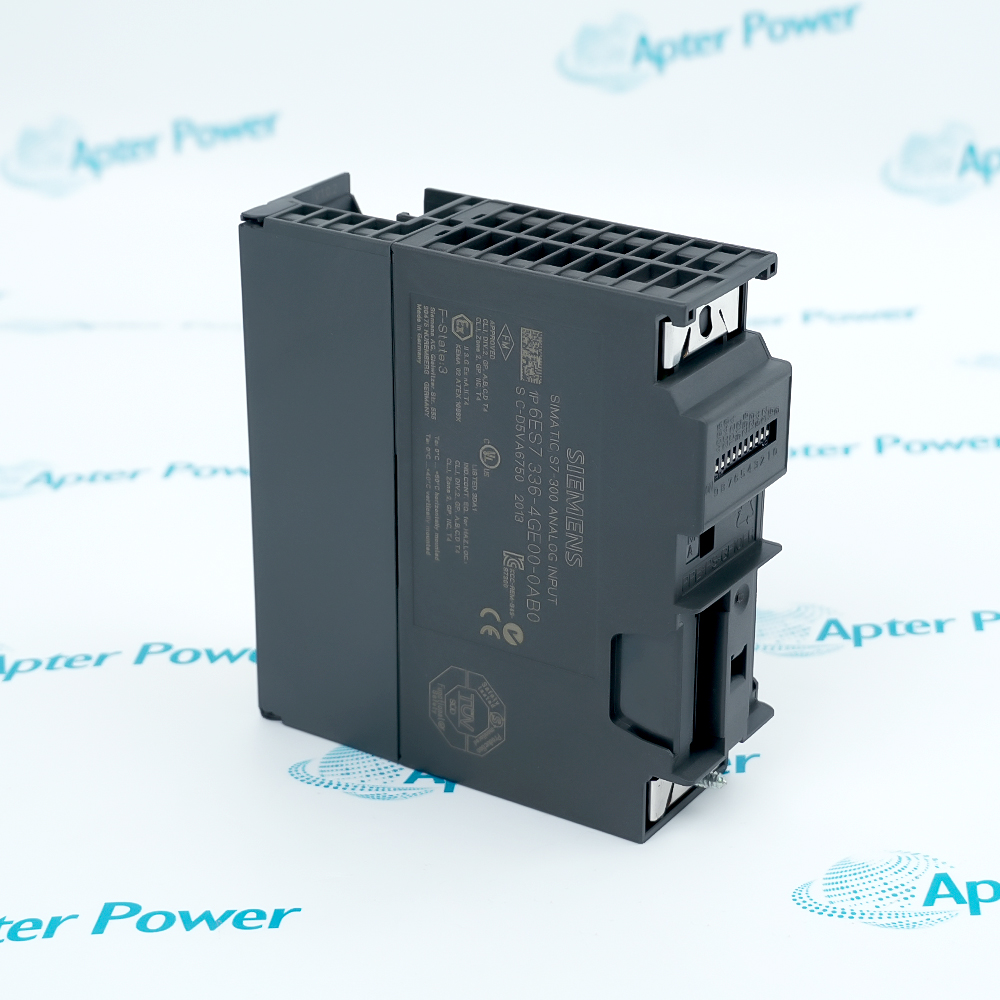

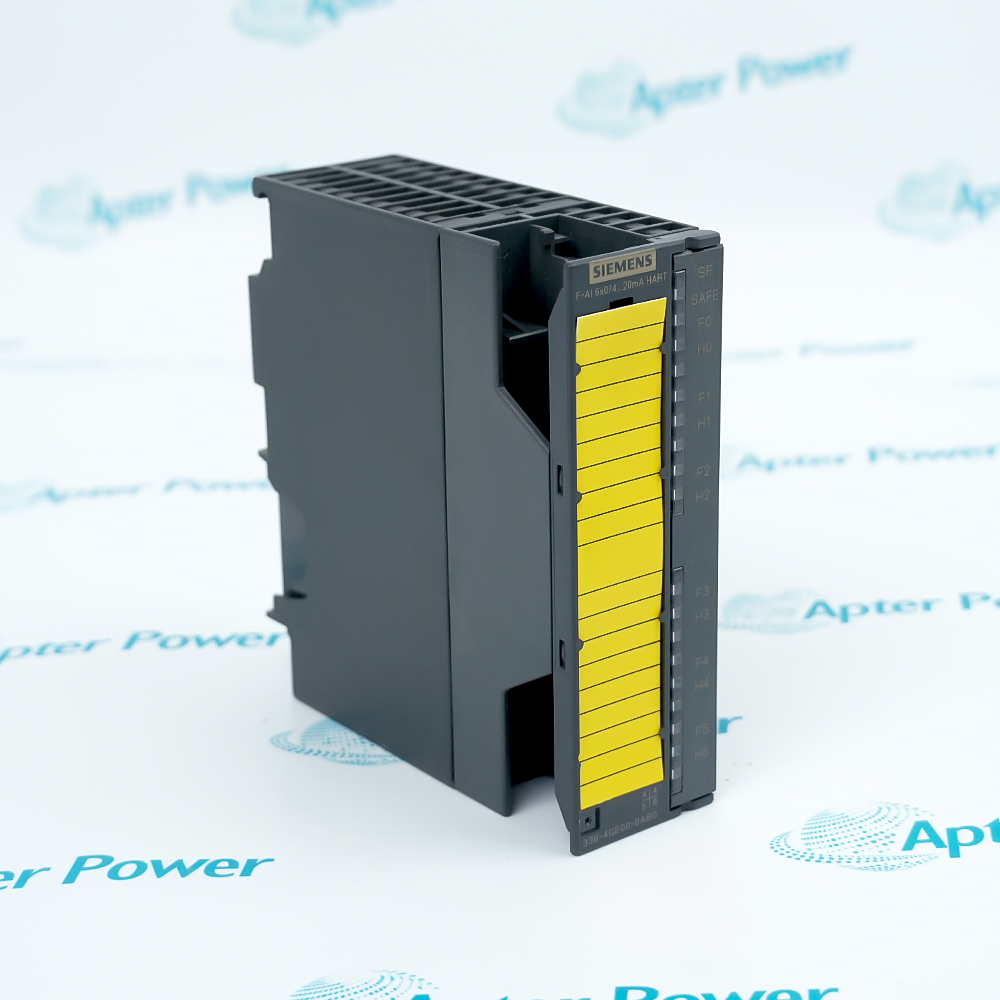

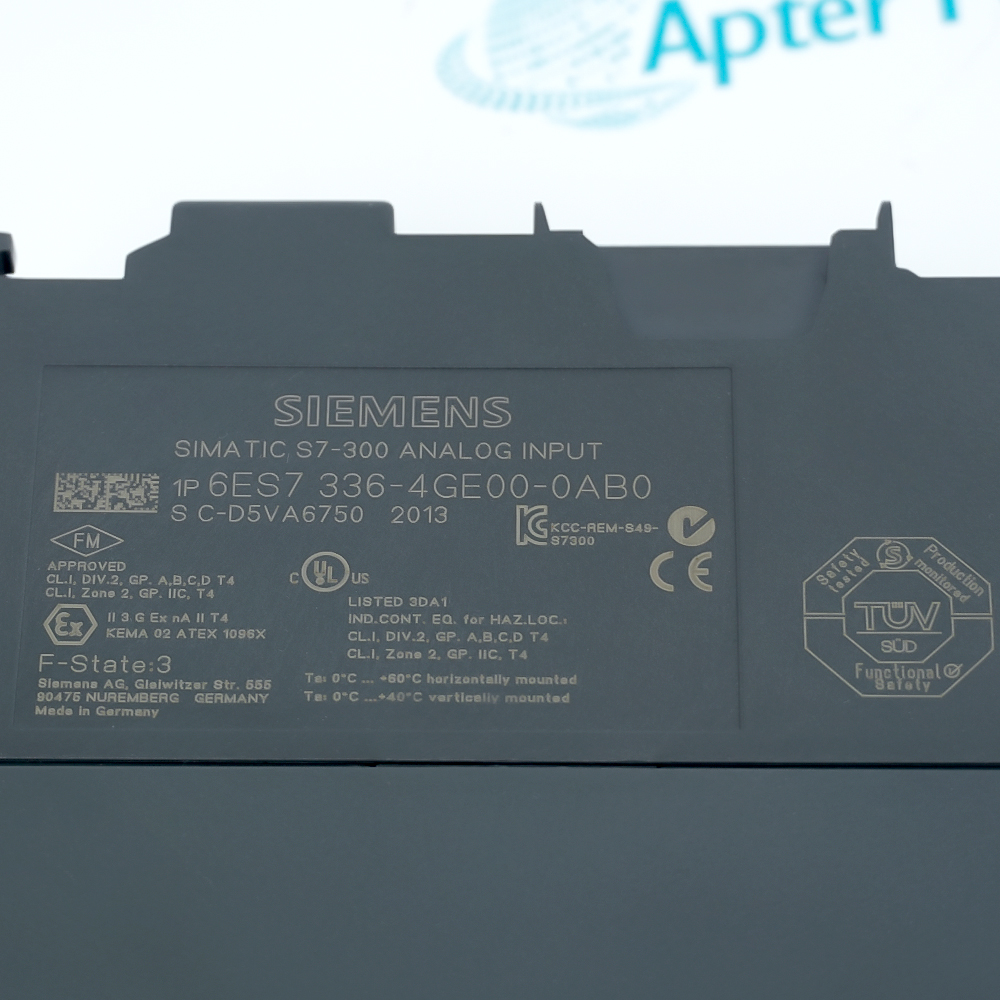

Siemens 6ES7336-4GE00-0AB0 is a six-channel SM 336 fail-safe analog input module with HART support for SIMATIC S7 safety applications.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Immediate Dispatch
Available for dispatch immediately.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for 6ES7336-4GE00-0AB0

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 6ES7336-4GE00-0AB0

Manufacturer:

Siemens
Product Category:

PLC Systems
Spare Part Number:

6ES7336-4GE00-0AB0
Estimated shipping dimensions:

4×11.6×12.4cm
Weight:

0.3 kg
Tariff Code:

8537101190
Counliy of origin:

Germany
Analog inputs:

6
Resolution:

16 bit including sign; 15 bit + sign
Load supply:

24 V DC
L+ current consumption:

150 mA typical
Backplane current:

90 mA maximum at 5 V DC
Power loss:

4.5 W typical
Current input destruction limit:

40 mA maximum
Integration time:

20 ms at 50 Hz; 16.7 ms at 60 Hz
Signal encoders:

2-wire and 4-wire current transducers
Field connector:

1 × 20-pole
Communication:

HART
Safety capability:

Up to Category 4; SIL 3; PL e
Lifecycle:

Spare part; product cancelled effective 1 October 2025

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

In a fail-safe SIMATIC S7 signal chain, Siemens 6ES7336-4GE00-0AB0 sits between current transmitters and the safety program. Channel diagnostics, HART access, and safe-response behavior must match the configured process loop before release.

Six fail-safe analog input channels
15-bit plus sign resolution
HART communication support
Up to SIL 3 / PL e / Category 4 capability

Restore the 20-pole field connector, transmitter type, 24 V supply, scaling, diagnostics, and HART settings from the approved safety configuration. Complete channel tests and the required safe-response check before release.

Important Notice: Confirm the full article number, hardware revision, safety program, channel parameters, F-monitoring settings, and proof-test result before service.

Siemens 6ES7336-4GE00-0AB0 Manuals & Downloads

Siemens 6ES7336-4GE00-0AB0 Technical Reference (PDF)Siemens 6ES7336-4GE00-0AB0 Installation & Commissioning Guide (PDF)

The Technical Reference consolidates channel, resolution, HART, supply, and safety data; the Installation & Commissioning Guide organizes isolation, transmitter reconnection, configuration checks, proof testing, and acceptance.

Safety-related process measurement

Acquires analog transmitter values used by a configured safety function.

HART instrumentation

Combines fail-safe analog acquisition with HART-enabled field-device access.

SIMATIC S7 modernization

Supports controlled replacement of an installed SM 336 F-AI module using the exact article number.

Diagnostic maintenance

Provides module and channel information for structured fault isolation and return-to-service testing.

Apply these controls to Siemens 6ES7336-4GE00-0AB0 before isolation, removal, reconnection, energization, and release.

Confirm the complete Siemens 6ES7336-4GE00-0AB0 article number and installed hardware revision before replacement.

Preserve the safety program, hardware configuration, channel parameters, and F-monitoring settings before removal.

Isolate the 24 V DC load supply and verify the field-current circuits before disconnecting the 20-pole connector.

Keep every channel within the configured current range and below the 40 mA destruction limit.

Verify whether each channel uses a 2-wire or 4-wire transmitter and restore the correct supply and return path.

Maintain the approved HART configuration, device addressing, and asset records for connected transmitters.

Do not claim SIL 3, PL e, or Category 4 from the module alone; the complete validated safety architecture must satisfy the target.

Perform channel-value, diagnostic, discrepancy, safety-response, and proof-test checks before return to service.

Technical notes

Use six fail-safe analog channels with 15-bit plus sign resolution, 24 V DC load supply, HART-capable transmitters, and a validated safety configuration up to SIL 3, PL e, or Category 4.

FAQ View All FAQ

How many analog inputs does Siemens 6ES7336-4GE00-0AB0 provide?

It provides six fail-safe analog input channels.
What resolution does Siemens 6ES7336-4GE00-0AB0 use?

The maximum resolution is 16 bits including sign, specified as 15 bits plus sign.
Does Siemens 6ES7336-4GE00-0AB0 support HART?

Yes. HART communication is supported for compatible field transmitters.
Which current transmitters can Siemens 6ES7336-4GE00-0AB0 connect?

The module supports current measurement using 2-wire and 4-wire transducers.

What supply does Siemens 6ES7336-4GE00-0AB0 require?

Its load supply is 24 V DC; typical L+ current consumption is 150 mA and the 5 V backplane current is up to 90 mA.
What is the maximum permissible current at a Siemens 6ES7336-4GE00-0AB0 input?

The current-input destruction limit is 40 mA maximum.
What integration times apply to Siemens 6ES7336-4GE00-0AB0?

The integration time is 20 ms at 50 Hz or 16.7 ms at 60 Hz.
What must be proven when commissioning Siemens 6ES7336-4GE00-0AB0 in a safety loop?

Verify channel scaling and diagnostics, HART communication where used, discrepancy handling, the configured safe response, and the approved proof-test sequence.
