      Siemens 6ES7223-1BL22-0XA0
      Siemens 6ES7223-1BL22-0XA0
      Siemens 6ES7223-1BL22-0XA0
      Siemens 6ES7223-1BL22-0XA0
      Siemens 6ES7223-1BL22-0XA0
      Siemens 6ES7223-1BL22-0XA0

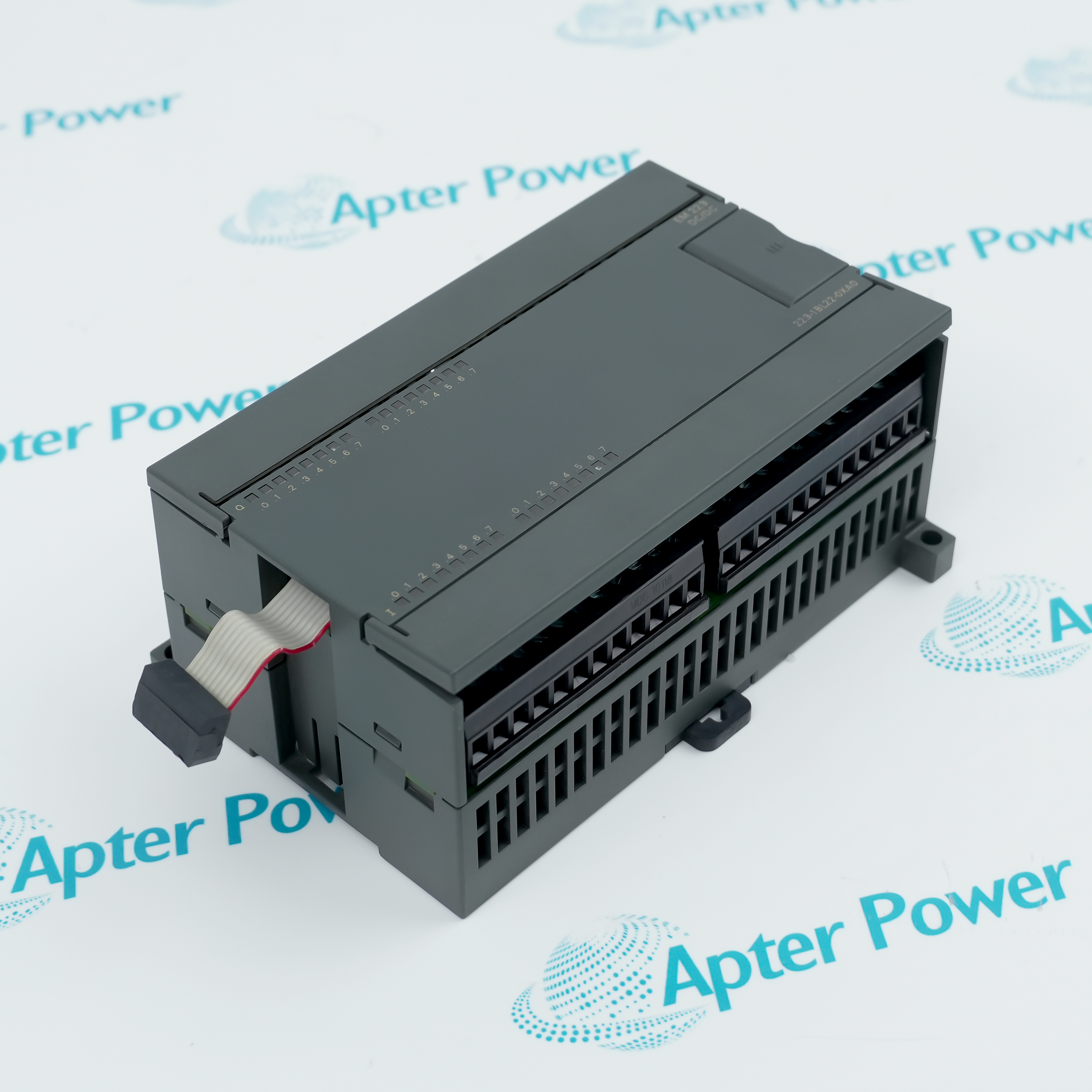

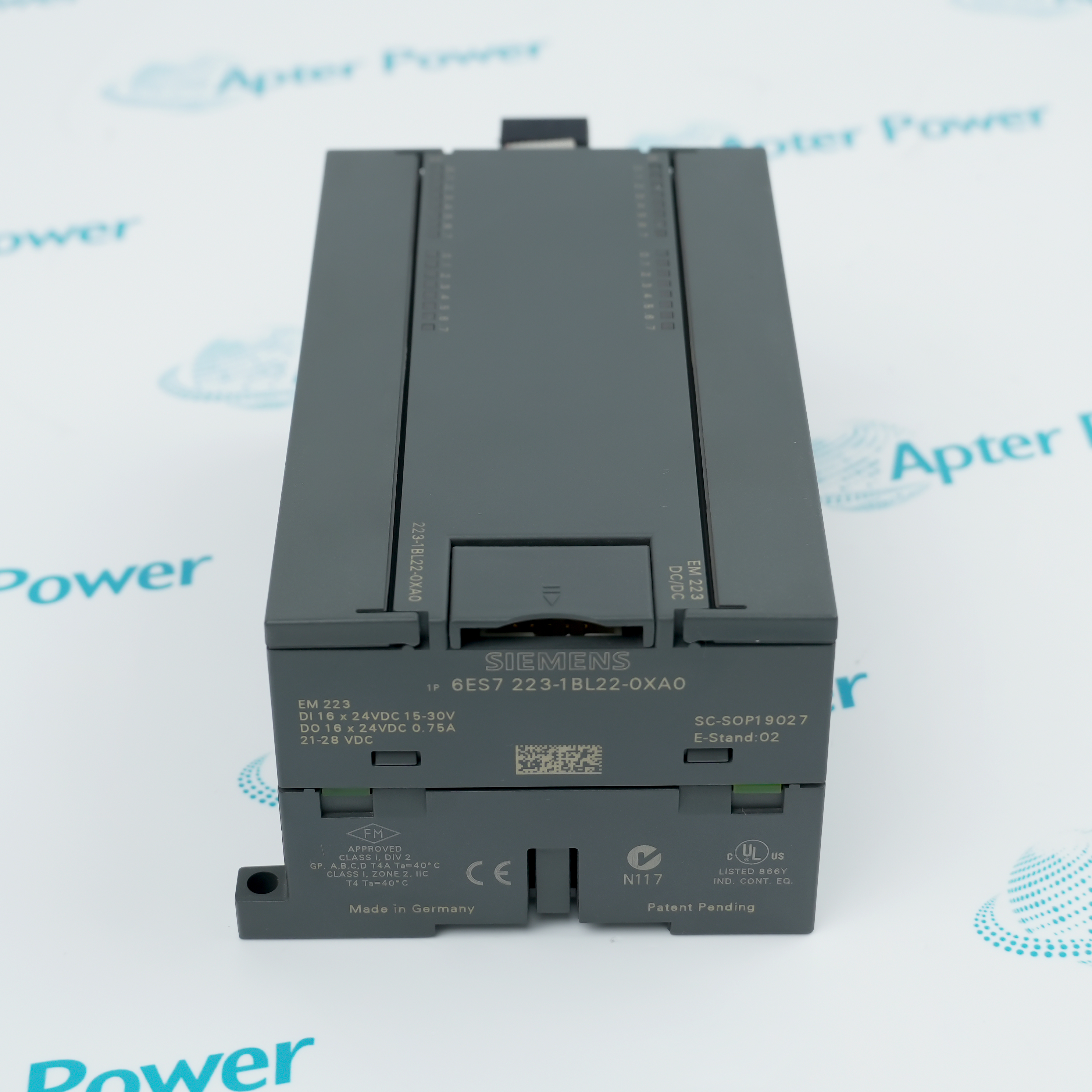

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      6ES7223-1BL22-0XA0

      SIMATIC S7-200 EM223 Digital I/O Module
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Siemens 6ES7223-1BL22-0XA0 is a SIMATIC S7-200 EM223 digital input/output expansion module for S7-22X CPUs. It adds sixteen 24 VDC sink/source inputs and sixteen 24 VDC source transistor outputs to the configured controller.

      Ask our team:

      Get a quick price for： 6ES7223-1BL22-0XA0
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6ES7223-1BL22-0XA0

      Technical specifications for 6ES7223-1BL22-0XA0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7223-1BL22-0XA0
      • Estimated shipping dimensions:
        13.7x6.2x9.5cm
      • Weight:
        0.323 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Product family:
        SIMATIC S7-200
      • Module type:
        EM223 digital I/O
      • Compatible CPUs:
        S7-22X
      • Digital inputs:
        16
      • Input voltage:
        24 VDC sink/source
      • Digital outputs:
        16
      • Output voltage:
        24 VDC source
      • Output current:
        0.75 A per channel
      • Product status:
        Cancelled since 01 October 2017
      • Net weight:
        0.323 kg
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      6ES7223-1BL22-0XA0 expands an S7-200 controller with sixteen 24 VDC inputs and sixteen 24 VDC source outputs.
      • Adds sixteen 24 VDC sink/source inputs
      • Adds sixteen 24 VDC source transistor outputs
      • Provides combined discrete expansion for S7-22X CPUs
      • Supports documented maintenance of installed S7-200 systems

      The EM223 connects in an S7-22X CPU expansion chain and interfaces discrete sensors and actuators through documented input commons and output supply groups. Its cancelled product status makes the exact catalog number, hardware version and installed project backup essential for replacement.

      Important Notice: Confirm 6ES7223-1BL22-0XA0, the S7-22X CPU, expansion order, hardware version, terminal assignments, 24 VDC supplies and commons, output loads, protective grounding, STEP 7 Micro/WIN project and controlled I/O and interlock test before commissioning.

      Apter Power 6ES7223-1BL22-0XA0 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Compact machine I/O expansion
      Adds a balanced group of sensor inputs and actuator outputs to an S7-200 controller.
      Conveyor and handling control
      Provides discrete field interfaces for interlocks, position feedback and commanded devices.
      Packaging equipment maintenance
      Restores a combined input/output expansion position in an installed S7-22X system.
      Legacy S7-200 replacement
      Supports controlled like-for-like service where the EM223 article number and project configuration are preserved.
      Read the applicable Siemens installation instructions before work. Verify 6ES7223-1BL22-0XA0, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the full 6ES7223-1BL22-0XA0 article number and hardware version.
      2
      Back up the S7-200 project and record the expansion-chain position.
      3
      Isolate CPU and 24 VDC field power before removing conductors.
      4
      Label all sixteen input and sixteen output circuits and their commons.
      5
      Verify sink/source input wiring and source-output supply polarity.
      6
      Keep output loads within the documented per-channel and group limits.
      7
      Restore the approved STEP 7 Micro/WIN hardware and address configuration.
      8
      Test every input, output and interlock before returning the machine to automatic mode.

      Technical notes

      Technical notes

      Install 6ES7223-1BL22-0XA0 only in a documented S7-22X expansion arrangement and isolate the 24 VDC field supply before wiring. Restore the input commons, source-output groups and STEP 7 Micro/WIN configuration, then prove each affected channel before machine release.

      FAQS

      • What is the exact system role of 6ES7223-1BL22-0XA0?
        It is the S7-200 EM223 combined digital I/O module with sixteen 24 VDC inputs and sixteen 24 VDC source outputs.
      • Which host, rack or carrier is required for 6ES7223-1BL22-0XA0?
        Use it only with an S7-22X CPU in the documented expansion-chain position.
      • What wiring or connector checks apply to 6ES7223-1BL22-0XA0?
        Preserve input commons, output supply groups, terminal assignments and the module interconnect during replacement.
      • How is 6ES7223-1BL22-0XA0 configured for service?
        Restore the approved STEP 7 Micro/WIN hardware configuration and the original I/O address mapping.
      • Which diagnostics should be reviewed for 6ES7223-1BL22-0XA0?
        Review CPU and expansion diagnostics, input states, commanded outputs and the response of every connected interlock or load.
      • What must be preserved when replacing 6ES7223-1BL22-0XA0?
        Preserve the full article number, hardware version, expansion order, project backup, wiring schedule and test record.
      • How should 6ES7223-1BL22-0XA0 be commissioned after installation?
        Energize the CPU and field supplies in the approved sequence, then prove all affected points and machine interlocks.
      • What model-specific limitation must be checked for 6ES7223-1BL22-0XA0?
        The product is cancelled and has specific S7-22X compatibility, so similarity to another EM223 variant is not sufficient for substitution.
