6ES7134-6GD01-0BA1

FAQS

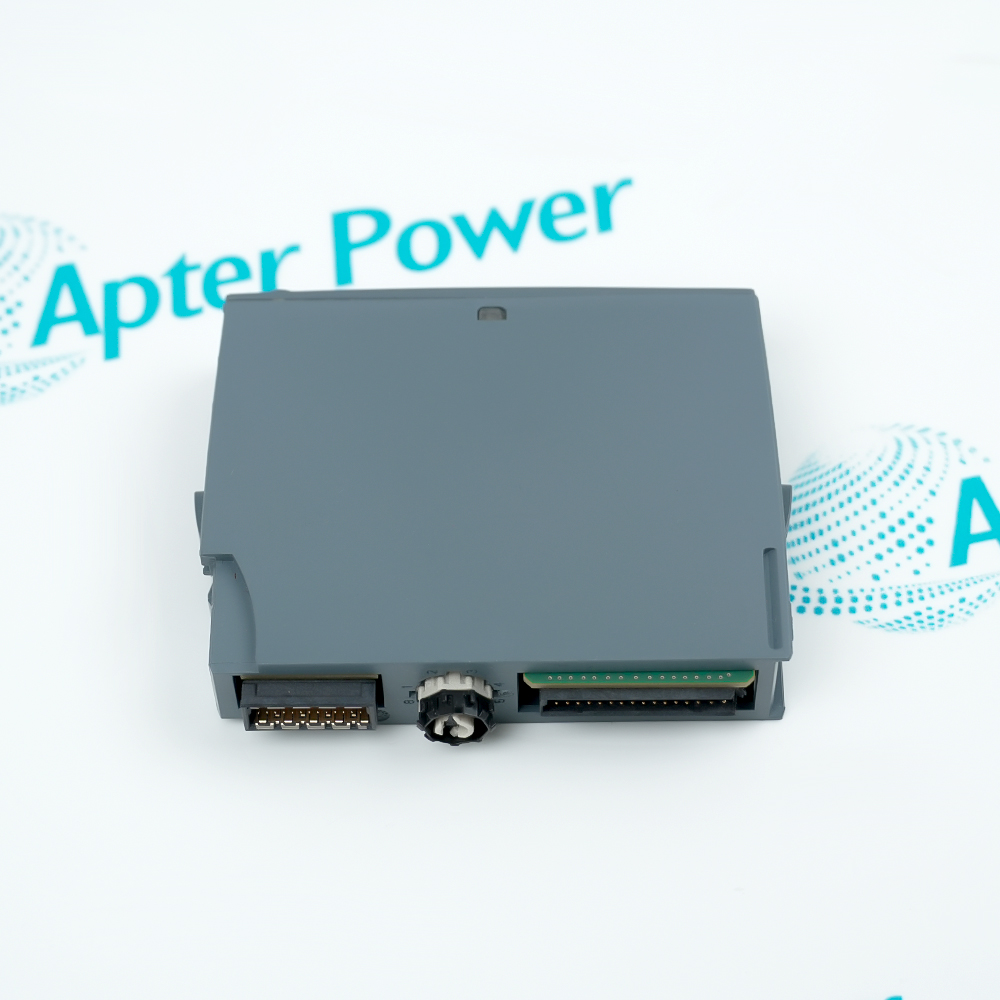

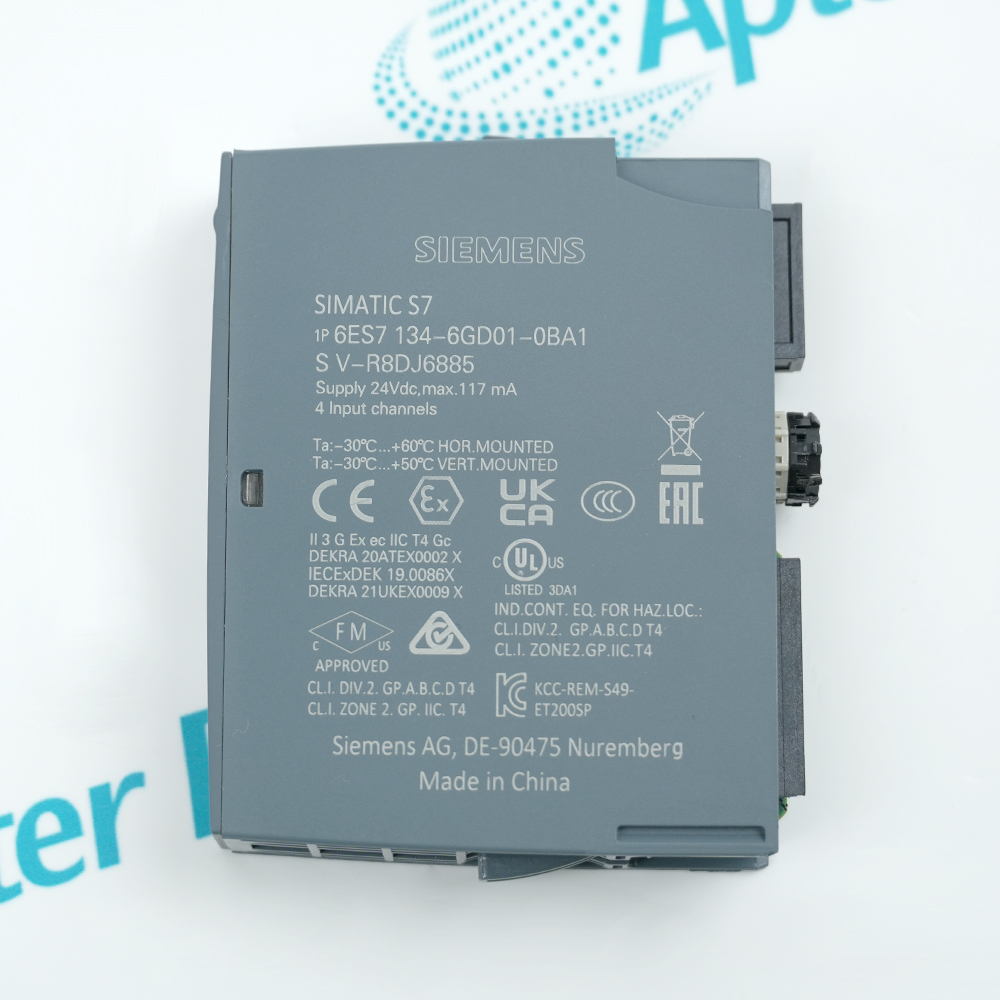

• What is Siemens 6ES7134-6GD01-0BA1?
  The Siemens 6ES7134-6GD01-0BA1 is a SIMATIC ET 200SP standard analog input module with four current-input channels for two- or four-wire transmitters, 16-bit conversion, module diagnostics, and +/-0.3% accuracy.
• What does 6ES7134-6GD01-0BA1 do in its Siemens system?
  It converts four analog current signals from connected field transmitters into digital process values for the ET 200SP station and its controller. It mounts on a compatible BaseUnit type A0 or A1 and supports instrumentation loops used for pressure, flow, level, temperature-transmitter, and other process measurements.
• Which signals or interfaces are documented for 6ES7134-6GD01-0BA1?
  Analog inputs: 4 current-input channels.
• Which components are compatible with 6ES7134-6GD01-0BA1?
  SIMATIC ET 200SP interface or CPU station configured for this module ET 200SP BaseUnit type A0 or A1 with color code CC03 Two- or four-wire current transmitters within the Siemens input ranges Shielding, grounding, field supply, and TIA Portal configuration specified for the loop.
• Where is 6ES7134-6GD01-0BA1 typically applied?
  Process current loops: Acquires analog transmitter currents for controller processing Pressure and flow measurement: Digitizes signals from approved field transmitters Level and temperature systems: Feeds scaled process values into the automation program Distributed machine I/O: Places four analog current channels close to sensors and actuators.
• What are the official weight and dimensions for 6ES7134-6GD01-0BA1?
  6ES7134-6GD01-0BA1 has a published net weight of 0.040 kg and 6.8 x 7.9 x 2.7 cm (Siemens packaging).
• What is the lifecycle status of 6ES7134-6GD01-0BA1?
  Siemens lists 6ES7134-6GD01-0BA1 as a PM300 active product.
• What must be checked before installing 6ES7134-6GD01-0BA1?
  BaseUnit: Verify type A0 or A1, CC03 coding, terminal assignment, and potential group Signal mode: Configure each channel for the exact two- or four-wire transmitter circuit Loop power: Confirm field-supply polarity, current range, grounding, and transmitter requirements EMC: Apply Siemens shield termination and separate analog wiring from switching conductors Commissioning: Validate raw values, scaling, diagnostics, and open-circuit behavior channel by channel.
