Technical specifications for 6ED1055-4MH08-0BA0
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ED1055-4MH08-0BA0
-
Estimated shipping dimensions:8.8×4.3×5.7cm
-
Weight:0.12 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Product family:LOGO! 8
-
Product type:LOGO! TDE external text display
-
Display:Six text lines with white, amber or red backlight
-
Programmable function keys:4
-
Cursor keys:4, plus ESC and ENTER
-
Ethernet interfaces:2
-
Ethernet performance:10/100 Mbit/s full- or half-duplex
-
Power supply:12 V DC or 24 V AC/DC
-
Typical current at 12 V DC:150 mA with Ethernet and white backlight active
-
Typical current at 24 V DC:75 mA with Ethernet and white backlight active
-
Typical current at 24 V AC:145 mA with Ethernet and white backlight active
-
Protection rating:IP20 behind the panel; IP65 at the front panel
-
Ethernet connection distance:30 m maximum
-
Backlight lifetime:20,000 hours
-
Display lifetime:50,000 hours
-
Software identification:Scannable by LOGO!Soft Comfort V8.2 and later
Information
Overview
Manuals
Common Applications
Product Precautions

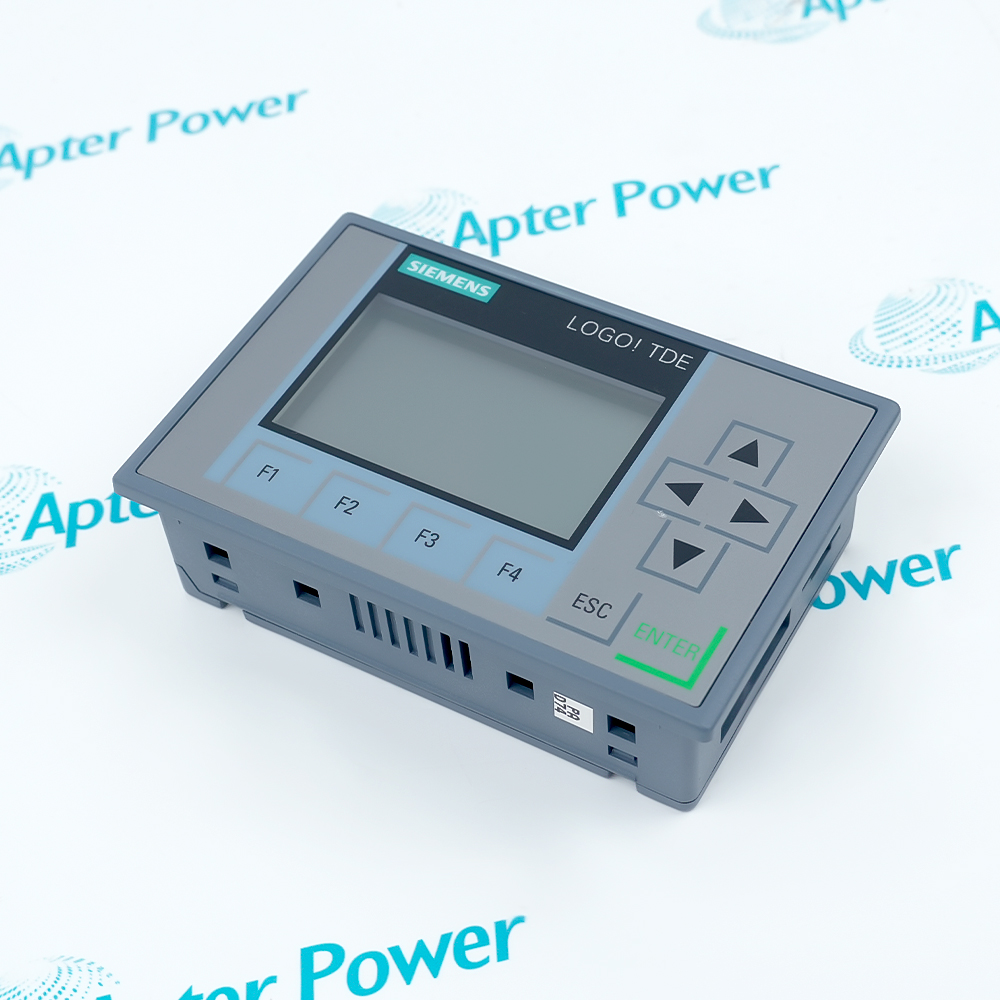

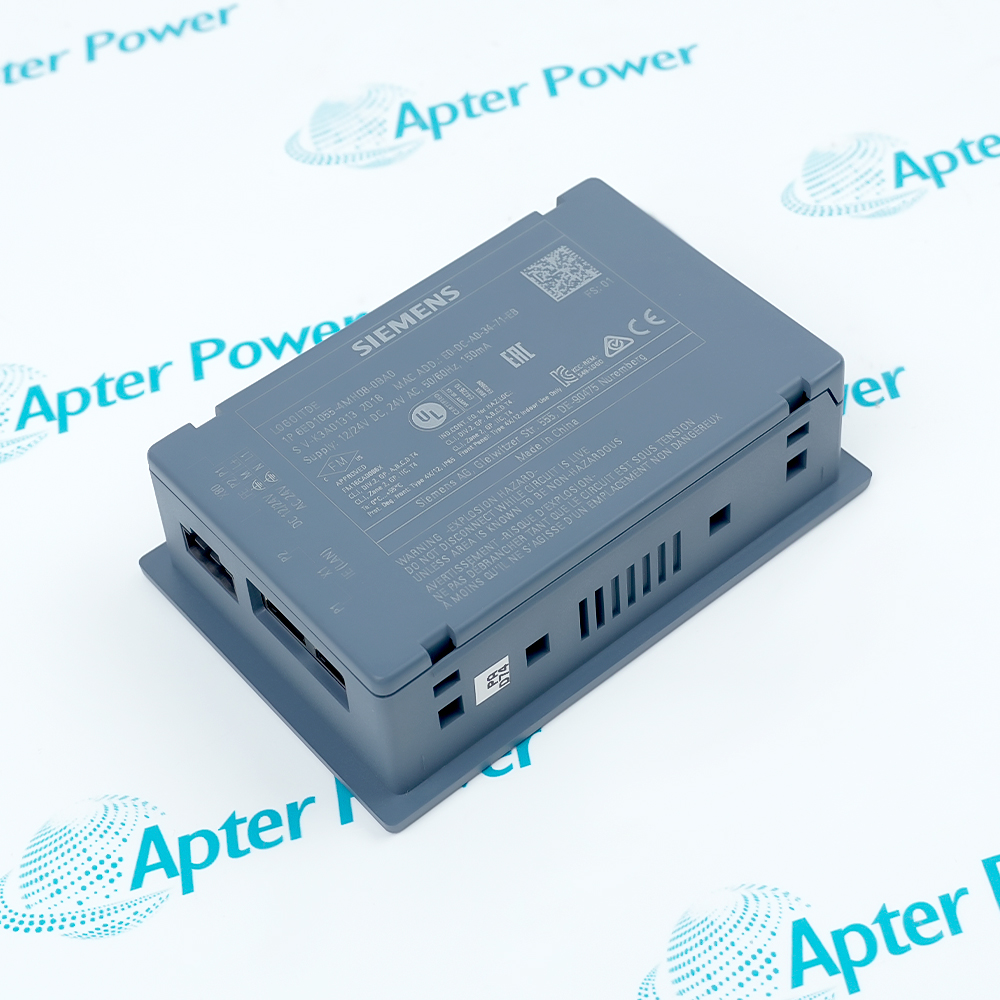

Mounted in a control-panel door, Siemens 6ED1055-4MH08-0BA0 gives operators a remote LOGO! interface for messages, parameters, navigation and selected control functions.
- Six-line text display with three backlight colors
- Four programmable function keys and four cursor keys
- Two 10/100 Mbit/s Ethernet interfaces
- 12 V DC or 24 V AC/DC external supply
The two Ethernet ports can operate as a small two-port switch and link the display with the selected LOGO! Base Module. Separate menus provide remote Base Module settings, TDE configuration, network setup and diagnostics. Before replacement, retain the display messages, key assignments, selected Base Module address, TDE network settings and cabinet cutout arrangement; after startup, confirm communications, menu access and every programmed operator function.
Important Notice: Confirm the complete Siemens 6ED1055-4MH08-0BA0 order number, LOGO! Base Module compatibility, supply and saved TDE configuration before installation.
Siemens 6ED1055-4MH08-0BA0 Manuals & Downloads
Siemens 6ED1055-4MH08-0BA0 Official Manufacturer Reference Excerpt (PDF)Siemens 6ED1055-4MH08-0BA0 Installation & Commissioning Guide (PDF)
The first document contains the applicable official manufacturer reference pages; the second organizes a separate installation, configuration, testing and handover workflow.
Remote LOGO! operator display
Shows configured messages and parameters away from the Base Module's built-in display.
Control-panel navigation
Uses cursor, function, ESC and ENTER keys for programmed operation and menu access.
LOGO! network access
Connects to the selected Base Module through an engineered Ethernet arrangement.
Diagnostics and parameter service
Provides TDE menus for network settings, diagnostics and approved remote Base Module settings.
Read the applicable Siemens instructions before work. Verify 6ED1055-4MH08-0BA0 and the installed system configuration before isolation or replacement.
1
Record the complete Siemens 6ED1055-4MH08-0BA0 order number and installed LOGO! project.
2
Place the controlled process, Base Module and TDE supply in the approved maintenance state.
3
Back up message texts, function-key assignments, menu settings and network parameters.
4
Label both Ethernet connections and record the selected Base Module IP address.
5
Verify the external 12 V DC or 24 V AC/DC supply before reconnecting the power plug.
6
Inspect the panel seal, mounting brackets, protective earth and Ethernet connectors.
7
Confirm LOGO!Soft Comfort detection, menu access, diagnostics and backlight behavior after startup.
8
Exercise every programmed key, message and operator function before release.
Technical notes
The 0BA0 TDE is documented for LOGO! 8 and can be scanned by LOGO!Soft Comfort V8.2 or later. Preserve the installed software project and exact network settings before an exchange.
FAQ View All FAQ
-
What is Siemens 6ED1055-4MH08-0BA0 used for?Siemens 6ED1055-4MH08-0BA0 provides an external LOGO! TDE operator display for messages, parameter access, navigation and programmed key functions.
-
How many Ethernet ports does 6ED1055-4MH08-0BA0 provide?The LOGO! TDE provides two Ethernet interfaces that support 10/100 Mbit/s full- or half-duplex communication.
-
Which operator keys are available on Siemens 6ED1055-4MH08-0BA0?The unit provides four programmable function keys, four cursor keys, an ESC key and an ENTER key.
-
What supply can power Siemens 6ED1055-4MH08-0BA0?Siemens specifies either 12 V DC or 24 V AC/DC external power for the LOGO! TDE.
-
Which enclosure protection applies to 6ED1055-4MH08-0BA0?The TDE is rated IP20 behind the panel and IP65 at the front when it is mounted with the specified seal and enclosure arrangement.
-
Can LOGO!Soft Comfort identify Siemens 6ED1055-4MH08-0BA0?LOGO!Soft Comfort V8.2 and later can scan and identify the 6ED1055-4MH08-0BA0 TDE.
-
What should be saved before 6ED1055-4MH08-0BA0 is replaced?Maintenance personnel should save the LOGO! project, message texts, key assignments, TDE settings, selected Base Module address and network parameters.
-
How is Siemens 6ED1055-4MH08-0BA0 accepted after installation?Acceptance should confirm power, Ethernet communication, LOGO!Soft Comfort detection, menu access, diagnostics, backlight states and every programmed key and message function.
