Technical specifications for A5E37764770/A5E03965230A
-
Manufacturer:Siemens Robicon
-
Product Category:DCS Systems
-
Spare Part Number:A5E37764770/A5E03965230A
-
Estimated shipping dimensions:20.5x11.9x7cm
-
Weight:0.5 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Power Supply:24 V dc
-
Power Consumption:10 – 18 W
-
On-Board Rails:+5 V dc 3 A
-
Analog Inputs:8 × differential
-
Operating Temp:–10 °C … +60 °C
-
Storage Temp:–55 °C … +125 °C
Information
Overview
Manuals
Model Relationship and Definition
Support & Maintenance Info
The A5E37764770/A5E03965230A are part numbers for Siemens industrial automation products, mainly associated with the SINAMICS/Robin GH180 (Perfect Harmony series) high-voltage inverter system.
- Robicon BaseUnit controller
- For voltage variable frequency drives (VFDs)
- Robicon GH180 NXGpro
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens A5E37764770/A5E03965230A Control Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
A5E37764770: This is the spare part number for the entire controller. It typically represents a complete NXGpro DCR control rack, configured to manage a system of 21 power units (Cells).

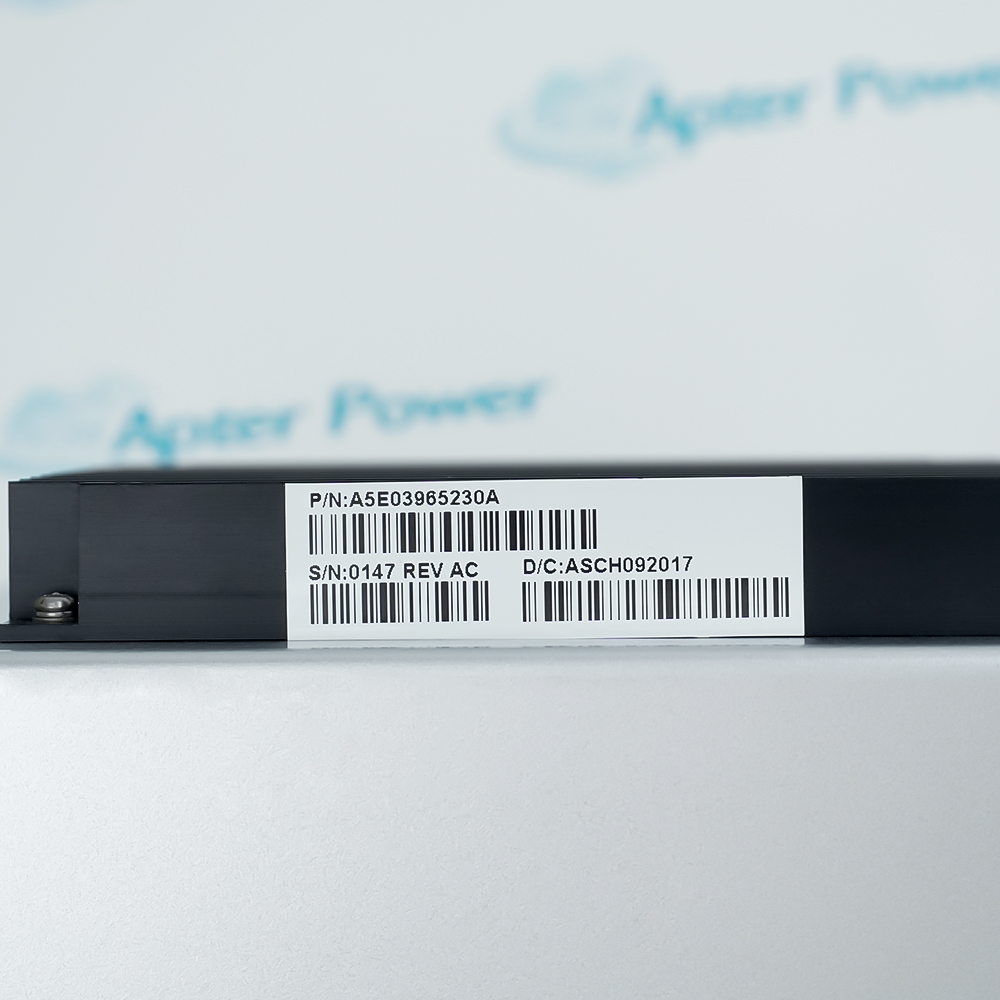

A5E03695230A: This is usually the internal motherboard card or specific hardware version identifier of the component. In Siemens' complex electronic devices, A5E3... is often an external ordering number, while A5E0... is an internal board or assembly number used in the production process.
Core board: The controller typically includes a CPU board, CF card (including firmware), and fiber optic interface board for high-speed communication with the power unit.
Substitution/Upgrade: Currently, Siemens (now Innometrics brand) has launched the NXGpro+series as an upgrade solution, which has higher reliability and vibration resistance, and is highly compatible with the old NXGpro hardware.
Maintenance note: If this component is stored in a shutdown state for a long time, it may be necessary to "reform" the internal capacitors before use to ensure safe operation.
FAQ View All FAQ
-
What is the A5E37764770/A5E03965230A Control Board?The A5E37764770/A5E03965230A Control Board is an industrial electronic control module designed to manage system operations and coordinate signal processing within automation or drive control equipment.
-
What are the basic specifications of the A5E37764770/A5E03965230A Control Board?The board typically operates with standard industrial control voltages, supports stable signal processing, and is designed to function reliably within common industrial temperature ranges.
-
What systems commonly use the A5E37764770/A5E03965230A Control Board?It is commonly used in industrial automation systems, power control equipment, and drive control units where precise system management and signal coordination are required.
-
Is the A5E37764770/A5E03965230A Control Board suitable for industrial environments?Yes, the control board is designed for industrial use and can operate reliably in environments with electrical noise, temperature variations, and continuous operation.
-
What are the installation considerations for the A5E37764770/A5E03965230A Control Board?The board should be installed in a properly ventilated control cabinet with secure mounting and correct electrical connections to ensure stable system operation.
-
What is the main function of the A5E37764770/A5E03965230A Control Board?Its main function is to process control signals and manage system operations to ensure efficient and stable performance of industrial equipment.
