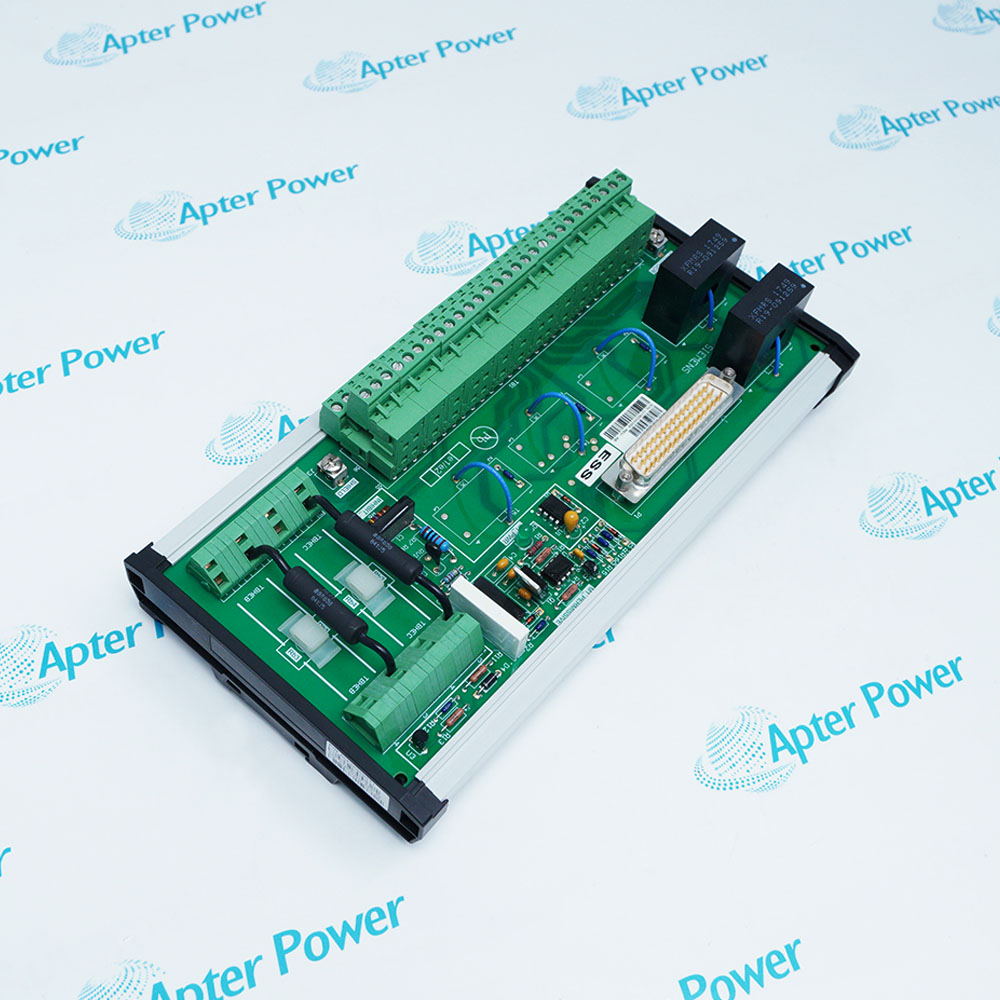

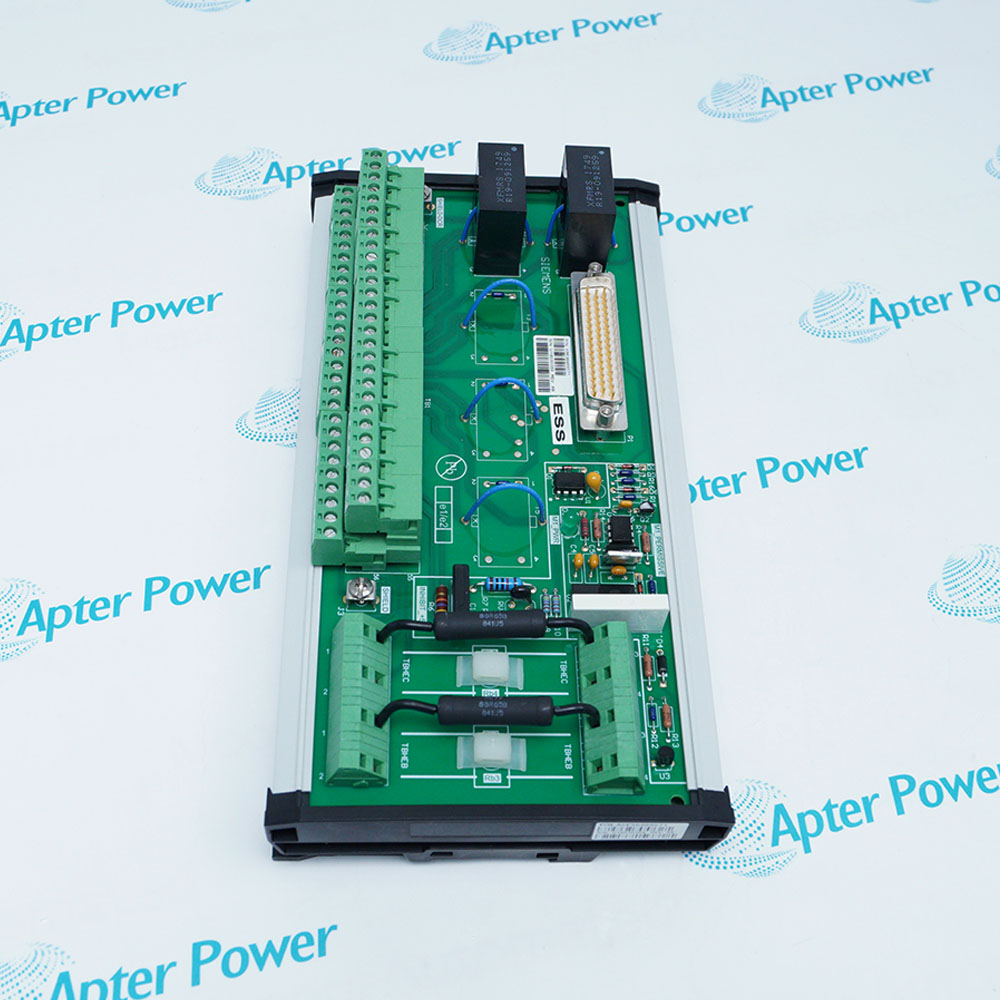

The Siemens A5E36968571 is a NXGpro System Interface Board used in Sinamics Perfect Harmony Medium Voltage (MV) drives. It acts as a critical communication and control component, often paired with NXGpro controllers, to manage drive operations. It is commonly used in GH180 MV drive systems.
- For voltage variable frequency drives (VFDs)
- Robicon GH180 NXGpro
- System Interface Board
This board supports stable signal transmission and efficient data exchange between controllers and system modules. It helps maintain smooth operation and accurate communication within the control system.
Important Notice:
Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens A5E36968571 System Interface Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
This board is a key component of the NXGpro controller and serves as the external signal interface for the digital control card box (DCR). Its main responsibilities are to handle internal control signals of the frequency converter, monitor motor voltage and current, and communicate with external systems.
This plugin board achieves high reliability electrical isolation at the hardware level, effectively blocking common mode interference and transient overvoltage between the high voltage side of the power unit and the weak voltage side of the control system, ensuring the safe operation of the NXGpro processor;
The signal sampling channel integrates precision limiting circuits and filtering networks, which can real-time smooth out electromagnetic noise and surge impact returned by current and voltage transformers, preventing damage to the A/D conversion chip due to overshoot;
In addition, the surface of the circuit board is coated with industrial grade conformal coating, which can resist moisture and chemical corrosion in harsh environments such as petrochemicals and mines. Combined with its ESD sensitive electrostatic protection design, it significantly improves the anti-interference ability and hardware robustness of the frequency conversion system under continuous high load conditions.
