What is the XS4P18AB120 sensor?

It is an M18 cylindrical inductive proximity sensor manufactured by Telemecanique Sensors, designed for non-contact detection of metal objects.

What is the working principle of XS4P18AB120?

It utilizes a high-frequency oscillator to generate an alternating magnetic field at the sensing face; when a metal object approaches, the field is damped, altering the output signal.

Is XS4P18AB120 flush or non-flush mountable?

It is non-flush mountable, requiring a certain amount of non-metallic clearance around it during installation.

What is the IP rating of XS4P18AB120?

Its ingress protection rating is IP67, providing excellent dust and water resistance.

How to use XS4P18AB120 in industrial automation?

Mount it on a machine frame, connect it to a 24V DC power supply, and wire the 4-20mA analogue pin to a PLC analogue input module to monitor precise displacement or position of metal parts.

XS4P18AB120

Name: XS4P18AB120
Brand: Schneider Electric
SKU: XS4P18AB120

Inductive proximity sensor

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

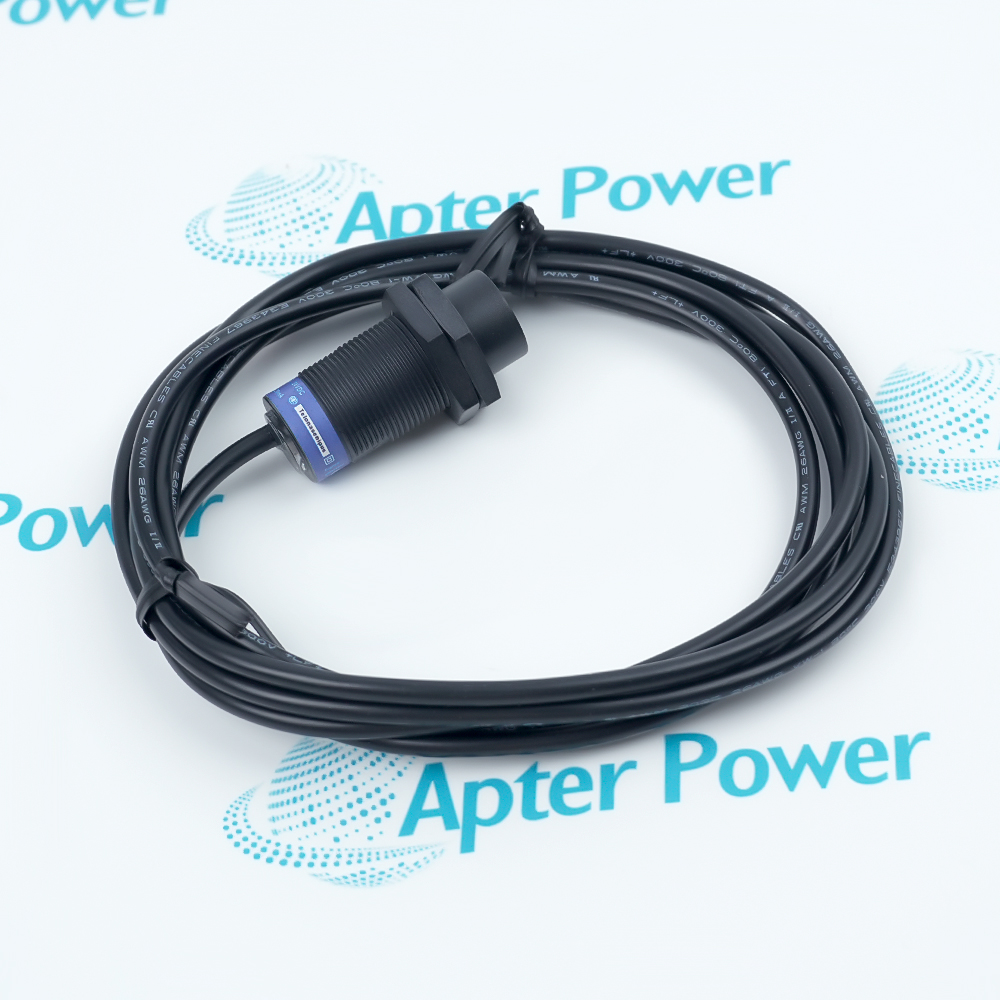

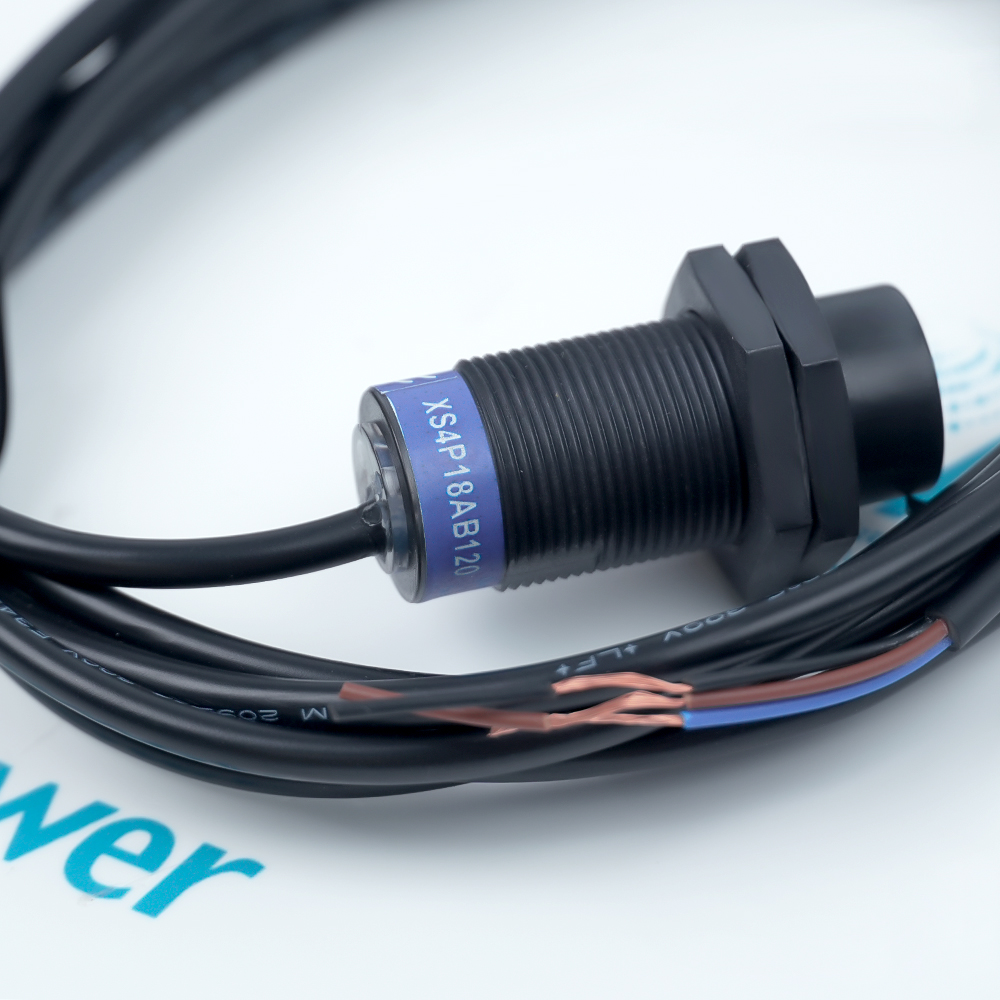

Inductive proximity sensors XS
inductive sensor XS4 M18
L41mm, PBT, Sn8mm
12...24 VDC, cable 2 m

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for XS4P18AB120

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for XS4P18AB120

Manufacturer:

Schneider Electric
Product Category:

PLC Systems
Spare Part Number:

XS4P18AB120
Estimated shipping dimensions:

12x10x4cm
Weight:

0.18 kg
Tariff Code:

8537101190
Counliy of origin:

FRANCE
Electrical circuit type:

Analog output
Analogue output range:

4...20 mA
IP degree of protection:

IP67 conforming to IEC 60529
Thread type:

M18 x 1
Front material:

PPS
Enclosure material:

PBT
Operating zone:

0.8…8 mm
Repeat accuracy:

<= 3% of Sr
Wire insulation material:

PVC
Supply voltage limits:

10…38 V DC
Switching frequency:

<= 500 Hz
Current consumption:

4 mA no-load
Maximum output current drift:

10 %
Marking:

CE

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The XS4P18AB120 is an M18 cylindrical, non-flush inductive proximity sensor with an all-PBT plastic housing that provides good chemical stability and insulation. This automation component supports a 12 to 24 V DC power supply, utilizes a 2-wire circuit, and outputs a 4 to 20 mA analogue current signal through its standard 2-meter integrated cable, with a nominal sensing distance of 8 mm.

Provides excellent electrical insulation properties
Integrated reverse polarity protection prevents burnout from miswiring
Standard M18 threaded profile allows direct replacement on existing brackets

This sensor incorporates an integrated reverse polarity protection circuit to prevent component damage caused by wiring errors. During operation, its residual current (leakage current) under no-load or active states remains below 0.7 mA, ensuring the baseline linearity required for accurate signal acquisition by analogue input modules.

A high-brightness yellow light-emitting diode (LED) indicator is positioned at the rear of the sensor to provide real-time feedback on the output signal status, facilitating direct inspection and troubleshooting. Furthermore, the 2-meter, 2-wire cable features a polyvinyl chloride (PVC) outer sheath, enabling stable, long-term current signal transmission within 12 to 24 V DC low-voltage distribution systems to meet the continuous operational demands of factory automation lines, material handling conveyors, and machine tool positioning mechanisms.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Schneider XS4P18AB120 Inductive proximity sensor Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Automotive Manufacturing

Continuously monitoring the stamping depth and transfer distance of sheet metal parts on car body assembly lines.

Machine Tools & Metalworking

Providing real-time feedback on micro-level displacement and feed rates of cutting tools or worktables in CNC machines.

Food & Beverage Processing

Detecting the continuous flow and accumulation height of metal cans or lids on stainless steel conveying systems.

Printing & Paper Industry

Detecting gaps between metal rollers and the homing position of metal cutting blades in large printing presses.

Metallurgy & Steel Industry

Non-contact measurement of steel plate warppage and edge positions at the output end of cold rolling or finishing lines.

Building Materials & Cement Processing

Feedback on valve opening proportions by detecting the tilt angle of metal rocker arms in powder valve control systems.

When using the XS4P18AB120, non-flush mounting clearance requirements must be strictly followed, leaving sufficient surrounding and frontal metal spacing to prevent false triggering, and the cable bending radius must exceed 4 times the cable diameter.

Electrically, ensure the DC voltage remains stable between 12 and 24 V, and connect it to a compatible 4 to 20 mA analogue controller, despite integrated reverse polarity protection, proper wiring is still required to manage residual current interference. Additionally, while the all-PBT housing provides chemical resistance, additional protective shielding should be installed if operated under high-impact conditions, extreme temperatures, or inside specific harsh chemical solvent environments.

Alternative Names

XS4P 18AB 120 XS4P-18AB-120 XS4 P18 AB120 XS4PI8AB120 XS4P18ABI20 XS4P18AB12O XS4PI8ABI2O

Technical notes

XS4P18AB120 is an M18 non-flush 2-wire DC inductive sensor (41mm long) with PBT/PPS housing and 2m PVC cable. It operates on 12-24V DC, tracking metal objects from 0.8 to 8mm to output a 4-20mA analogue signal up to 500Hz. It has IP67 protection, works between -25°C and 70°C, and is CE, CSA, and UL certified.
