Technical specifications for CAD32MD
-
Manufacturer:Schneider Electric
-
Product Category:PLC Systems
-
Spare Part Number:CAD32MD
-
Estimated shipping dimensions:15x23.2x23.2cm
-
Weight:4.15 kg
-
Tariff Code:8537101190
-
Counliy of origin:France
-
Pole contact composition:3 NO + 2 NC
-
rated operational voltage:<= 690 V AC 25...400 Hz
-
control circuit voltage:220 V DC
-
rated impulse withstand voltage:6 kV conforming
-
conventional free air thermal current:10 A (at 60 °C)
-
Mechanical durability:30 Mcycles
-
Maximum operating rate:180 cyc/mn
-
Time constant:28 ms
-
Inrush power in W:5.4 W (at 20 °C)
-
Operating altitude:0...3000 m
Information
Overview
Manuals
Need More Info

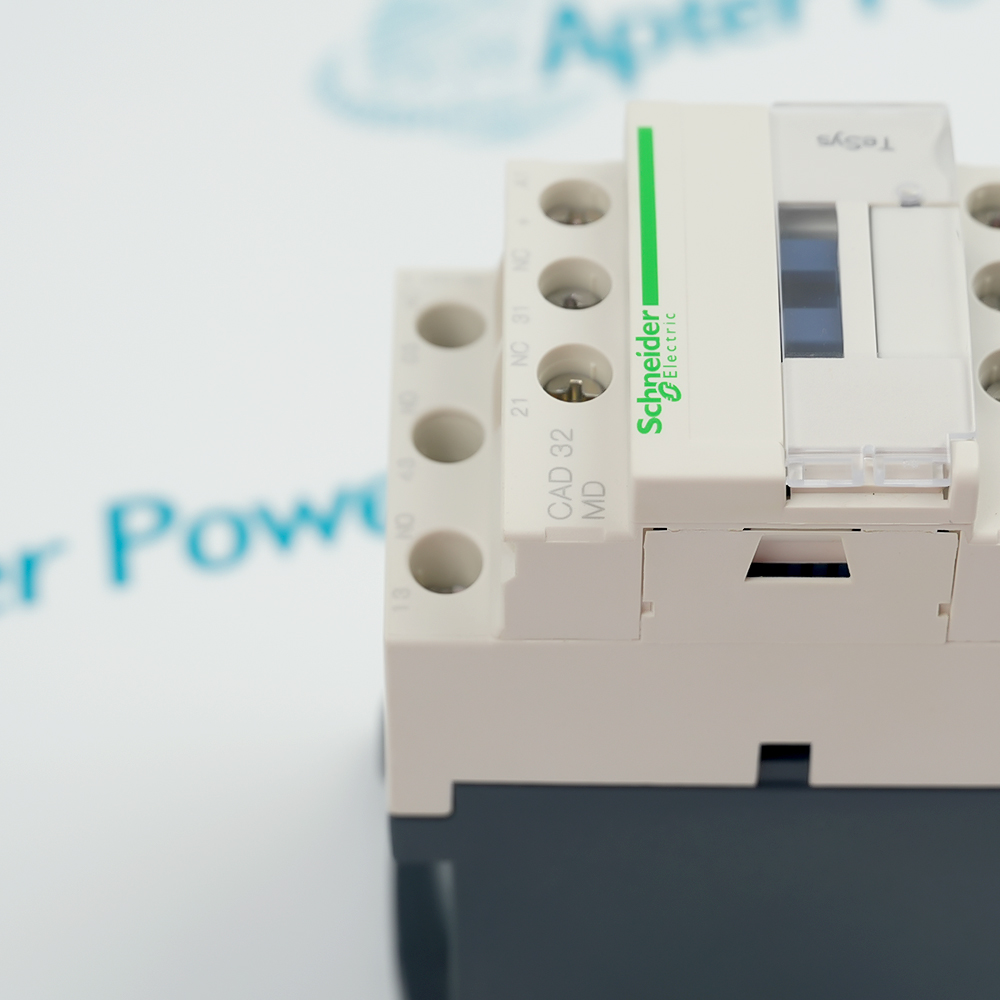

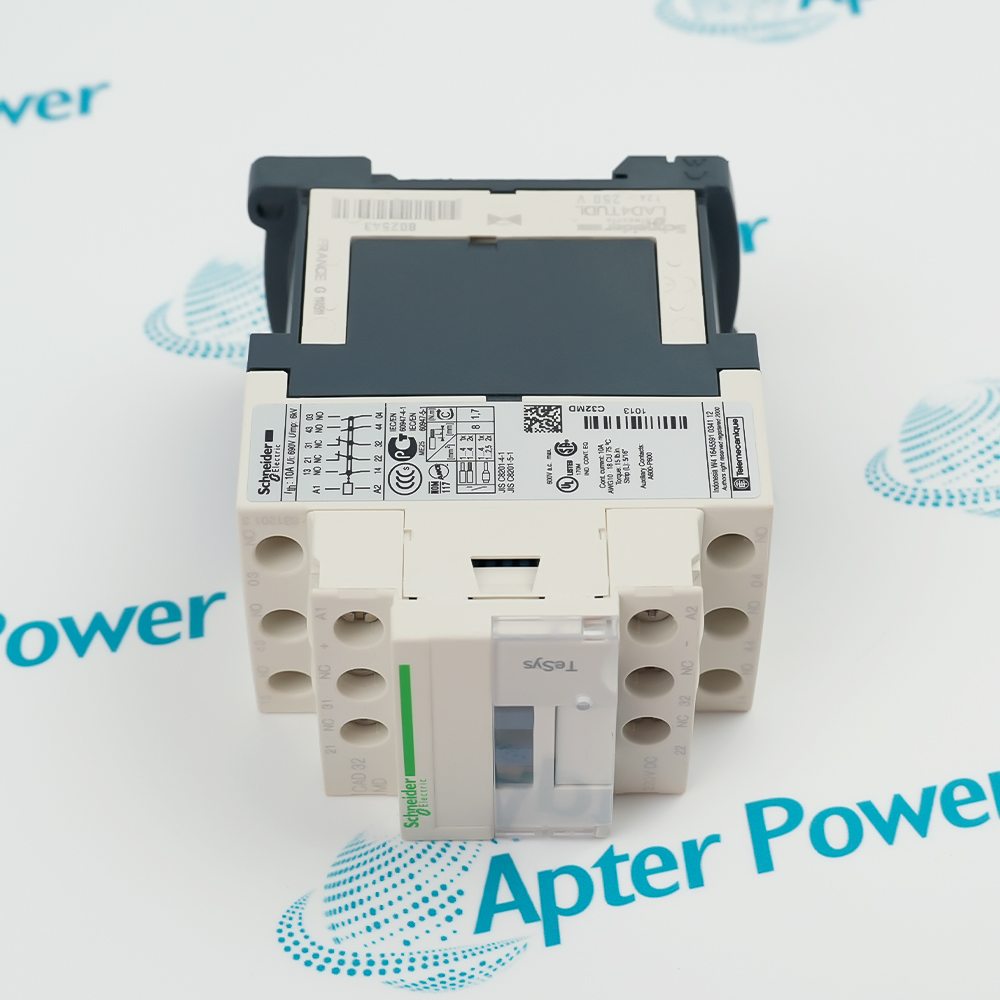

- CAD32MD TeSys D control relay
- It delivers stable performance with high switching accuracy and long operational life, ensuring dependable operation in demanding industrial environments.
- The relay supports versatile control voltages and currents, making it suitable for a wide range of automation, protection, and machinery control applications.
The Schneider Electric CAD32MD TeSys D Control Relay is engineered for seamless integration into industrial control and automation systems, providing reliable switching and control of motors, machinery, and process circuits. It is widely used in manufacturing, energy, and process industries, supporting long-term operational stability and system upgrades.
The TeSys D relay offers high switching accuracy, stable performance under electrical load, and strong thermal endurance. Designed for continuous operation in demanding industrial environments, it ensures effective motor protection, precise control, and enhanced system reliability.
System components, including relay contacts and coils, are fully standardized and interchangeable, reducing maintenance complexity and eliminating the need for individual calibration. The relay is compatible with a wide range of control voltages and currents, providing flexible installation for both new and existing automation systems.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Schneider Electric CAD32MD TeSys D control relay Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQ View All FAQ
-
What are the basic specifications of the Schneider CAD32MD TeSys D control relay?It is a 3 NO + 2 NC control relay with 220 V DC coil, 10 A contact rating, suitable for DIN‑rail mounting and industrial control circuits.
-
Which systems is the Schneider CAD32MD compatible with?It is compatible with standard TeSys D accessories, industrial control panels, and 220 V DC control circuits.
-
Is the Schneider CAD32MD suitable for industrial environments?Yes, it is designed for industrial use with wide temperature range, high vibration resistance, and reliable switching performance.
-
What are the installation guidelines for the Schneider CAD32MD?Mount on 35 mm DIN rail, connect coil and load wires correctly, ensure proper torque on terminals, and verify coil voltage matches supply.
-
How does the CAD32MD differ from other relays in the TeSys D series?It has 3 NO and 2 NC contacts with 220 V DC coil, differing from AC coil versions and other contact configurations.
