      140DDO35301

      Discrete Output Module
      In Stock
      Ships by Sunday, October 18
      Fast Shipping Available

      Product Describe：

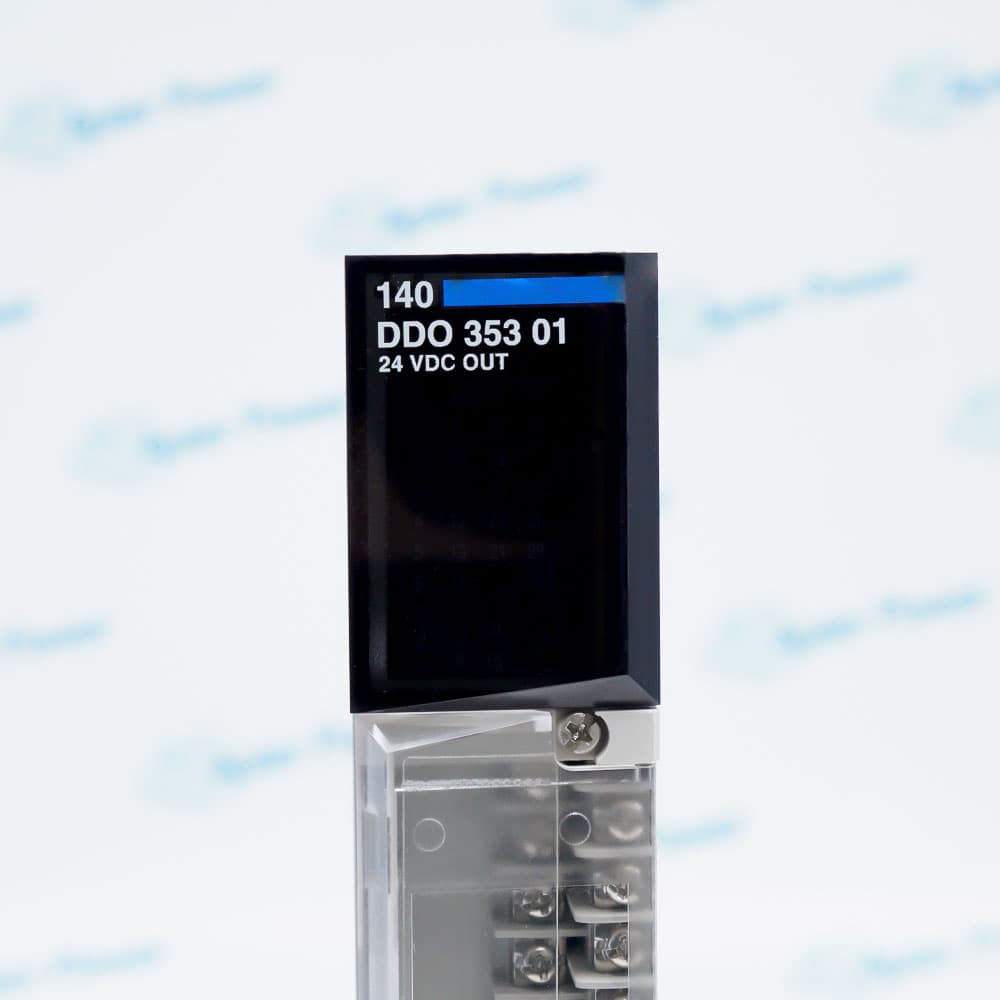

      Schneider Electric 140DDO35301 is a Modicon Quantum 32-point 24 V DC solid-state output module arranged in four groups of eight positive-logic channels.

      Ask our team:

      Get a quick price for： 140DDO35301
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 140DDO35301

      Technical specifications for 140DDO35301

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        140DDO35301
      • Estimated shipping dimensions:
        4x10.5x25cm
      • Weight:
        0.48 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Output count:
        32
      • Signal:
        24 V DC
      • Logic:
        Positive / source
      • Grouping:
        4 groups of 8
      • I/O mapping:
        2 output words
      • Supply range:
        19.2 to 30 V DC
      • Module current:
        16 A maximum
      • Group current:
        4 A maximum
      • Surge:
        2 A
      • Turn-on response:
        1 ms maximum
      • Turn-off response:
        0.1 ms maximum
      • Bus current:
        330 mA
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Schneider Electric 140DDO35301 is a Modicon Quantum 32-point 24 V DC solid-state output module arranged in four groups of eight positive-logic channels.
      • Output count: 32
      • Signal: 24 V DC
      • Logic: Positive / source
      • Grouping: 4 groups of 8

      140DDO35301 operates only with the documented system configuration and connected hardware.

      Important Notice: Confirm sourcing polarity and calculate point, group and total current before returning outputs to service.

      Schneider Electric 140DDO35301 Manuals & Downloads
      140DDO35301 Technical Reference (PDF)140DDO35301 Manufacturer Datasheet (PDF)

      The first document presents model-specific technical and service content. The second preserves the unchanged manufacturer product data.

      High-density actuator control
      Switches thirty-two 24 V DC loads from a Quantum rack.
      Grouped output circuits
      Keeps four protected groups of eight channels within documented current limits.
      Fast DC switching
      Supports the published turn-on and turn-off response boundaries.
      Exact positive-logic renewal
      Restores the same sourcing output identity and controller mapping.
      Read the applicable Schneider Electric instructions before work. Verify 140DDO35301, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Confirm the complete Schneider Electric 140DDO35301 identity and installed position before work.
      2
      Place the connected machine or process in the approved maintenance state.
      3
      Isolate every documented supply and field circuit before disconnection.
      4
      Record terminal, cable, shield, network and companion-hardware identities.
      5
      Retain output count and signal requirements from the installed design.
      6
      Protect connectors, electronics and keyed interfaces from contamination or damage.
      7
      Restore power in the approved sequence and review diagnostics.
      8
      Prove the intended 32-channel 24 v dc positive-logic discrete output module response and retain the acceptance record.

      Technical notes

      Technical notes

      Confirm sourcing polarity and calculate point, group and total current before returning outputs to service.

      FAQS

      • What output polarity does 140DDO35301 use?
        It is a positive-logic sourcing output module for 24 V DC field loads.
      • How are the outputs divided?
        Thirty-two points are arranged in four groups of eight and occupy two output words.
      • Which current limits must be checked together?
        Check the individual load, 4 A group limit and 16 A module limit, including the 2 A surge condition.
      • What are the switching response limits?
        Turn-on is 1 ms maximum and turn-off is 0.1 ms maximum.
      • What must be proven after replacement?
        Command and observe every safety-permitted output, then retain the acceptance record.
      • May output fusing be omitted?
        No. Use the documented protection arrangement and the installed circuit design.
