What is the primary function of the ProSoft MVI56E-MNET module in a ControlLogix system?

The MVI56E-MNET allows Rockwell Automation ControlLogix processors to interface easily with Modbus TCP/IP-compatible devices as either a Client or a Server.

How is the MVI56E-MNET module configured within the RSLogix 5000 or Studio 5000 environment?

Configuration is completed using a Sample Add-On Instruction (AOI) or ladder logic to transfer data and status between the module and the processor.

Does the MVI56E-MNET support multiple simultaneous connections to Modbus TCP/IP devices?

Yes, the module supports up to 2000 words of data and can act as a Client with up to 100 commands, or as a Server with up to 20 simultaneous connections.

What is the purpose of the ProSoft Configuration Builder (PCB) software for the MVI56E-MNET?

PCB is a Windows-based software used to define module parameters, such as IP addresses and Modbus commands, and to provide diagnostic monitoring.

What diagnostic features are available on the front panel of the MVI56E-MNET?

The module features a scrolling 4-character LED display that shows status and diagnostic data, such as the IP address and error codes, without a PC connection.

MVI56E-MNET

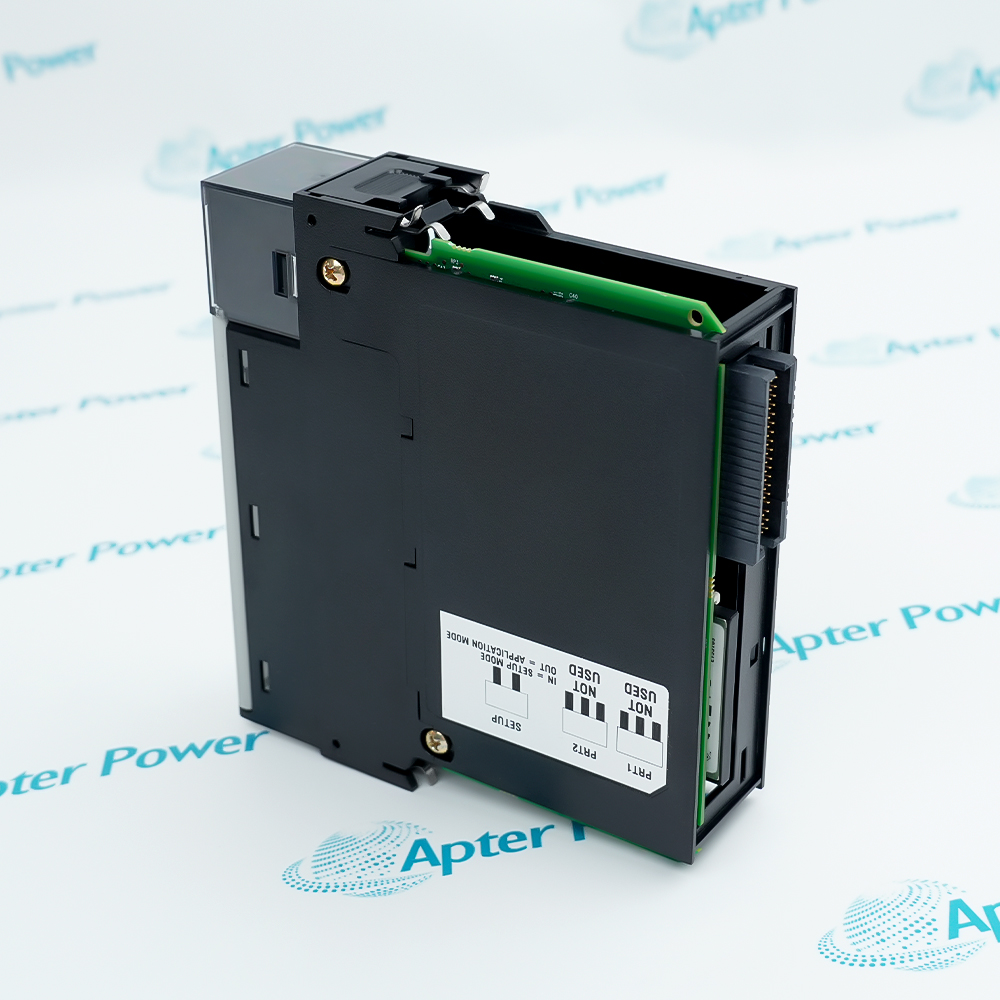

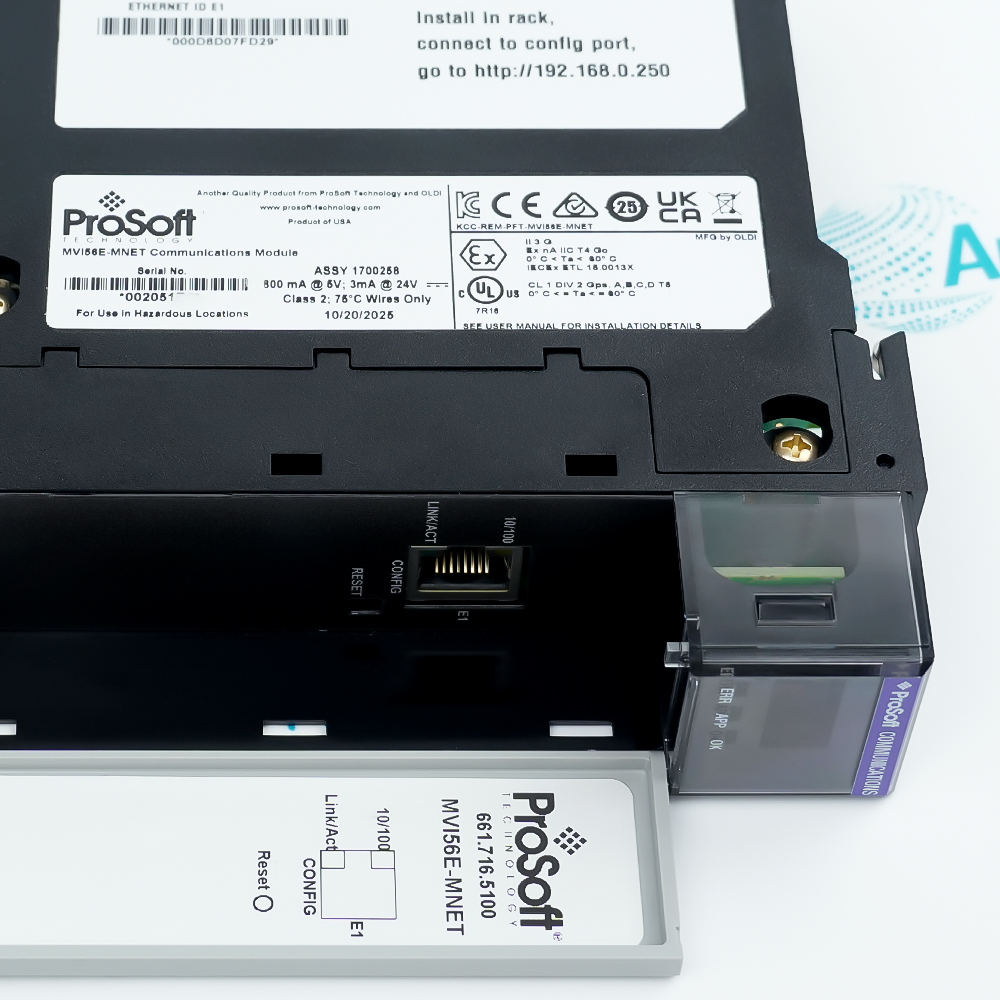

Name: MVI56E-MNET
Brand: ProSoft
SKU: MVI56E-MNET

INTERFACE MODULE

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

INTERFACE MODULE
MODBUS TCP/IP CLIENT/SERVER
ENHANCED COMMUNICATION/NETWORK
800 MA AT 5 VDC BACKPLANE CURRENT LOAD
3 MA AT 24 VDC BACKPLANE CURRENT LOAD
RJ45 CONNECTOR
10/100 MBPS TRANSFER SPEED
0 TO +60 DEGREES C

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for MVI56E-MNET

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for MVI56E-MNET

Manufacturer:

ProSoft
Product Category:

PLC Systems
Spare Part Number:

MVI56E-MNET
Estimated shipping dimensions:

3.5x14x14.5cm
Weight:

0.26 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Data size:

5000 words, 16-bit registers
Configuration:

Add-On-Instruction (AOI) ; Sample Ladder
Communication port:

One (1) RJ45 interface
Data Rate:

10 / 100 Mbps
Operating Temperature:

0° C to 60° C
Storage Temperature:

-40° C to 85° C
Relative humidity:

5% to 95% (without condensation)

Ask for Quote

Information

Overview Manuals Common Applications Functional Specifications

The MVI56E-MNET is allows Rockwell Automation® ControlLogix processors to interface easily with Modicon Programmable Automation Controllers (PACs) and a wide variety of Modbus TCP/IPcompatible instruments and devices.

Backward-Compatible
RSLogix 5000 Integrated
Graphical User Interface Software

MVI56E enhancements include local and remote configuration and diagnostics through the module’s Ethernet port, and CIPconnect® technology for bridging through Rockwell Automation ControlNet and EtherNet/IP networks.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

PROSOFT MVI56E-MNET INTERFACE MODULE Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Oil & Gas

Interfaces ControlLogix processors with Modbus TCP/IP flow computers and gas chromatographs. It enables high-speed transfer of custody transfer data across refinery networks.

Power Generation

Integrates intelligent electronic devices (IEDs) and protection relays into the plant-wide control system. It supports real-time monitoring of electrical parameters in substation environments.

Water Treatment

Connects centralized controllers to remote pump stations and chemical dosing systems. It provides a reliable link for gathering telemetry data from distributed SCADA assets.

Food & Beverage

Interfaces specialized processing equipment, such as industrial ovens, with the main production line. It ensures deterministic data exchange for temperature profiling and batch management.

Mining & Metals

Supports the integration of large motor drives and conveyor systems within a unified Ethernet network. It allows for centralized monitoring of equipment health in harsh operations.

Manufacturing Automation

Enables the connection of robotic controllers and vision systems to the primary automation backbone. It facilitates the synchronization of complex assembly sequences and production reporting.

The MVI56E-MNETand MVI56E-MNETXT are functionally identical. The MVI56E-MNET is for normal process and control environments. The MVI56E-MNETXT is conformal coated for extra protection in harsh or caustic environments and operates in extreme high or low temperature environments.

Both modules transfer data in the largest possible I/O image block sizes, which moptimizes data through-put and update time. Both modules appear to the ControlLogix processor as input/output (I/O) modules, rather than communication modules.Both modules work well in local rack applications and may be used in remote rack applications are supported in ladder logic by special block transfer codes.
