What kind of device is Moxa EDS-405A-SS-SC?

It is an industrial-grade 5-port Layer 2 managed Ethernet switch, featuring 3 10/100BaseT(X) copper ports and 2 single-mode fiber SC ports.

What is the primary use of Moxa EDS-405A-SS-SC?

It is primarily used to connect field devices like PLCs, DCSs, HMIs, and VFDs in harsh industrial environments to build stable and redundant communication networks.

How to install and use Moxa EDS-405A-SS-SC?

It supports standard DIN-rail mounting. Snap it onto the rail, connect the 12/24/48 VDC power supply, plug in the network cables and fiber patch cords, and it is ready to use.

What is the fiber transmission distance of Moxa EDS-405A-SS-SC?

Utilizing single-mode fiber, its maximum network data transmission distance can reach up to 40 kilometers.

What network redundancy technologies does Moxa EDS-405A-SS-SC support?

It supports Moxa’s proprietary Turbo Ring and Turbo Chain fast network self-healing technologies (recovery time < 20 ms), as well as standard RSTP/STP.

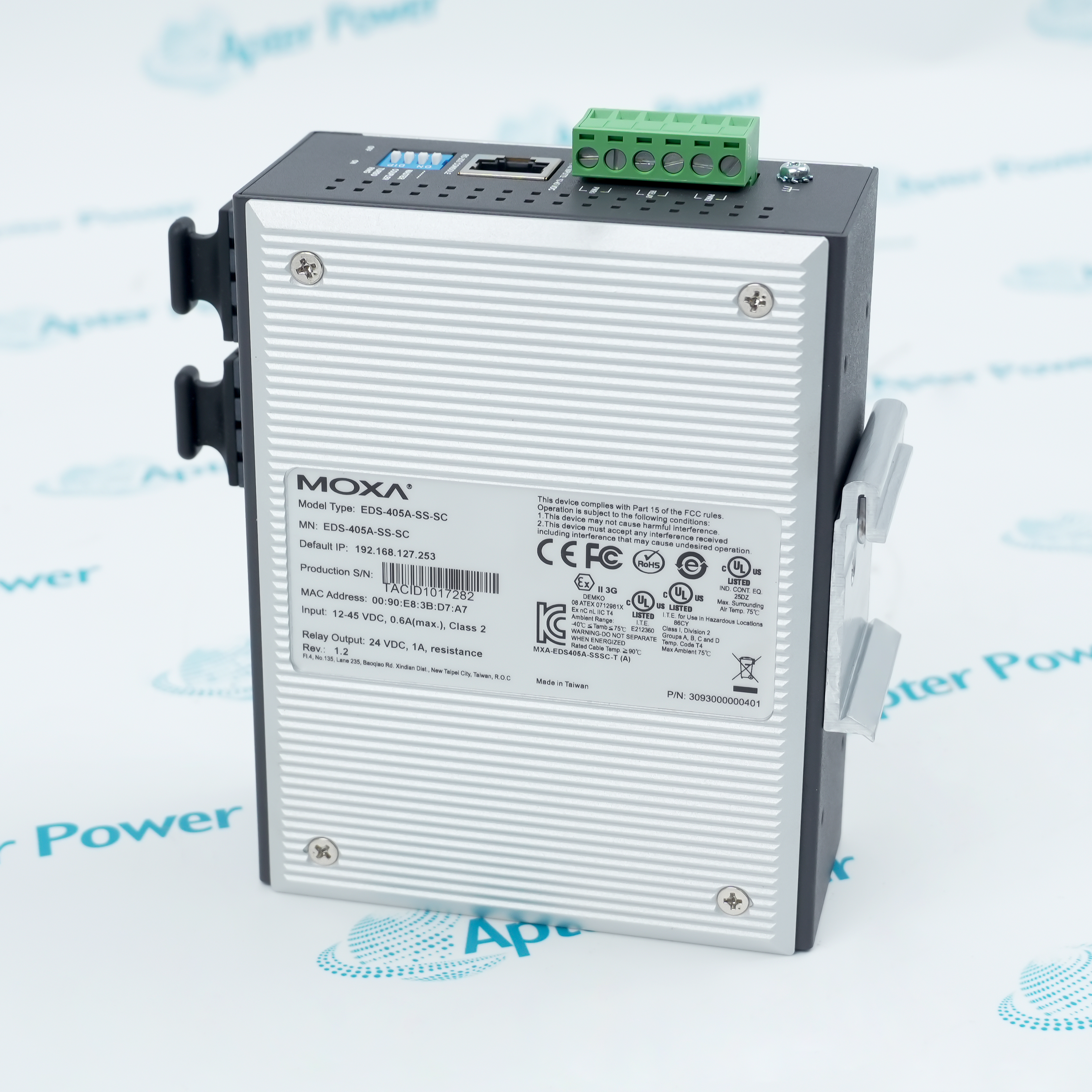

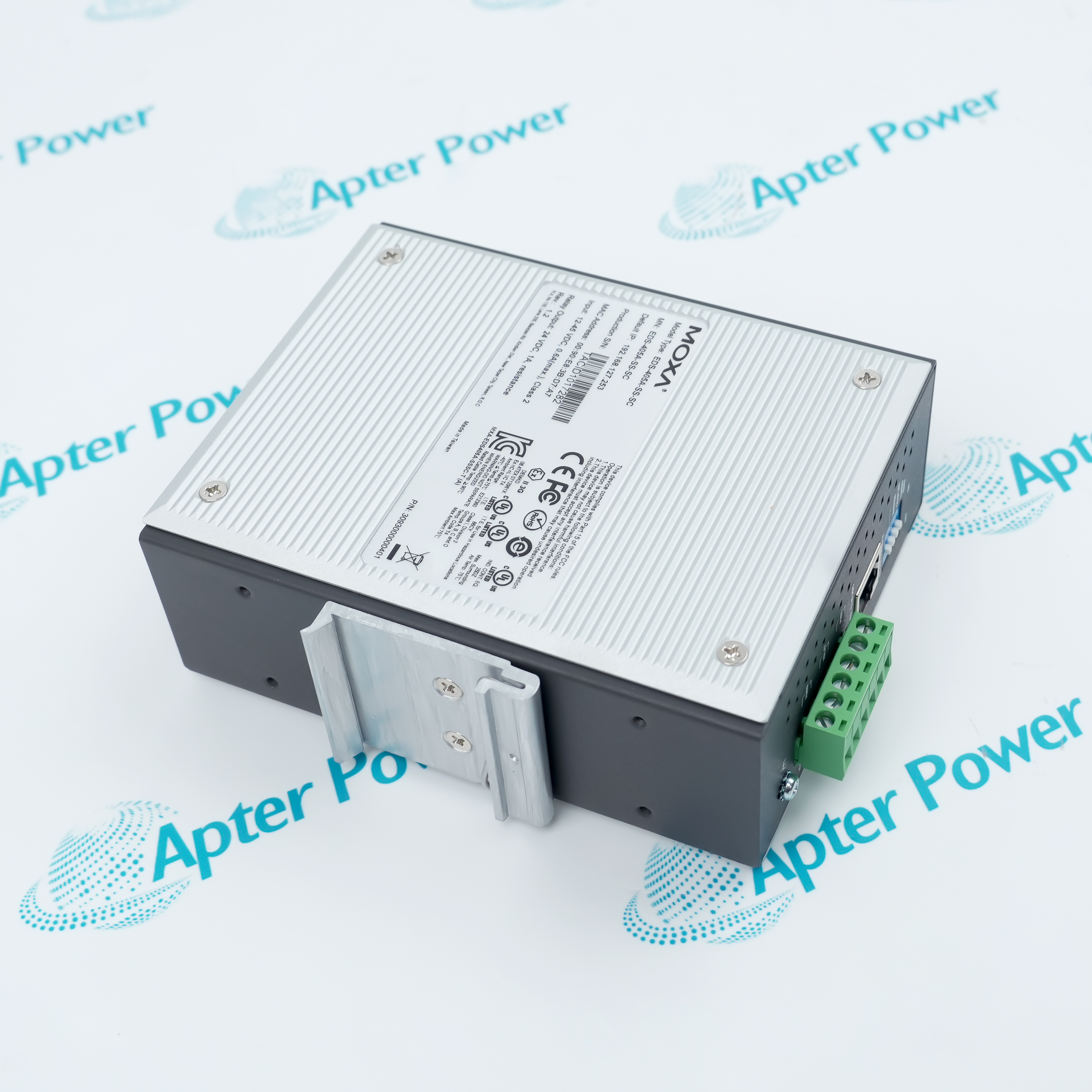

EDS-405A-SS-SC

Name: EDS-405A-SS-SC
Brand: Moxa
SKU: EDS-405A-SS-SC

Moxa EtherDevice Switch

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Entry-level managed Ethernet switch
with 3 10/100BaseT(X) ports
2 100BaseFX single-mode ports
with SC connectors, 0 to 60°C operating temperature

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for EDS-405A-SS-SC

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for EDS-405A-SS-SC

Manufacturer:

Moxa
Product Category:

General Automation
Spare Part Number:

EDS-405A-SS-SC
Estimated shipping dimensions:

3x9x12.5cm
Weight:

0.2 kg
Tariff Code:

8537101190
Counliy of origin:

China
Redundant Networks:

Supports Turbo Ring, Turbo Chain, STP, and RSTP
Industrial Protocols:

Built-in support for EtherNet/IP, Modbus TCP, and PROFINET
Console Port:

1 x RS-232 serial port (RJ45 connector) for local CLI configuration
Fiber Transmission Distance:

Up to 40 km
Fast Ethernet Fiber Ports:

2 x 100BaseFX ports
Input Voltage:

12/24/48 VDC, redundant dual inputs
Input Current:

Max. 0.21 A @ 24 VDC
Connection:

1 x removable 6-contact terminal block
IP Rating:

IP30
Installation:

DIN-rail mounting, Wall mounting (with optional kit)
Ambient Relative Humidity:

5 to 95% (non-condensing)

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The EDS-405A-SS-SC is a 5-port managed Ethernet switch featuring 3 RJ45 ports and 2 single-mode fiber ports with SC connectors. It provides industrial-grade reliability with IP30-rated metal housing, redundant 12/24/48 VDC power inputs, and robust vibration and shock resistance.

Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Supports MXstudio for easy, visualized industrial network management

The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

The EDS-405A-SS-SC supports DHCP Option 82 for dynamic IP address assignment based on different policies, allowing location-based network addressing. To streamline network planning, the switch supports port-based VLAN, IEEE 802.1Q VLAN, and GVRP, segmenting subnets and isolating broadcast domains. Built-in QoS (supporting IEEE 802.1p and TOS/DiffServ) ensures the priority for control commands and real-time industrial data. Additionally, it offers port mirroring for online debugging and packet analysis. Utilizing RMON for network monitoring, SNMPv1/v2c/v3 for multiple levels of network management security, and bandwidth management to prevent unpredictable network status, the EDS-405A-SS-SC protects industrial control networks against abnormal traffic spikes.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Moxa EDS-405A-SS-SC Moxa EtherDevice Switch Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Oil & Gas Extraction

Connects remote RTUs to long-distance fiber networks on oil and gas pipelines and offshore drilling platforms to transmit field pressure and flow data back to the central control room.

Petrochemical & Refining

Utilizes single-mode fiber for explosion-proof isolation and anti-electromagnetic interference communication in hazardous refinery tank farms and hydrocracking units to build the network backbone of DCS systems.

Thermal & Nuclear Power Generation

Connects field PLCs, HMIs, and data acquisition boxes under the complex electromagnetic environments of power plant steam turbine and boiler control systems to ensure latency-free transmission of control commands.

Wind Power Generation

Installed at the base or nacelle of wind turbines, leveraging the long-distance transmission of single-mode fiber to connect the operational status of distributed turbines to the substation monitoring center.

Hydropower & Dam Monitoring

Used for long-distance data transmission in dam structural safety, water level monitoring, and hydro-generator control systems, overcoming signal attenuation caused by long cable runs in mountainous or underground environments.

Modern Mining & Extractive Industry

Deployed in underground central substations, conveyor belt lines, or surface mineral processing plants to provide a solid network backbone for automated mining equipment, gas monitoring systems, and explosion-proof video surveillance.

Ensure the power supply voltage remains within the 9.6 to 60 VDC range, and properly connect the dual redundant power inputs and grounding terminal to prevent interference. Since this model features single-mode fiber interfaces, you must use matching single-mode fiber patch cords and keep the SC connectors clean. Never exceed the operating temperature range of -10 to 60°C, and ensure the ring ports are correctly designated when configuring Turbo Ring to avoid network broadcast storms caused by misconfiguration.

Alternative Names

EDS 405A SS SC EDS405ASSSC EDS-4O5A-SS-SC

Technical notes

The Moxa EDS-405A-SS-SC is a 5-port Layer 2 industrial managed Ethernet switch featuring 3 copper ports and 2 long-distance single-mode fiber SC ports supporting transmissions up to 40 km. It features a rugged, fanless enclosure and built-in Turbo Ring/Chain self-healing technologies (<20 ms recovery time), and supports various industrial protocols to guarantee the stable and continuous operation of critical automation control networks in harsh environments.

FAQ View All FAQ

What kind of device is Moxa EDS-405A-SS-SC?

It is an industrial-grade 5-port Layer 2 managed Ethernet switch, featuring 3 10/100BaseT(X) copper ports and 2 single-mode fiber SC ports.
What is the primary use of Moxa EDS-405A-SS-SC?

It is primarily used to connect field devices like PLCs, DCSs, HMIs, and VFDs in harsh industrial environments to build stable and redundant communication networks.
How to install and use Moxa EDS-405A-SS-SC?

It supports standard DIN-rail mounting. Snap it onto the rail, connect the 12/24/48 VDC power supply, plug in the network cables and fiber patch cords, and it is ready to use.

What is the fiber transmission distance of Moxa EDS-405A-SS-SC?

Utilizing single-mode fiber, its maximum network data transmission distance can reach up to 40 kilometers.
What network redundancy technologies does Moxa EDS-405A-SS-SC support?

It supports Moxa’s proprietary Turbo Ring and Turbo Chain fast network self-healing technologies (recovery time < 20 ms), as well as standard RSTP/STP.
