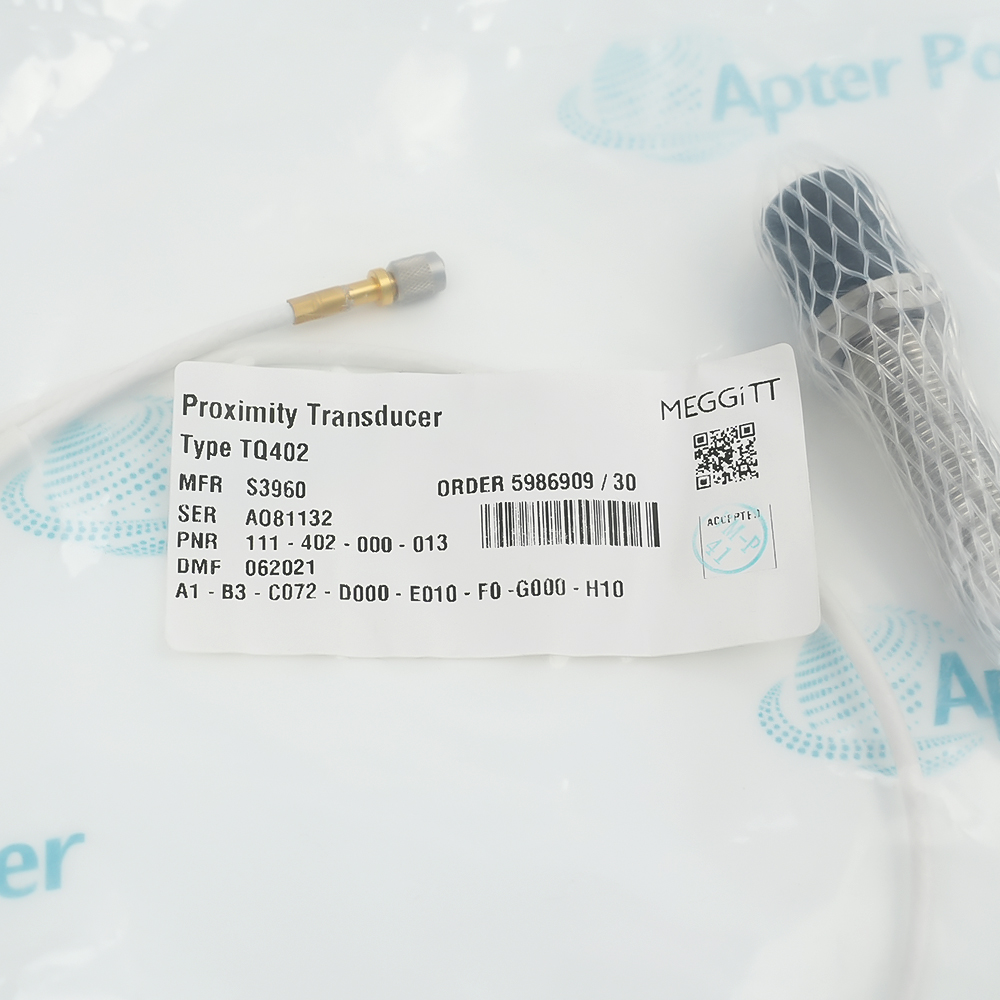

      TQ402 111-402-000-013

      proximity sensor
      In Stock

      Product Describe：

      Proximity sensor
      Conforms to API
      670 recommendations
      1, 5 and 10 m systems
      Temperature-compensated
      Doutput with protectionagainst
      Short circuits


      Ask our team:

      Get a quick price for： TQ402 111-402-000-013
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ

      Technical specifications for TQ402 111-402-000-013

      Technical specifications for TQ402 111-402-000-013

      • Manufacturer:
        MEGGITT
      • Product Category:
        General Automation
      • Spare Part Number:
        TQ402 111-402-000-013
      • Estimated shipping dimensions:
        16x16x12cm
      • Weight:
        0.8 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Options:
        2 mmor 4 mm
      • Operating Temperature:
        -40°c to +180°C
      • Range:
        DC(direct current) to 20 kHz
      • Calibration temperature:
        +23°C ±5°C
      • Target material:
        VCL 140 steel (1.7225)
      • Current at min:
        −15.5 mA / −20.5 mA
      • Without diagnostics:
        −15.5 to −20.5 mA
      • Output impedance:
        >60 kΩ
      • Voltage at min:
        −1.6 V / −17.6 V
      • Measurement range:
        5 mA
      Ask for Quote

      Information

      Information

      Overview Manuals Need More Info
      • High-precision Eddy Current Measurement
      • Designed for Non-contact Shaft Vibration and Position Monitoring
      • Compatible with Industrial Vibration Monitoring Systems
      The TQ402 111-402-000-013 is a high-performance charge output piezoelectric speed sensor designed for vibration monitoring of bearing housings of industrial rotating equipment. It is widely used in power, petrochemical, metallurgy and large process control systems to improve the reliability and accuracy of equipment status monitoring.

      The TQ402 proximity sensor offers high measurement accuracy, excellent linearity, and strong resistance to environmental interference. Engineered for demanding industrial environments, it ensures reliable performance in applications such as turbines, compressors, pumps, and other critical rotating equipment where continuous condition monitoring is required.

      When used as part of a complete vibration monitoring system, the sensor works seamlessly with compatible extension cables and signal conditioning units. This modular design allows flexible installation, simplified maintenance, and dependable operation in long-term machinery protection and predictive maintenance programs.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      MEGGITT TQ402 111-402-000-013 proximity sensor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

      With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!

      FAQS

      • What is the function of the TQ402 111-402-000-013 ?
        It is a sensor used to monitor radial vibration and axial (thrust) position of shaft rotating machinery, often in harsh, high-temperature industrial environments.
      • What makes up the TQ402 111-402-000-013 complete measurement system?
        The system typically consists of the TQ402 probe, an EA402 extension cable, and an IQS900 signal conditioner.
      • What is the difference between TQ402 and TQ412?
        The TQ402 is a standard mount, while the TQ412 is designed for reverse-mount applications.
      • Are they suitable for hazardous areas?
        Yes, Ex-certified versions are available for use in potentially explosive atmospheres.
      • What are the basic specifications of the TQ402 111-402-000-013 proximity sensor?
        It is a non-contact eddy current proximity sensor designed for precise vibration and displacement measurement of rotating machinery.
      • Which monitoring systems is the TQ402 111-402-000-013 compatible with?
        It is commonly used with compatible vibration monitoring systems and signal conditioners designed for industrial condition monitoring.
      • Can the TQ402 111-402-000-013 proximity sensor operate in harsh industrial environments?
        Yes, it is designed to operate reliably in industrial environments with wide temperature ranges and high vibration conditions.
