9563-810

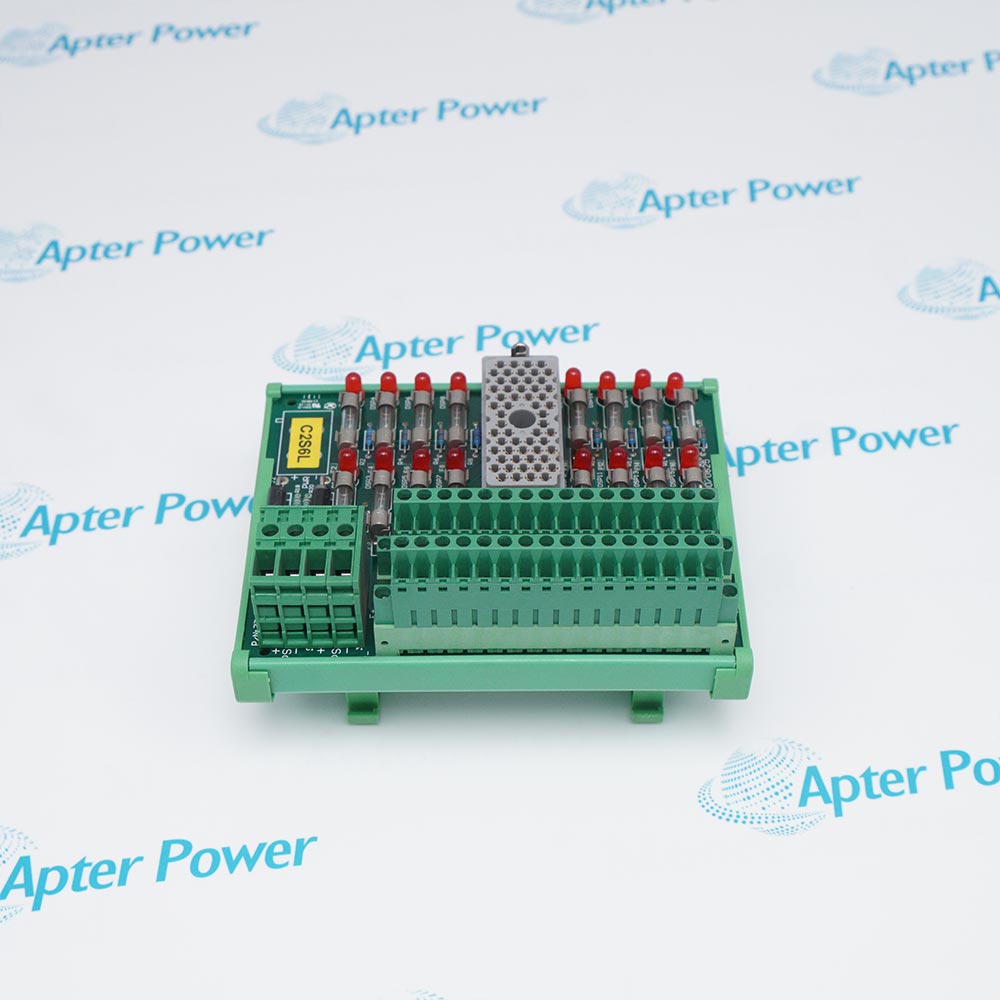

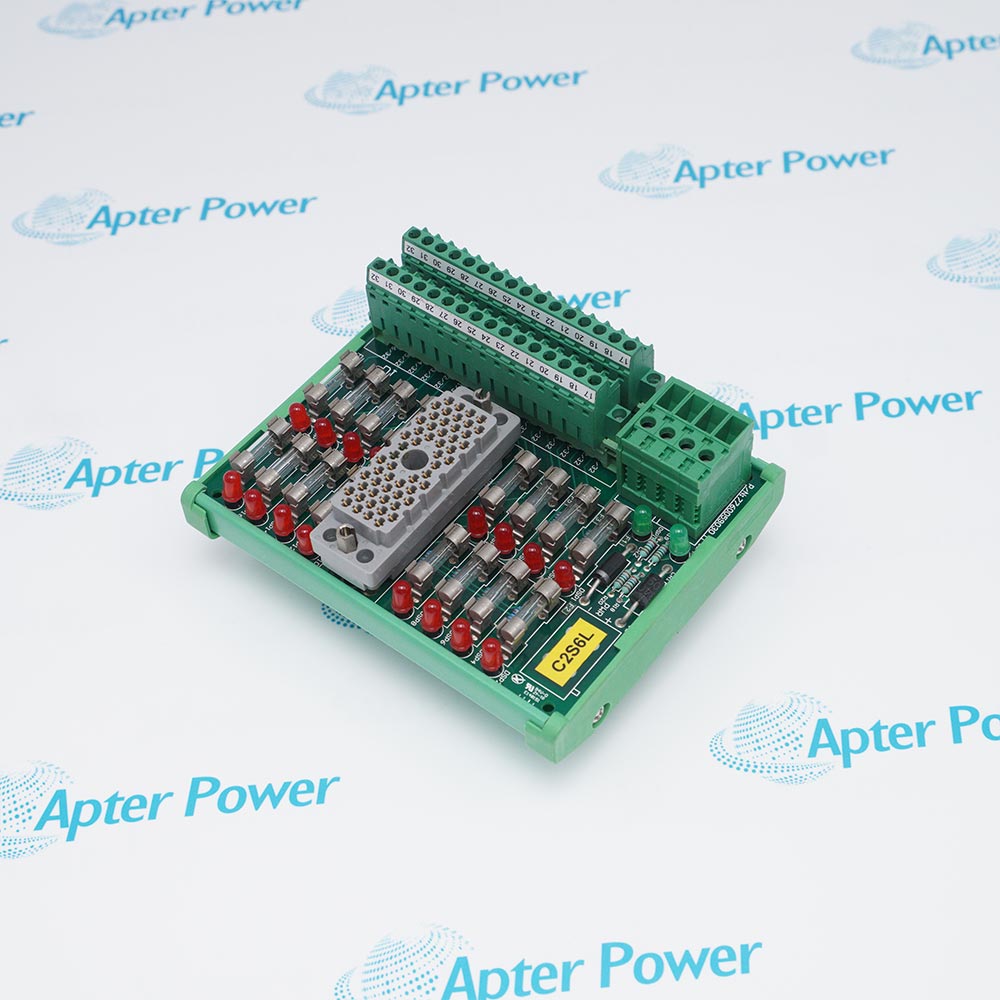

16-Point 24 V Digital Input Termination Panel
In Stock
Ships by Tuesday, September 22
Fast Shipping Available

Product Describe:

Triconex 9563-810 is a commoned sixteen-point 24 V digital input termination panel. It interfaces fused field-state circuits with compatible Tricon TMR input modules.

Ask our team:

Get a quick price for: 9563-810
Quantity*
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications for 9563-810

Technical specifications for 9563-810

  • Manufacturer:
    Invensys
  • Product Category:
    DCS System
  • Spare Part Number:
    9563-810
  • Estimated shipping dimensions:
    13.3x10.9x7.8cm
  • Weight:
    0.38 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Panel type:
    Commoned
  • Nominal field voltage:
    24 V AC/VDC
  • Input points:
    16
  • Power terminals:
    Commoned PWR+ / PWR-
  • Leakage current maximum:
    3.3 mA per point
  • Leakage current typical:
    2.5 mA per point
  • Point protection:
    1 A slow fuse
  • Fuse indication:
    Blown-fuse indicator per point
  • Compatible modules:
    3503E; 3505E
  • Points per compatible module:
    32
  • Panels per module:
    2
  • Panel width:
    4.5 in (11.43 cm)
  • Panel length:
    5 in (12.7 cm)
  • Panel height:
    4.25 in (10.795 cm)
  • ETA number:
    3000510-380
  • Associated cable:
    4000093-310

Information

Information

Overview Manuals Common Applications Product Precautions
Triconex 9563-810 is a commoned sixteen-point 24 V digital input termination panel. It interfaces fused field-state circuits with compatible Tricon TMR input modules.
  • Terminates sixteen commoned 24 V digital input circuits
  • Protects each field point with a slow fuse and blown-fuse indicator
  • Pairs two panels with one thirty-two-point 3503E or 3505E module
  • Provides separate channel-label sets for the first and second half of the module

9563-810 installs with 3503E or 3505E digital-input module, 4000093-310 I/O cable, 24 V AC/VDC field supply, fused contact or sensor input circuits in an engineered Tricon v9-v10 digital input termination configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 16-point 24 v digital input termination panel.

Important Notice: Confirm the complete 9563-810 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power 9563-810 Manuals and Guides
Apter Power 9563-810 Product Technical Reference PDFApter Power 9563-810 Installation and Verification PDF
The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Fused permissive and interlock input terminationSupports fused permissive and interlock input termination through the installed 16-point 24 v digital input termination panel in a configured Tricon system.
Thirty-two-point DI split-panel wiringUses 9563-810 for thirty-two-point DI split-panel wiring after the assigned host module, field interface and channel mapping are confirmed.
3505E low-threshold input installationsApplies the 9563-810 hardware arrangement to 3505E low-threshold input installations with controlled wiring and signal verification.
Blown-fuse diagnostic maintenanceProvides a defined engineering path for blown-fuse diagnostic maintenance, including installation checks and final functional proof.
Read the applicable Triconex installation instructions before work. Verify 9563-810 and the installed Tricon v9-v10 digital input termination configuration.
1Verify 9563-810 and the 24 V input-module assignment before wiring work.
2Place the affected interlocks in their approved maintenance state and isolate field power.
3Record whether the panel is labeled 1-16 or 17-32 before removing conductors.
4Use only the documented one-amp slow fuse for each protected point.
5Check aggregate field leakage against the connected sensor and module thresholds.
6Inspect commoned PWR+ and PWR- terminations for polarity and secure clamping.
7Seat cable 4000093-310 without bending or loading the panel connector.
8Prove fuse indication, OFF/ON transitions, and the associated safety logic before release.

Technical notes

Technical notes

Confirm the selected channel-label set, measure field leakage against the input device, and prove fuse indication and ON/OFF state transfer after reconnecting 9563-810.

FAQS

  • Which installation error is most important to prevent on 9563-810?
    Do not interchange 9563-810 with an adjacent execution or alter its matched 3503E or 3505E digital-input module; the exact electrical, channel, and connector arrangement must be retained.
  • How is slow-fuse and blown-fuse indication handled during a 9563-810 replacement?
    Record the installed state first, isolate the associated process function, reproduce only the approved model-specific arrangement, and verify it before energization.
  • Which diagnostics should be reviewed after installing 9563-810?
    Review the applicable point, module, power, communication, or load indicators for 9563-810, then confirm the intended role: terminates sixteen commoned 24 v digital input circuits.
  • Can 9563-810 be substituted for a similar Triconex model without a configuration review?
    No. Confirm the exact model, companion hardware, signal execution, system version, and approved configuration before any substitution.
  • What evidence should be retained after half-module label selection testing on 9563-810?
    Retain the full 9563-810 identity, as-left connections or settings, final diagnostics, measured functional-test result, and authorization to return the affected process function to service.
  • Which installed hardware must be matched before fitting 9563-810?
    Match 9563-810 to 3503E or 3505E digital-input module and 4000093-310 I/O cable, then confirm the complete physical marking and assigned Tricon v9-v10 digital input termination position.
  • How should an engineer verify 3503E versus 3505E pairing for 9563-810?
    Use the approved connection drawing and the model-specific values in Field Terminations Guide for Tricon v9-v10 Systems; preserve the as-found terminal, connector, polarity, shield, and channel identity.
  • What check is required for 3.3 mA maximum point leakage when commissioning 9563-810?
    Apply a controlled signal or command within the documented range and compare the field result, controller indication, and product diagnostics before normal operation.
