Technical specifications for FBM207C P0917GY
-
Manufacturer:Invensys
-
Product Category:DCS Systems
-
Spare Part Number:FBM207C P0917GY
-
Estimated shipping dimensions:4.5x11x11.5cm
-
Weight:0.32 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Discrete inputs:16 channels
-
FBM207C function:48 V dc contact sense
-
Isolation:Each input isolated; group isolated with external excitation
-
Programs:Discrete input, ladder logic, pulse count and sequence of events
-
Input filter:Configurable filter time
Information
Overview
Manuals
Common Applications
Product Precautions

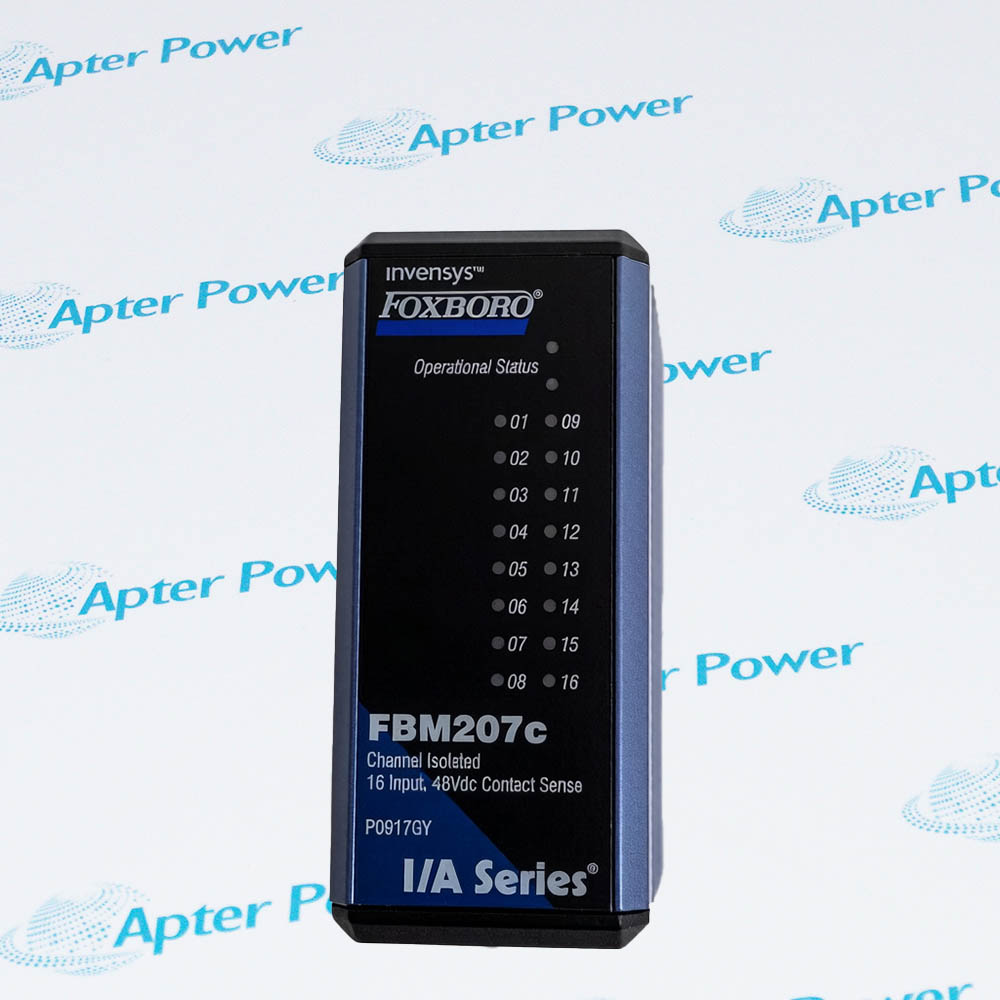

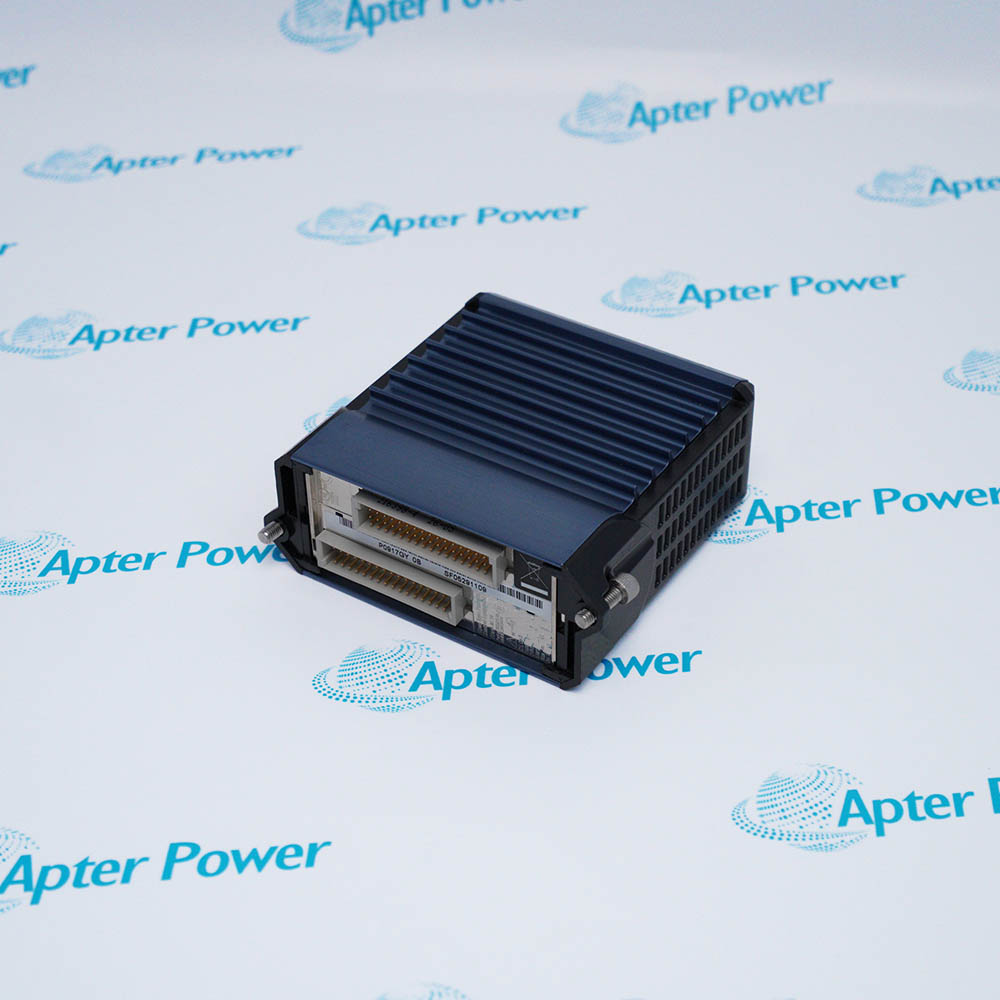

Foxboro FBM207C P0917GY provides sixteen isolated 48 V dc contact-sense inputs with discrete, ladder-logic, pulse-count and sequence-of-events processing.
- Provides sixteen discrete input channels for its 48 v dc contact sense input module function.
- Handles 48 V dc dry-contact or solid-state switch states through the documented Foxboro system path.
- Works with the matching contact-sense termination assembly and redundant module Fieldbus.
- The module may be installed singly or in a controlled redundant pair.
The 48 v dc contact sense input module belongs in the controlled Foxboro architecture and works with the matching contact-sense termination assembly and redundant module Fieldbus. Its mating hardware, wiring, database configuration and final response must be checked together before release.
Important Notice: Use FBM207C P0917GY only with the matching contact-sense termination assembly and redundant module Fieldbus; verify every interface and the controlled project configuration before energizing or pressurizing the subsystem.
Foxboro FBM207C P0917GY Manuals & Downloads
Foxboro FBM207C P0917GY Official Technical Reference Excerpt (PDF)Foxboro FBM207C P0917GY Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
System maintenance
Restores the documented 48 v dc contact sense input module function in an existing Foxboro control system.
Signal-path service
Supports controlled testing of 48 V dc dry-contact or solid-state switch states at the assigned system position.
Planned replacement
Provides an exact-identity replacement path after the matching contact-sense termination assembly and redundant module Fieldbus has been verified.
Commissioning
Allows the responsible engineer to prove configuration, diagnostics and response for sixteen discrete input channels.
Before installing Foxboro FBM207C P0917GY, confirm the documented system, interfaces and controlled configuration.
1
Match the complete FBM207C P0917GY marking to the work order and installed position before removal.
2
Confirm the matching contact-sense termination assembly and redundant module Fieldbus before disconnecting any interface.
3
Keep 48 V dc dry-contact or solid-state switch states within the documented electrical or pneumatic range.
4
Record terminal designations, polarity, common, shield and cable routing before disconnection.
5
Inspect mounting, connector keying, terminal condition and retention hardware before installation.
6
Restore the controlled database, range, alarm, filter and fail-state settings before energization.
7
Review local indicators and controller diagnostics during the controlled startup sequence.
8
Prove the intended response across sixteen discrete input channels and record the acceptance result before release.
Technical notes
Use FBM207C P0917GY only with the matching contact-sense termination assembly and redundant module Fieldbus; verify every interface and the controlled project configuration before energizing or pressurizing the subsystem.
FAQ View All FAQ
-
Which voltage execution is identified by Foxboro FBM207C P0917GY?FBM207C is the 48 V dc contact-sense version.
-
How many discrete points does Foxboro FBM207C P0917GY monitor?Sixteen contact-sense input channels are provided.
-
Which control programs can use inputs from Foxboro FBM207C P0917GY?Discrete Input, Ladder Logic, Pulse Count and Sequence of Events programs are supported.
-
How does Foxboro FBM207C P0917GY handle input filtering?The input filter time is configurable for the application.
-
Can Foxboro FBM207C P0917GY operate as a redundant pair?Yes. The documented architecture supports single or paired modules with the appropriate adapter and control blocks.
-
Which local status should be observed on Foxboro FBM207C P0917GY?Front LEDs indicate module operation and the discrete state of individual input points.
-
What must be doubled when Foxboro FBM207C P0917GY is used in a redundant contact-sense arrangement?The input current is doubled and contact-sense power is diode-ORed through the redundant adapter.
-
Which test proves every Foxboro FBM207C P0917GY point after replacement?Operate every connected contact, verify the channel indication, sequence/event behavior where used and the controller quality state.
