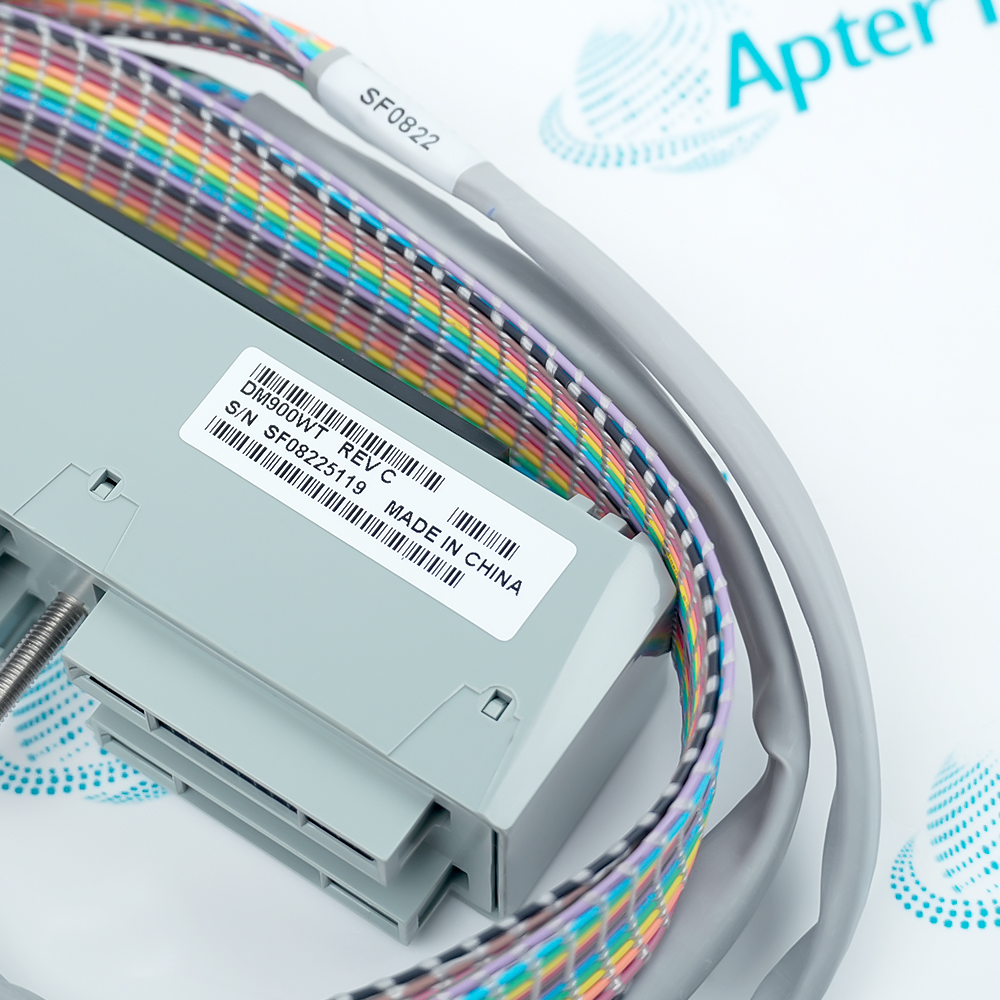

The DM900WT is a specialized termination cable assembly engineered for internal control cabinets within the Foxboro I/A Series DCS platform. It securely bridges high-density process signals from FBM10/FBM15 Fieldbus Modules to their corresponding dedicated Foxboro Termination Assemblies (TA), ensuring interference-free, high-integrity signal transmission under harsh industrial plant environments.
Exclusive for Foxboro I/A Series: Dedicated system interconnection
Bridges FBMs and Termination Assemblies: Streamlines cabinet wiring
Plug-and-play Connectors: Heavy-duty multi-pin connectors for reliable mating
In industrial control network wiring, the Foxboro DM900WT termination cable assembly connects FBM10/FBM15 Fieldbus Modules to Termination Assemblies (TA). Utilizing pre-fabricated multi-pin connectors, the assembly routing multi-channel electrical input/output signals directly into Foxboro-standard terminal block interfaces. This plug-in installation completely eliminates the need for manual wire stripping and individual terminal crimping within the cabinet.
The cable features a robust, oil-resistant, and wear-resistant outer jacket combined with a high-density overall shield to block electromagnetic radiation, thereby drastically minimizing loop failure rates caused by line aging or increased contact resistance during continuous plant operations.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Foxboro DM900WT Termination Cable Assembly Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petroleum Refining
Used in I/O cabinets for atmospheric/vacuum distillation and catalytic cracking units to connect safety instrumentation systems, ensuring real-time refinery process control.
Oil & Gas Extraction
Employed in DCS networks on offshore drilling platforms and gathering stations, transmitting wellhead pressure and temperature sensor signals to main control modules without loss.
Thermal Power Generation
Configured in Boiler Management Systems and steam turbine bypass networks to enable high-density control command and status feedback interconnection.
Nuclear Power Generation
Applied to auxiliary control networks in the conventional island of nuclear power plants, ensuring ultra-high signal availability within non-safety DCS cabinets.
Petrochemical Manufacturing
Serves as a backbone jumper inside ethylene cracking and PE/PP reactor control cabinets, resisting electromagnetic interference from high-frequency variable frequency drives.
Coal Chemical Industry
Installed in distributed cabinets for air separation units and coal gasifier control systems, bridging dense gas analyzers and valve controllers.
During installation and replacement of the Foxboro DM900WT, professional automation engineers must operate exclusively under powered-off conditions. Given its role in high-density FBM routing, over-bending, hard pulling, or forced blind insertion must be strictly avoided to prevent pin damage.
Additionally, always ensure that all connector latches or tight screws are completely locked to eliminate signal dropouts or communication faults triggered by cabinet vibrations.
Technical notes
Technical notes
The outer jacket is extruded from high-specification Flame-Retardant Polyvinyl Chloride (FR-PVC) or Low Smoke Zero Halogen (LSZH) compounds. This heavy-duty material exhibits superior resistance to oil splatters, chemical acid/alkali corrosion, and UV degradation. It is engineered to withstand a wide operating temperature envelope of -20°C to +70°C and maintain robust dielectric strength in harsh environments with up to 95% non-condensing relative humidity.
It is a proprietary fieldbus module termination cable.
What is DM900WT primarily used for?
Used to connect Fieldbus Modules (FBM) with Termination Assemblies (TA) to transmit control signals.
How to properly connect the DM900WT cable?
Align the proprietary multi-pin industrial connectors on both ends with the FBM and TA interfaces, then insert and lock.
Which modules are compatible with DM900WT?
Mainly compatible with classic Foxboro input/output modules such as FBM10 and FBM15.
