Technical specifications for T9852

  • Manufacturer:
    ICS Triplex
  • Product Category:
    PLC Systems
  • Spare Part Number:
    T9852
  • Estimated shipping dimensions:
    13x4x4.5cm
  • Weight:
    0.26 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Termination function:
    Digital output
  • Redundancy arrangement:
    Dual
  • Output channels:
    8
  • Supported modules:
    Two T9451
  • Field-power inputs:
    Two 24 Vdc sources
  • Field-supply fuses:
    10 A each
  • Field connections:
    8
  • Conductor size:
    1.31 mm2 maximum (16 AWG)
  • Strip length:
    6 mm
  • Coding:
    AADvance digital-output TA keying

Information

Overview Manuals Common Applications Product Precautions

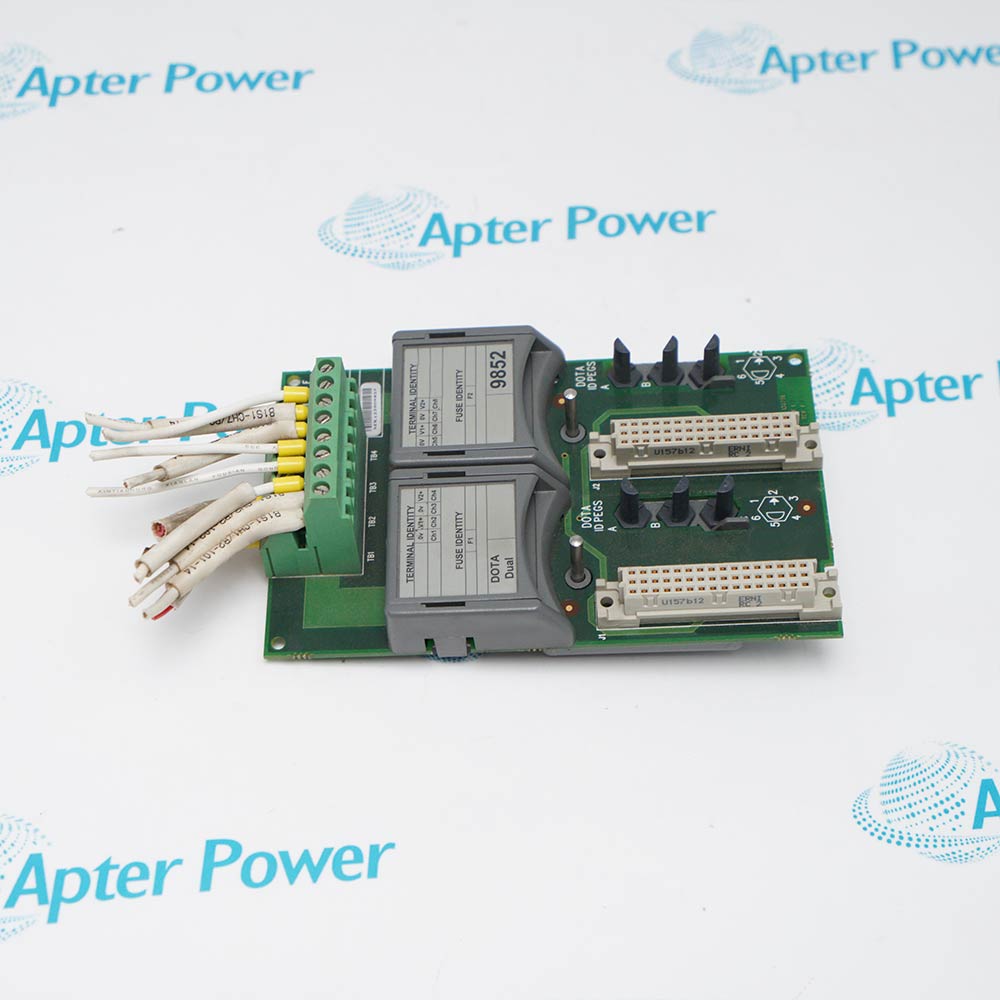

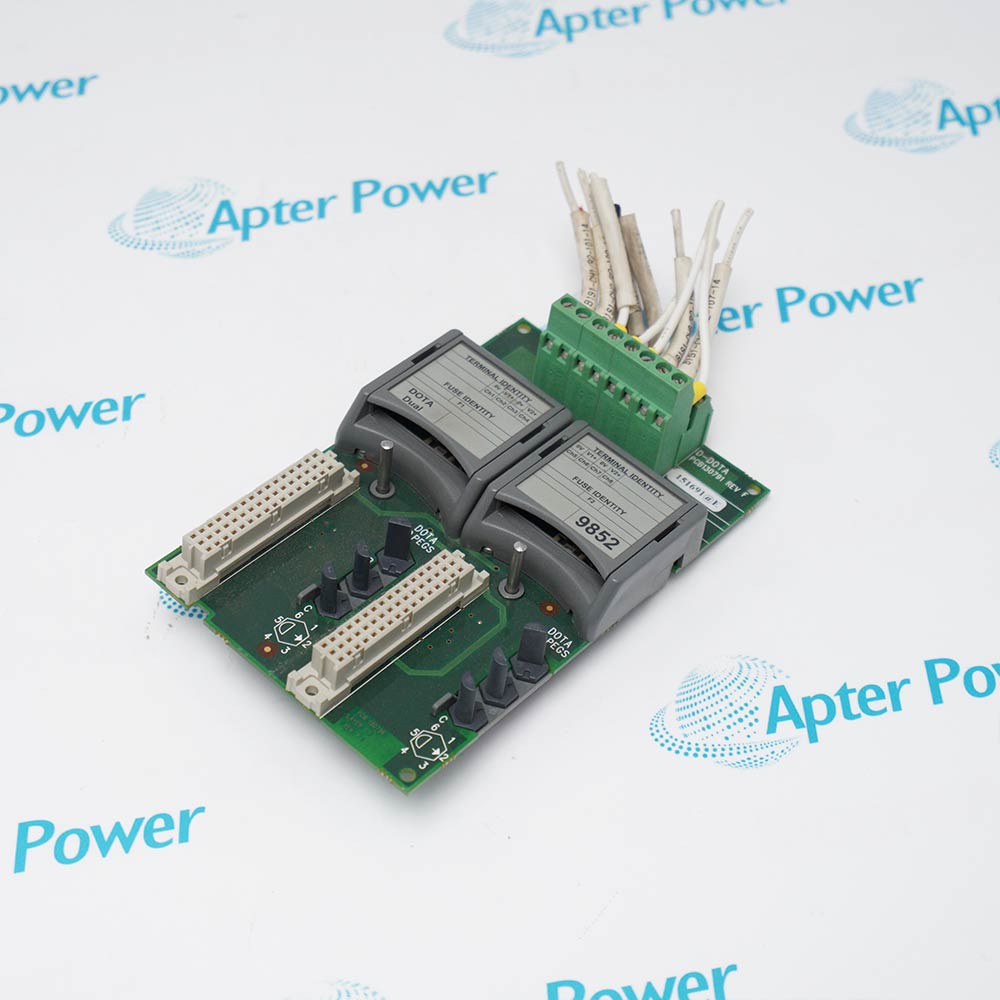

T9852 brings two AADvance digital output modules together on one eight-channel field termination. Separate field-power connectors and fuse protection support a controlled dual-output architecture.
  • Terminates eight digital output field circuits
  • Supports two T9451 modules in a dual arrangement
  • Accepts two separately fused field-power inputs
  • Provides a keyed field interface for controlled AADvance output replacement

The assembly is fitted to the AADvance I/O base-unit and wired to eight field loads with the documented conductor preparation. Commissioning must verify both T9451 modules, both field supplies, channel commands, line monitoring and the engineered safe state.

Important Notice: Verify the T9852 article, T9300 base-unit position, two T9451 modules, eight-channel terminal map, dual 24 Vdc sources, 10 A fuses, conductor preparation, safe-state logic and controlled load tests before commissioning.

Apter Power T9852 Manuals and Guides

The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

Dual shutdown outputs
Connects paired AADvance output modules to safety-related final elements.
Valve-solenoid control
Provides protected field terminations for discrete actuator circuits within the documented load limits.
Alarm and trip circuits
Supports redundant command paths for annunciation or protective trip devices.
AADvance output cabinet expansion
Adds an eight-channel dual-output termination position to an approved base-unit row.
Read the applicable ICS Triplex installation instructions before work. Verify T9852, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
1
Confirm the T9852 marking and eight-channel dual-output assignment.
2
Place every affected final element in the approved safe maintenance state.
3
Isolate both 24 Vdc field-power sources before handling terminals.
4
Record channel polarity, load wiring and both supply connections.
5
Inspect both 10 A field-supply fuses and the termination coding.
6
Confirm two T9451 modules and the correct base-unit positions.
7
Restore hardware configuration and verify de-energized output behavior first.
8
Test each output command, load current indication and diagnostic before release.

Technical notes

Install T9852 in the configured AADvance dual-output position and confirm that both T9451 modules, both 24 Vdc field sources and the termination coding match the project. Prove de-energized behavior, field fuses, load wiring and output diagnostics before connecting the actuators to service.

FAQ View All FAQ

  • What is the exact system role of T9852?
    It is the eight-channel dual digital-output termination assembly for an AADvance controller.
  • Which host, rack or carrier is required for T9852?
    Fit it to the configured T9300 I/O base-unit position with two T9451 digital output modules.
  • What wiring or connector checks apply to T9852?
    Check all eight load circuits, both field-power connectors, conductor preparation and the two 10 A supply fuses.
  • How is T9852 configured for service?
    The physical dual-module arrangement and the AADvance Workbench hardware configuration must agree.
  • Which diagnostics should be reviewed for T9852?
    Review paired module health, channel command and state, voltage/current monitoring, line faults and fuse-related supply faults.
  • What must be preserved when replacing T9852?
    Preserve safe-state logic, output mapping, terminal polarity, dual supplies, fuse ratings and module grouping.
  • How should T9852 be commissioned after installation?
    Energize both supplies under control, prove de-energized states, then test each load command and diagnostic path.
  • What model-specific limitation must be checked for T9852?
    T9852 is for two T9451 modules; do not substitute a simplex or analog-output termination assembly.
