Technical specifications for DC-TAIL51
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51307601-176
-
Estimated shipping dimensions:15.1×5×10cm
-
Weight:0.85 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
PWA number:51307601-176
-
PWA revision:B
-
Companion module:CC-PAIL51
-
Signal type:Low-level analog input
-
Input channels:16
-
Operating Temperature Range:-40°C to +85°C
Information
Overview
Manuals
Common Applications
Product Precautions

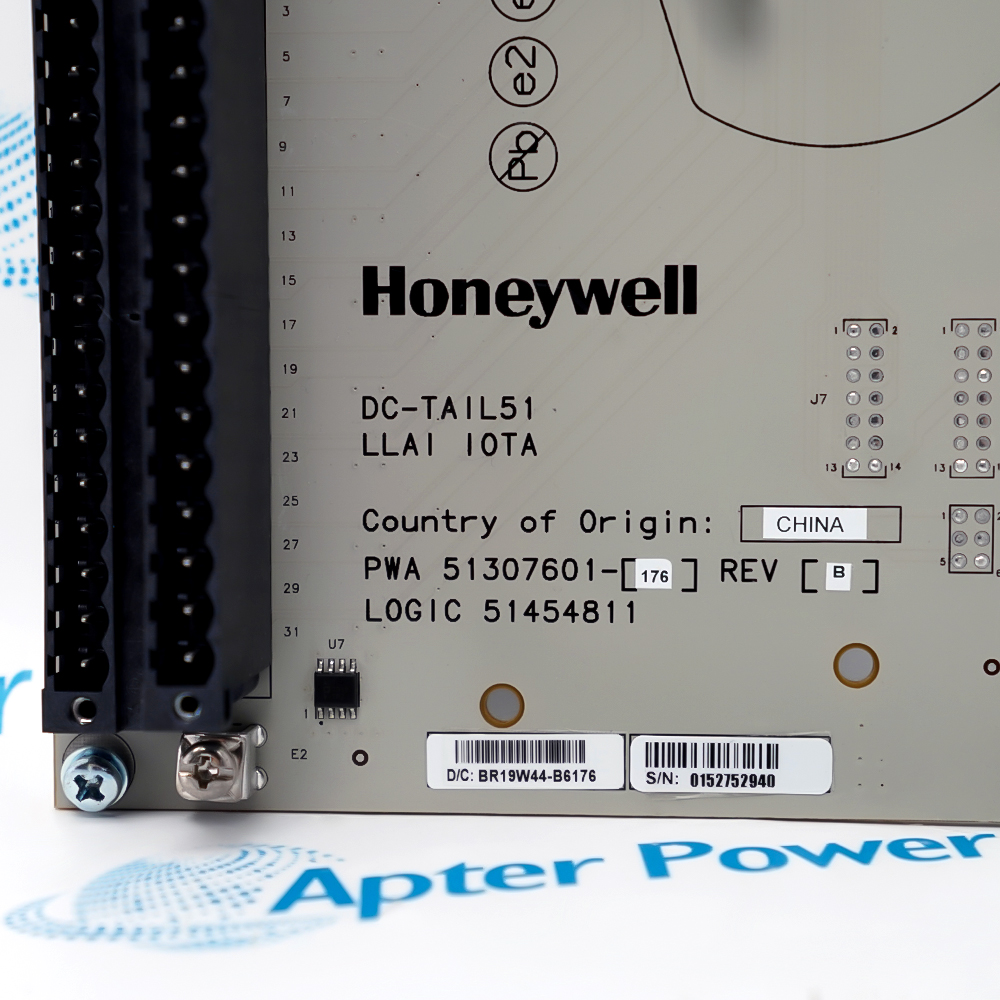

Honeywell DC-TAIL51 is a 16-channel low-level analog-input IOTA that connects temperature and millivolt field signals to the CC-PAIL51 module.
- Terminates low-level analog sensors
- Pairs with the CC-PAIL51 input module
- Provides sixteen field channels
- Supports temperature and millivolt acquisition
DC-TAIL51 operates with CC-PAIL51 LLAI module, Series C carrier, Low-level sensor cable, Field shield and reference junction wiring.
Its engineered use includes Thermocouple cabinet inputs, RTD temperature acquisition, Millivolt analyzer signals, Rotating-equipment temperature monitoring.
Important Notice: Confirm the complete DC-TAIL51 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power DC-TAIL51 Manuals and Guides
Apter Power DC-TAIL51 Product Technical Reference PDFApter Power DC-TAIL51 Installation and Verification PDF
The first document is an Apter Power model-specific technical reference. The second supports installation, configuration and engineering verification for DC-TAIL51.
Thermocouple cabinet inputsTerminates low-level analog sensors
RTD temperature acquisitionPairs with the CC-PAIL51 input module
Millivolt analyzer signalsProvides sixteen field channels
Rotating-equipment temperature monitoringSupports temperature and millivolt acquisition
Read the applicable Honeywell instructions before work. Verify DC-TAIL51 and the installed Experion Series C I/O configuration.
1Verify the complete DC-TAIL51 marking and its assigned Experion Series C I/O position before work.
2Isolate the applicable power and field energy before disconnecting DC-TAIL51.
3Protect DC-TAIL51 connectors and electronic assemblies with approved ESD controls.
4Record the installed wiring, channel assignment and configuration before replacement.
5Match CC-PAIL51 LLAI module and Series C carrier to the documented system arrangement.
6Commission DC-TAIL51 with controlled status, signal and diagnostic checks.
7Retain the final thermocouple cabinet inputs functional-test result in the maintenance record.
Technical notes
Preserve sensor polarity, lead configuration and shield termination, then verify the selected low-level input type in the channel database.
FAQ View All FAQ
-
Does DC-TAIL51 match CC-PAIL51 LLAI module in a Thermocouple cabinet inputs installation?Verify the complete DC-TAIL51 marking, the documented Experion Series C I/O position and the installed CC-PAIL51 LLAI module before fitting the assembly.
-
How should DC-TAIL51 be wired when it must terminates low-level analog sensors?Isolate the circuit, identify every terminal and reproduce the approved polarity, shield and channel assignment for DC-TAIL51; then continuity-test the affected path.
-
Which Experion Series C I/O records should be captured before removing DC-TAIL51?Record the as-found wiring, installed position, active configuration and diagnostic state associated with DC-TAIL51 before disconnection.
-
What controlled test confirms that DC-TAIL51 can pairs with the cc-pail51 input module?Apply the approved field or simulated stimulus, observe the Experion Series C I/O indication and confirm the intended response without bypassing the normal interlocks.
-
Which Series C carrier condition should be checked when DC-TAIL51 reports an abnormal state?Check the Series C carrier supply, seating and connection first, then compare channel diagnostics with the recorded DC-TAIL51 baseline.
-
Can DC-TAIL51 be moved directly into RTD temperature acquisition without validating Field shield and reference junction wiring?No. Confirm the Field shield and reference junction wiring, revision, connection scheme and Experion Series C I/O configuration before transferring DC-TAIL51 to that duty.
-
What maintenance evidence is required after DC-TAIL51 is used for Millivolt analyzer signals?Retain the nameplate record, corrective action, final diagnostics and a controlled millivolt analyzer signals functional-test result for DC-TAIL51.
-
How should DC-TAIL51 be returned to service in Rotating-equipment temperature monitoring?Restore power under control, verify provides sixteen field channels, exercise the intended signal path and release DC-TAIL51 only after the Experion Series C I/O remains in its approved operating state.
