05701-A-0361
Engineering Card
In Stock
Ships by Friday, August 7
Fast Shipping Available
Product Describe：
Honeywell Analytics System 57 Series
Industrial Gas Detection Control Rack
Engineering Card with RS232
Interface & Dynamic Calibration Management Panel
The 05701-A-0361 is a multi-functional main engineering control card specifically designed for industrial gas and fire monitoring systems. This hardware unit adopts a standard 3U plug-in physical profile for dedicated engineering slots in chassis racks, primarily performing core operational tasks including routing 24V DC input power to the backplane executing backplane serial communications control providing an on-board time reference and configuring the front RS232 interface.
A backplane serial communications controller and monitor
An RS232 external engineering interface
Routeing of the 24V dc input from the DC Input Card to the backplane of the rack

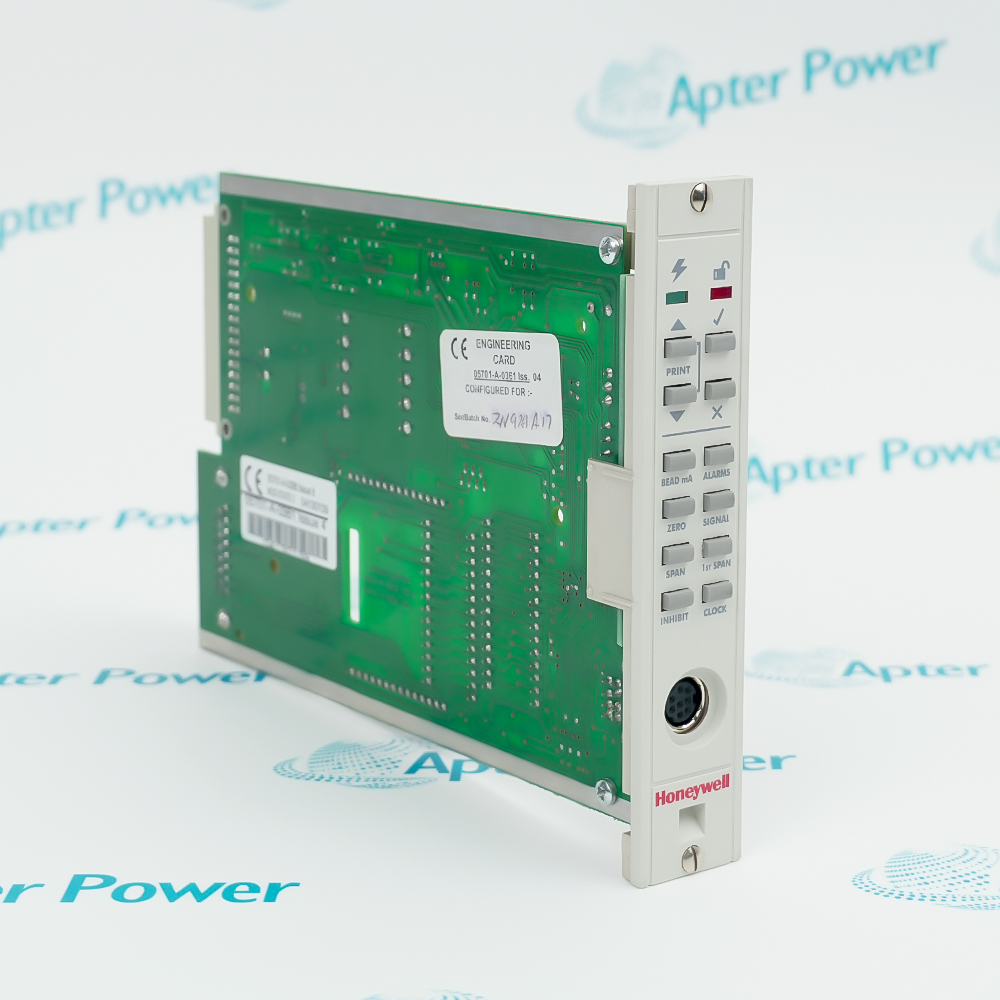

The front panel of this module is equipped with high-feedback tactile push-buttons for manually switching and executing various configuration menus without relying on external computer software. Positioned alongside these buttons are LED status indicators that provide real-time display of the rack's power distribution and internal serial communication operating status. For external connectivity, the panel integrates a dedicated mini-DIN serial interface. This hardware interface can be connected to a serial printer for data logging or linked directly to an engineering computer for comprehensive system overhauls.
Additionally, this socket accepts a physical Engineering Key. Serving as a hardware security token, this engineering key must be physically inserted to unlock advanced calibration, parameter override, and setup routines, thereby allowing modification of the configuration parameters of active control cards.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell 05701-A-0361 Engineering Card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Iron & Steel Metallurgy
Uses front-panel buttons to view sensor signal drift and zero-adjustment data caused by strong electric arc furnace EMI across channels.
Petroleum Refining
Unlocks periodic zero and span calibrations for combustible gas and toxic hydrogen sulfide (H2S) detection channels across refinery units.
Coal Chemicals
Connects to an engineering PC to centrally adjust and test emergency alarm interlock set points on high-concentration CO and H2 control cards.
Semiconductor Manufacturing
Manages high-frequency communication data of control cards detecting highly toxic electronic specialty gases like SiH4 and PH3 inside gas pads.
Thermal Power
Utilizes the internal hardware real-time clock to provide high-precision timestamp logging for hydrogen leaks or ammonia over-limit alarms.
Cold Chain Logistics
Coordinates outputs of multiple high-concentration ammonia (NH3) channels, commanding the backplane to isolate non-explosion-proof power during extreme leaks.
When using the Honeywell 05701-A-0361, it must be vertically slided into the dedicated engineering slot on the far right of the System 57 rack, utilizing its polarization guides to ensure precise alignment between gold-fingers and backplane sockets and prevent 24V DC short circuits caused by misalignment. During routine field maintenance, the specific physical engineering key must be inserted into the front mini-DIN socket to unlock security protections before modifying underlying channel card parameters, and the onboard real-time clock should be checked periodically to guarantee accurate alarm event timestamps.
Although the card is built with an atmospheric corrosion-resistant circuit board, any physical hot-swapping or wiring maintenance within hazardous areas containing flammable gases requires verifying a complete gas-free environment prior to operation to sustain explosion-proof safety.
Alternative Names
Alternative Names
05701 A 0361O57O1-A-O3610570I-A-036IO57OI-A-O36I
Technical notes
Technical notes
Built with an atmospheric corrosion-resistant circuit board, the front panel integrates tactile push-buttons alongside a mini-DIN physical engineering key socket for security lockouts while supporting conversion to Modbus protocols, serving as the central control component to guarantee parameter setup and safe operation across harsh industrial fields such as petrochemical sites and offshore platforms.
How should the 05701-A-0361 and similar products be used correctly?
The hardware adopts a vertical slide-in physical structure inserted directly into the dedicated engineering slot of standard System 57 racks like 8-way or 16-way sub-racks performing on-site commissioning via front panel tactile buttons without constant external computer connection.
What physical buttons and operational status indicators are configured on the 05701-A-0361 panel?
The front panel is configured with a green Power On LED and a red Unlocked LED integrating tactile feedback push-buttons including Up Down Accept Reject and Print combinations.
Which industrial sectors most commonly require the gas monitoring system containing the 05701-A-0361?
Offshore oil platforms natural gas regulating stations chemical plants metallurgical blast furnace sites and urban underground pipe galleries where risk of combustible or toxic gas leakage exists.
What specific commissioning operations does the 05701-A-0361 support executing within the System 57 frame?
It supports reading or setting catalytic bridge mA current verifying A1 A2 A3 alarm levels executing zero calibration span calibration and toggling channel inhibit states across the rack.
