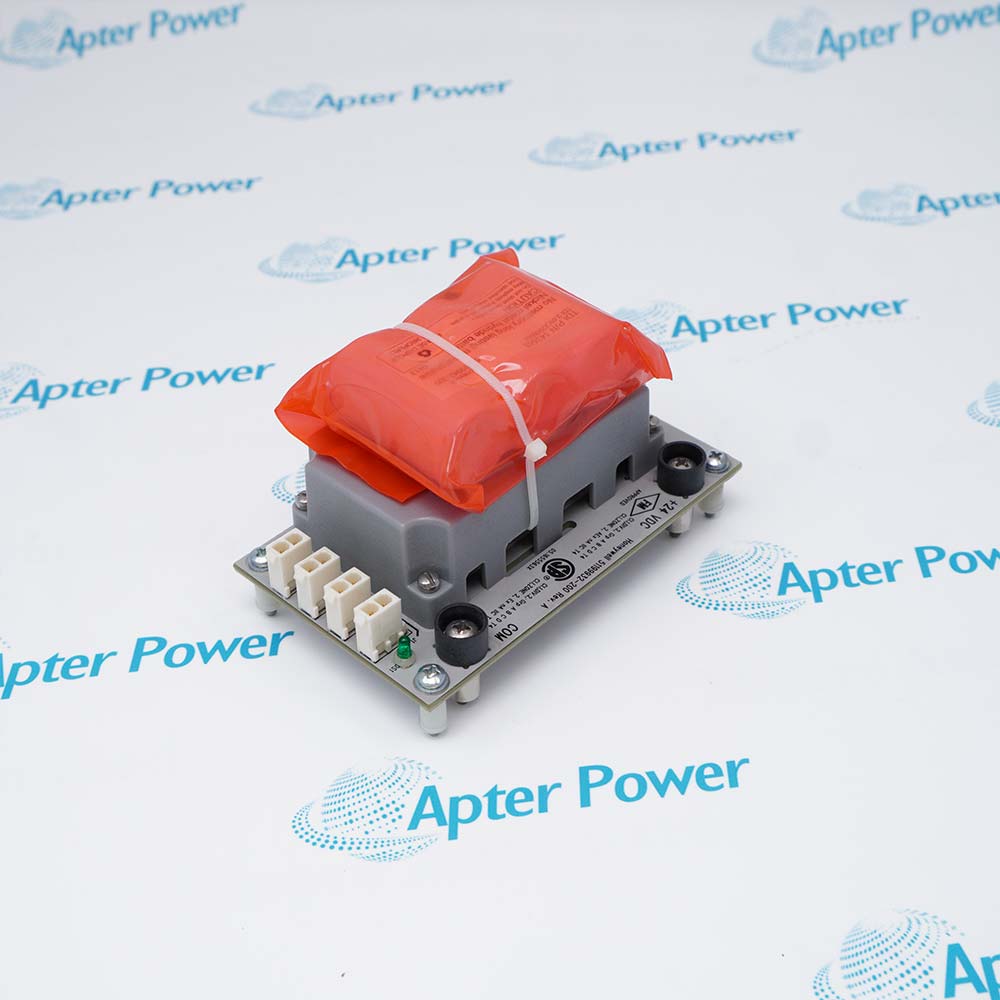

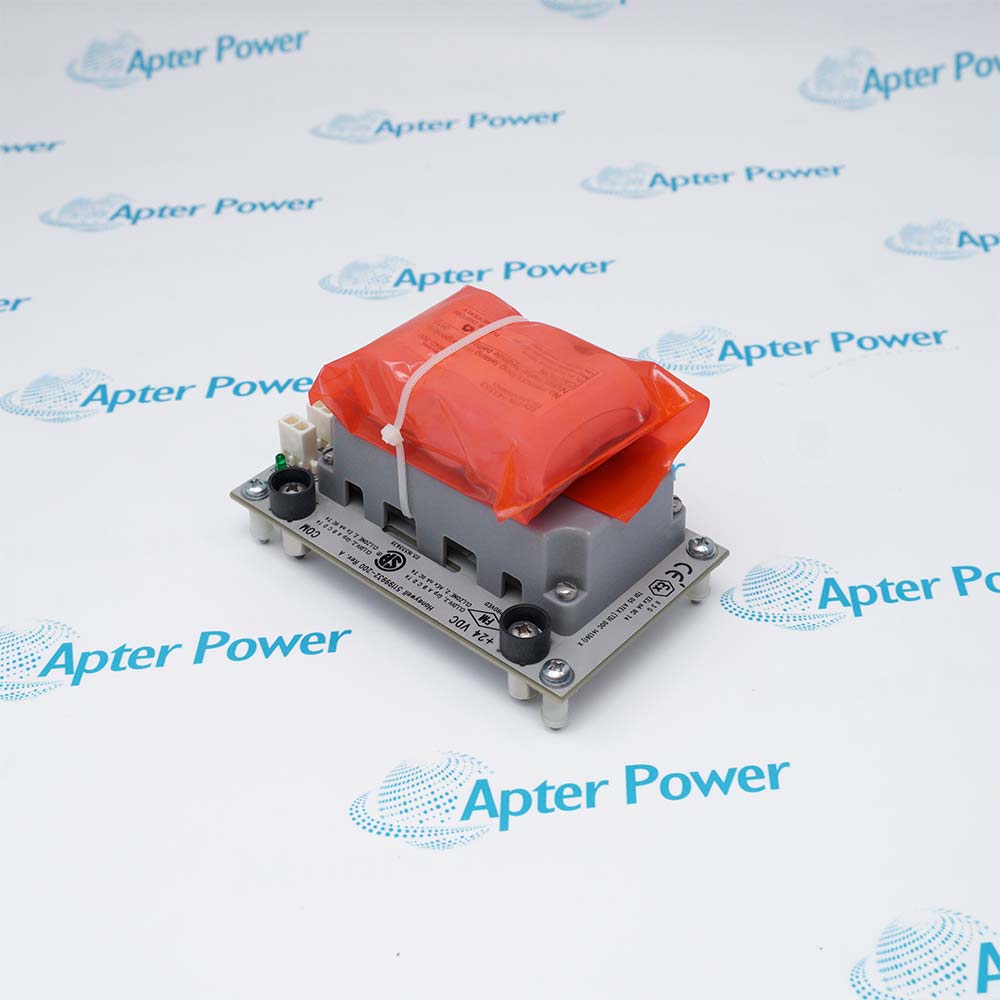

Honeywell CC-SCMB02 C300 Memory Backup Assembly

Name: CC-SCMB02
Brand: Honeywell
SKU: CC-SCMB02

CC-SCMB02

C300 Memory Backup Assembly

In Stock

Ships by Tuesday, September 22

Fast Shipping Available

Technical specifications for CC-SCMB02

Manufacturer:

Honeywell

Product Category:

Machinery Monitoring System

Spare Part Number:

CC-SCMB02

Estimated shipping dimensions:

12.1x7.1x5.1cm

Weight:

0.26 kg

Tariff Code:

8537101190

Counliy of origin:

USA

Assembly type:

C300 Memory Backup Assembly

Controller capacity:

1 or 2 connected C300 controllers

Retention time:

Up to 50 h

RAM charger:

51199932-100

Mount:

51202340-100

Controller cable:

51202330-100; 30 in

Controller cable option:

51202330-200; 84 in / 2 m

Power cable:

51202331-100; 55 in / 1.4 m

Alternative-mount screw torque:

3.9 N m

Information

Overview Manuals Common Applications Product Precautions

Honeywell CC-SCMB02 is c300 memory backup assembly. It retains C300 controller RAM during a loss of cabinet power and can support one or two connected C300 controllers.

Provides as much as fifty hours of RAM retention
Supports one or two connected C300 controllers
Uses the documented RAM charger and mounting hardware
Connects through the approved controller and power cables

CC-SCMB02 operates with one or two compatible C300 controllers, 51199932-100 RAM charger, 51202340-100 mount, documented controller and power cables.

Engineered applications include C300 power-loss recovery, Redundant controller memory retention, Controller-cabinet resilience upgrade, Memory-backup assembly renewal.

Important Notice: De-energize the cabinet, identify both controller cables and the charger power lead, observe the mounting torque and verify backup status and retention diagnostics.

Apter Power CC-SCMB02 Manuals and Guides

Apter Power CC-SCMB02 Product and System Technical Reference PDF Apter Power CC-SCMB02 Field Installation and Functional Acceptance Workbook PDF

The first document organizes model-specific identity, technical data and system context. The second provides a separate installation, connection, commissioning and acceptance workflow.

C300 power-loss recovery

Preserves volatile controller state through a cabinet power interruption.

Redundant controller memory retention

Supports both controllers in a documented redundant arrangement.

Controller-cabinet resilience upgrade

Adds approved backup hardware to a C300 cabinet.

Memory-backup assembly renewal

Restores memory retention while retaining charger and cable identities.

Read the applicable Honeywell instructions before work. Verify CC-SCMB02 and the installed Experion C300 controller configuration.

Verify the complete CC-SCMB02 marking and its assigned C300 memory-backup position before work.

Place the connected process and control strategy in the approved maintenance state.

Isolate the applicable cabinet supply and backup-power field energy before disconnecting conductors.

Record terminal numbers, channel assignments, polarity, shields and configured ranges before removal.

Use ESD controls and protect the backplane connector, terminal hardware and coated electronics.

Confirm the installed C300 controller and 51199932-100 charger and carrier arrangement against the approved project.

Restore power in a controlled sequence and clear only diagnostics created by the maintenance activity.

Complete charger status, controller connection and retention diagnostics and retain the measured result before returning the channel to automatic service.

FAQS

What exact Honeywell system position is intended for CC-SCMB02?

CC-SCMB02 is assigned to the documented Experion C300 controller role as c300 memory backup assembly; confirm that role against the installed cabinet record.
Which field signal or controlled function is handled by CC-SCMB02?

Its documented signal duty is backup power path for c300 controller ram retention. The controlling source lists controller capacity as 1 or 2 connected C300 controllers.
Which companion hardware must be checked before installing CC-SCMB02?

Match CC-SCMB02 with one or two compatible C300 controllers and 51199932-100 RAM charger; also retain the approved carrier, cable and project identity.
What electrical limit should an engineer verify before wiring CC-SCMB02?

Verify the model-specific value for RAM charger: 51199932-100. Do not transfer a limit from another module revision.
How should the installed configuration be preserved when replacing CC-SCMB02?

Record the as-found slot, connector, channel assignment and project revision, then restore only the approved Experion C300 controller configuration.
Which isolation or handling check applies to CC-SCMB02?

Apply the isolation and ESD sequence stated for CC-SCMB02; the source also identifies controller cable as 51202330-100; 30 in.
What diagnostic or commissioning evidence is required for CC-SCMB02?

Complete the model-specific functional check for c300 power-loss recovery, review host diagnostics and retain the final test result.
Can CC-SCMB02 be substituted for a visually similar Honeywell assembly?

No automatic substitution is assumed. Compare the complete CC-SCMB02 marking, assembly type, companion hardware, signal duty and approved system revision.
