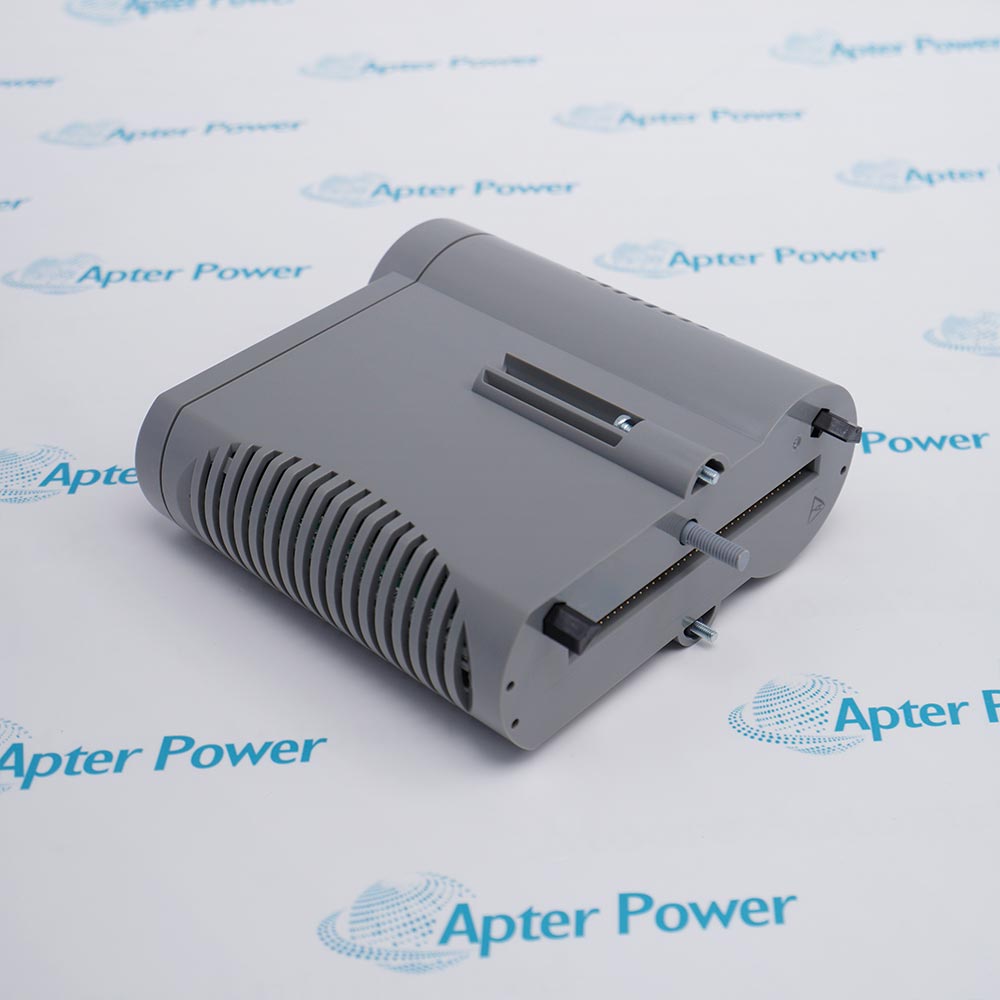

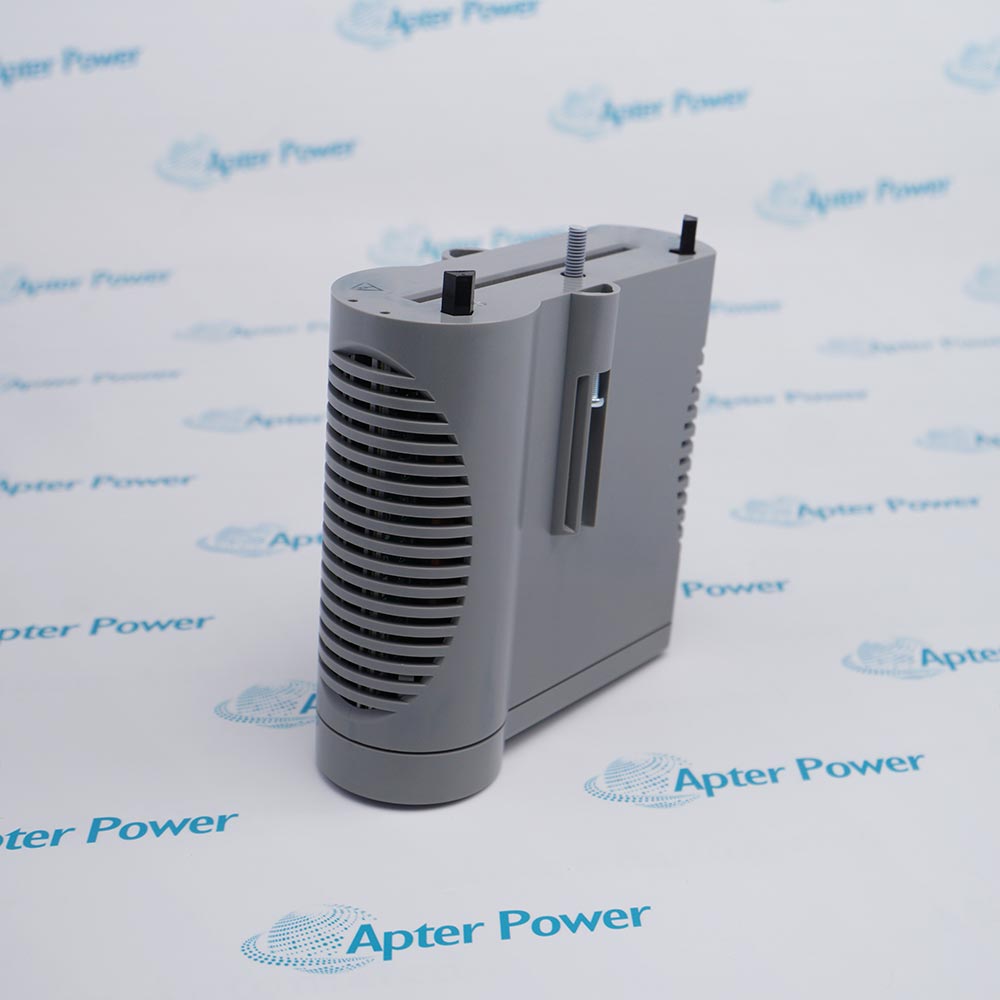

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for CC-PAON01 51410070-176
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for CC-PAON01 51410070-176
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51410070-176
-
Estimated shipping dimensions:14.5×5.5×14.5cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Published model:CC-PAON01
-
Supplied identifier:51410070-176
-
Output type:4-20 mA constant current
-
Output channels:16
-
Communication:Non-HART
-
Resolution:16-bit
-
Accuracy:±0.05% full scale
-
Output temperature drift:0.005% full scale/°C
-
IOTA options:CC-TAON01 non-redundant; CC-TAON11 redundant
-
Safe-state behavior:Configurable per channel
-
Open-wire diagnostic:Channel soft-failure indication
-
Isolation:Galvanic isolation from controller electronics
Information
Overview
Manuals
Common Applications
Product Precautions
In an Experion Series C output path, Honeywell CC-PAON01 51410070-176 converts controller commands into sixteen supervised 4-20 mA current loops for conventional final elements.
- 16 output channels
- 4-20 mA constant-current output
- Non-HART signal path
- Optional module redundancy
The module works through CC-TAON01 or CC-TAON11 IOTA hardware. Each channel has documented diagnostics, per-channel safe-state selection and field-open detection that must be checked with the installed loop design.
Important Notice: Keep 51410070-176 as the complete supplied identifier and verify the actual label before release; do not infer a coating or hardware revision solely from the -176 suffix.
Honeywell CC-PAON01 51410070-176 Manuals & Downloads
Honeywell CC-PAON01 51410070-176 Technical Reference (PDF)Honeywell CC-PAON01 51410070-176 Manufacturer Manual Excerpt (PDF)
The technical reference organizes exact characteristics and engineering boundaries. The installation guide focuses on controlled preparation, restoration, commissioning and handover.
Conventional valve positioning
Supplies 4-20 mA commands to non-HART valve positioners.
Drive speed references
Provides supervised current references to approved variable-speed drives.
Damper and actuator control
Commands standard current-loop final elements without HART communication.
Process setpoint output
Delivers controller-generated analog setpoints to indicating or recording devices.
Honeywell CC-PAON01 51410070-176 installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
1
Verify the complete CC-PAON01 51410070-176 marking before work.
2
Record channel assignment, output range, safe value and final-element direction.
3
Place every affected loop in a controlled state before module removal.
4
Isolate field energy and apply grounded ESD handling.
5
Confirm the installed IOTA is CC-TAON01 or CC-TAON11 as designed.
6
Check loop polarity, load resistance, field-open diagnostics and terminal condition.
7
Prove low, mid and high current commands without bypassing process safeguards.
8
Retain the output readings, diagnostics and witnessed final-element response.
Technical notes
Use the complete identity CC-PAON01 51410070-176 together with the official hardware mapping, installed record and witnessed model-specific acceptance result.
FAQ View All FAQ
-
How many non-HART analog outputs are provided by CC-PAON01 51410070-176?Honeywell specifies sixteen 4-20 mA output channels for CC-PAON01.
-
Which IOTA models are paired with CC-PAON01 51410070-176?CC-TAON01 is the non-redundant IOTA and CC-TAON11 is the redundant IOTA for this module.
-
What output accuracy is published for CC-PAON01 51410070-176?The Series C specification lists accuracy of ±0.05% of full scale.
-
How is a field-open condition reported by CC-PAON01 51410070-176?An open field wire is annunciated as a channel soft-failure indication.
-
Can the safe state be selected independently on CC-PAON01 51410070-176?Yes. Safe-state behavior is configurable on a per-channel basis.
-
Why must the -176 suffix be checked on the actual label of CC-PAON01 51410070-176?The official functional specification confirms CC-PAON01, but the located document does not define the -176 suffix association.
-
What should be recorded before disconnecting CC-PAON01 51410070-176?Record channel mapping, commanded value, safe value, loop polarity, load and the as-found diagnostic state.
-
Which test completes commissioning of CC-PAON01 51410070-176?Verify measured loop current and final-element response at controlled low, mid and high commands, then review diagnostics.
