How many channels does Honeywell CC-PAIX01 51405038-275 provide?

It provides sixteen high-level analog input channels.

Which signal types can Honeywell CC-PAIX01 51405038-275 accept?

The module supports high-level current and voltage inputs from two-wire or self-powered transmitters.

Does Honeywell CC-PAIX01 51405038-275 provide HART communication?

No. CC-PAIX01 is the non-HART high-level analog input member of the Series C family.

Which current range is used by Honeywell CC-PAIX01 51405038-275?

The documented current input is 4-20 mA through a 250 Ohm input path.

Which IOTAs pair with Honeywell CC-PAIX01 51405038-275?

The supported combinations include CC-TAIX01 or CC-TAIX11 and the CC-GAIX21 or CC-GAIX11 isolated alternatives.

What conversion resolution applies to Honeywell CC-PAIX01 51405038-275?

The analog-to-digital converter resolution is 16 bits.

How should Honeywell CC-PAIX01 51405038-275 be checked after replacement?

Apply known signals to the serviced channels, compare controller values with the test source, and verify module and channel diagnostics before release.

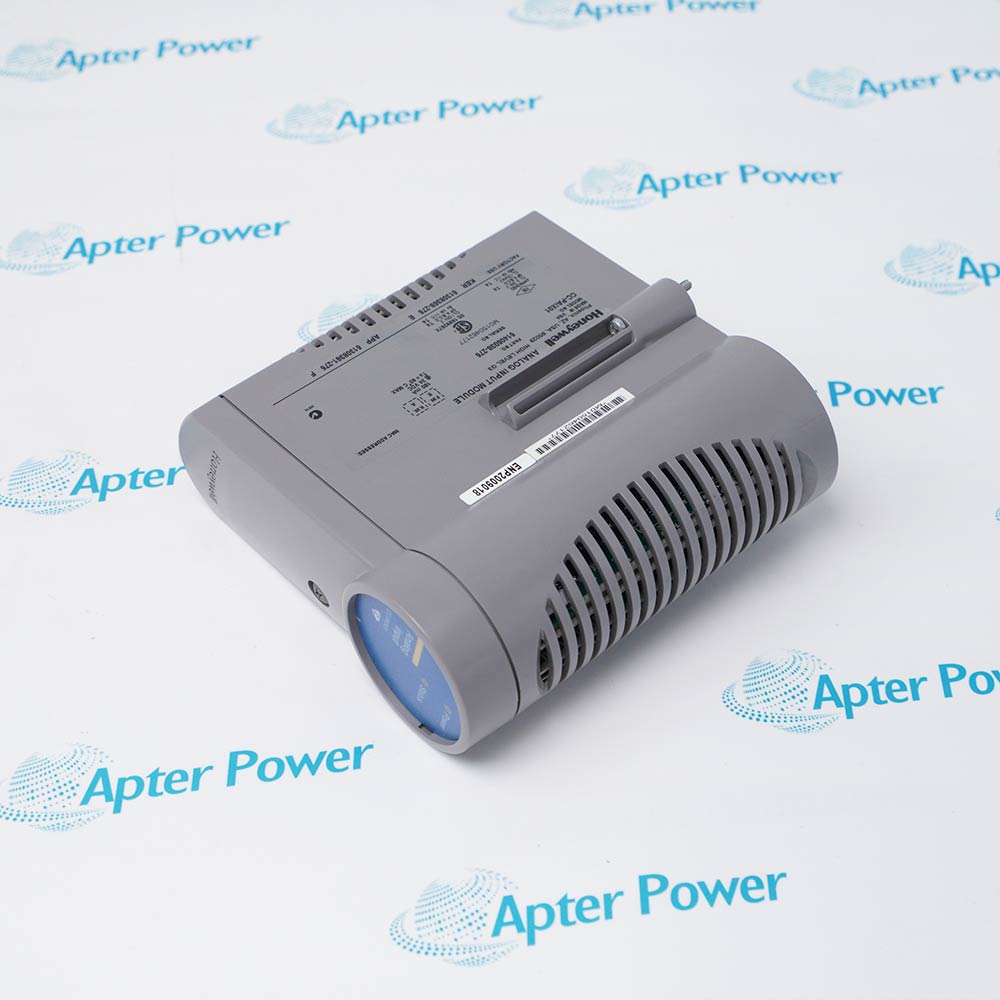

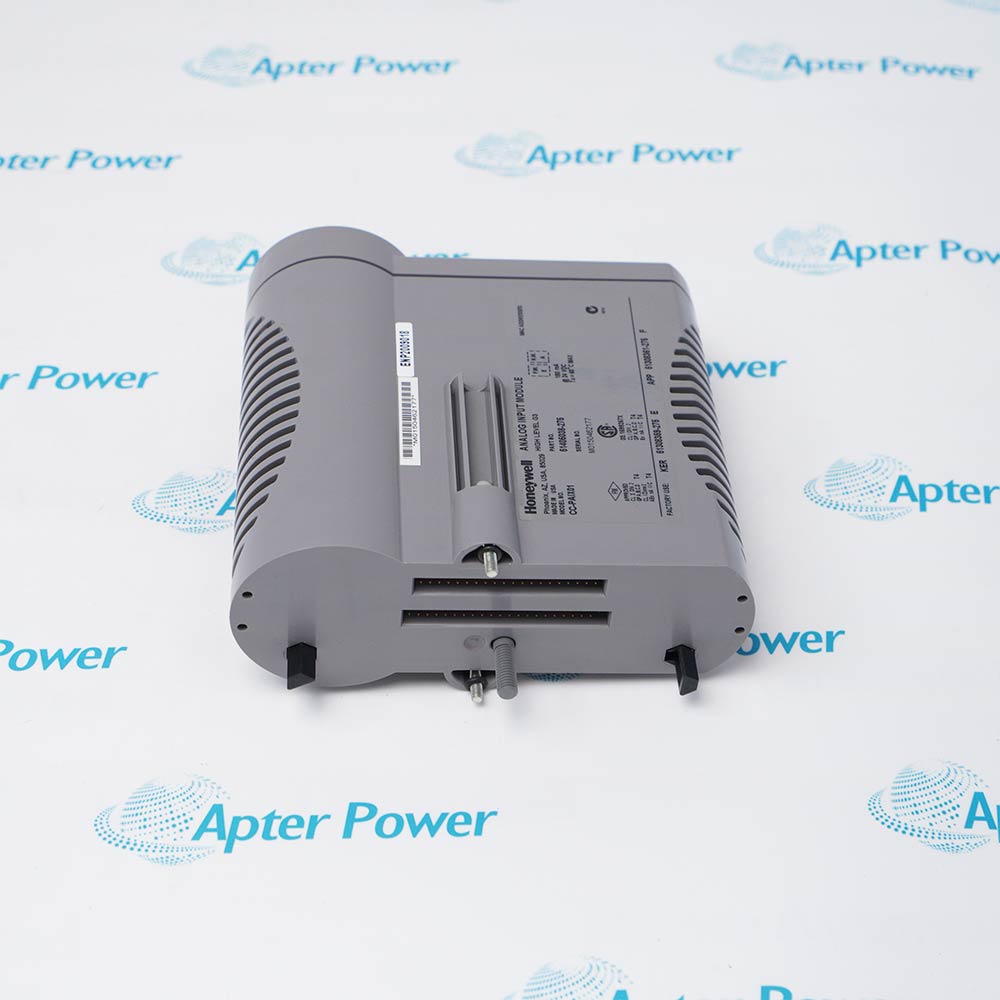

CC-PAIX01 51405038-275

Name: CC-PAIX01 51405038-275
Brand: Honeywell
SKU: CC-PAIX01 51405038-275

Analog Input Module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Honeywell CC-PAIX01 51405038-275 acquires high-level current and voltage signals through Series C analog-input IOTAs. Its non-HART channel set supports fast scanning, input diagnostics and optional redundant termination hardware.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for CC-PAIX01 51405038-275

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for CC-PAIX01 51405038-275

Manufacturer:

Honeywell
Product Category:

DCS Systems
Spare Part Number:

CC-PAIX01 51405038-275
Estimated shipping dimensions:

5.5x16x14.5cm
Weight:

0.4 kg
Tariff Code:

8537101190
Counliy of origin:

USA
I/O function:

High-level analog input without HART
Input channels:

16
Supported signal classes:

Current and voltage
Current range:

4-20 mA through 250 Ohm
Voltage ranges:

0-5 V, 1-5 V and 0.4-2 V
A/D resolution:

16 bits
Input scan rate:

50 ms
Common-mode rejection:

70 dB, dc to 60 Hz
Input impedance:

Greater than 10 MOhm for powered voltage inputs
Compatible IOTAs:

CC-TAIX01, CC-TAIX11, CC-GAIX21 and CC-GAIX11

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

Within an Experion Series C cabinet, Honeywell CC-PAIX01 51405038-275 converts field-transmitter signals into controller input values while keeping current and voltage wiring associated with the selected IOTA.

16 high-level analog input channels
Current and voltage input support
50 ms input scan rate
Nonredundant or redundant IOTA pairing

Separate current-loop, voltage-input and differential wiring records during replacement, then verify each serviced channel against a traceable signal source before restoring dependent control logic.

Important Notice: Match both CC-PAIX01 and 51405038-275, the selected IOTA, channel ranges and transmitter-power arrangement before disturbing field conductors.

Honeywell CC-PAIX01 51405038-275 Manuals & Downloads

Honeywell CC-PAIX01 51405038-275 Official Technical Reference Excerpt (PDF)Honeywell CC-PAIX01 51405038-275 Installation & Commissioning Guide (PDF)

The Official Technical Reference Excerpt covers module size, supported IOTAs, signal ranges, resolution, scan rate and the Series C function matrix. The Installation & Commissioning Guide organizes isolation, channel documentation, reconnection and staged analog-input acceptance.

Process transmitter acquisition

Collects 4-20 mA values from pressure, flow, level and other field transmitters.

Voltage-signal monitoring

Accepts supported high-level voltage ranges through the applicable termination arrangement.

Redundant cabinet input

Pairs with a redundant IOTA when the installed Series C architecture requires redundant termination.

Differential input service

Supports differential wiring on the documented channel group with the matching IOTA configuration.

Apply these controls specifically to Honeywell CC-PAIX01 51405038-275 before isolation, replacement, reconnection and final release.

Match CC-PAIX01 and 51405038-275 to the installed module label before removing any channel wiring.

Record the active IOTA model and whether the installation is nonredundant, redundant or galvanically isolated.

Capture every channel range, scaling value and transmitter power arrangement before isolation.

Separate current-loop wiring from voltage-input wiring and retain the original polarity for each conductor.

Do not expect HART communication from this non-HART analog input module.

Keep differential channels within the stated common-mode boundary and inspect any required IOTA jumpers.

Use grounded ESD controls while handling the module and protect the IOTA connector from contamination.

Commission each serviced channel with known current or voltage inputs and compare the controller value with the applied signal.

Alternative Names

CC PAIX01, CC-PAIX01, 51405038-275

Technical notes

Record all sixteen channel ranges, scaling values, transmitter supply arrangements and the installed IOTA before isolation. Commission known current and voltage points, then check controller scaling, module diagnostics and any differential-channel common-mode limits.

FAQ View All FAQ

How many channels does Honeywell CC-PAIX01 51405038-275 provide?

It provides sixteen high-level analog input channels.
Which signal types can Honeywell CC-PAIX01 51405038-275 accept?

The module supports high-level current and voltage inputs from two-wire or self-powered transmitters.
Does Honeywell CC-PAIX01 51405038-275 provide HART communication?

No. CC-PAIX01 is the non-HART high-level analog input member of the Series C family.
Which current range is used by Honeywell CC-PAIX01 51405038-275?

The documented current input is 4-20 mA through a 250 Ohm input path.

Which IOTAs pair with Honeywell CC-PAIX01 51405038-275?

The supported combinations include CC-TAIX01 or CC-TAIX11 and the CC-GAIX21 or CC-GAIX11 isolated alternatives.
What conversion resolution applies to Honeywell CC-PAIX01 51405038-275?

The analog-to-digital converter resolution is 16 bits.
What scan rate applies to Honeywell CC-PAIX01 51405038-275?

The input scan rate is 50 ms.
How should Honeywell CC-PAIX01 51405038-275 be checked after replacement?

Apply known signals to the serviced channels, compare controller values with the test source, and verify module and channel diagnostics before release.
