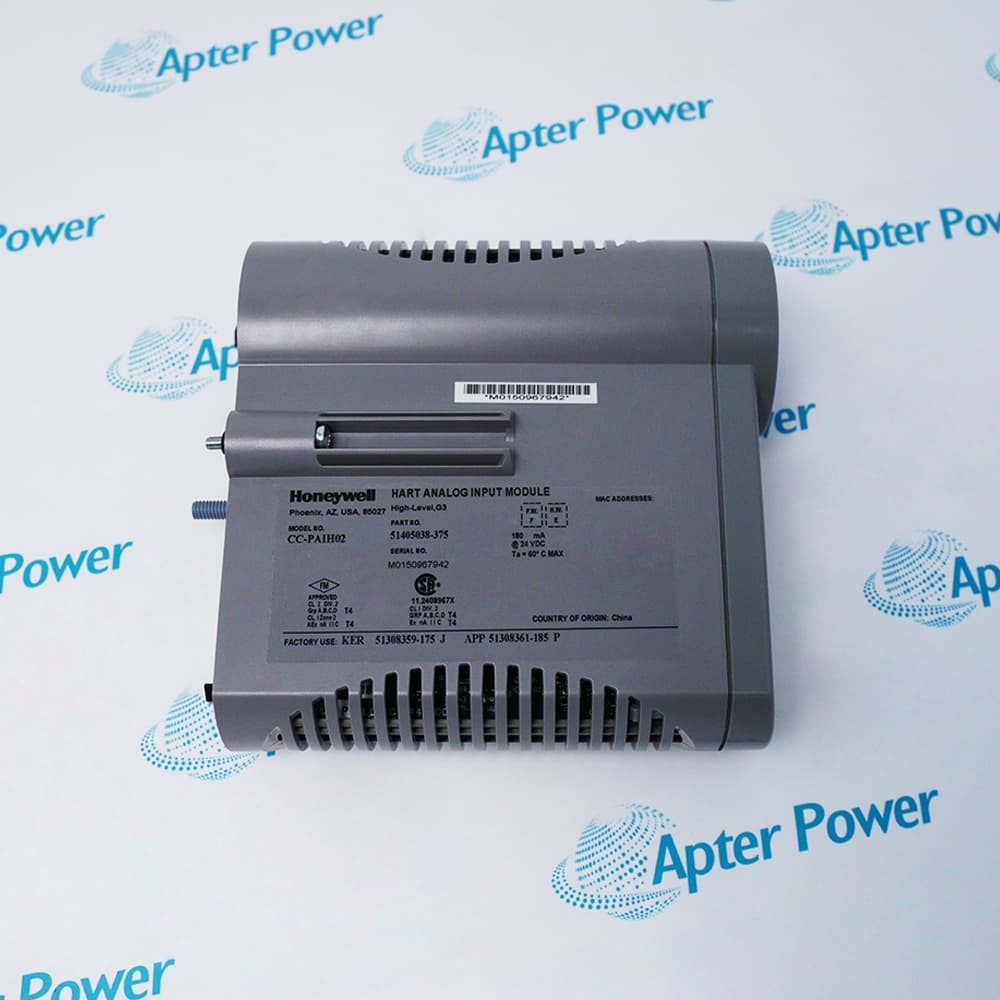

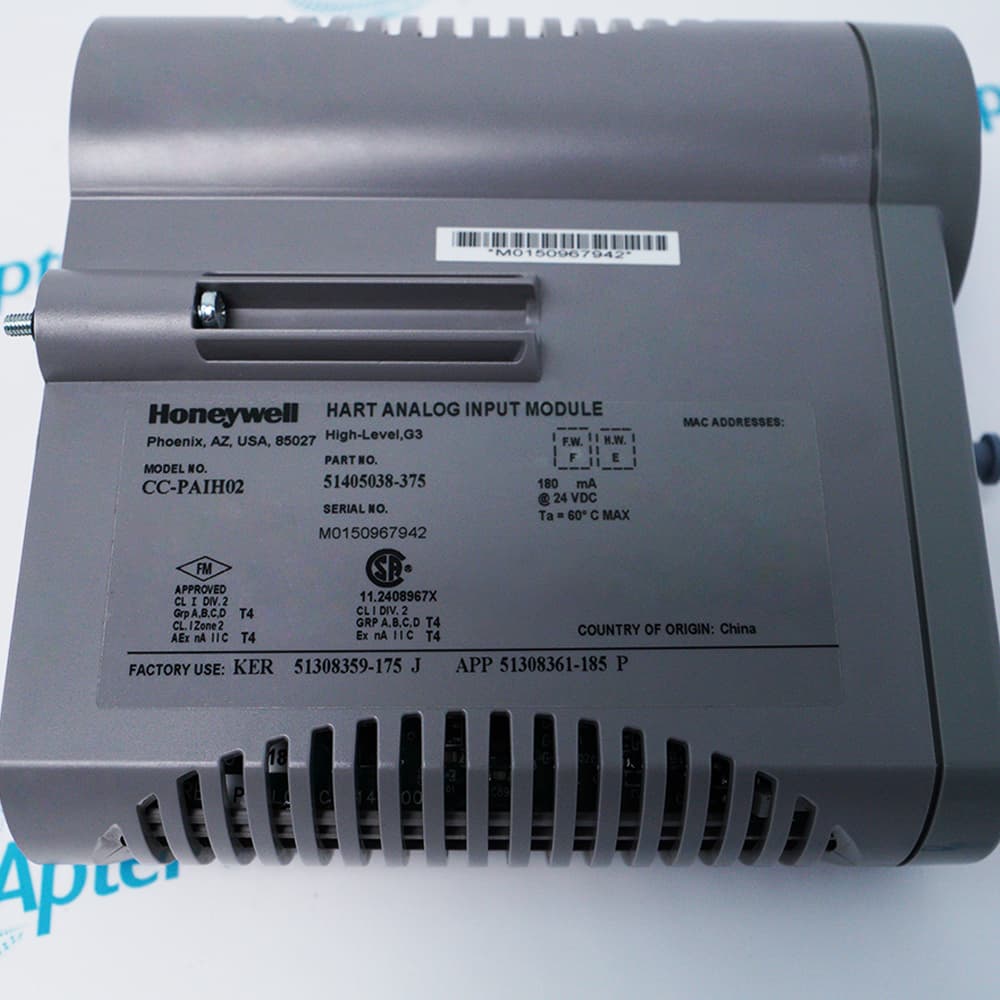

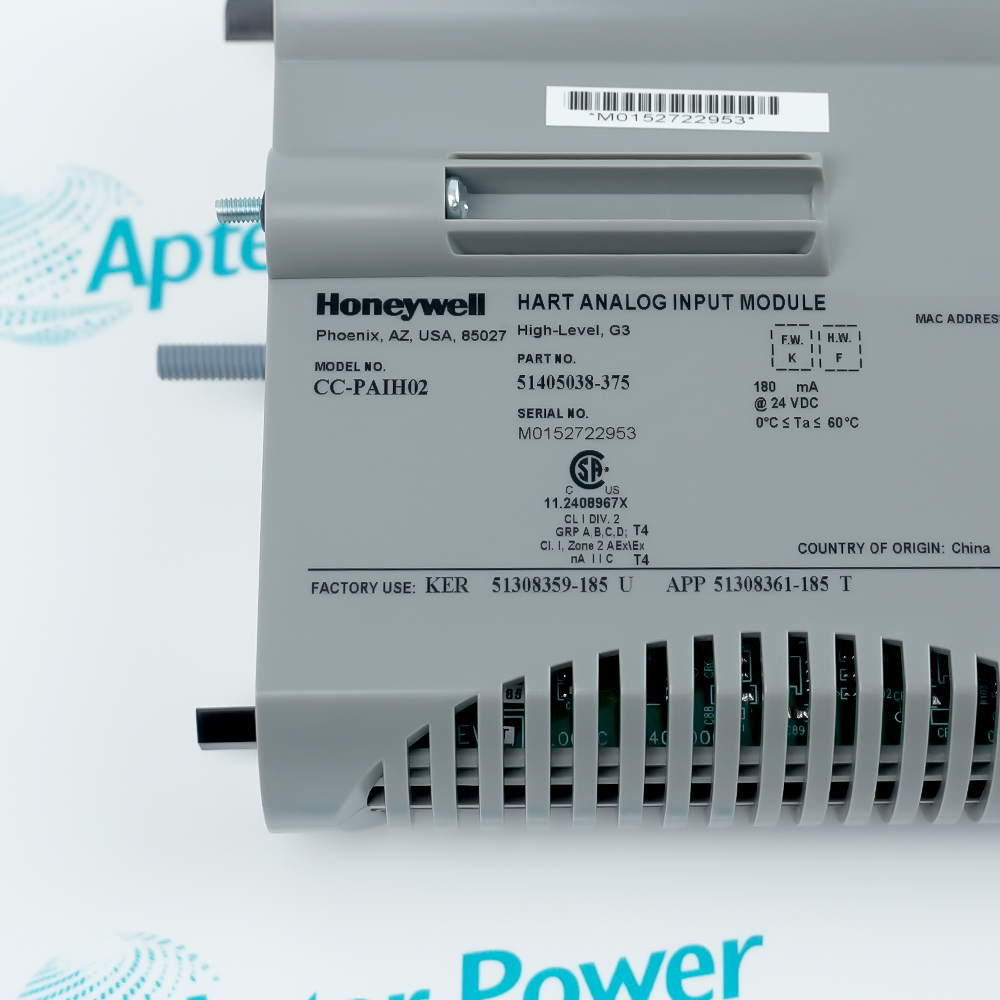

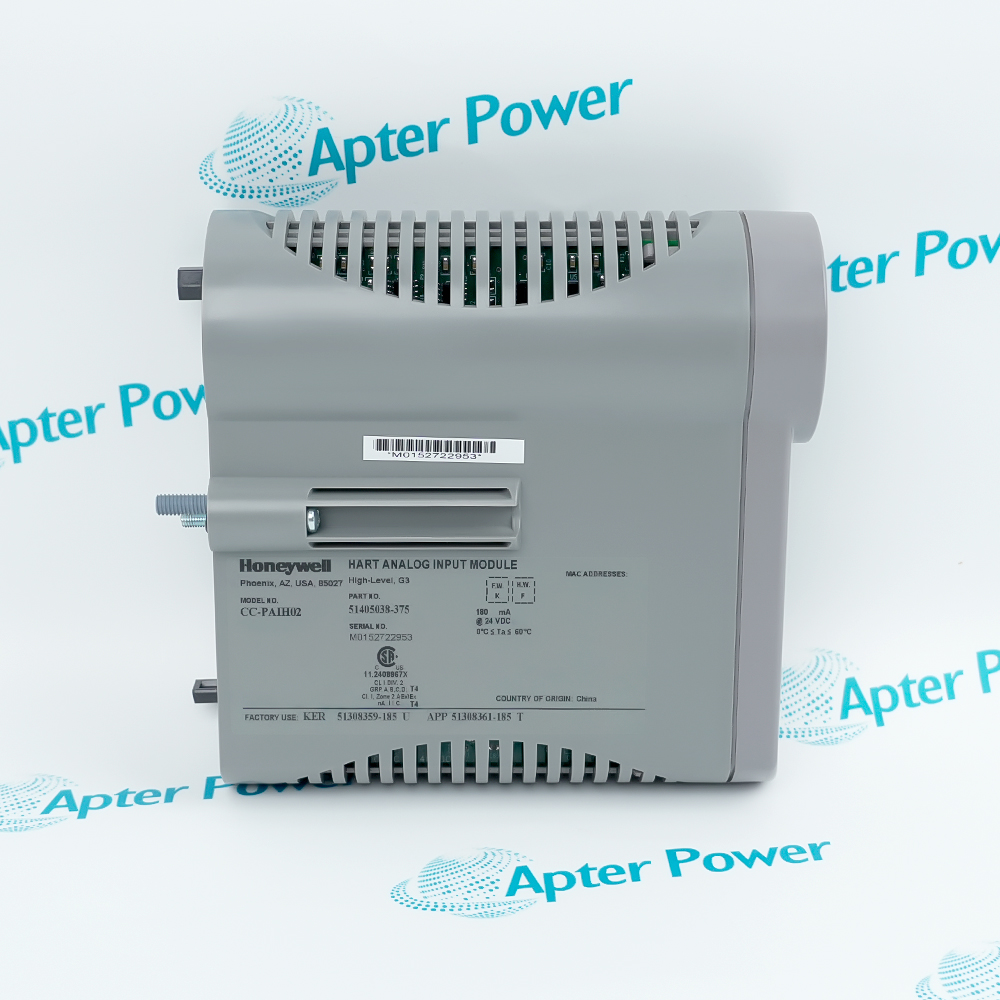

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for CC-PAIH02 51405038-375
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for CC-PAIH02 51405038-375
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:CC-PAIH02 51405038-375
-
Estimated shipping dimensions:5.5x16.5x14.5cm
-
Weight:0.4 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
I/O function:High-level analog input with HART
-
Input channels:16; 12 single-ended and 4 differential with CC-TAIXx1
-
Input types:Voltage and current
-
Input ranges:0-5 V, 1-5 V, 0.4-2 V and 4-20 mA through 250 Ohm
-
A/D resolution:16 bits
-
Input scan rate:50 ms
-
Common-mode rejection:70 dB, dc to 60 Hz
-
Common-mode voltage:-6 to +5 V peak
-
Hardware accuracy:+/-0.075% full scale at 23.5 +/-2 degrees C
-
Compatible IOTAs:CC-TAIX01/11, CC-GAIX21/11 and CC-TAID01/11
Information
Overview
Manuals
Common Applications
Product Precautions
During process measurement, Honeywell CC-PAIH02 51405038-375 combines analog acquisition with HART access so controller values and instrument diagnostics can share the same Series C channel path.
- 16 high-level analog input channels
- HART-capable transmitter communication
- 16-bit analog conversion
- 50 ms input scan rate
Validate analog conversion and digital HART communication as separate acceptance steps so scaling, wiring, instrument identity and channel diagnostics are all demonstrated before release.
Important Notice: Match both CC-PAIH02 and 51405038-375, the IOTA type and the active current, voltage or differential wiring arrangement before field work.
Honeywell CC-PAIH02 51405038-375 Manuals & Downloads
Honeywell CC-PAIH02 51405038-375 Official Technical Reference Excerpt (PDF)Honeywell CC-PAIH02 51405038-375 Installation & Commissioning Guide (PDF)
The Official Technical Reference Excerpt covers HART input functions, channel arrangements, supported ranges, resolution, scan rate and IOTA choices. The Installation & Commissioning Guide organizes configuration capture, loop isolation, reconnection and analog-plus-HART acceptance.
HART transmitter integration
Acquires the primary analog variable while carrying instrument configuration and status data.
Mixed current and voltage service
Supports documented high-level current and voltage ranges within one Series C input family.
Differential measurement wiring
Uses the CC-TAID IOTA option when sixteen differential inputs are required.
Redundant analog input stations
Pairs with the matching redundant IOTA to support the installed Series C architecture.
Apply these controls specifically to Honeywell CC-PAIH02 51405038-375 before isolation, replacement, reconnection and final release.
1
Match CC-PAIH02 and 51405038-375 to the installed module label before any replacement work.
2
Record the IOTA model because standard, differential and isolated terminations have different channel arrangements.
3
Capture input ranges, scaling, HART device assignments and alarm settings for all active channels.
4
Verify current-loop polarity and voltage-input jumpers before reconnecting field conductors.
5
Keep differential inputs within the specified common-mode voltage boundary.
6
Use grounded ESD controls and protect the module and IOTA connectors during handling.
7
Restore redundant hardware only in the documented module and IOTA pairing for the installed release.
8
Commission analog accuracy, open-wire diagnostics and HART communication independently before return to service.
Alternative Names
CC PAIH02, CC-PAIH02, 51405038-375
Technical notes
Archive all sixteen channel ranges, scaling values, HART assignments, alarm settings and the installed IOTA before replacement. Commission analog accuracy, open-wire behavior and HART communication separately on every serviced channel.
FAQ View All FAQ
-
How many inputs does Honeywell CC-PAIH02 51405038-375 provide?It provides sixteen high-level analog input channels.
-
Which signals can Honeywell CC-PAIH02 51405038-375 acquire?The module accepts current and voltage inputs from two-wire or self-powered transmitters.
-
Does Honeywell CC-PAIH02 51405038-375 support HART devices?Yes. It supports HART-capable multivariable instruments and HART configuration and status communication.
-
Which IOTA gives Honeywell CC-PAIH02 51405038-375 sixteen differential inputs?CC-TAID01 is the nonredundant differential IOTA and CC-TAID11 is the redundant version.
-
What conversion resolution is used by Honeywell CC-PAIH02 51405038-375?The analog-to-digital converter resolution is 16 bits.
-
What scan rate applies to Honeywell CC-PAIH02 51405038-375?The specified input scan rate is 50 ms.
-
What common-mode voltage applies to Honeywell CC-PAIH02 51405038-375?The stated common-mode voltage range is -6 to +5 V peak from dc to 60 Hz.
-
What should be commissioned after installing Honeywell CC-PAIH02 51405038-375?Check applied analog values, controller scaling, open-wire behavior, transmitter power and HART device communication on every serviced channel.
