Technical specifications for 8C-TDIL51 51306969-175
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51306969-175
-
Estimated shipping dimensions:22x12x5.2cm
-
Weight:0.26 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Input type:24 Vdc digital input
-
Input channels:32
-
Configuration:Non-redundant
-
Coating:Coated
-
IOTA family:Cx-TDIL51
-
Terminal assemblies:Two 16-terminal plus one 4-terminal plug
-
Field power:Documented 24 Vdc arrangement
-
Maintenance role:Field termination assembly
Information
Overview
Manuals
Common Applications
Product Precautions

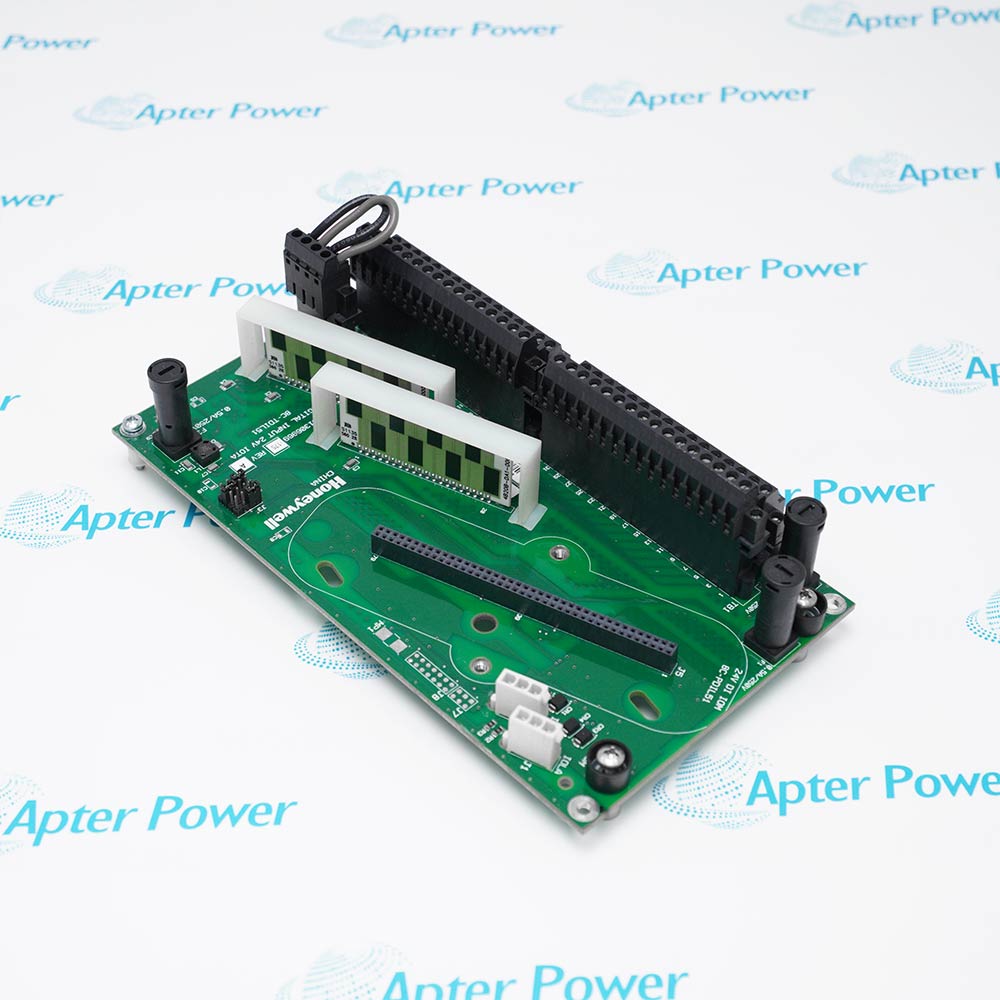

Honeywell 8C-TDIL51 is the coated non-redundant Cx-TDIL51 termination assembly that connects 32 high-level 24 Vdc field states to the matched digital-input module.
- 32 digital inputs
- 24 Vdc high-level signals
- Non-redundant coated IOTA
- 51306969-175 maintenance identity
The IOTA terminates powered contacts or status signals and routes them to the associated digital-input IOM. Field power, commons, terminal plugs and input state interpretation remain part of the installed design.
Important Notice: Use the complete 8C-TDIL51 51306969-175 identity; the redundant Cx-TDIL61 and the CC-TDIL family have different hardware selections.
Honeywell 8C-TDIL51 Manuals & Downloads
Honeywell 8C-TDIL51 Technical Reference (PDF)Honeywell 8C-TDIL51 Manufacturer Manual Excerpt (PDF)
The technical reference organizes exact characteristics and engineering boundaries. The installation guide focuses on controlled preparation, restoration, commissioning and handover.
Motor-status collection
Terminates 24 Vdc run, ready and trip contacts.
Valve feedback
Collects limit-switch states for controller interpretation.
Package alarms
Groups discrete equipment alarms on a 32-point IOTA.
Electrical status
Routes breaker and auxiliary-contact states into the control system.
Honeywell 8C-TDIL51 installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
1
Read the complete 8C-TDIL51 51306969-175 nameplate before work.
2
Record all 32 channel numbers, terminal positions and expected logic states.
3
Isolate internal and external field power before removing terminal plugs.
4
Confirm the installed assembly is non-redundant Cx-TDIL51, not Cx-TDIL61.
5
Inspect terminal plugs, field-power jumpers, fuses and carrier seating.
6
Restore commons and signal polarity exactly as recorded.
7
Prove representative off-to-on and on-to-off transitions without bypassing safeguards.
8
Review diagnostics and retain the final 32-channel acceptance record.
Technical notes
For 8C-TDIL51 51306969-175, retain the exact manufacturer identity, installed wiring or node record and the witnessed model-specific acceptance result.
FAQ View All FAQ
-
How many 24 Vdc field inputs are terminated for 8C-TDIL51 51306969-175?The non-redundant Cx-TDIL51 assembly terminates 32 digital-input channels.
-
Is the IOTA coated for 8C-TDIL51 51306969-175?Yes. Honeywell maintenance data identifies 51306969-175 as the coated non-redundant Cx-TDIL51 IOTA.
-
Which redundant IOTA must not be confused with 8C-TDIL51 51306969-175?Cx-TDIL61 is the redundant version and has a different spare part number.
-
Which terminal plug-in assemblies are used for 8C-TDIL51 51306969-175?The maintenance list specifies two 16-terminal plug assemblies and one 4-terminal plug assembly for the non-redundant IOTA.
-
Which field-power and channel-state details must be retained before disconnecting 8C-TDIL51 51306969-175?Record field-power source, commons, terminal positions, channel logic and the as-found diagnostic state.
-
Which terminal and carrier conditions must be inspected after reseating 8C-TDIL51 51306969-175?Check terminal keying, fuse condition, carrier seating, field-power polarity and every conductor identifier.
-
How can an individual input channel on 8C-TDIL51 51306969-175 be function-tested?Apply an approved controlled contact or voltage state and verify the corresponding controller indication and logic interpretation.
-
Which results should the maintenance record retain after servicing 8C-TDIL51 51306969-175?Retain the exact identity, restored wiring, diagnostic review and witnessed state transitions for the affected channels.
