Technical specifications for 10024/H/I
-
Manufacturer:Honeywell
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:10024/H/I
-
Estimated shipping dimensions:4x18.4x12.7cm
-
Weight:0.28 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Node family:FSC node
-
Module function:Enhanced COM module
-
Internal interface:CP
-
Serial interface:RS-422/RS-485
Information
Overview
Manuals
Common Applications
Product Precautions

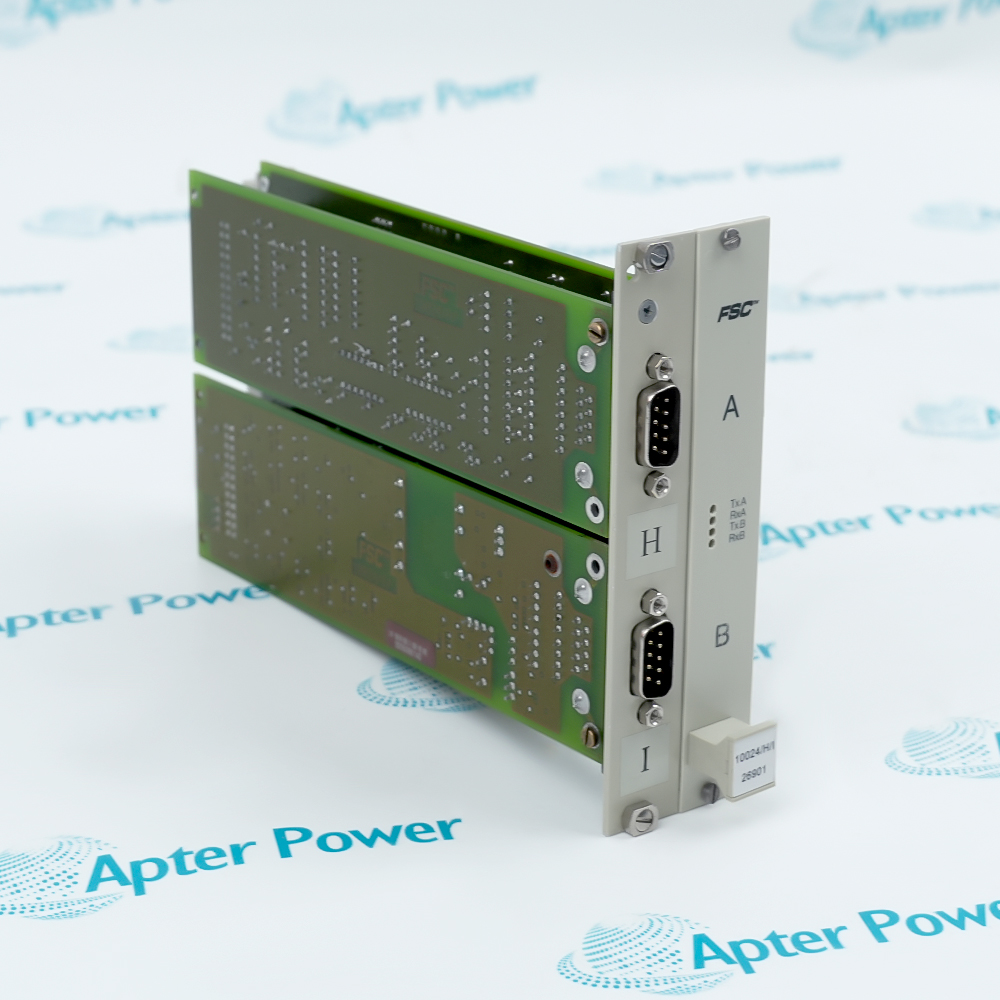

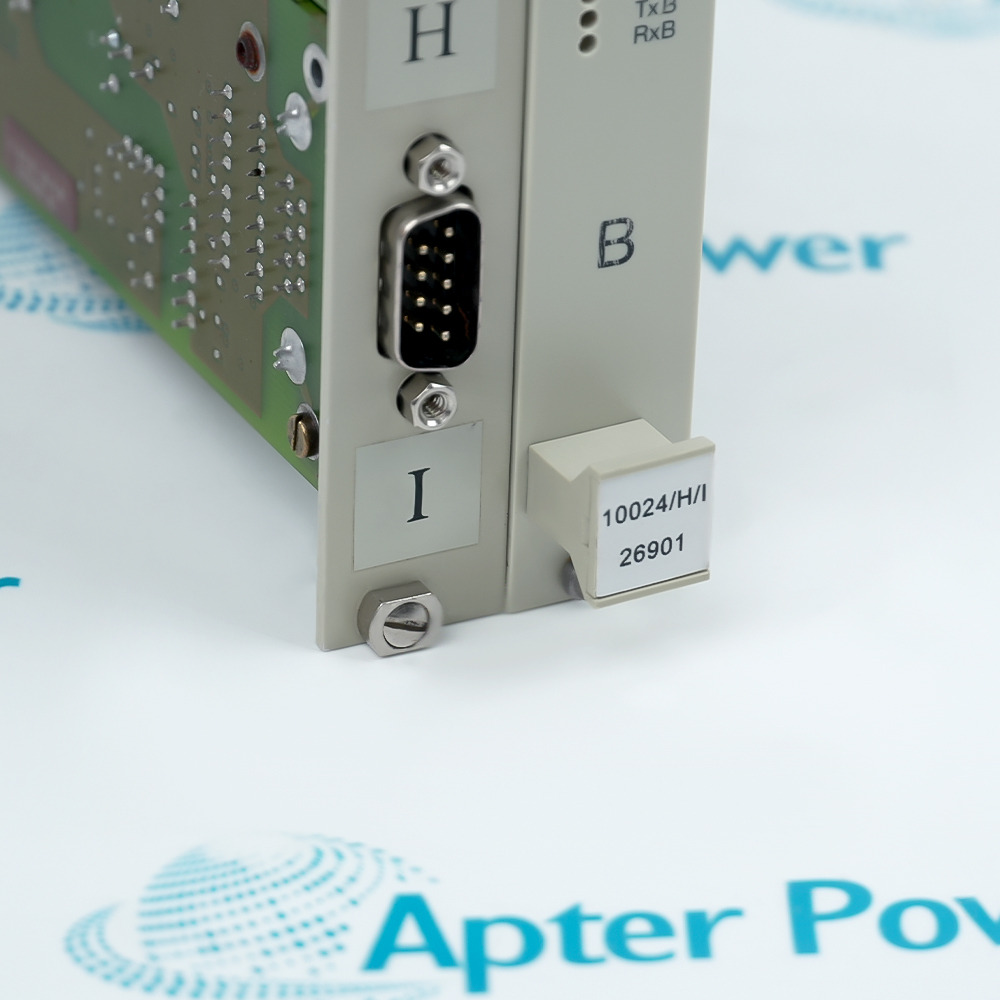

Honeywell 10024/H/I is fsc enhanced communication module. It provides the enhanced communications function for an FSC node and interfaces the configured controller path with RS-422/RS-485 serial communication.
- Provides the FSC node enhanced communications role
- Interfaces the installed internal CP path
- Connects configured RS-422/RS-485 serial equipment
- Supports controlled safety-system communication verification
10024/H/I operates with Honeywell FSC node, installed internal CP connection, RS-422/RS-485 field link, validated FSC application and node record.
Engineered applications include FSC node serial integration, Safety-system communication restoration, RS-485 engineering connection, Installed-base module replacement.
Important Notice: Confirm the complete 10024/H/I marking, FSC node position, internal CP connection and RS-422/RS-485 wiring identity before removal; prove node diagnostics and communications after restoration.
Apter Power 10024/H/I Manuals and Guides
Apter Power 10024/H/I System and Technical Reference PDFHoneywell 10024/H/I Official Engineering Document PDFThe first document provides model-specific technical and system-reference information. The second is the directly related manufacturer document used for installation, configuration and engineering verification.
FSC node serial integration
Links an FSC node with its documented serial communication path.
Safety-system communication restoration
Restores the communication hardware after controlled maintenance.
RS-485 engineering connection
Supports configured multi-drop or point-to-point serial integration.
Installed-base module replacement
Preserves the validated node and application arrangement during replacement.
Read the applicable Honeywell instructions before work. Verify 10024/H/I and the installed Honeywell FSC safety system configuration.
1
Verify 10024/H/I and its assigned FSC node position before work.
2
Place the safety function and connected process in the approved maintenance state.
3
Isolate the node supply and serial field energy before disturbing conductors.
4
Record the internal CP path, RS-422/RS-485 polarity, shields and terminal identities.
5
Use ESD controls and protect the module connectors and printed-circuit assembly.
6
Restore only the validated FSC node configuration and communication parameters.
7
Check termination and network bias against the installed serial topology.
8
Prove node diagnostics, link status and controlled data exchange before service.
Technical notes
Confirm the complete 10024/H/I marking, FSC node position, internal CP connection and RS-422/RS-485 wiring identity before removal; prove node diagnostics and communications after restoration.
FAQ View All FAQ
-
What is the documented system role of 10024/H/I?10024/H/I is fsc enhanced communication module. It provides the enhanced communications function for an FSC node and interfaces the configured controller path with RS-422/RS-485 serial communication.
-
Which host hardware must be matched with 10024/H/I?Match 10024/H/I with the documented Honeywell FSC safety system and the installed Honeywell FSC node, installed internal CP connection.
-
How should the complete 10024/H/I identification be verified?Compare the full marking with the controlling September 2022 record; the documented model is 10024/H/I.
-
What connection check is required before installing 10024/H/I?Record the internal CP path, RS-422/RS-485 polarity, shields and terminal identities.
-
How should 10024/H/I be protected during handling?Use ESD controls and protect the module connectors and printed-circuit assembly.
-
What configuration must be restored after replacing 10024/H/I?Restore only the validated FSC node configuration and communication parameters.
-
What commissioning test is required for 10024/H/I?Prove node diagnostics, link status and controlled data exchange before service.
-
Can 10024/H/I replace a visually similar part directly?No direct substitution should be assumed. Match the complete 10024/H/I code, interfaces, system length or mounting arrangement, and the approved host configuration.
