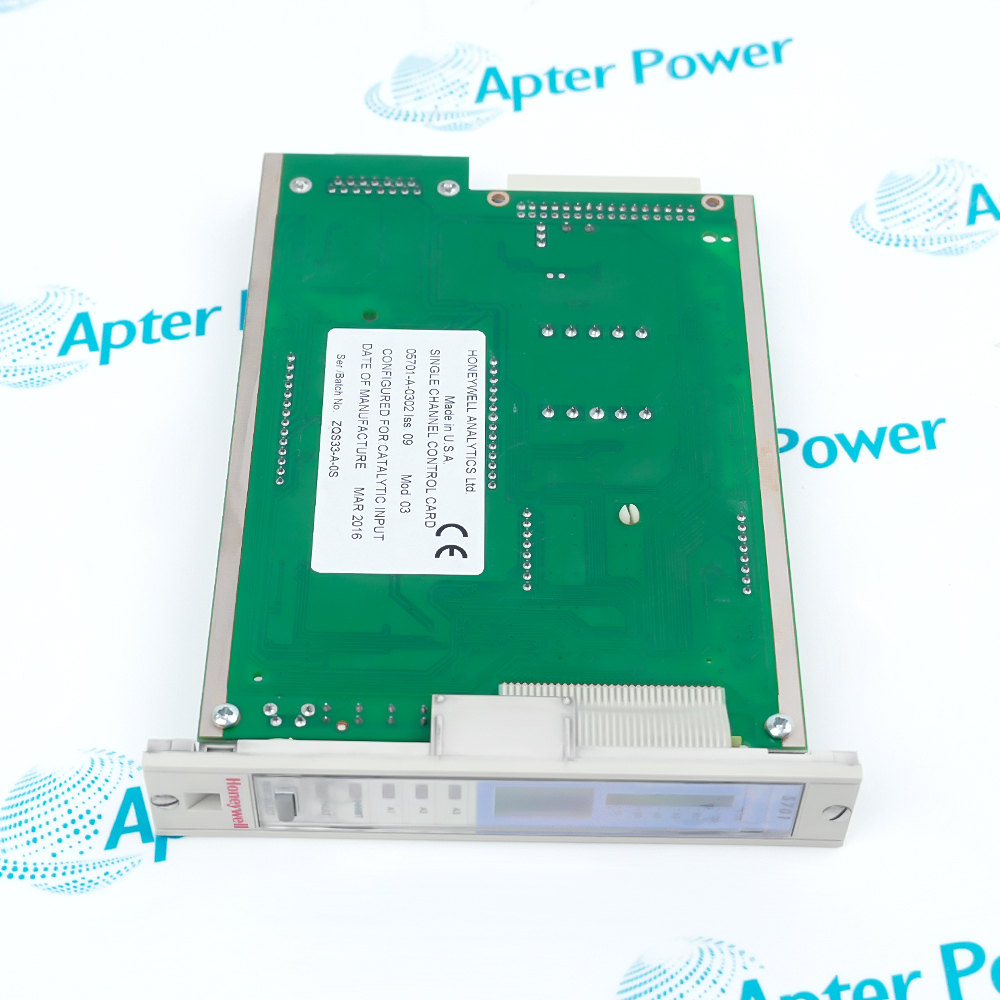

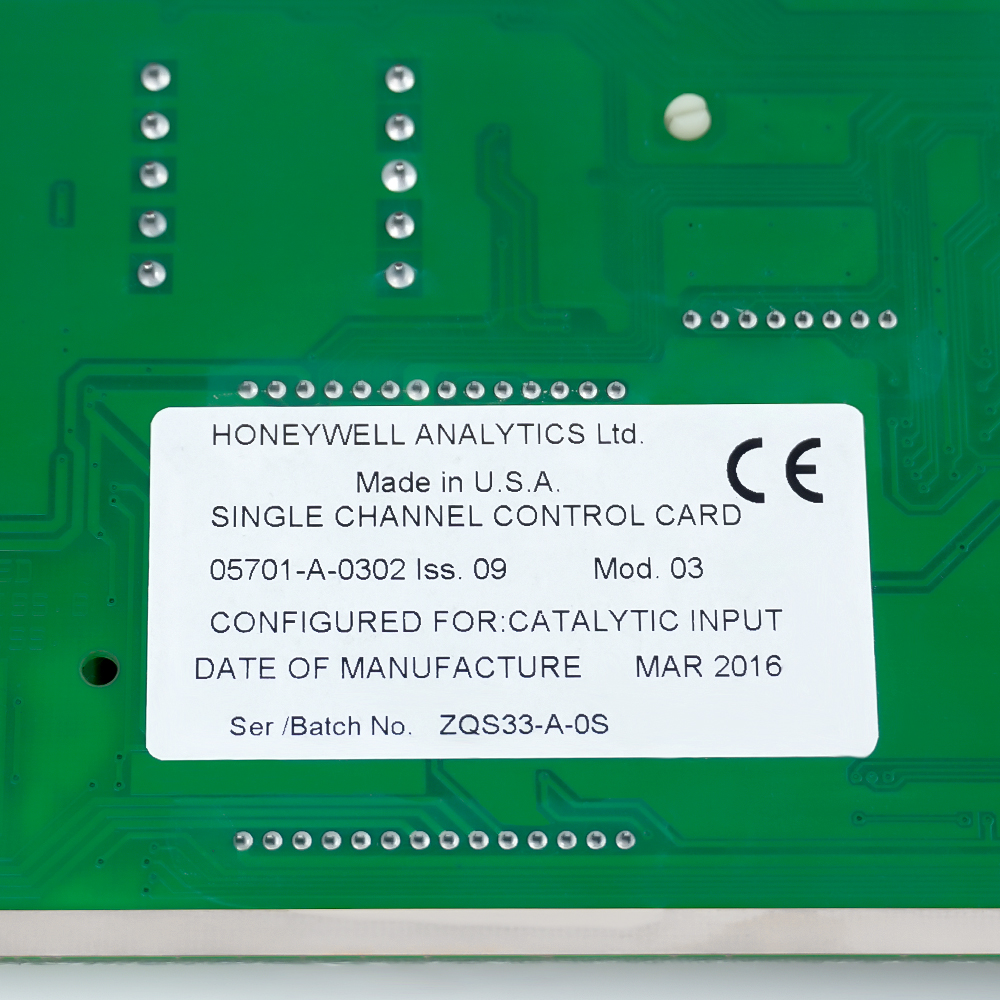

      05701-A-0302

      System 57 Catalytic Single-Channel Control Card
      In Stock
      Ships by Monday, September 14
      Fast Shipping Available

      Product Describe：

      Honeywell 05701-A-0302 is the catalytic sensor-drive execution for a System 57/5701 single-channel control card. It powers a catalytic gas detector and processes its measurement for display, alarms and system outputs.

      Ask our team:

      Get a quick price for： 05701-A-0302
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 05701-A-0302

      Technical specifications for 05701-A-0302

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        05701-A-0302
      • Estimated shipping dimensions:
        2.6x17.2x12.8cm
      • Weight:
        0.15 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Control-card type:
        Single channel
      • Sensor drive option:
        Catalytic
      • Catalytic drive module:
        05701-A-0302
      • Display:
        Four-character LCD
      • Gas reading display:
        Analogue bargraph
      • Alarm indicators:
        A1; A2; A3; STEL; LTEL
      • Fault indicator:
        Amber LED
      • Inhibit indicator:
        Amber LED
      • Reset/select control:
        Front-panel pushbutton
      • Remote reset input:
        Terminal 33
      • Remote inhibit input:
        Terminal 34
      • Remote alarm input:
        Terminal 35
      • Remote-input common:
        Terminal 36
      • Optional analog output:
        0 to 20 mA or 4 to 20 mA
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Honeywell 05701-A-0302 is the catalytic sensor-drive execution for a System 57/5701 single-channel control card. It powers a catalytic gas detector and processes its measurement for display, alarms and system outputs.
      • Drives and reads one catalytic gas detector channel
      • Displays gas concentration and channel status at the rack front
      • Evaluates configured gas alarms, fault and inhibit conditions
      • Provides local and remote reset, inhibit and alarm functions

      05701-A-0302 installs with 5701 single-channel control card, compatible catalytic gas detector, System 57 rack and DC input card, configured relay or analog-output option in an engineered System 57 / 5701 Gas Detection System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this system 57 catalytic single-channel control card.

      Important Notice: Confirm the complete 05701-A-0302 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 05701-A-0302 Manuals and Guides
      Apter Power 05701-A-0302 Product Technical Reference PDFHoneywell 05701-A-0302 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Combustible-gas monitoring in process areasDrives and reads one catalytic gas detector channel
      Catalytic detector channel replacementDisplays gas concentration and channel status at the rack front
      Gas alarm and fault annunciationEvaluates configured gas alarms, fault and inhibit conditions
      Remote inhibit and reset integrationProvides local and remote reset, inhibit and alarm functions
      Read the applicable Honeywell installation instructions before work. Verify 05701-A-0302 and the installed System 57 / 5701 Gas Detection System configuration.
      1Verify 05701-A-0302 and the assigned 5701 channel before removing the card.
      2Place the gas-detection function in the approved inhibited maintenance state.
      3Isolate detector and relay circuits where required before disturbing terminals.
      4Record detector type, range, alarm thresholds and relay action before replacement.
      5Use ESD controls and protect the catalytic drive-module connectors.
      6Restore field wiring to the original numbered terminals and preserve shield practice.
      7Calibrate zero and span with the approved detector gas and procedure.
      8Prove alarm, fault, inhibit, reset and any analog-output response before service.

      Technical notes

      Technical notes

      Match the catalytic detector type and bridge parameters to the 5701 configuration, then perform zero, span, alarm, fault and remote-input tests with the area under the approved gas-testing procedure.

      FAQS

      • How should 05701-A-0302 be commissioned for Combustible-gas monitoring in process areas?
        Apply a controlled input, output or operating condition and verify the expected drives and reads one catalytic gas detector channel response together with the product-specific diagnostics.
      • Which diagnostics should be checked after replacing 05701-A-0302?
        Review the applicable power, communication, channel and fault indications for 05701-A-0302, then confirm that no unexpected alarm or bypass remains active.
      • Can 05701-A-0302 be replaced by a similar family model without engineering review?
        No. The complete model, electrical or pneumatic execution, companion hardware and approved system configuration must match the installed duty.
      • What evidence should be retained after 05701-A-0302 returns to service?
        Retain the full 05701-A-0302 identity, as-left connections, restored configuration, final diagnostics and the controlled functional-test result.
      • Which installed hardware must be matched before using 05701-A-0302?
        Match 05701-A-0302 to 5701 single-channel control card, compatible catalytic gas detector and the complete physical marking; do not transfer a configuration from an adjacent model.
      • How should engineers isolate 05701-A-0302 before replacement?
        Place the associated process function in its approved maintenance state and isolate the power, signal or pneumatic energy connected to 5701 single-channel control card.
      • What connection information should be recorded before removing 05701-A-0302?
        Record every terminal, cable, channel, group and companion-component assignment associated with 05701-A-0302 before any conductor or connector is moved.
      • Which configuration must be restored after installing 05701-A-0302?
        Restore only the approved System 57 / 5701 Gas Detection System configuration for the original position, including the model-specific channel, network, timing or pressure settings.
