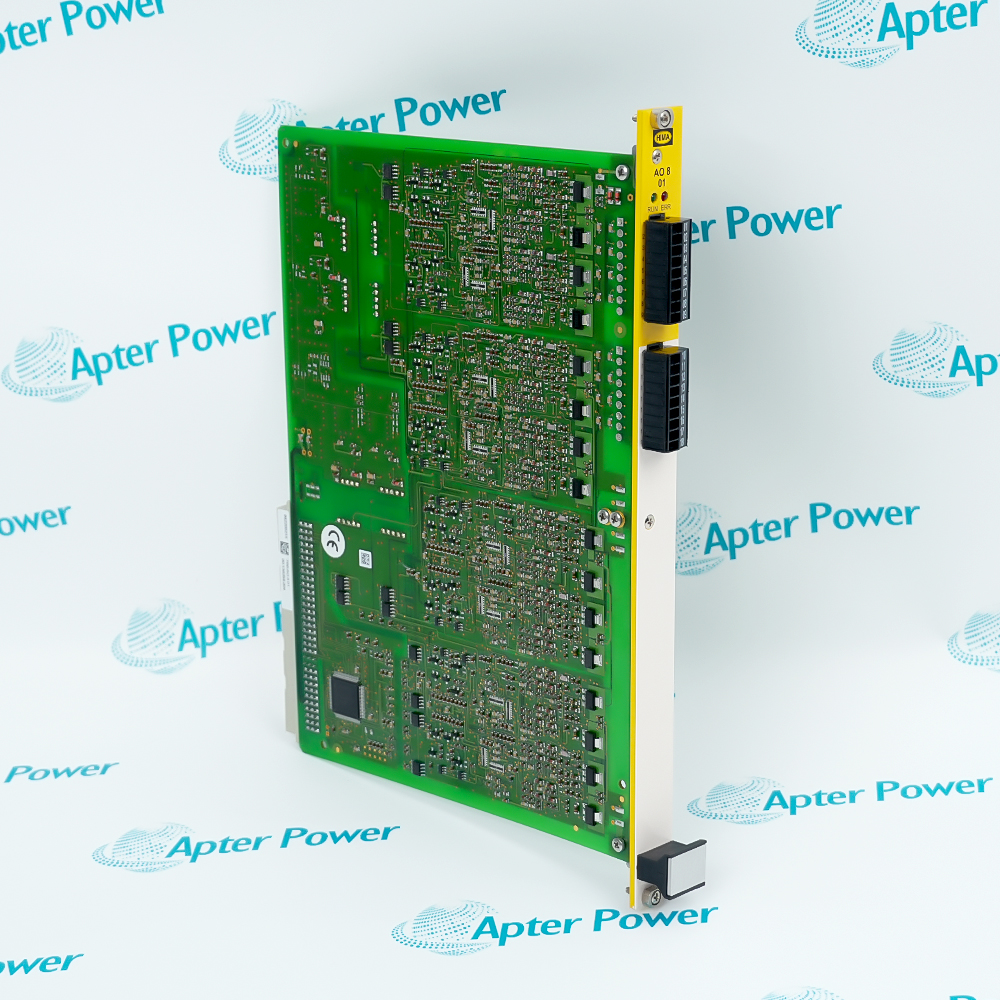

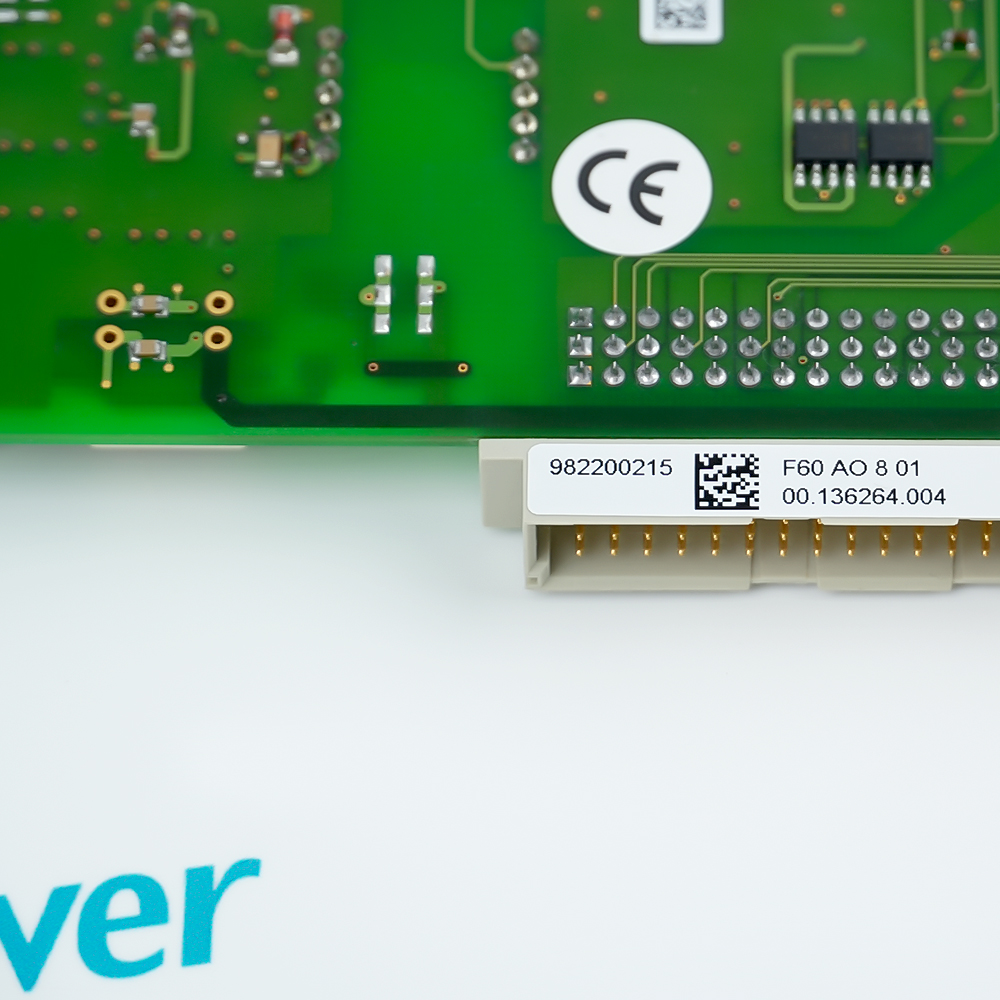

The F60AO801 is a module for the modular F60 HIMatrix system.The module can be inserted in the F60 subrack's slot 3...8. Slots 1 and 2 are reserved for the power supply module and central module, espectively.
SIL 3 Safety Certified
8-Channel Analog Outputs
12-Bit High Resolution
The safety-related analog AO 8 01 system has 8 outputs with a 12-bit resolution. Each group of 8 safety-related outputs is galvanically separated from the other output pairs and the supply
voltage.On the module, the outputs can be either configured as current outputs or voltage outputs.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
HIMA F60AO801 ANALOG OUTPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas
Used for regulating valves and actuators in Emergency Shutdown (ESD) systems. It provides SIL 3 compliant safety outputs for pressure monitoring and flow control to ensure equipment resets to a safe state.
Chemical Processing
Applied in the precision regulation of critical process variables such as reactor temperature and pressure. It drives actuators via 0/4...20 mA signals and de-energizes outputs to 0 mA upon fault detection.
Power Generation
Commonly used in Burner Management Systems (BMS) and boiler feedwater control. Its 12-bit high resolution ensures actuator precision while meeting the stringent requirements of IEC 61508 for power facilities.
Petrochemical Refining
Deployed in Fire and Gas (F&G) systems and unit interlock logic. It supports continuous monitoring of field control devices and provides real-time diagnostics via the system bus to prevent secondary disasters.
Offshore Platforms
Used for production process control and safety isolation on offshore drilling platforms. Its interference-resistant design and high current accuracy allow reliable control of safety valves and hydraulic drives in extreme environments.
Pharmaceutical Manufacturing
Suitable for highly automated pharmaceutical processes and sterilization control. In logic loops requiring high reliability, it provides closed-loop regulation of fine process parameters via 8 analog channels.
If a module fault occurs, the affected outputs are de-energized.To configure the analog outputs as a voltage or current outputs, each channel of the AO 8 01 module has a DIP switch with 6 functions located on the printed circuit board (PCB), next to the front plate. The switches are arranged top-down following the the order of channels 1...8.
If the module detects a discrepancy between the read back value of the output signal and the configured value, the defective output is switched off via the safety switches. The module activates the ERR LED. The error code allows the user to configure additional fault reactions in the user program.
The worst case reaction time WDT AO is 12 ms.To determine the worst case reaction time of the analog outputs, add the double watchdog time of the AO CPU (2 * WDT AO-μC ) to the double watchdog time (2 * WDT CPU ),
What is the output signal range of the HIMA F60AO801 module?
The module provides 8 analog outputs with 0/4...20 mA range and 12-bit resolution. It is certified for safety-related applications up to SIL 3.
What is the external power requirement for HIMA F60AO801?
It requires an external supply of 24 V DC (18...30 V DC range). The maximum current consumption from the external 24 V source is 350 mA.
What is the maximum load resistance for HIMA F60AO801 outputs?
The maximum load resistance (burden) for the 0/4...20 mA current outputs is 500 ohms.
How does HIMA F60AO801 indicate module errors?
Internal and external errors are indicated by the red "ERR" LED on the front panel and reported via the system bus.
What is the fail-safe state of the HIMA F60AO801 outputs?
In the event of a fault, the safety-related analog outputs are de-energized and set to a safe state of 0 mA.
