What does GE IS200BICLH1AED connect in the drive?

It links the Innovation Series main control board to BPIA, BPIB or SCNV bridge personality hardware through the VME P1 and P2 interfaces.

Which rack position is specified for GE IS200BICLH1AED?

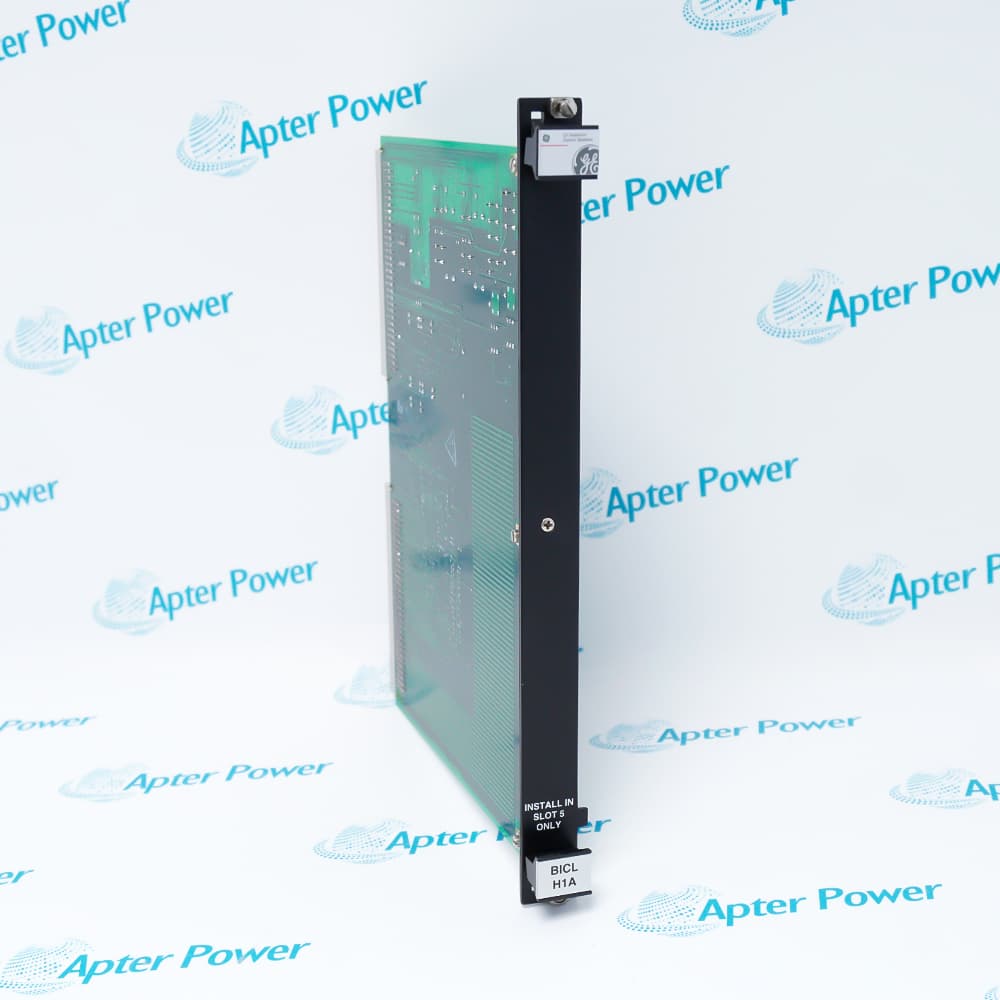

The BICL faceplate identifies slot 5; verify the keyed rack and installed drive drawing before insertion.

How many RTD channels does GE IS200BICLH1AED process?

The BICL design has four 10-bit RTD analog channels with a 0-5 V conversion range.

What levels can the GE IS200BICLH1AED fault strings accept?

The isolated panel and system fault-string inputs are specified for 24 or 115 V ac/dc with 20 mA maximum loading.

What is the GE IS200BICLH1AED fan-control output?

It is an isolated open-collector PWM output rated at 60 V dc and 10 mA.

Does GE IS200BICLH1AED use the same signals in BPIA and SCNV applications?

No. Several P1 and P2 assignments change with the configured bridge personality, so use the correct application table.

What happens if the BICL watchdog loses its 20 MHz clock?

Bridge firing is disabled and the MA/MB contactors drop out; a running bridge loses IGBT driver power within the documented protection interval.

Which checks should close a GE IS200BICLH1AED replacement?

Verify exact revision, slot seating, P1/P2 integrity, fault strings, contactor response, RTD conversion, fan PWM and controlled shutdown behavior.

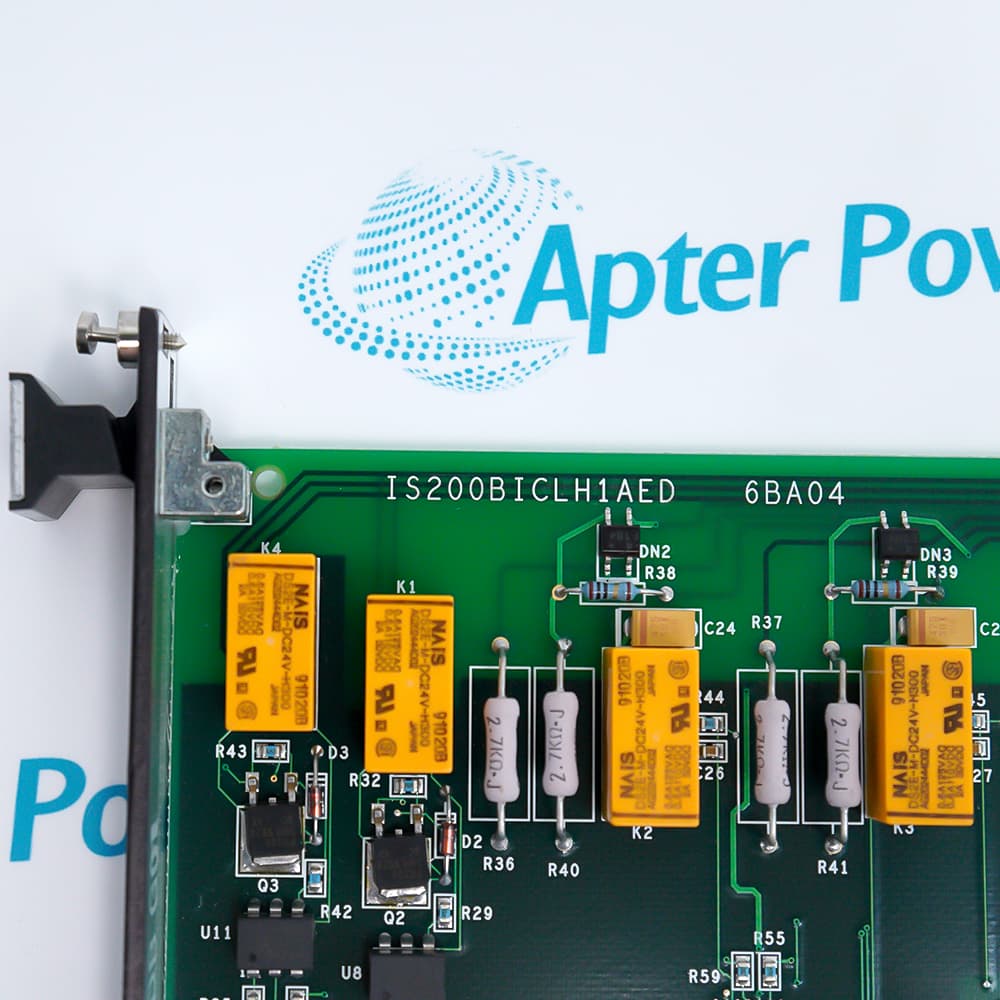

IS200BICLH1AED

Name: IS200BICLH1AED
Brand: General Electric
SKU: IS200BICLH1AED

Bridge Interface Board

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

GE IS200BICLH1AED coordinates drive bridge firing permissives, contactor pilots and protection feedback through its P1 and P2 VME interfaces. The H1 construction denotes the conformally coated BICL board family; the complete AED revision must remain matched to the installed drive record.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for IS200BICLH1AED

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for IS200BICLH1AED

Manufacturer:

General Electric
Product Category:

General Automation
Spare Part Number:

IS200BICLH1AED
Estimated shipping dimensions:

11x7.5x2.2cm
Weight:

0.05 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Board family:

IS200BICLH_A_ _
Mounting:

VME rack, designated slot 5
Main connectors:

P1 bridge-control interface and P2 control/backplane interface
RTD inputs:

4 channels, 10-bit conversion, 0-5 V transfer range
Fault-string inputs:

24 or 115 V ac/dc, 20 mA maximum loading
MA sense input:

24-115 V ac/dc, 4-10 mA peak loading
Fan PWM output:

Isolated open collector, 60 V dc, 10 mA
Logic supplies:

+5 V dc, +15 V dc, -15 V dc and isolated +24 V dc

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

GE IS200BICLH1AED occupies the designated BICL position in an Innovation Series VME rack and executes programmable bridge-interface logic loaded from the main control board. It combines interlock supervision, RTD conversion, fan PWM control and bridge shutdown logic so faults can remove firing permission before the associated contactors drop out.

BICL interface between main control and bridge personality boards
Two isolated panel and system fault-string inputs
Four-channel 10-bit RTD analog conversion
Isolated open-collector fan PWM output

The operating chain runs from Innovation Series main control board → IS200BICLH1AED in VME slot 5 → BPIA / BPIB or SCNV bridge interface → IGBT or SCR bridge, contactors and cooling fan; document each boundary and prove the intended final response before release.

Important Notice: Match the full AED revision, keyed slot and bridge-personality wiring to the controlled drive record before energization.

GE IS200BICLH1AED Manuals & Downloads

GE IS200BICLH1AED Technical Reference (PDF)GE IS200BICLH1AED Installation & Commissioning Guide (PDF)

The Technical Reference consolidates BICL architecture, interface ratings and diagnostic logic. The separate commissioning guide turns those boundaries into a controlled replacement and functional-test sequence.

IGBT bridge control

Generates timing and enable logic when the installed drive uses BPIA or BPIB personality hardware.

SCR / dynamic braking control

Supports SCNV applications with gate-pattern and braking-device supervision.

Drive interlocking

Monitors panel and system fault strings before allowing contactor and bridge operation.

Thermal management

Reads four RTD channels and issues an isolated PWM command for fan speed control.

Apply these controls specifically to GE IS200BICLH1AED before isolation, replacement, reconnection, energization and final release.

Install IS200BICLH1AED only in the keyed BICL slot identified for the drive; the GE faceplate specifies slot 5.

De-energize and prove absence of hazardous voltage before removing the VME board or touching P1/P2 circuits.

Use grounded ESD handling and keep the board in antistatic packaging outside the rack.

Confirm whether the application uses BPIA/BPIB or SCNV logic before comparing pin functions.

Verify both panel and system fault strings at the correct 24 V or 115 V level before enabling contactors.

Inspect the MA/MB pilot and sense wiring so bridge firing cannot remain enabled through an open interlock.

Do not force the keyed board into another VME position or adjust hardware while control power is present.

After replacement, test watchdog shutdown, contactor sequencing, RTD values and fan PWM response before loading the drive.

Technical notes

Treat AED as part of the complete installed identity and verify the keyed VME slot before insertion. Close the work record with P1/P2 integrity, fault-string response, RTD conversion, contactor sequencing and fan-PWM evidence.

FAQ View All FAQ

What does GE IS200BICLH1AED connect in the drive?

It links the Innovation Series main control board to BPIA, BPIB or SCNV bridge personality hardware through the VME P1 and P2 interfaces.
Which rack position is specified for GE IS200BICLH1AED?

The BICL faceplate identifies slot 5; verify the keyed rack and installed drive drawing before insertion.
How many RTD channels does GE IS200BICLH1AED process?

The BICL design has four 10-bit RTD analog channels with a 0-5 V conversion range.
What levels can the GE IS200BICLH1AED fault strings accept?

The isolated panel and system fault-string inputs are specified for 24 or 115 V ac/dc with 20 mA maximum loading.

What is the GE IS200BICLH1AED fan-control output?

It is an isolated open-collector PWM output rated at 60 V dc and 10 mA.
Does GE IS200BICLH1AED use the same signals in BPIA and SCNV applications?

No. Several P1 and P2 assignments change with the configured bridge personality, so use the correct application table.
What happens if the BICL watchdog loses its 20 MHz clock?

Bridge firing is disabled and the MA/MB contactors drop out; a running bridge loses IGBT driver power within the documented protection interval.
Which checks should close a GE IS200BICLH1AED replacement?

Verify exact revision, slot seating, P1/P2 integrity, fault strings, contactor response, RTD conversion, fan PWM and controlled shutdown behavior.
