      IC697CPM915

      Series 90-70 CPU
      In Stock
      Ships by Tuesday, November 10
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      GE IC697CPM915 executes real-time machine and process control in a Series 90-70 rack. It supports discrete and analog I/O, IC660/IC661 networks, intelligent option modules and an RS-422/485-compatible programmer connection.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for IC697CPM915
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for IC697CPM915

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC697CPM915
      • Estimated shipping dimensions:
        4x21.8x29.3cm
      • Weight:
        0.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Processor:
        32 MHz 80486DX
      • Memory:
        1 MB battery-backed
      • Boolean execution:
        0.4 µs per function
      • Discrete capacity:
        12K inputs and outputs, any mix
      • Analog capacity:
        Up to 8K I/O
      • Serial interface:
        RS-422/485 compatible
      • Backplane current:
        2.8 A nominal from 5 V bus
      • Memory retention:
        6 months nominal without applied power
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions

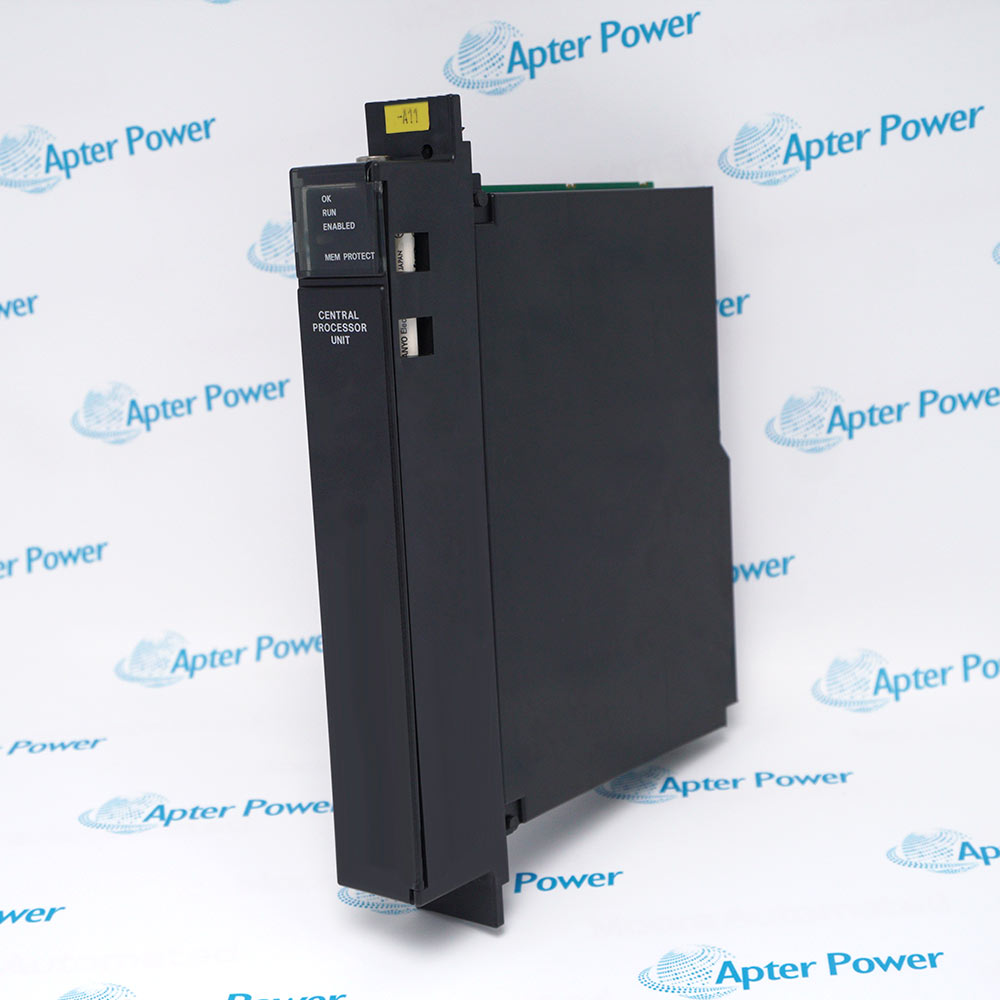

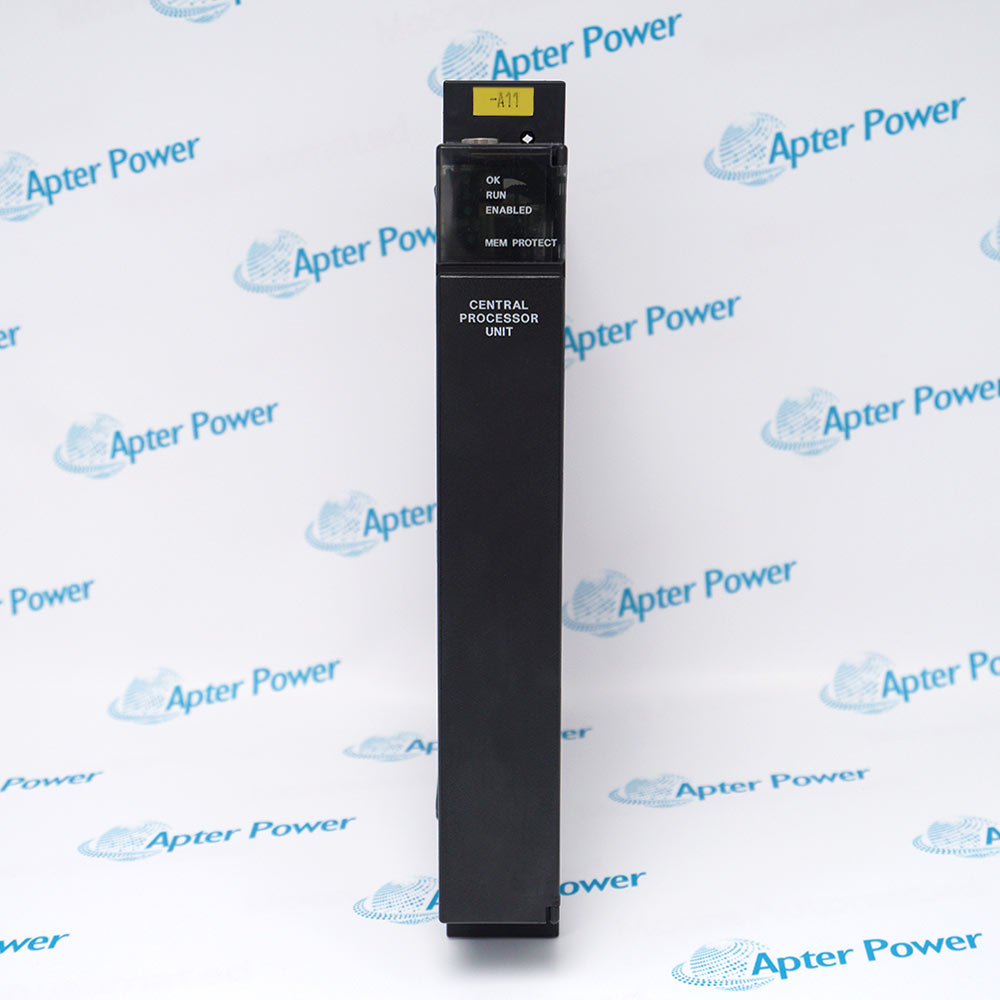

      GE IC697CPM915 combines the processor, floating-point capability, memory board and battery-backed clock in one rack position. Front controls provide run/stop selection and memory protection, while LEDs report module health, run state and output enable status.
      • 32 MHz 80486DX processor
      • 1 MB battery-backed memory
      • 12K discrete I/O and up to 8K analog I/O
      • 0.4 µs per Boolean function

      The engineered signal path is Engineering configuration and program → IC697CPM915 CPU and memory → VME C.1 rack backplane → IC697, IC660 and IC661 I/O. Commission each boundary against the controlled project record.

      Important Notice: Install IC697CPM915 only in slot 1 of a compatible Series 90-70 CPU rack.

      GE IC697CPM915 Manuals & Downloads
      GE IC697CPM915 Technical Reference (PDF)GE IC697CPM915 Installation & Commissioning Guide (PDF)

      The Technical Reference is a model-specific official GE manual excerpt. The separate Installation & Commissioning Guide organizes field preparation, verification and acceptance for GE IC697CPM915.

      Machine control
      Executes mixed Boolean and floating-point logic for equipment sequences.
      Process control
      Coordinates analog I/O and intelligent option modules in one rack system.
      Material handling
      Supports deterministic rack I/O and distributed IC660/IC661 data.
      Legacy Series 90-70 maintenance
      Maintains programs and hardware configurations built around the CPM915 platform.
      Apply these controls specifically to GE IC697CPM915 before isolation, replacement, reconnection, energization and final release.
      1
      Install IC697CPM915 only in slot 1 of a compatible Series 90-70 CPU rack.
      2
      Record the complete hardware configuration and program checksum before replacing the CPU.
      3
      Install the new battery on the spare connector before unplugging the old battery.
      4
      Verify that the rack power supply can provide the CPU's 2.8 A nominal 5 V load.
      5
      Match the run switch and output-enable state to the approved commissioning plan.
      6
      Confirm RS-422/485 cable pinout and grounding before connecting a programmer.
      7
      Protect the program with the memory key only after the final configuration has been stored and verified.
      8
      After restart, validate the clock, battery status, I/O scan, option modules and controlled output transition.

      Technical notes

      GE IC697CPM915 is a single-slot Series 90-70 CPU with a 32 MHz 80486DX processor, floating-point execution and 1 MB of battery-backed memory.

      FAQ View All FAQ

      • Which processor is used by GE IC697CPM915?
        It uses a 32 MHz 80486DX microprocessor with floating-point support.
      • How much memory is installed in GE IC697CPM915?
        The CPU carries 1 MB of configurable battery-backed program and data memory.
      • What discrete I/O capacity does GE IC697CPM915 support?
        It supports 12K inputs and outputs in any mix.
      • What analog I/O capacity is available with GE IC697CPM915?
        The documented system capacity is up to 8K analog I/O.
      • Which rack slot is required for GE IC697CPM915?
        The CPU must be installed in slot 1 of the compatible Series 90-70 rack.
      • What serial interface is built into GE IC697CPM915?
        The front 15-pin port is RS-422/485 compatible for programming and serial attachment.
      • How long is GE IC697CPM915 memory retained without rack power?
        The manual specifies six months nominal retention with the installed battery.
      • How should the GE IC697CPM915 battery be replaced?
        Connect the new IC697ACC701 battery to the unused connector before disconnecting the old battery, then verify battery status.
